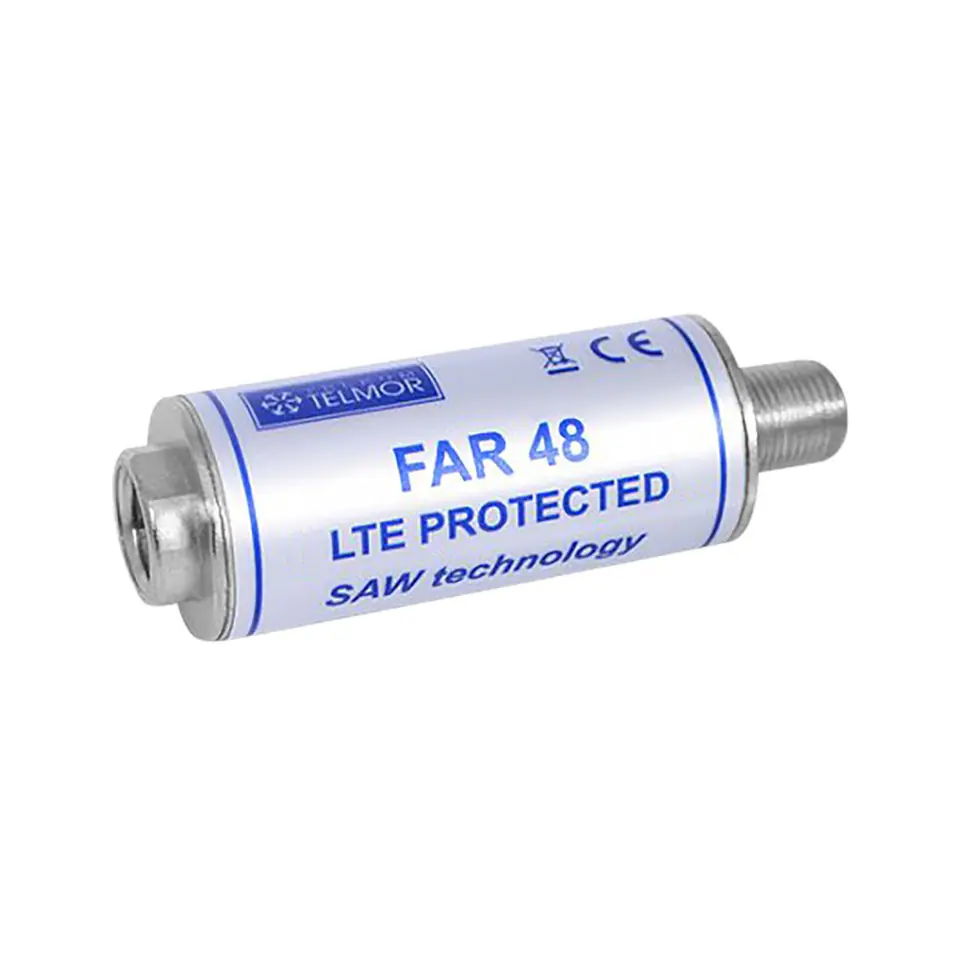

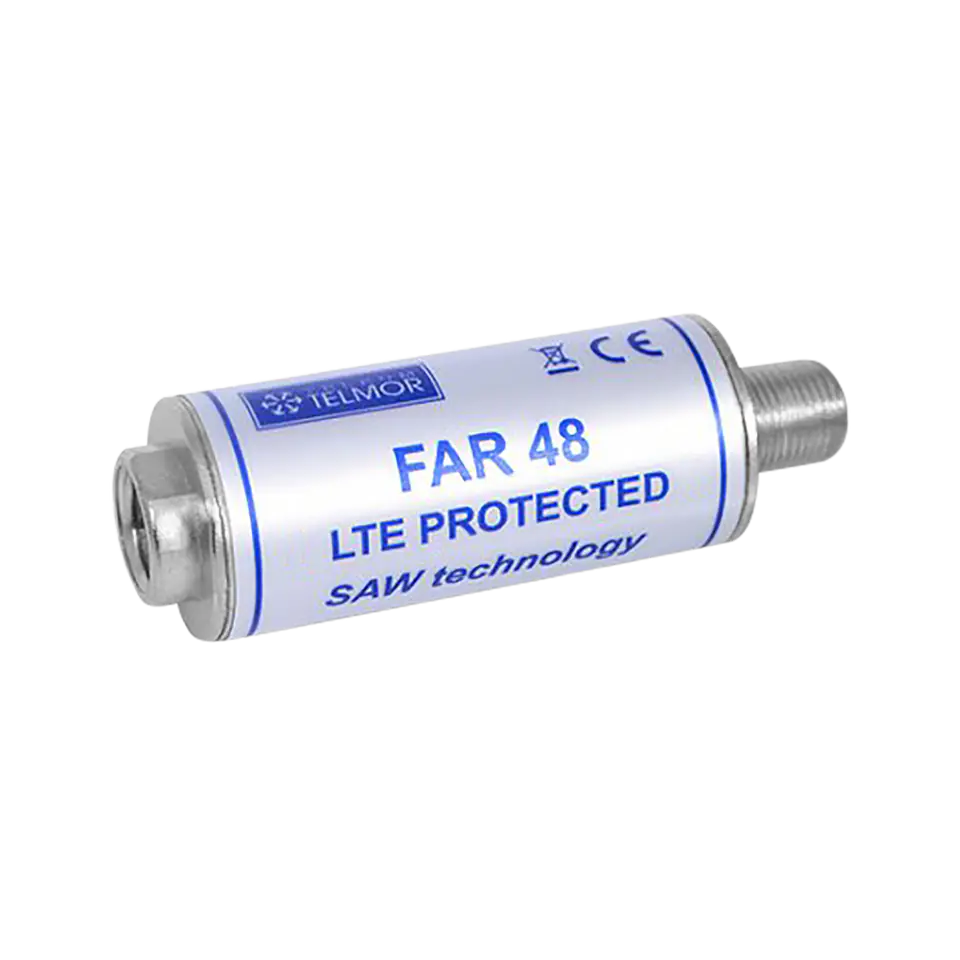

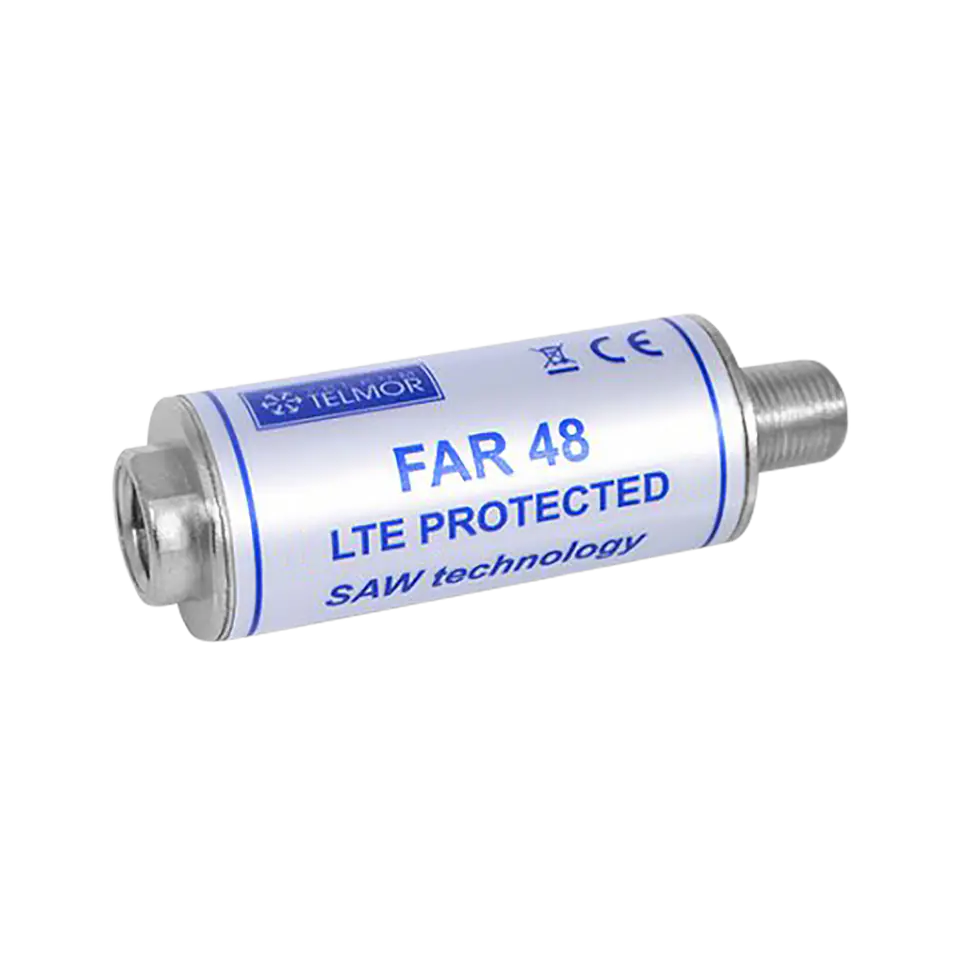

5G Filter FAR 48 LTE SAW LPF 686MHz Telkom Telmor

----------
Technical Specifications
----------
Frequency range in the pass band: 47-694 MHz
Attenuation in the pass band: 4 dB
Stop attenuation: >18 dB / 698-718 MHz; >26 dB / 718-725 MHz; >30 dB / 725-2600 MHz
DC transition: no
Input Impedance: 75 Ohm
Output Impedance: 75 Ohm
Input connector type: F socket
Output connector type: F plug
Operating temperature: -20~50 Celsius degree
Dimensions: 64 mm (length) x 20 mm (diameter)
Weight: 0.045 kg


-----------
General
-----------
FAR 48 is a low-pass LTE filter designed to cut out interfering signals in the frequency range above 694 MHz, including LTE 700 and 5G signals. The filter transmits signals in the frequency range of 47-694MHz, which corresponds to TV and radio channels from the following bands: FM, VHF, UHF.
The filter is designed for indoor operation.
