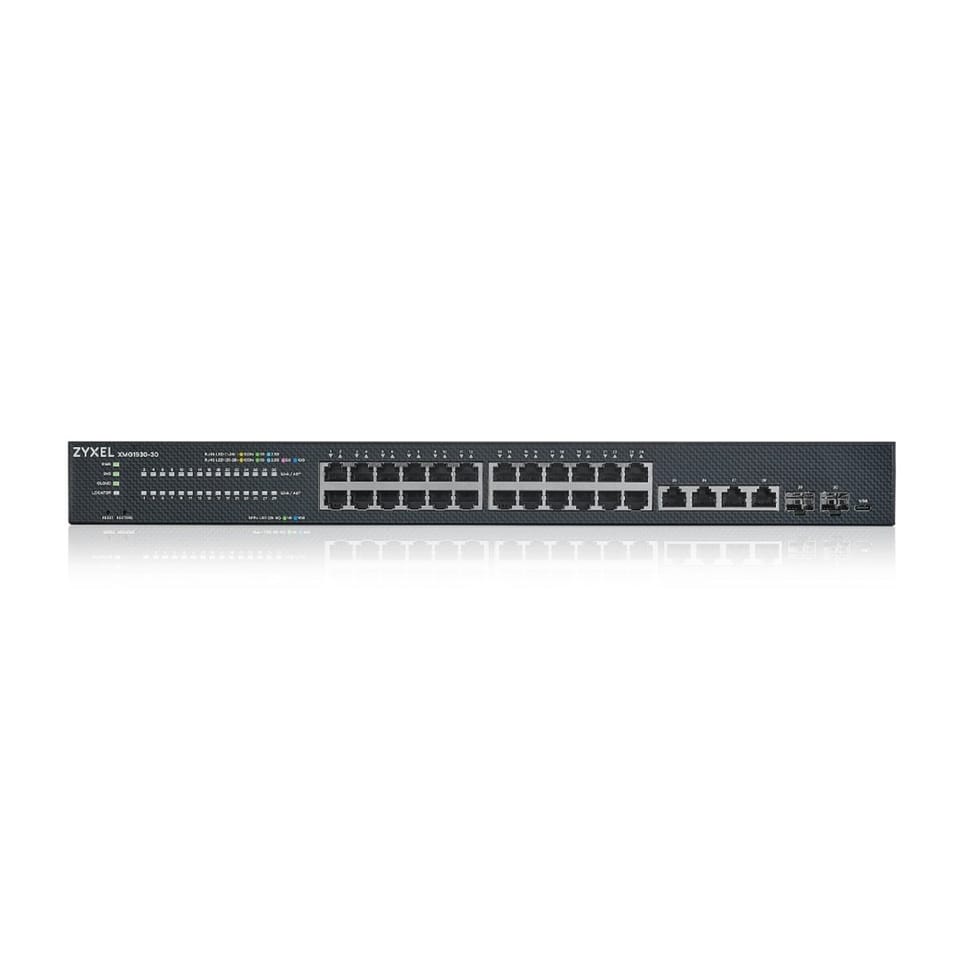

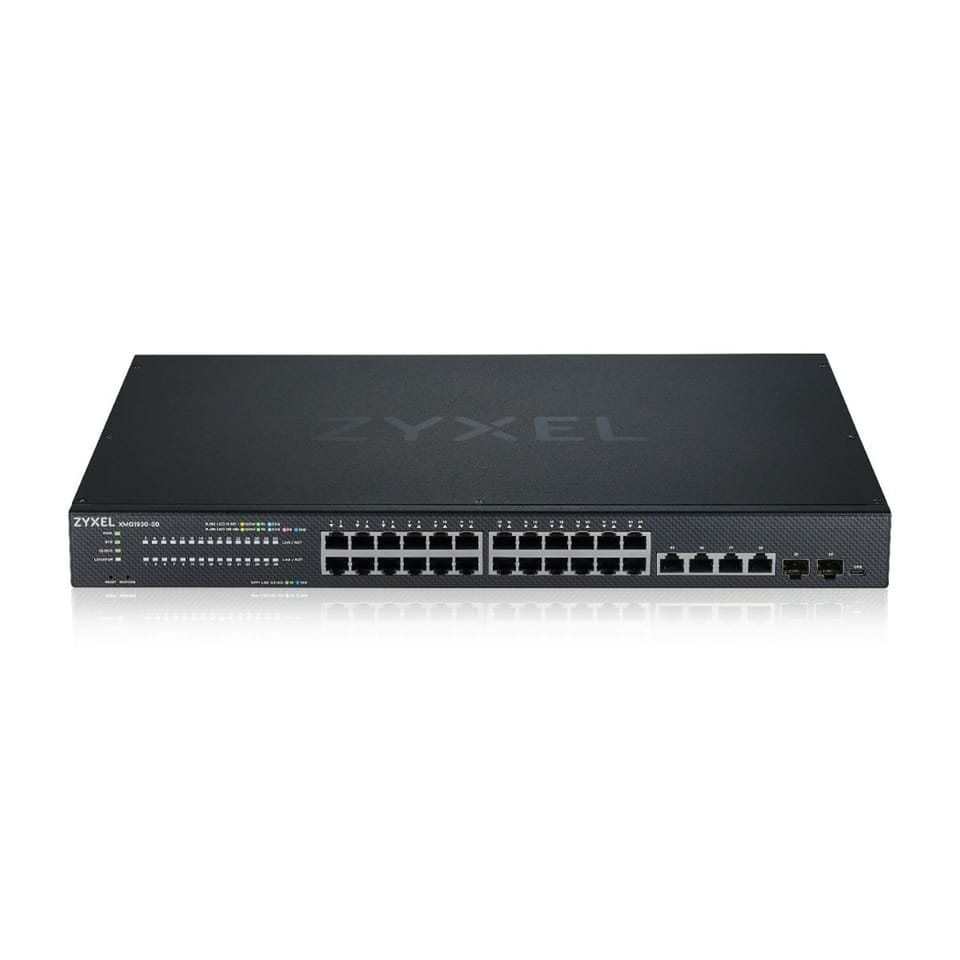

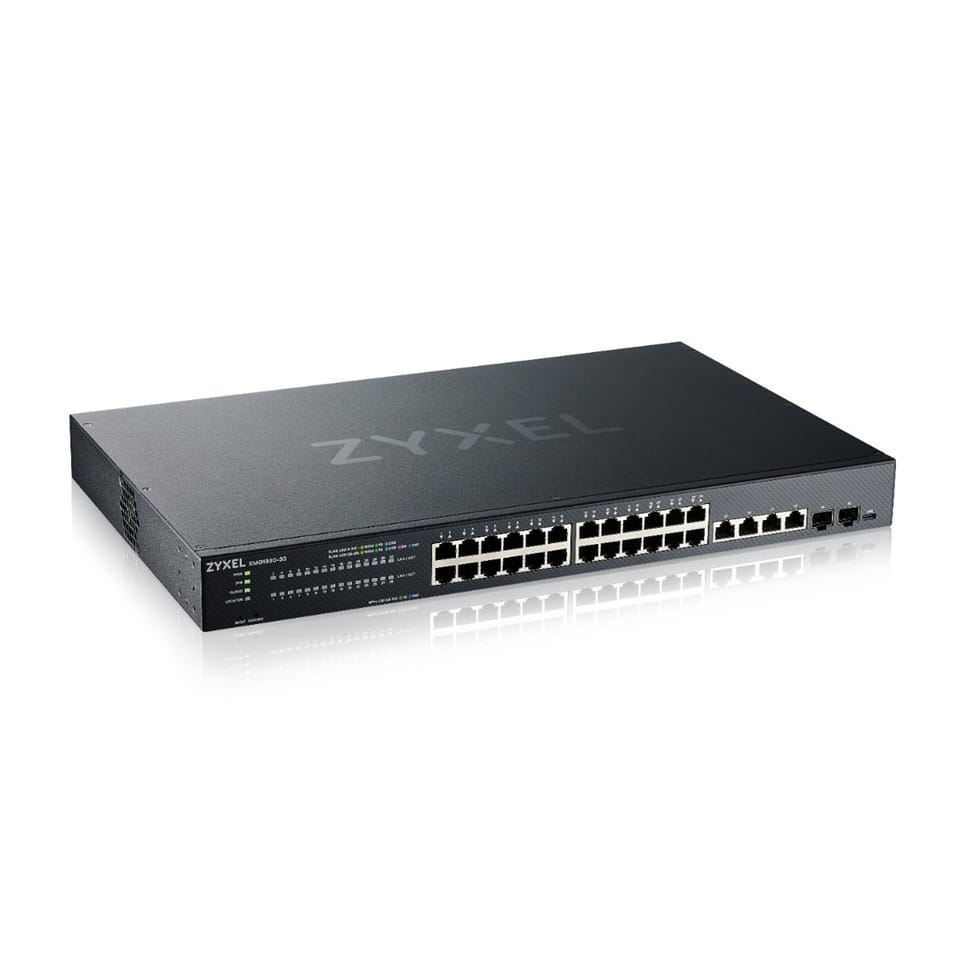

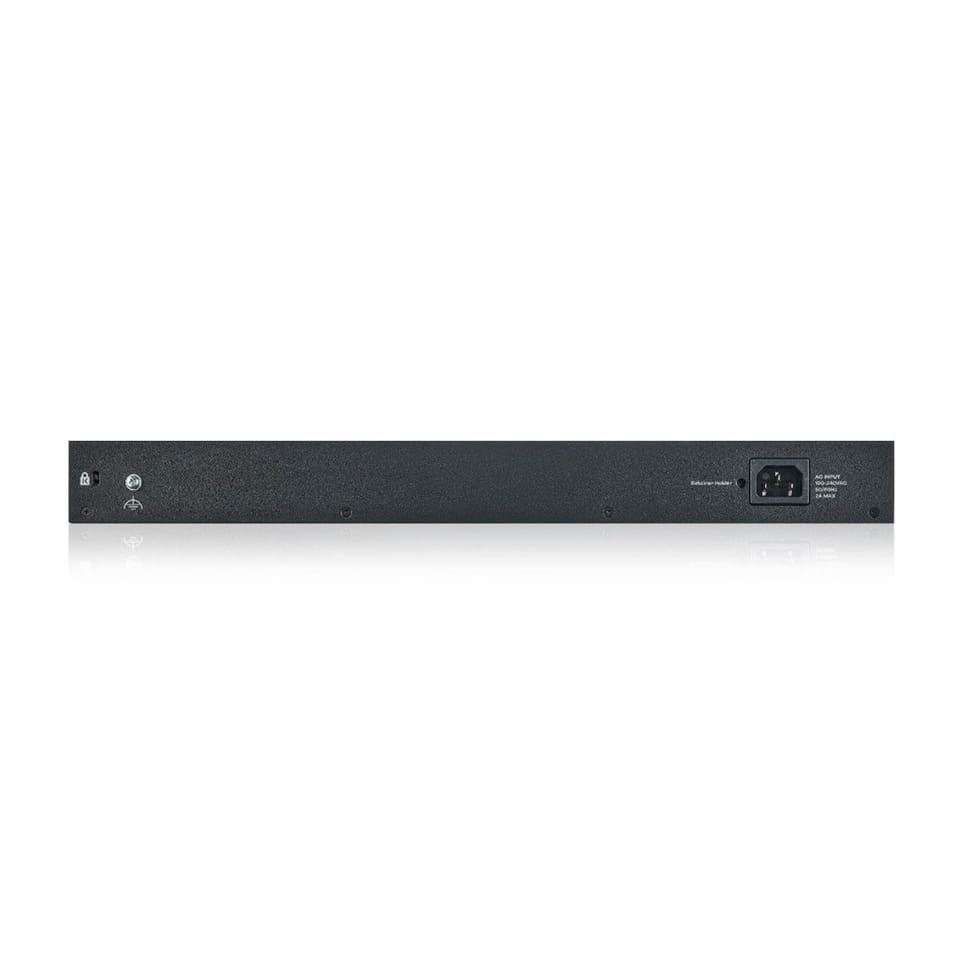

Zyxel XMG1930-30 Managed L3 2.5G Ethernet (100/1000/2500) Black
This product is not available
- Availability:
- expected delivery
- Brand:
- Zyxel
- Product code:
- XMG1930-30-ZZ0101F / 4718937622054
Share this product:
Specification
| 10g ethernet (copper) ports quantity: | 4 |
|---|---|
| 10g support: | Yes |
| Ac input frequency: | 50 - 60 Hz |
| Ac input voltage: | 100 - 240 V |
| Authentication: | Guest VLAN, MAC-based authentication |
| Basic switching rj-45 ethernet ports quantity: | 24 |
| Basic switching rj-45 ethernet ports type: | 2.5G Ethernet (100/1000/2500) |
| Broadcast storm control: | Yes |
| Cables included: | AC |
| Compliance certificates: | Federal Communications Commission (FCC), Low Voltage Directive (LVD), RoHS, CE |
| Copper ethernet cabling technology: | 2500BASE-T, 10GBASE-T, 1000BASE-T |
| Depth: | 270 mm |
| Dhcp features: | DHCP relay, DHCP Option 82, DHCPv6 client, DHCPv6 relay |
| Ethernet lan data rates: | 100,1000,2500,10000 Mbit/s |
| Fiber optic connector: | SFP+ |
| Fiber ports quantity: | 2 |
| Flash memory: | 32 MB |
| Flow control support: | Yes |
| Forwarding rate: | 178.5 Mpps |
| Garp vlan registration protocol (gvrp): | Yes |
| Heat dissipation: | 67.1 BTU/h |
| Height: | 44 mm |
| Igmp snooping: | Yes |
| Internal memory: | 256 MB |
| Ipv4 & ipv6 features: | Dual stack IPv4/IPv6 |
| Jumbo frames: | 12000 |
| Jumbo frames support: | Yes |
| Led indicators: | Yes |
| Link aggregation: | Yes |
| Mac address table: | 16000 entries |
| Mean time between failures (mtbf): | 532217 h |
| Networking standards: | IEEE 802.1D, IEEE 802.3z, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3ad, IEEE 802.1s, IEEE 802.3x, IEEE 802.3at, IEEE 802.3af, IEEE 802.1x, IEEE 802.3bt, IEEE 802.1w, IEEE 802.3ae, IEEE 802.3bz, IEEE 802.3an |
| Noise level: | 47.6 dB |
| Number of power supply units: | 1 |
| Number of vlans: | 4000 |
| Operating relative humidity (h-h): | 5 - 95% |
| Operating temperature (t-t): | -20 - 50 °C |
| Packet buffer memory: | 2 MB |
| Power connector: | AC-in jack |
| Power consumption (max): | 67.1 W |
| Power over ethernet (poe): | No |
| Power source: | AC |
| Power supply included: | Yes |
| Product colour: | Black |
| Quality of service (qos) support: | Yes |
| Queue scheduling algorithms: | Strict Priority Queue (SPQ), Weighted Round Robin (WRR), WFQ |
| Rack mounting: | Yes |
| Rate limiting: | Yes |
| Security algorithms: | SNMPv2, SSL/TLS, SHA-2, SNMPv3, SNMP, HTTPS, 802.1x RADIUS |
| Spanning tree protocol: | Yes |
| Ssh/ssl support: | Yes |
| Static route: | Yes |
| Storage relative humidity (h-h): | 5 - 95% |
| Storage temperature (t-t): | -40 - 70 °C |
| Sustainability certificates: | Federal Communications Commission (FCC), Low Voltage Directive (LVD), RoHS, CE |
| Sustainability compliance: | Yes |
| Switch layer: | L3 |
| Switch type: | Managed |
| Switching capacity: | 240 Gbit/s |
| System event log: | Yes |
| Virtual lan features: | VLAN Identifier ( VLAN ID), Port-based VLAN, Voice VLAN |
| Vlan support: | Yes |
| Weight: | 3.81 kg |
| Width: | 441 mm |
