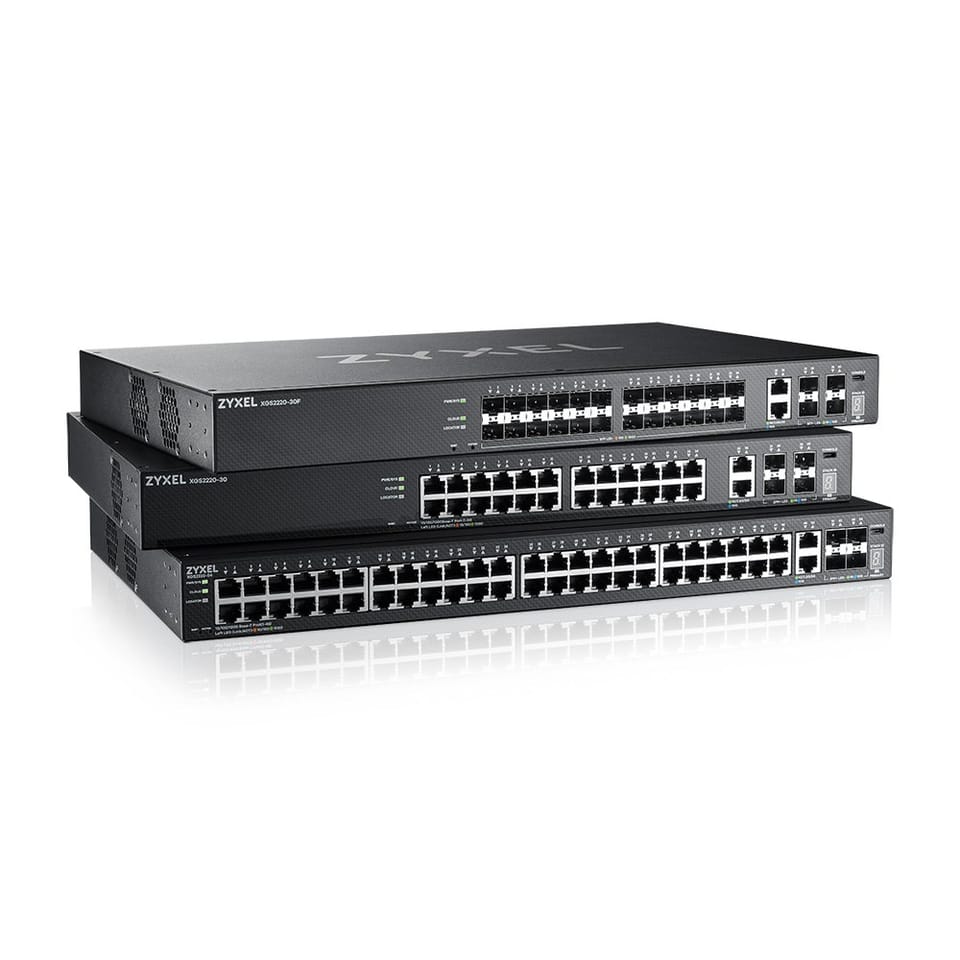

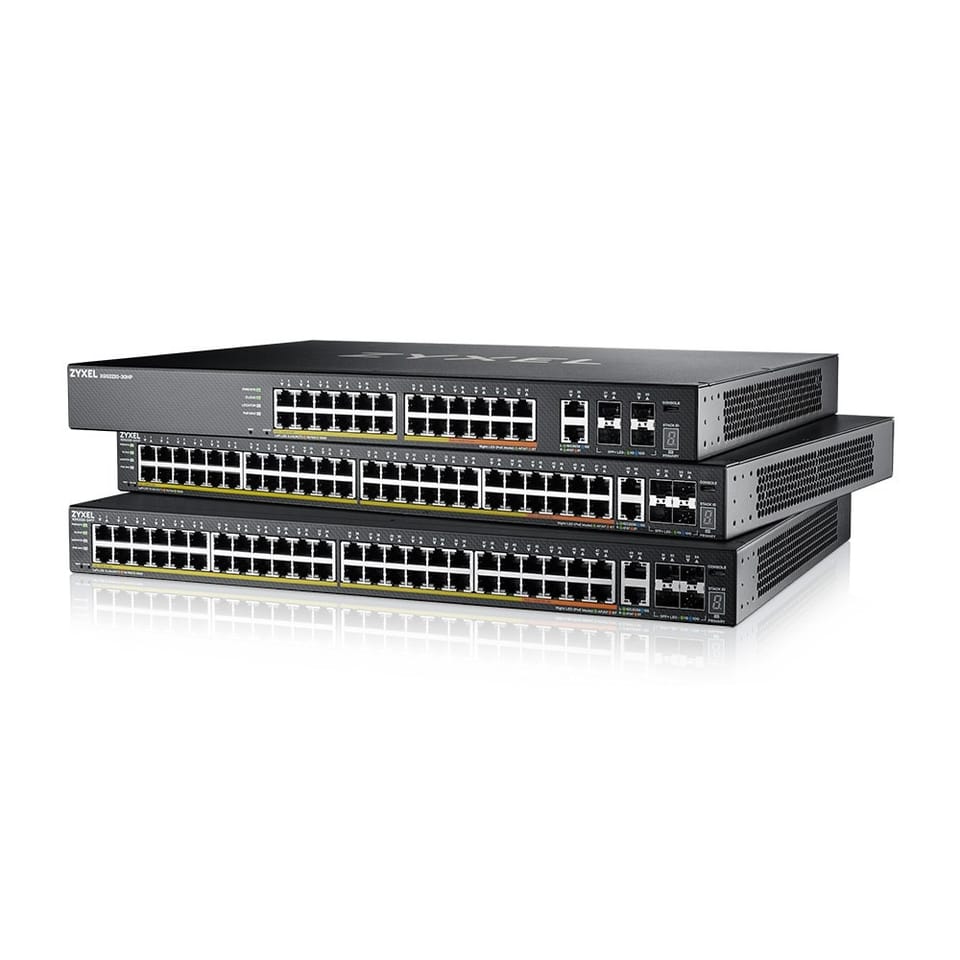

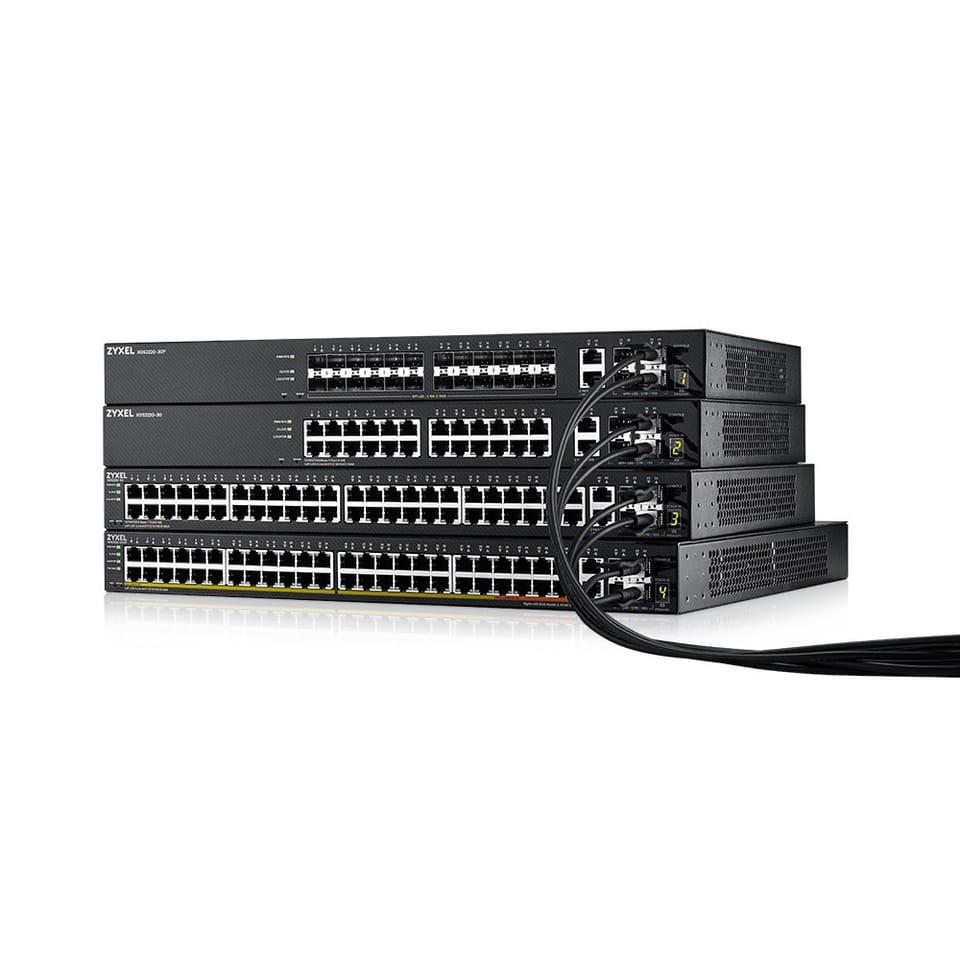

Nebula Powerful Managed Switch for Business NetworksNebula Cloud Managed Layer 3 Switch for EnterprisesThe XGS2220 Series is a family of Layer 3 access switches that consists of six models, including PoE, Non PoE, and Fiber options. Non PoE models offer Gigabit desktop ports for everyday network access; PoE models provide flexible options with larger PoE budgets and a mix of 60W and 30W ports to power devices such as the latest WiFi 6/6E wireless access points; the Fiber model aims to achieve business connectivity for high fiber port density requirements.Flexible 10G Solution for Converged Network ApplicationsIn addition to four 10G SFP+ uplinks, the XGS2220 Series features two additional 10G Multi-Gig RJ 45 ports that provide flexibility in connecting servers, network storage, or other high-speed network devices. Business can run smoothly with better expandability and a solid network infrastructure.Multiple Power Budget OptionsThe PoE models are equipped with 10 PoE++ (IEEE 802.3bt) ports delivering up to 60W per port and 16-40 PoE+ (IEEE 802.3at) ports delivering up to 30W per port to meet various applications including the latest generation of wireless APs.Within the series, 3 PoE models 30HP, 54HP and 54FP can offer larger power budgets of 400W, 600W and 960W respectively, providing the flexibility to power a full range of PoE devices in applications such as VoIP, surveillance, high-density AV applications and Zyxels extensive WiFi 6/6E AP portfolio.Nebula, manage it your way!NebulaFlex Pro support allows for easy management mode switching between standalone management and intuitive Nebula cloud management mode with included 1 YEAR Pro Pack. Nebula provides both an intuitive web interface and mobile app to provide a streamlined network installation and management experience, without additional software or hardware controller costs.Dedicated Networked AV ModeThe XGS2220 Series includes a customized Networked AV mode when used in standalone mode. The switch interfaces simplify AVoIP installation with an intuitive wizard that prompts high-level requirements for this type of network infrastructure; using AI intelligence, the switch is then able to remove the complexity, applying all the necessary details to configure a professional AVoIP deployment in minutes.Once deployed in Networked AV mode, the switch provides a dedicated dashboard for quick access to key AV network elements such as IGMP and IP information, as well as quick access to configuration features often associated with AVoIP deployments.

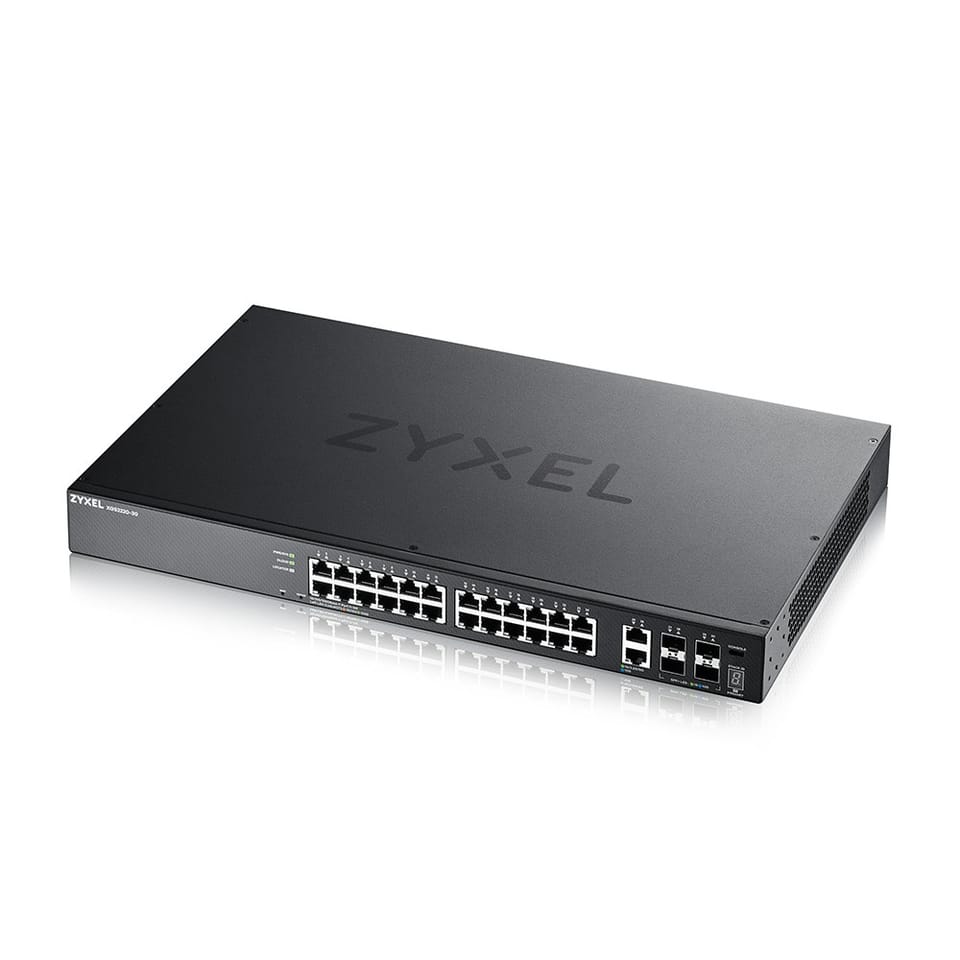

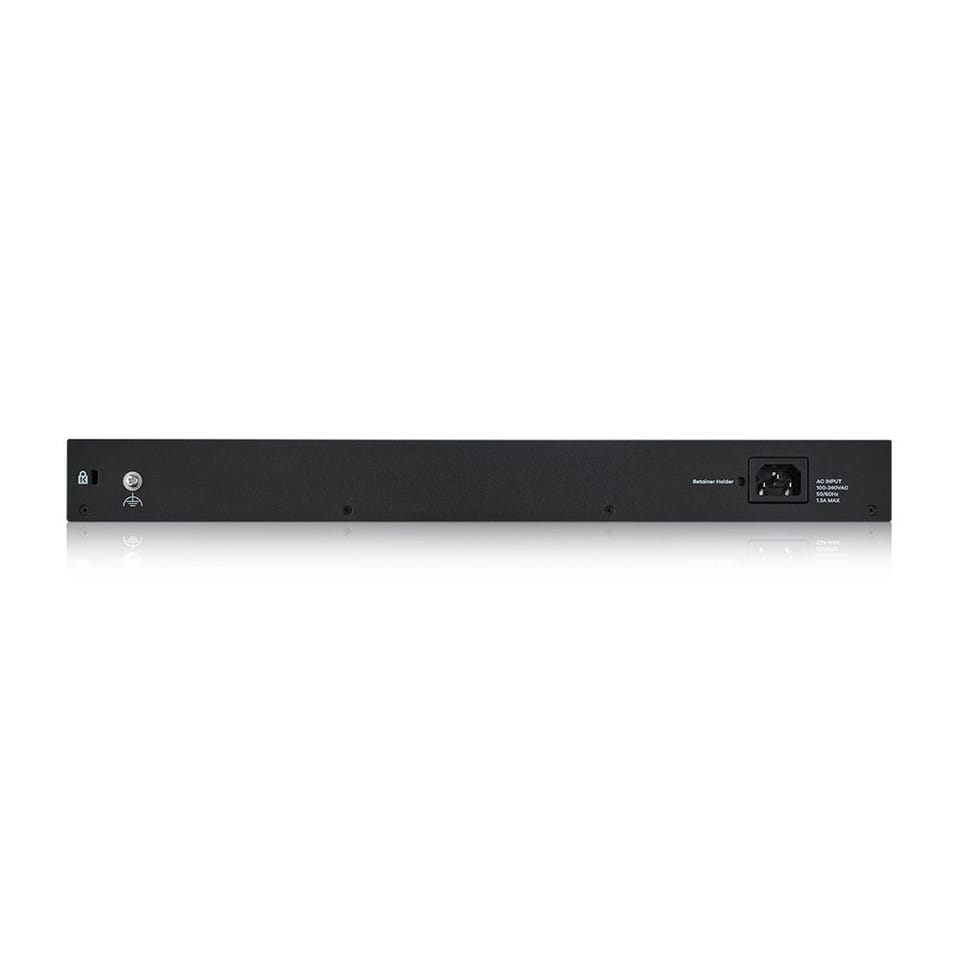

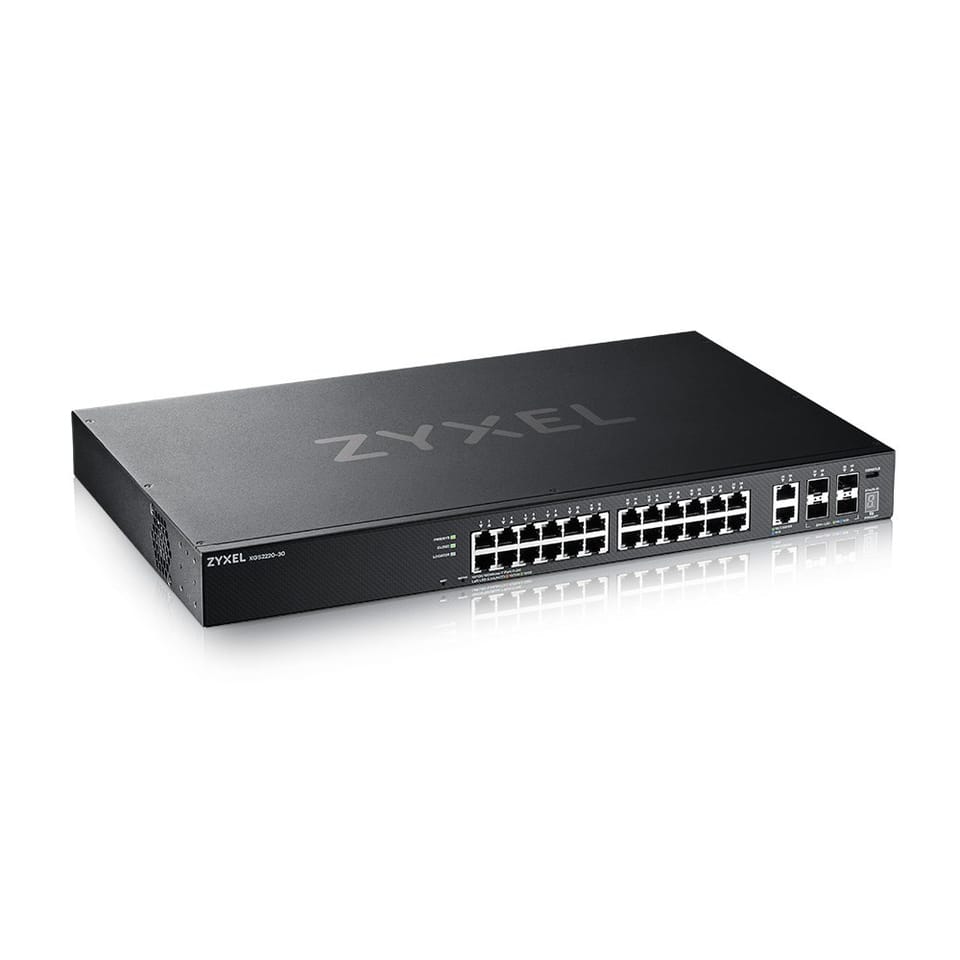

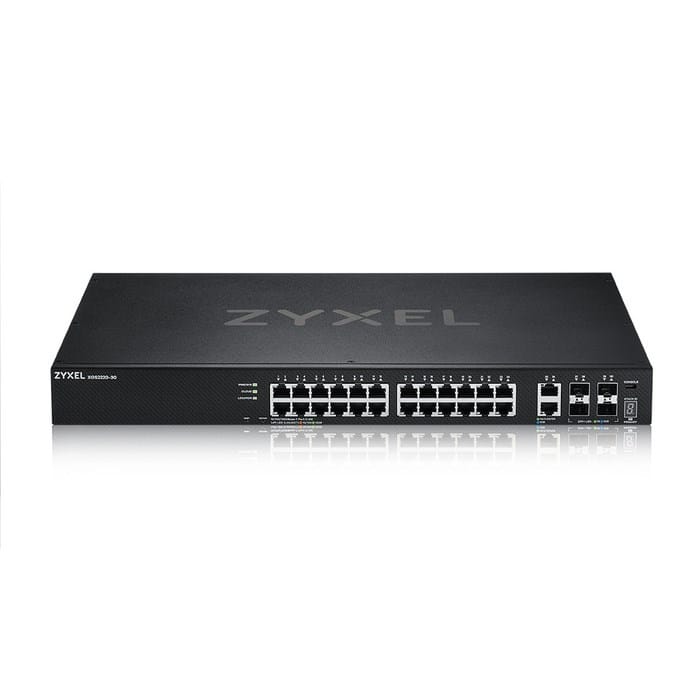

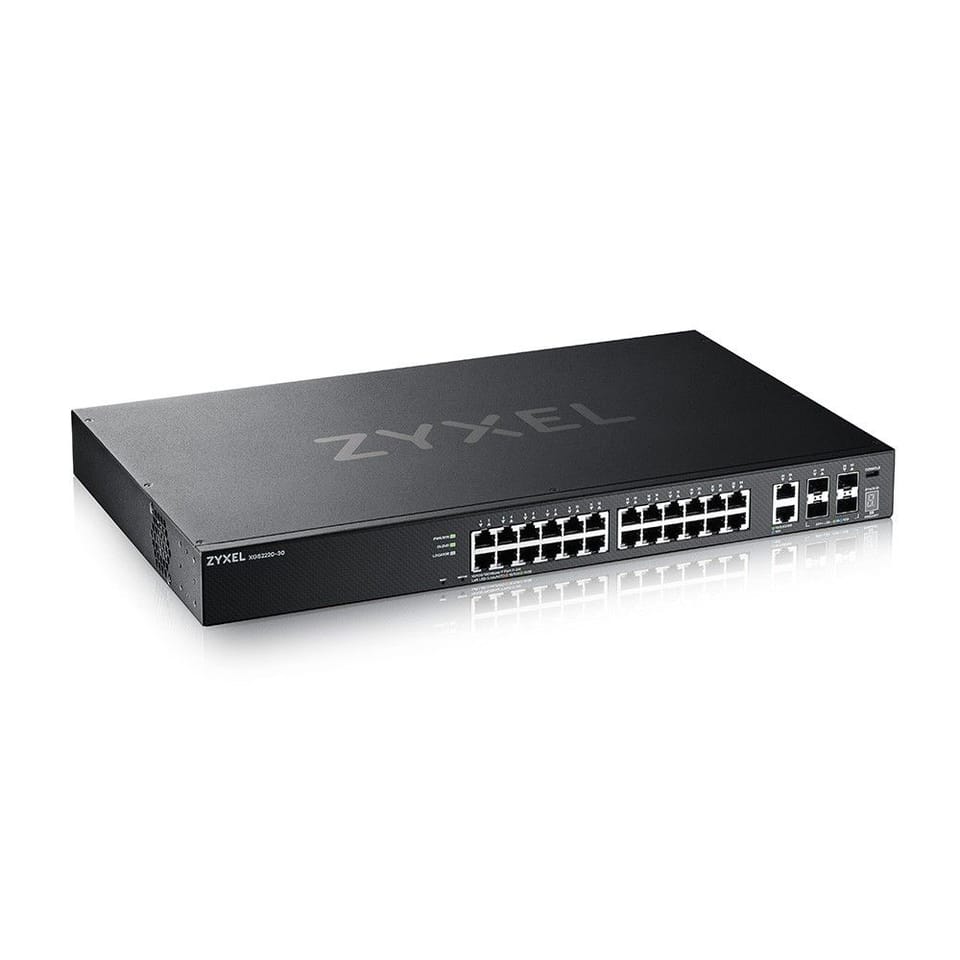

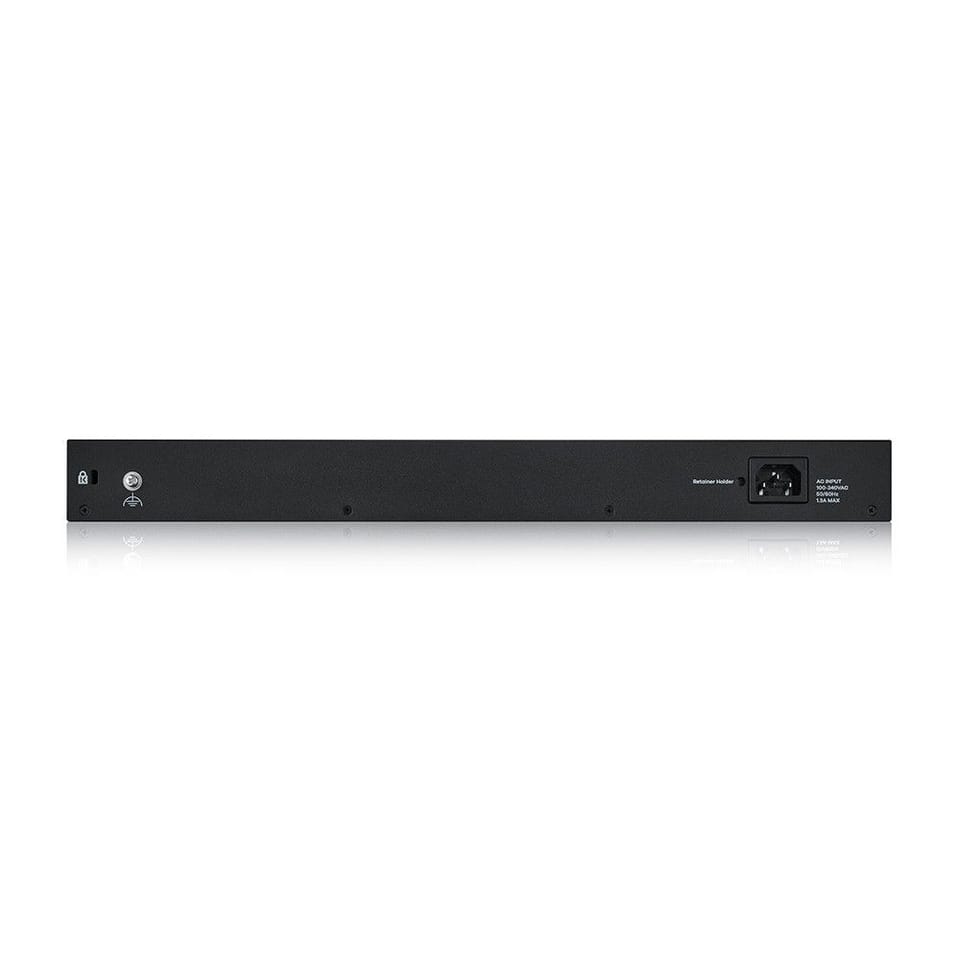

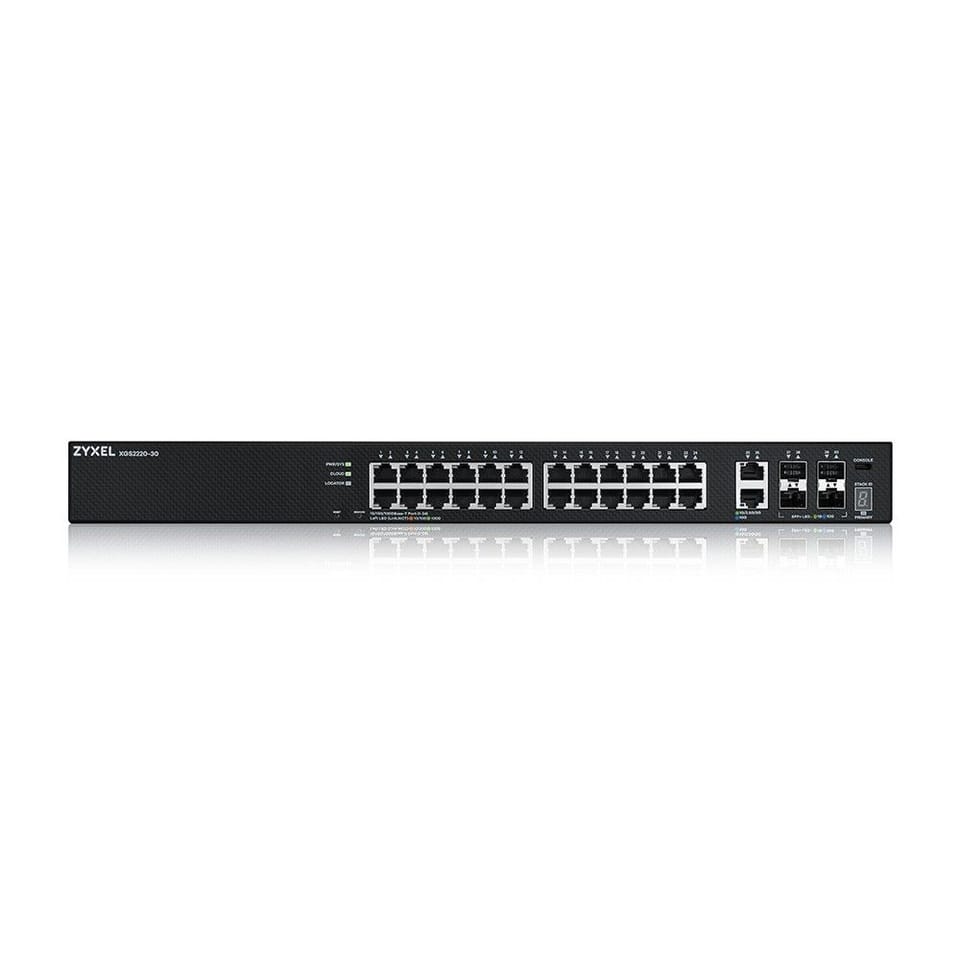

Zyxel XGS2220-30 Managed L3 Gigabit Ethernet (10/100/1000) Black
€586.95
Shipping from warehouse: A3
Estimated shipping: Wed, Jun 17 - Mon, Jun 22
14 days returnUnconditional return policy
- Availability:
- running out
- Brand:
- Zyxel
- Product code:
- XGS2220-30-EU0101F / 4718937624942
Share this product:
Specification
| 10g ethernet (copper) ports quantity: | 2 |
|---|---|
| 10g support: | Yes |
| Ac input frequency: | 50 - 60 Hz |
| Ac input voltage: | 100 - 240 V |
| Arp inspection: | Yes |
| Authentication type: | IEEE 802.1x, RADIUS, TACACS+ |
| Basic switching rj-45 ethernet ports quantity: | 24 |
| Basic switching rj-45 ethernet ports type: | Gigabit Ethernet (10/100/1000) |
| Bpdu filtering/protection: | Yes |
| Cloud-managed: | Yes |
| Compliance certificates: | Low Voltage Directive (LVD), Federal Communications Commission (FCC), RoHS, CE |
| Depth: | 270 mm |
| Dhcp features: | DHCP relay, DHCP server |
| Flash memory: | 64 MB |
| Forwarding rate: | 125 Mpps |
| Garp vlan registration protocol (gvrp): | Yes |
| Heat dissipation: | 128.28 BTU/h |
| Height: | 44 mm |
| Igmp proxy: | Yes |
| Igmp snooping: | Yes |
| Installed sfp+ modules quantity: | 4 |
| Internal memory: | 1024 MB |
| Jumbo frames support: | Yes |
| Led indicators: | Yes |
| Mac address table: | 32000 entries |
| Mean time between failures (mtbf): | 520.185 h |
| Multicast listener discovery (mld) snooping: | MLD v1/v2 |
| Multicast support: | Yes |
| Networking standards: | IEEE 802.1Q, IEEE 802.3x, IEEE 802.3ab, IEEE 802.1p, IEEE 802.1ab, IEEE 802.3an, IEEE 802.1x, IEEE 802.3az, IEEE 802.3z, IEEE 802.3ae |
| Operating relative humidity (h-h): | 10 - 95% |
| Operating temperature (t-t): | -20 - 50 °C |
| Package depth: | 355 mm |
| Package height: | 107 mm |
| Package weight: | 4.73 kg |
| Package width: | 616 mm |
| Packet buffer memory: | 2 MB |
| Power consumption (max): | 37.62 W |
| Power over ethernet (poe): | No |
| Power source: | AC |
| Power supply included: | Yes |
| Product colour: | Black |
| Quality of service (qos) support: | Yes |
| Rack mounting: | Yes |
| Routing entries: | 64 |
| Security algorithms: | SNMP, SNMPv3, SNMPv2 |
| Static route: | Yes |
| Storage relative humidity (h-h): | 10 - 90% |
| Storage temperature (t-t): | -40 - 70 °C |
| Sustainability certificates: | CE, Federal Communications Commission (FCC), Low Voltage Directive (LVD), RoHS |
| Switch layer: | L3 |
| Switch type: | Managed |
| Switching capacity: | 168 Gbit/s |
| Web-based management: | Yes |
| Weight: | 3.4 kg |
| Width: | 441 mm |
