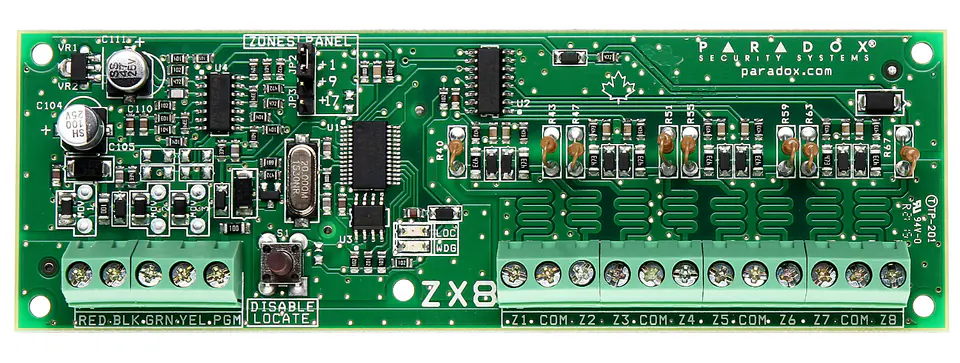

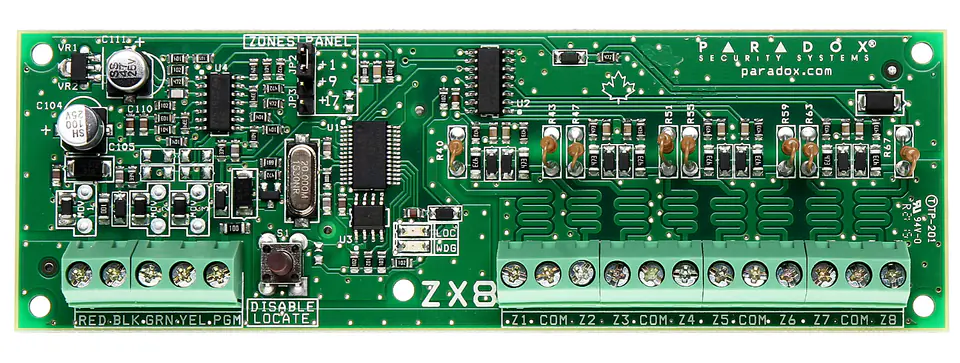

The ZX-8 expander allows you to expand the system with 8 wired inputs with support for NO, NC, EOL, 2EOL and 3EOL configurations
The device is dedicated to Digiplex, Digiplex EVO, MG Series, Spectra Series alarm control panels
Configuration support:: | NO, NC, EOL, 2EOL, 3EOL |
---|---|
Country of origin:: | Canada |
Dimensions:: | 140 x 46 mm |
Egress:: | 1 pc. - 50 mA programmable |
Manufacturer / brand:: | PARADOX |
Number of inputs:: | 8 pcs. - programmable |
Operating temperature:: | -20 °C ... 50 °C |
Power:: | 12 V ... 16 V DC / 28 mA (max) |
Scales:: | 0.052 kg |
Selected features:: | Automatic recognition of the alarm control panel model |
Warranty:: | 2 years |
The ZX-8 expander allows you to expand the system with 8 wired inputs with support for NO, NC, EOL, 2EOL and 3EOL configurations
The device is dedicated to Digiplex, Digiplex EVO, MG Series, Spectra Series alarm control panels
