| Card support: | noTitle1 |
|---|---|
| Case: | Stainless steel / Plastic, vandal resistant |
| Colour: | Silver |
| Dimensions: | 110 x 100 x 40 mm |
| Maximum current consumption: | 150 mA |
| Operating temperature: | -20 °C ... 50 °C |
| Permissible relative ambient humidity: | < 95 % (bez kondensacji) |
| Power: | 12 ... 15 volts DC |
| Producer / brand: | VIDOS |
| Relay contact load: | 1 A / 24 V |
| Scales: | 0.41 kg |
| Sealing: | IP65 |
| Selected features: | Number of relay outputs : 2 Backlit keyboard buttons Up to 1010 codes for 2 zones can be programmed Support for 2 zones, e.g. wicket + automatic gate Relay for control, e.g. electric strike or electromagnetic jumper Optical tamper detector Mechanical tamper detector Built-in watchdog Output to an additional bolt release button Possibility of working in bistable mode (entering the code releases the electric strike, re-entering the code closes it) Support for reversible bolts |
| Warranty: | 3 years |

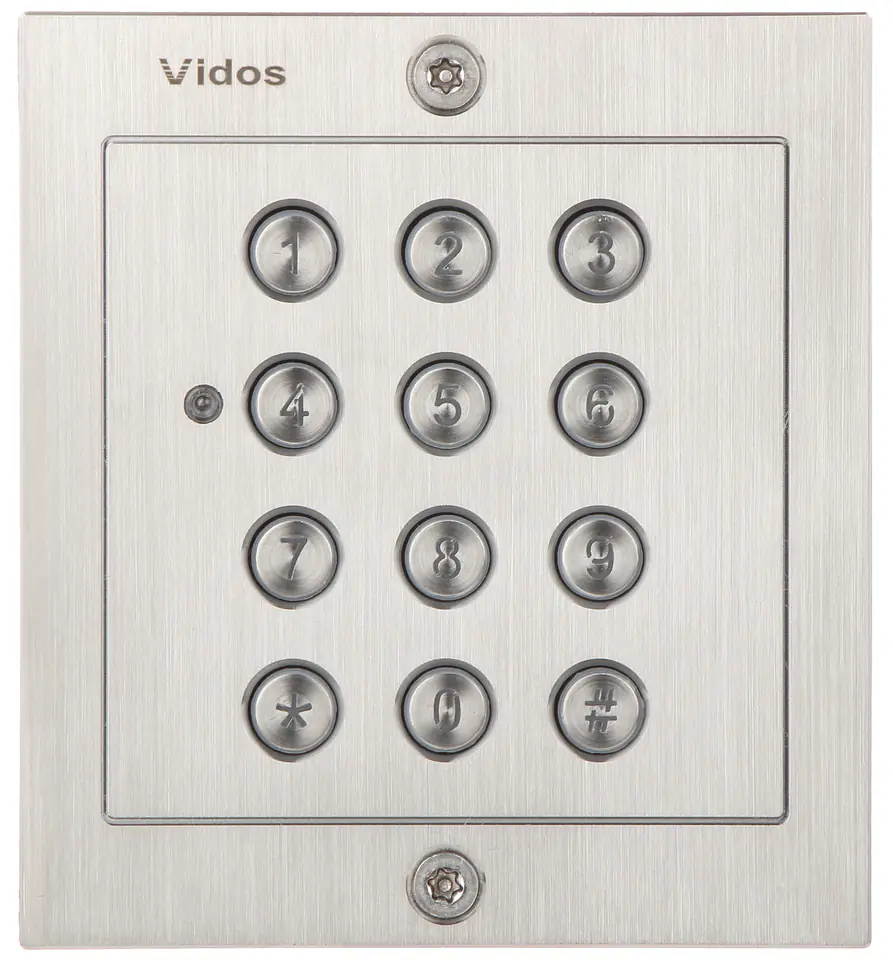

External, dual-zone autonomous code lock
The device allows you to open the entrance using the PINO codeThe operation of two zones allows you to control two independent inputs (e.g. wicket + gate)It is possible to connect an additional output button

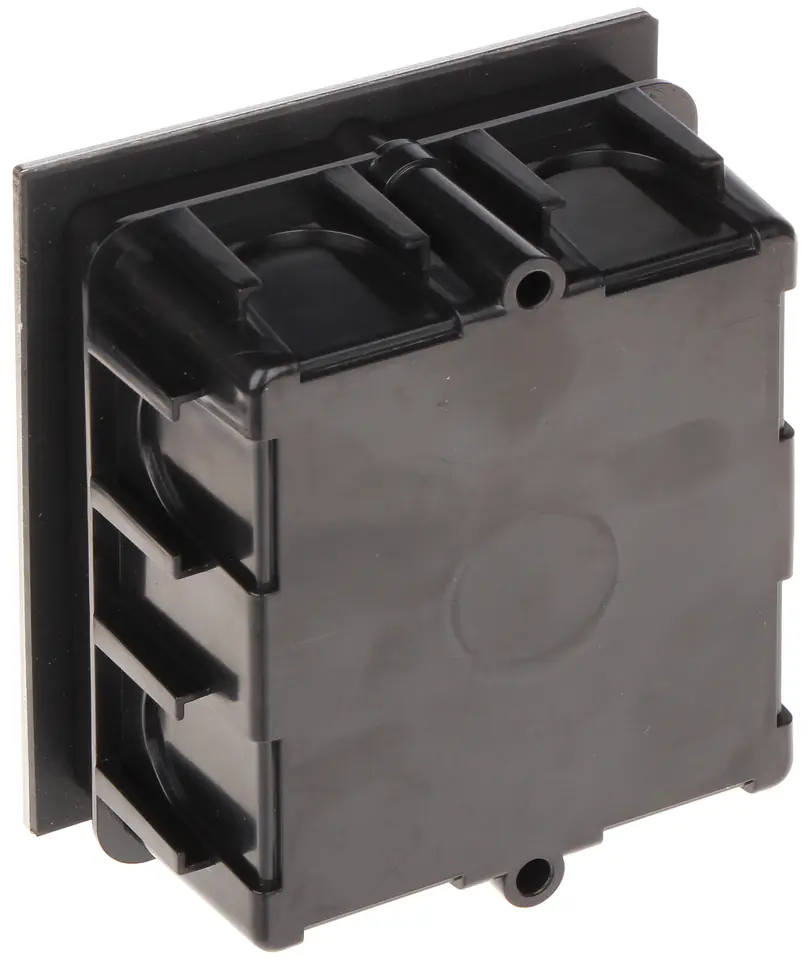

Flush-mounted surface mounting is possible with the D600B1 cover
