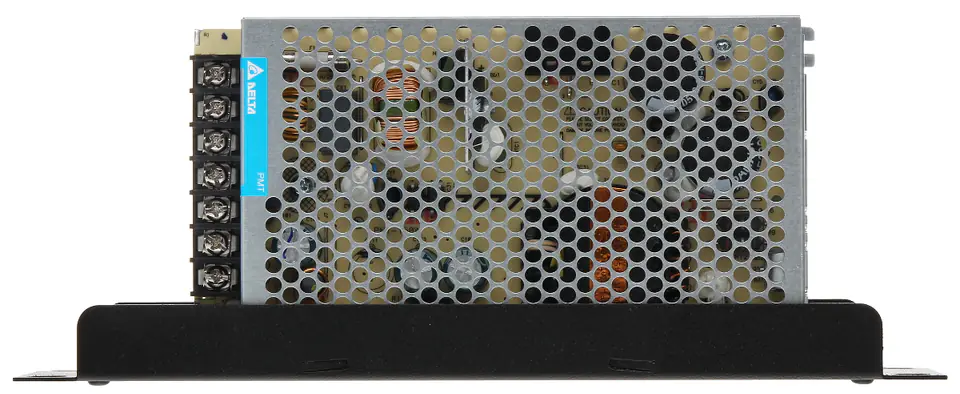

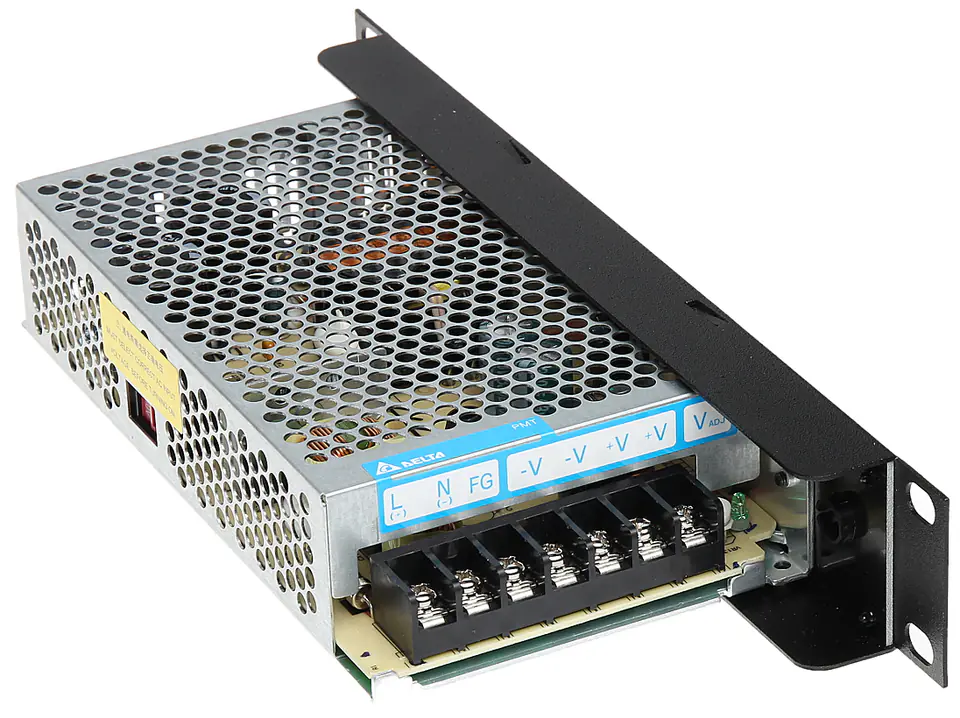

High quality professional switching power supply with short-circuit, overvoltage and overload protection
ZR48-158/R10 48V DC 3.3A
€72.85
Shipping from warehouse: D4
Estimated shipping: Tue, Oct 28 - Fri, Oct 31
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- Delta
- Product code:
- ZR48-158/R10 / 5902887038570
Share this product:
Specification
| Dimensions: | 256 x 44 x 99 mm |
|---|---|
| Efficiency: | 89 % |

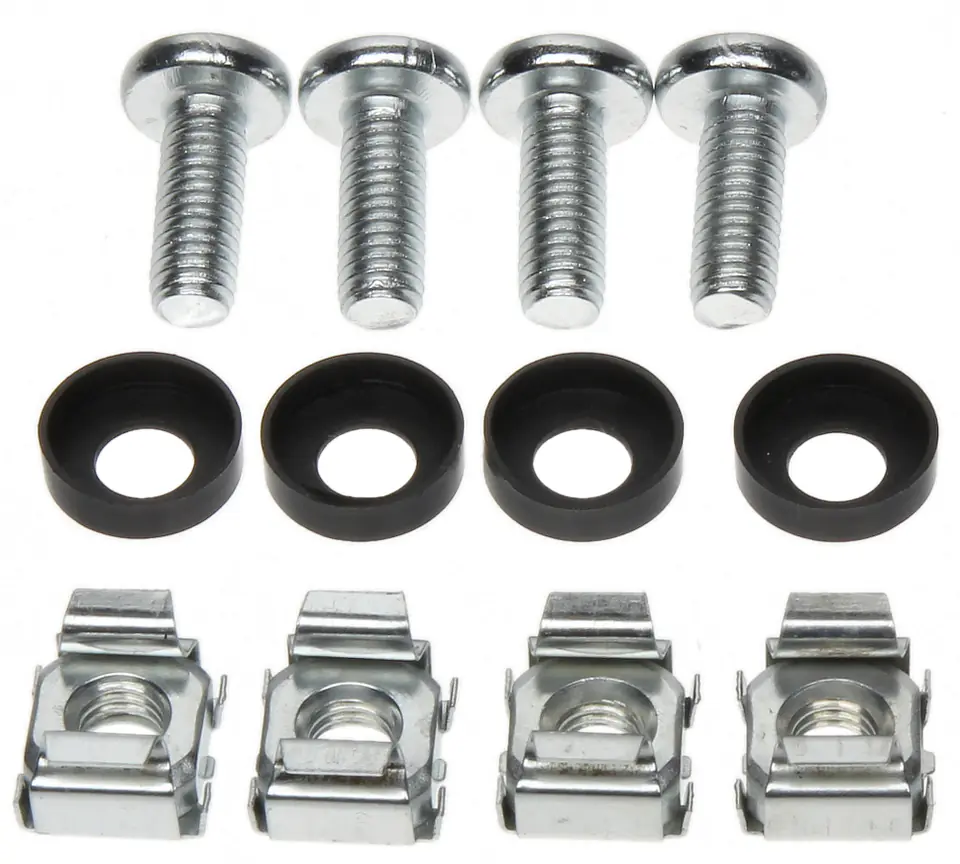

| Enclosure type: | 1 U 10" rack |
| Mtbf (mean time between failures): | > 700000 h - Telcordia SR-332 |
| Operating temperature / relative humidity: | -10 °C ... 70 °C / 10 % ... 80 % |
| Output voltage: | 48 VDC |
| Output voltage adjustment: | 45.6 volts ... 52.8 volts DC |
| Power supply: | 160 watts (Printing) |
| Power supply current efficiency: | 3.3 A |
| Producer / brand: | DELTA |
| Scales: | 0.57 kg |
| Security: | Surge Protector, Short-circuit Overload |

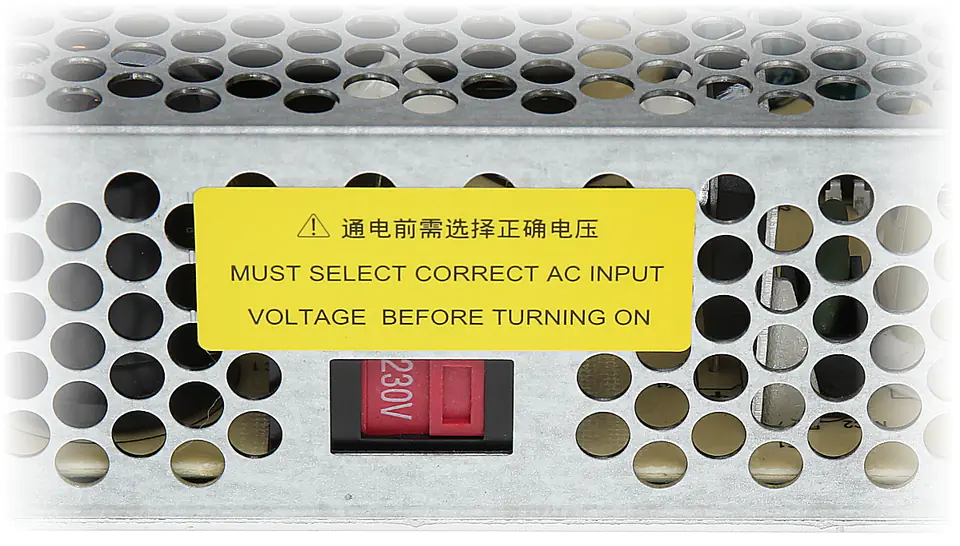

| Supply voltage: | selectable with a 90 V switch ... 132 V AC, 180 V ... 264 VAC |
| Supply voltage frequency: | 47 ... 63 Hz |
| Type of power supply: | Pulse |
| Warranty: | 5 years |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
