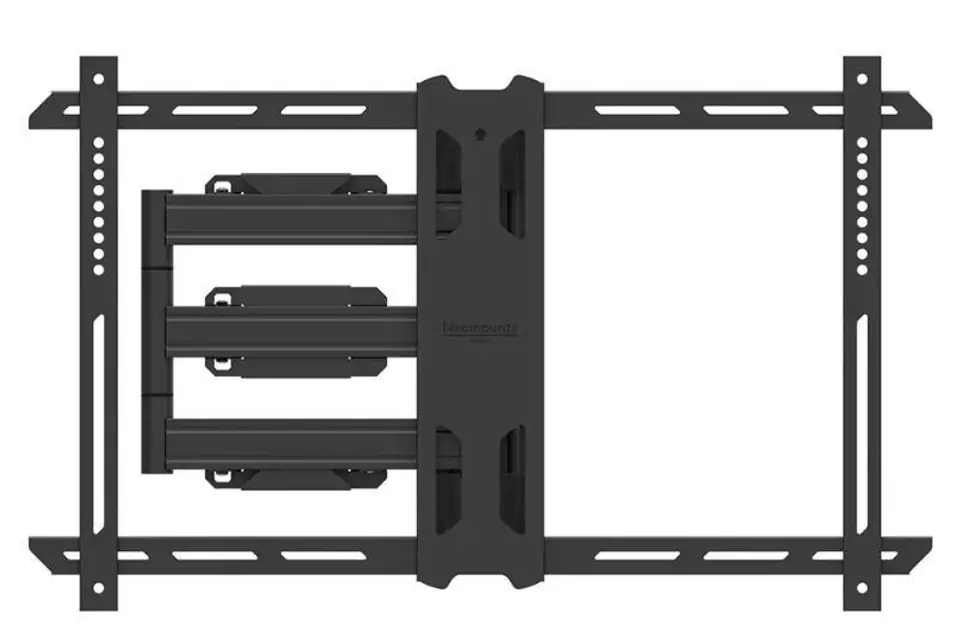

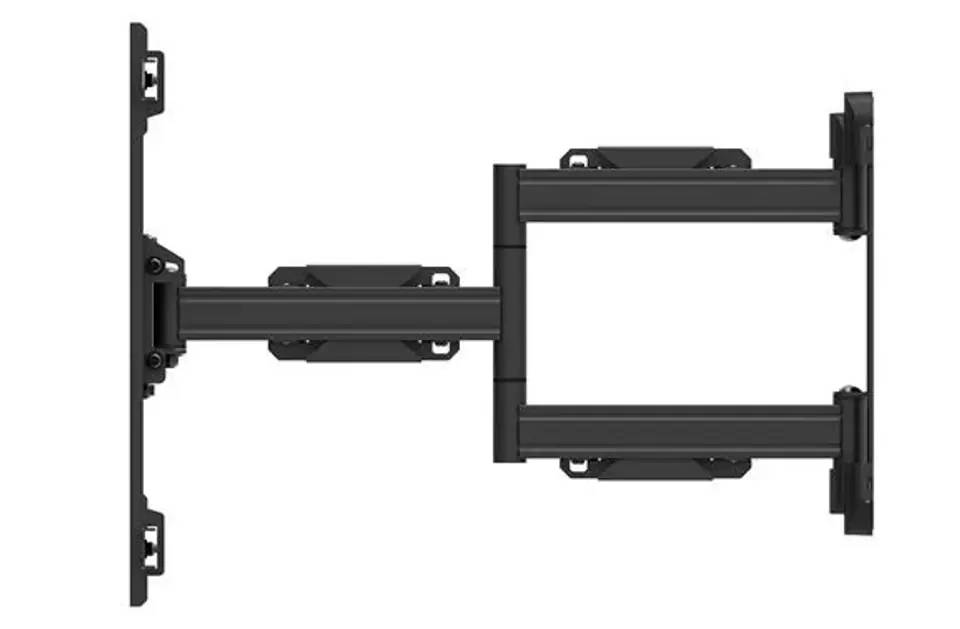

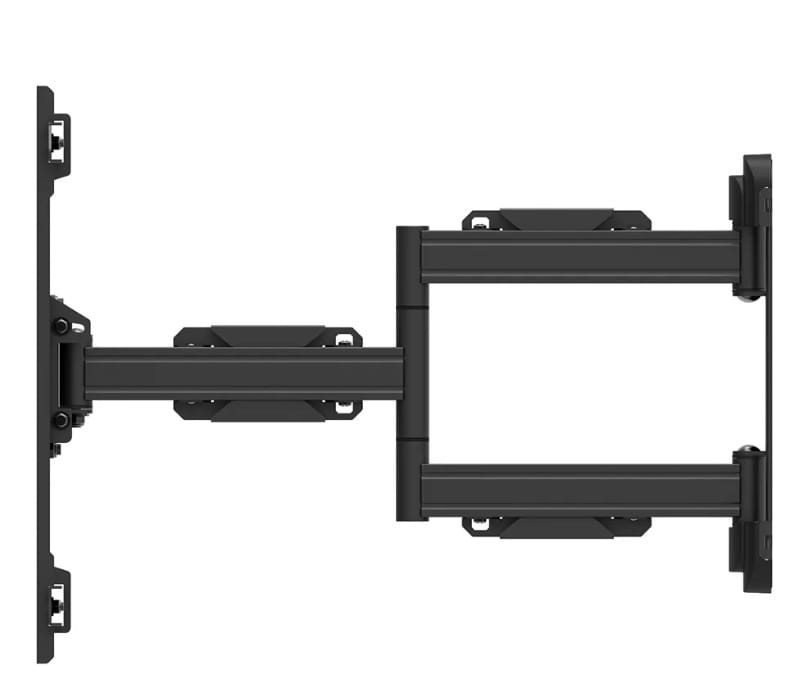

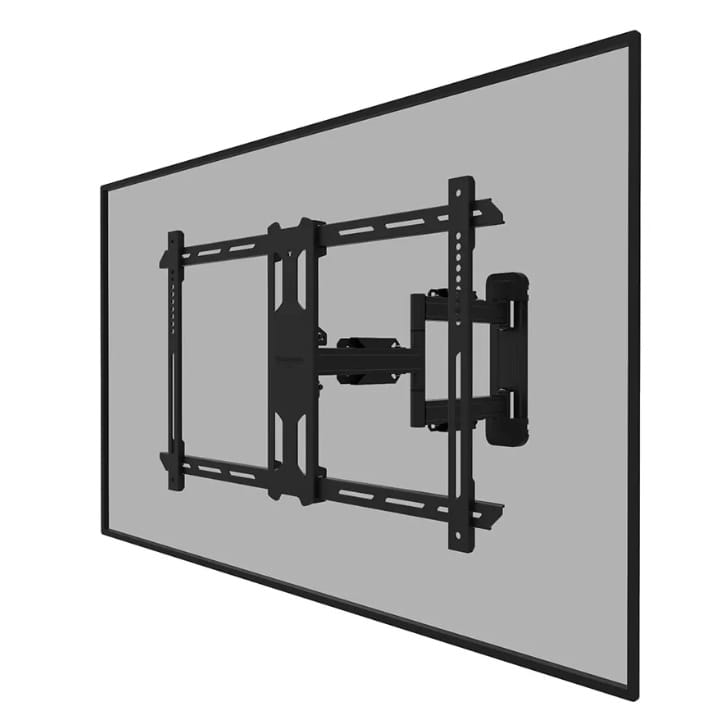

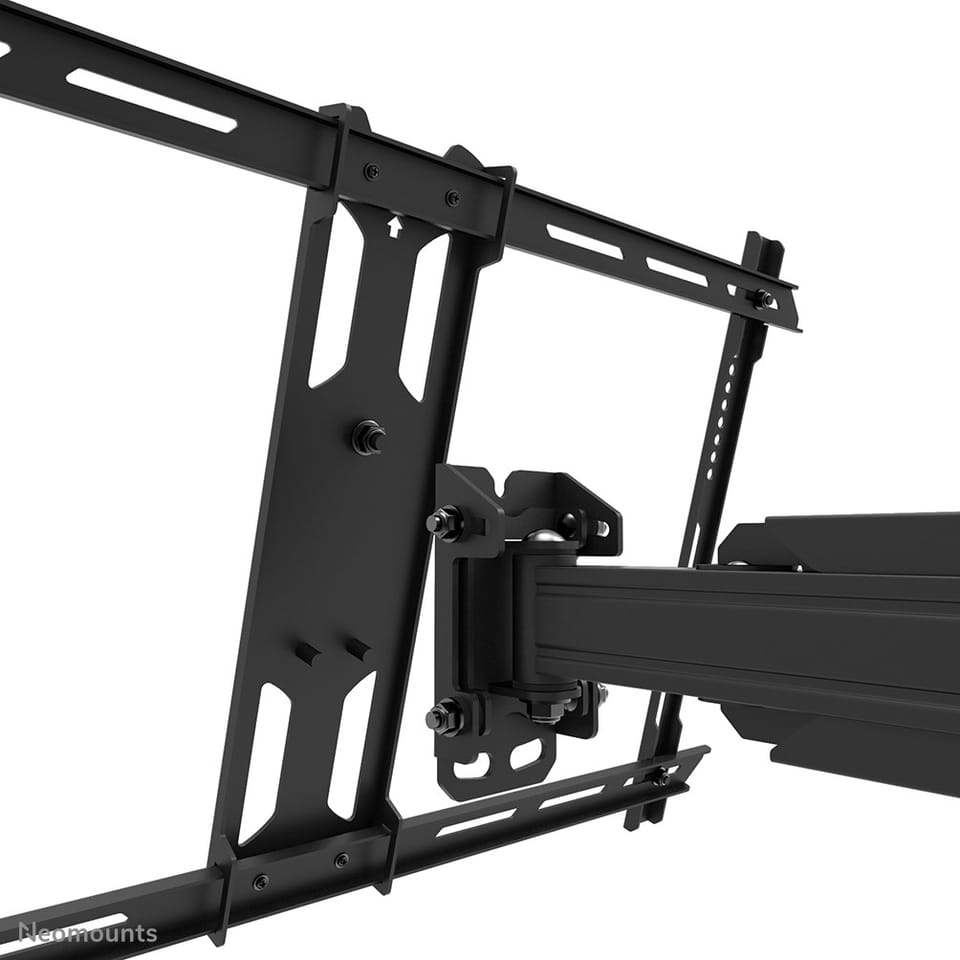

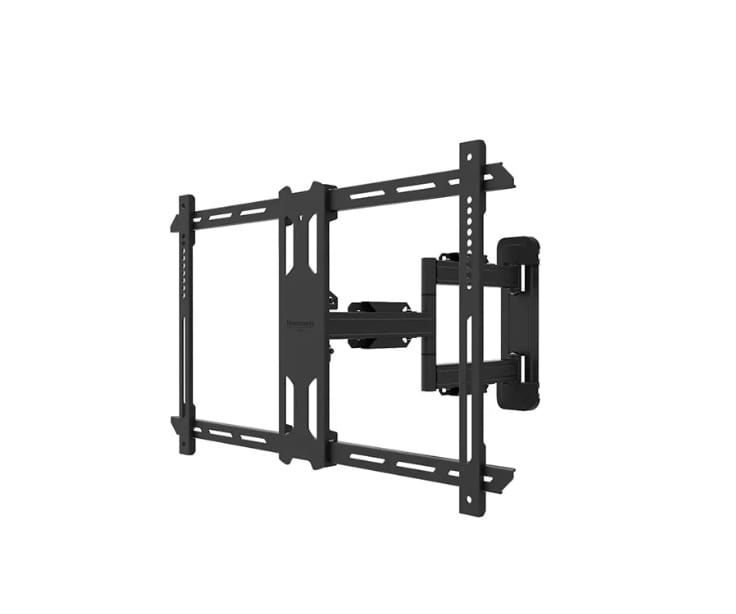

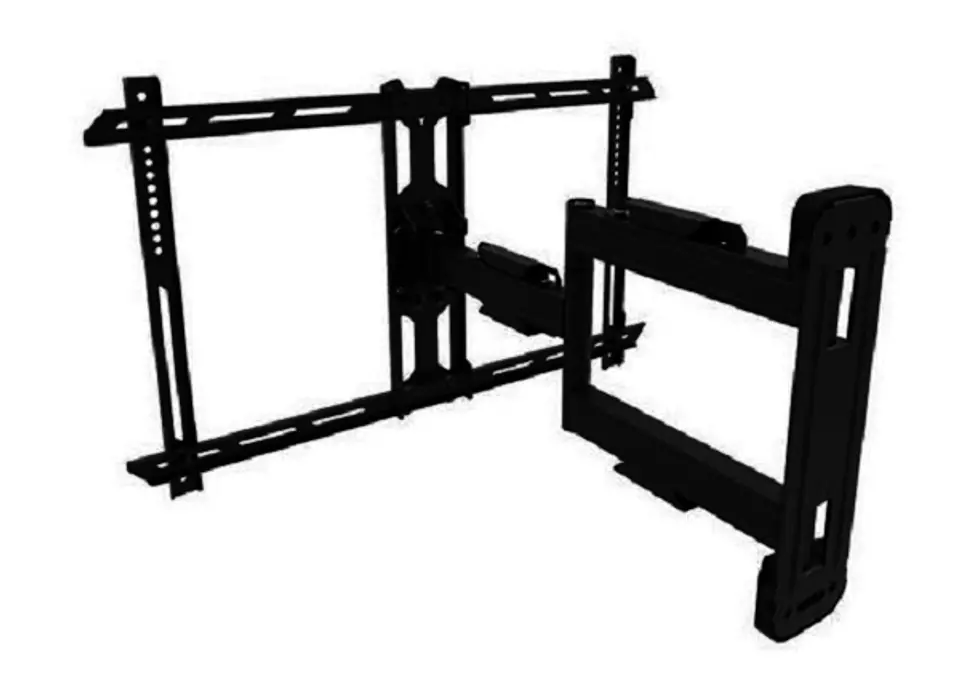

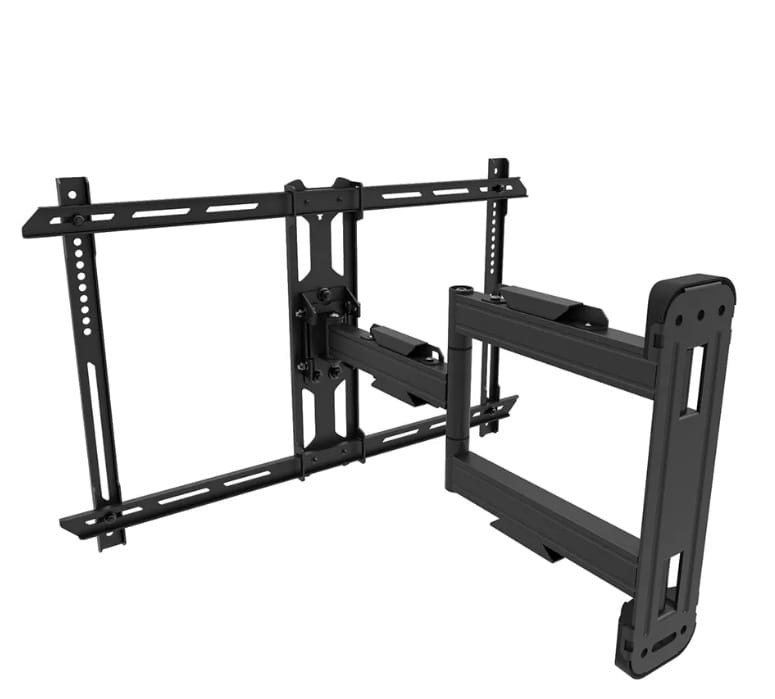

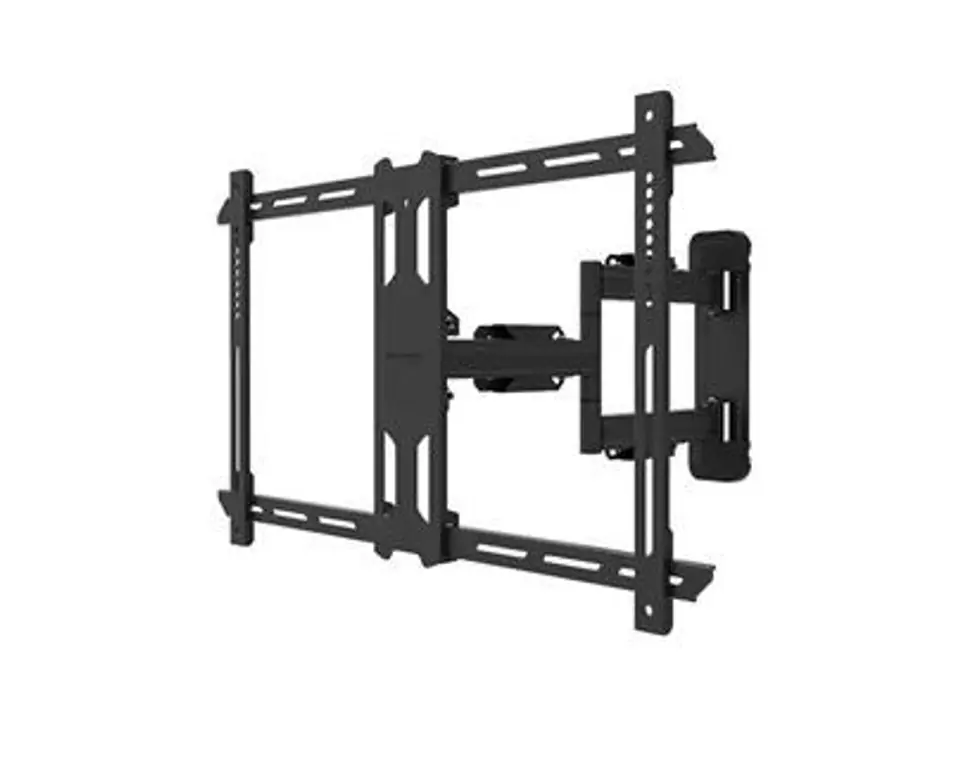

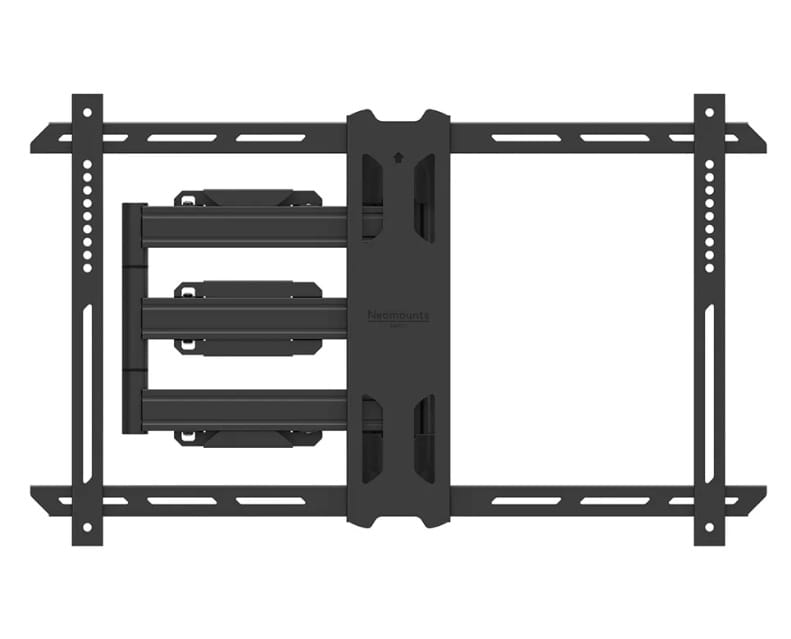

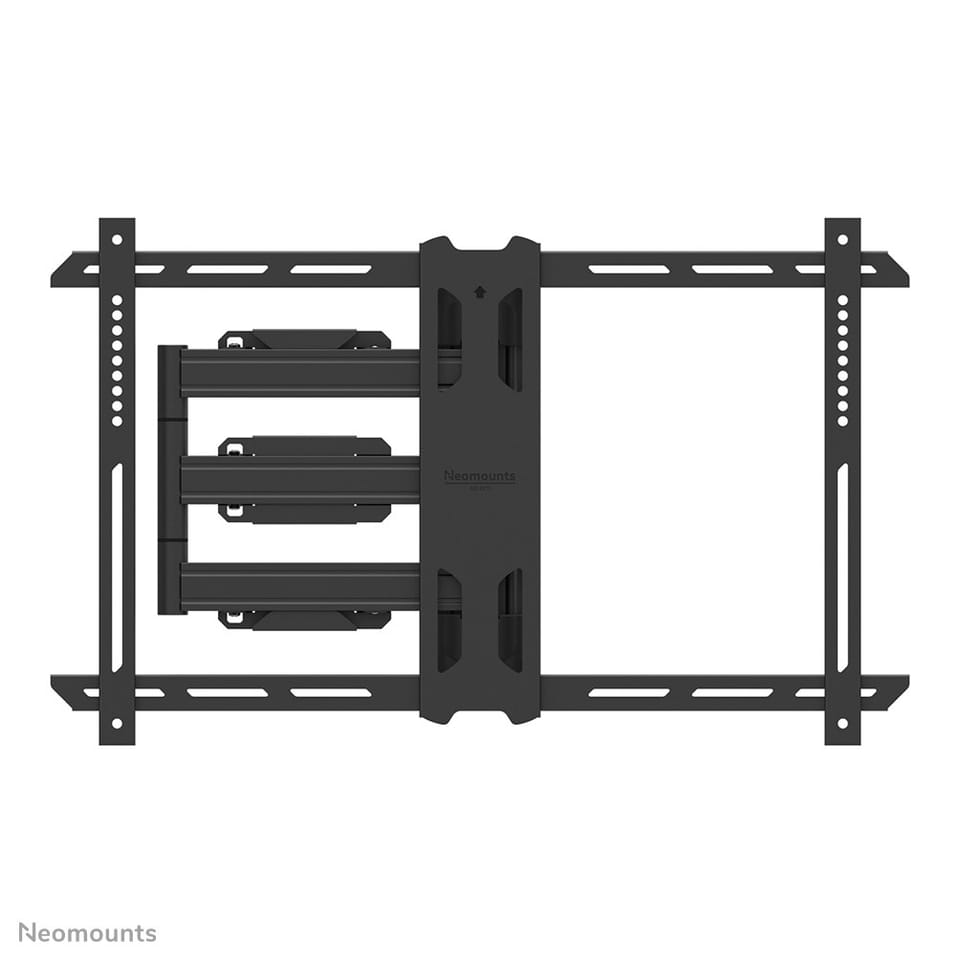

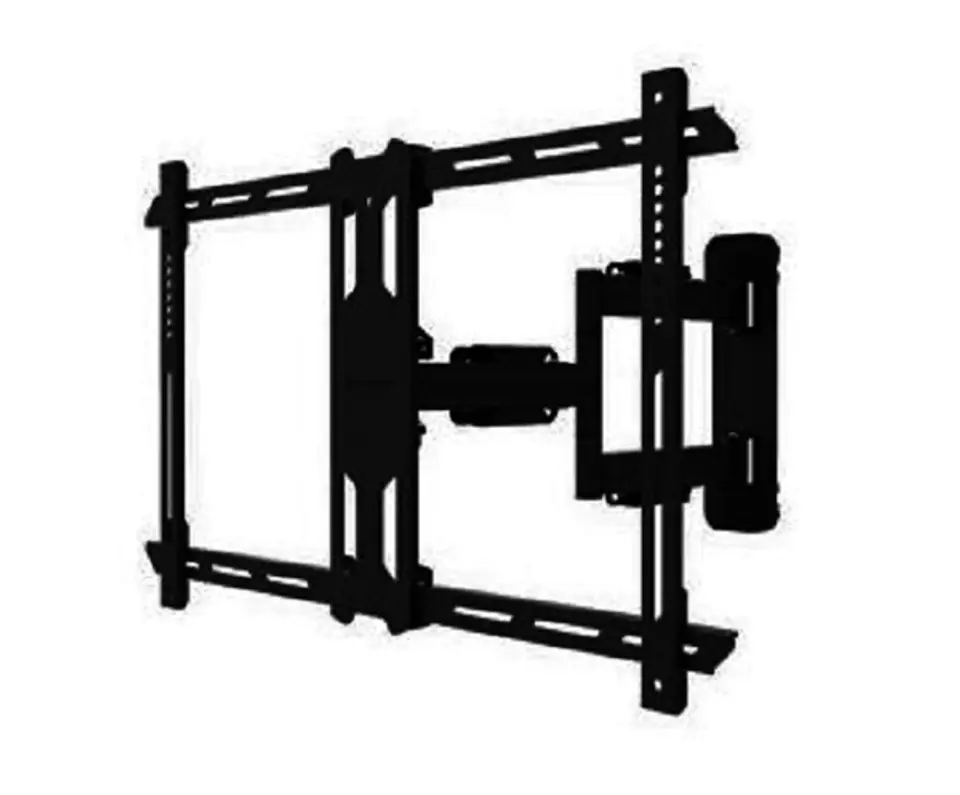

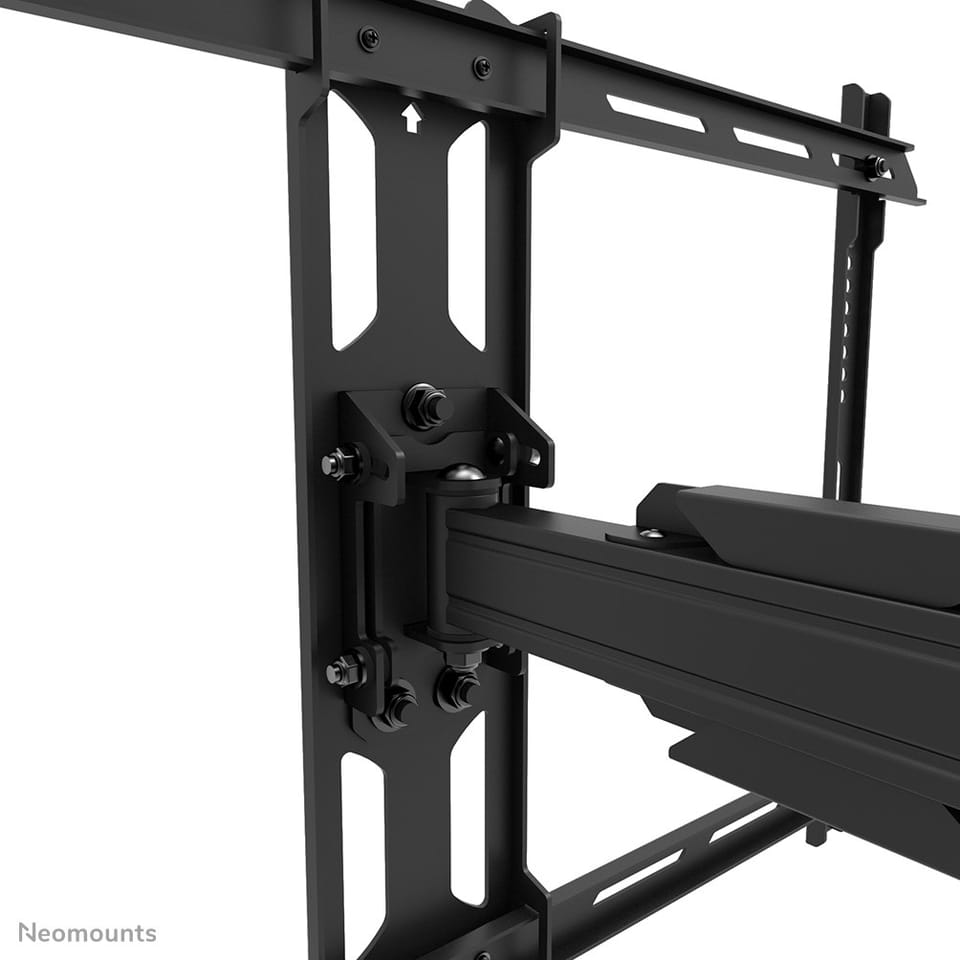

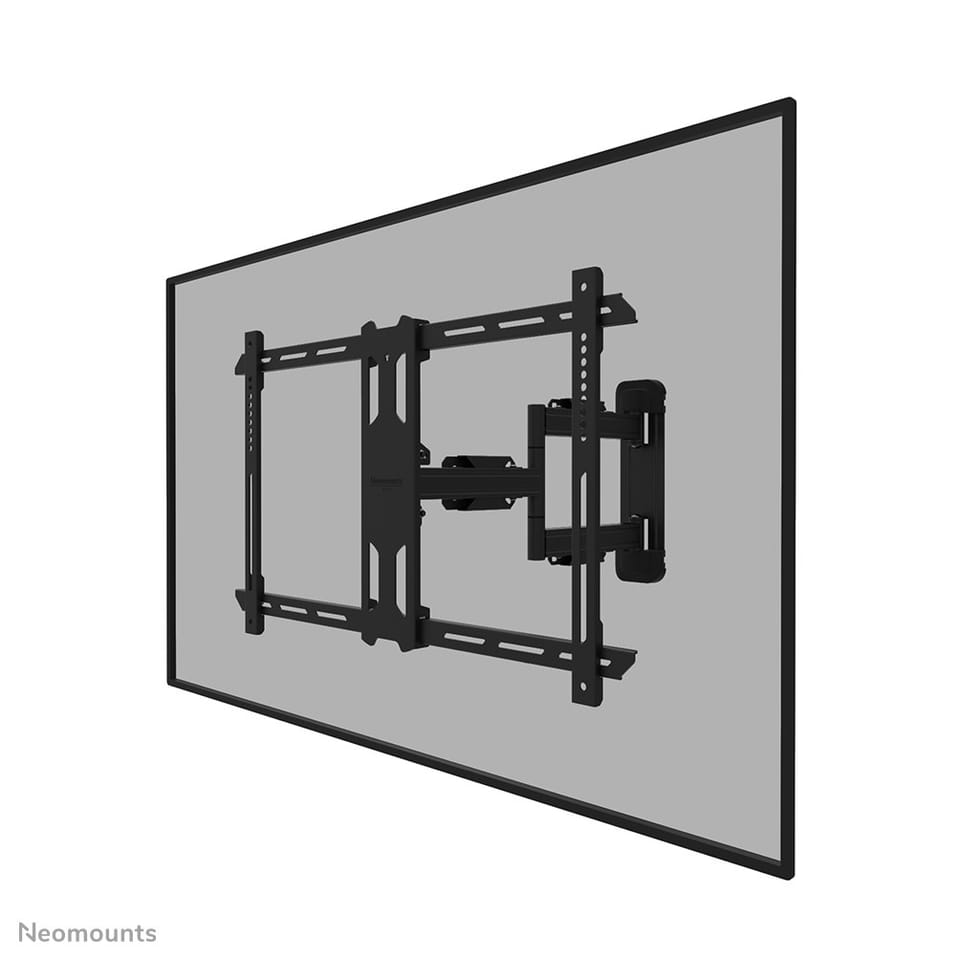

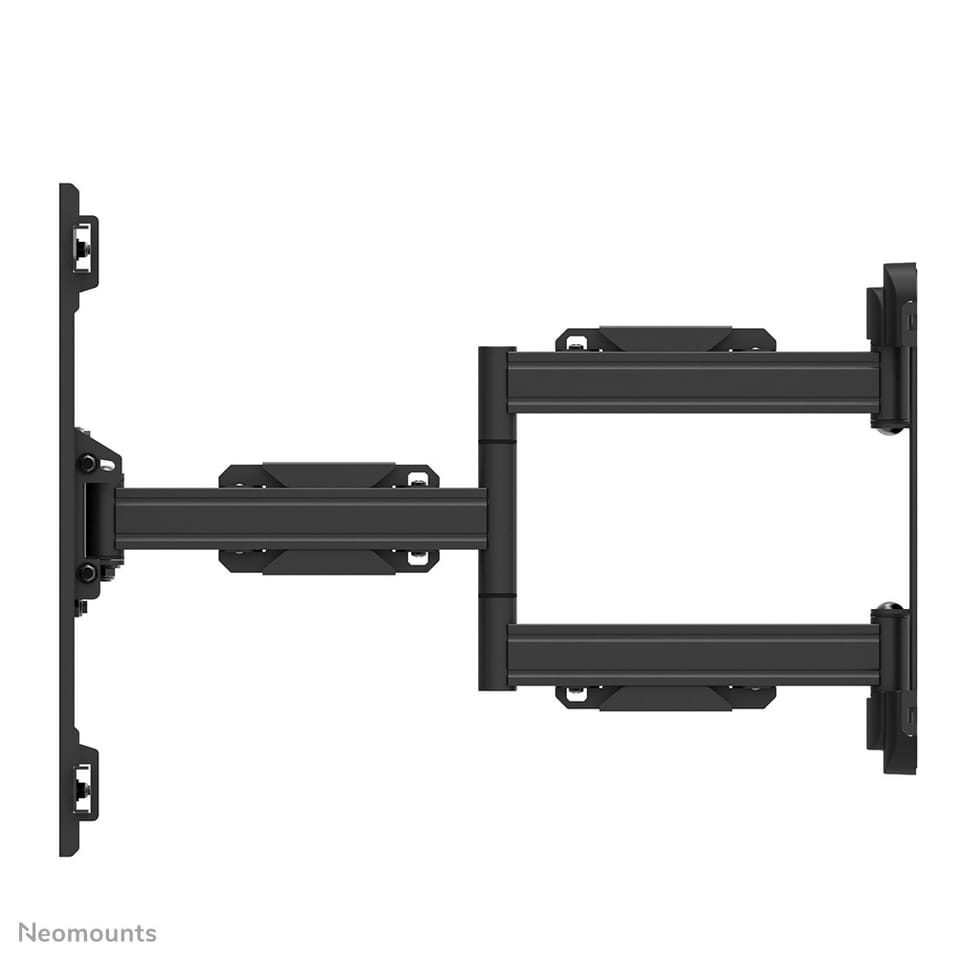

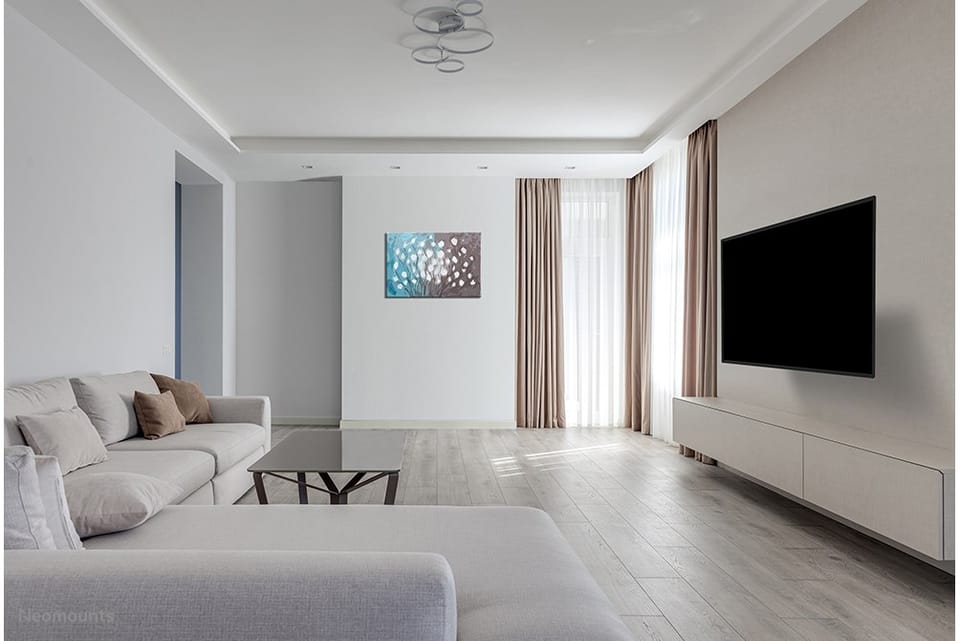

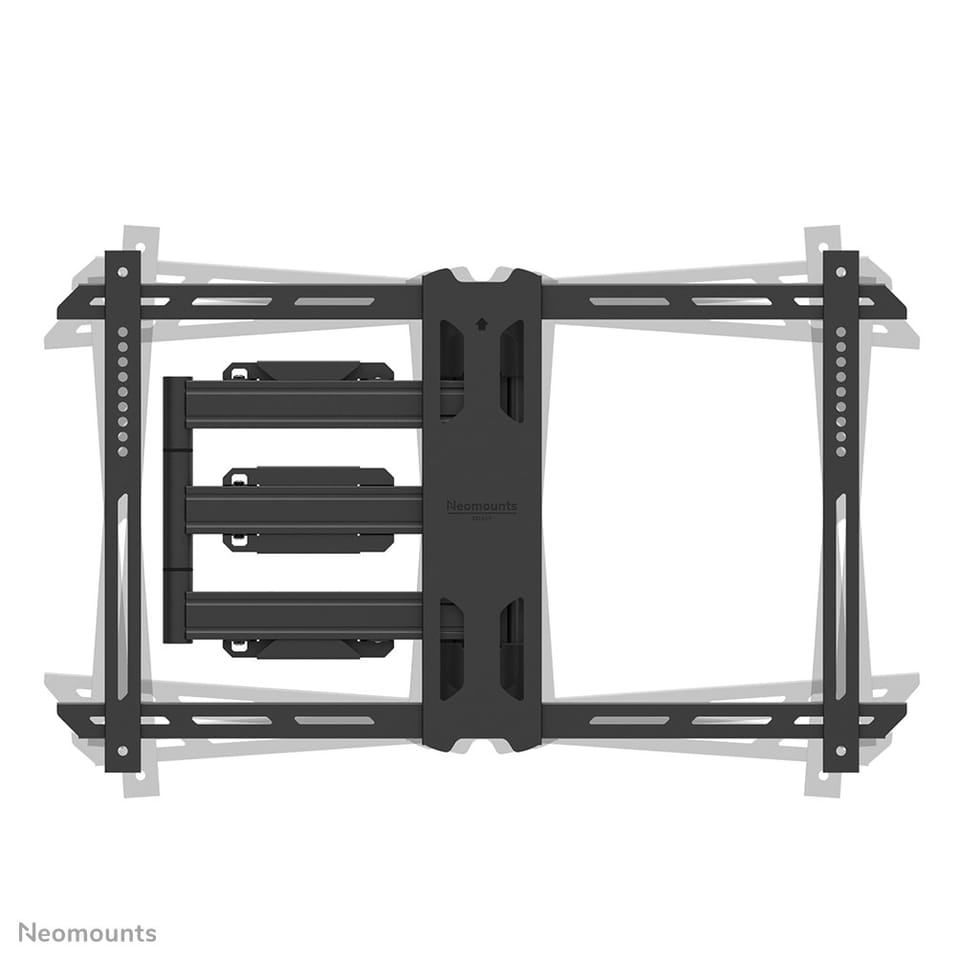

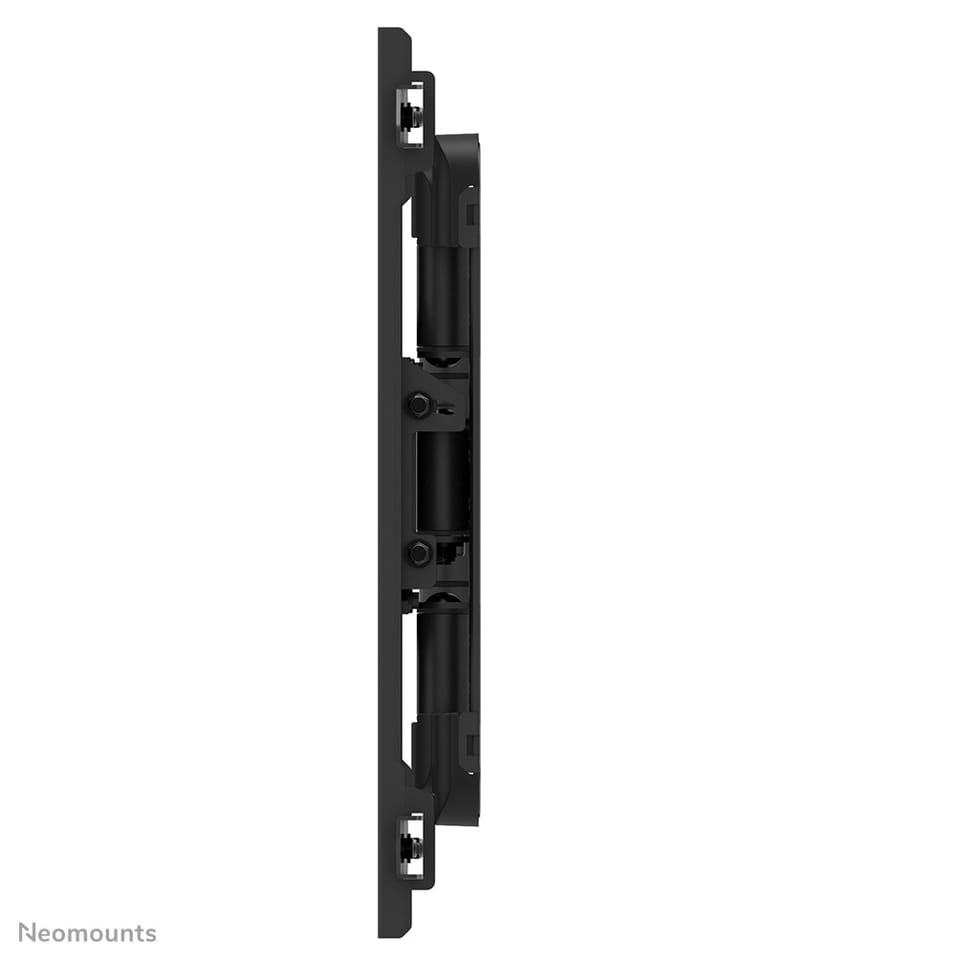

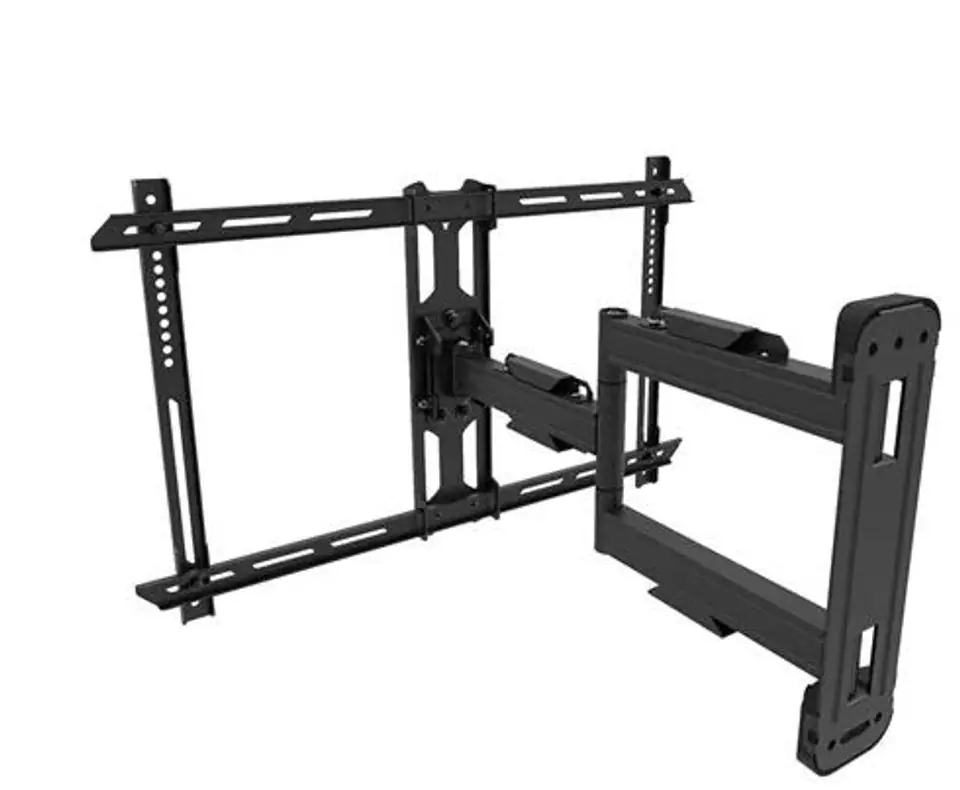

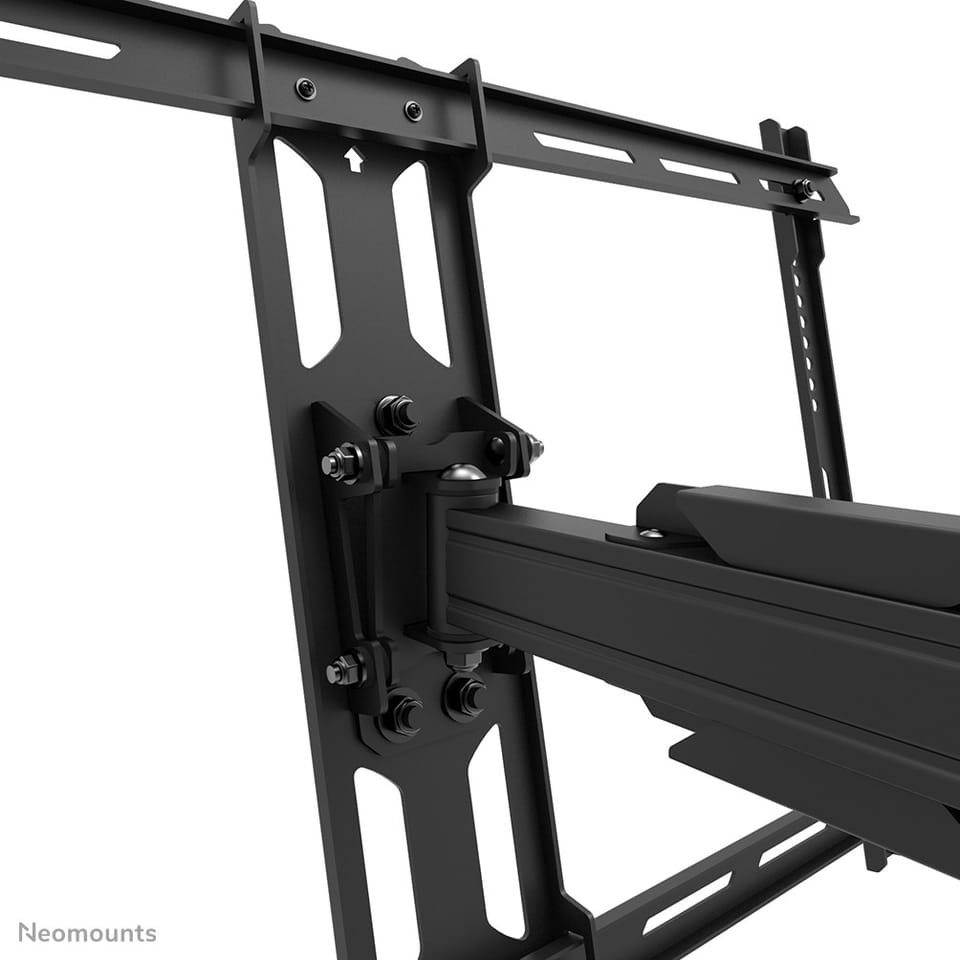

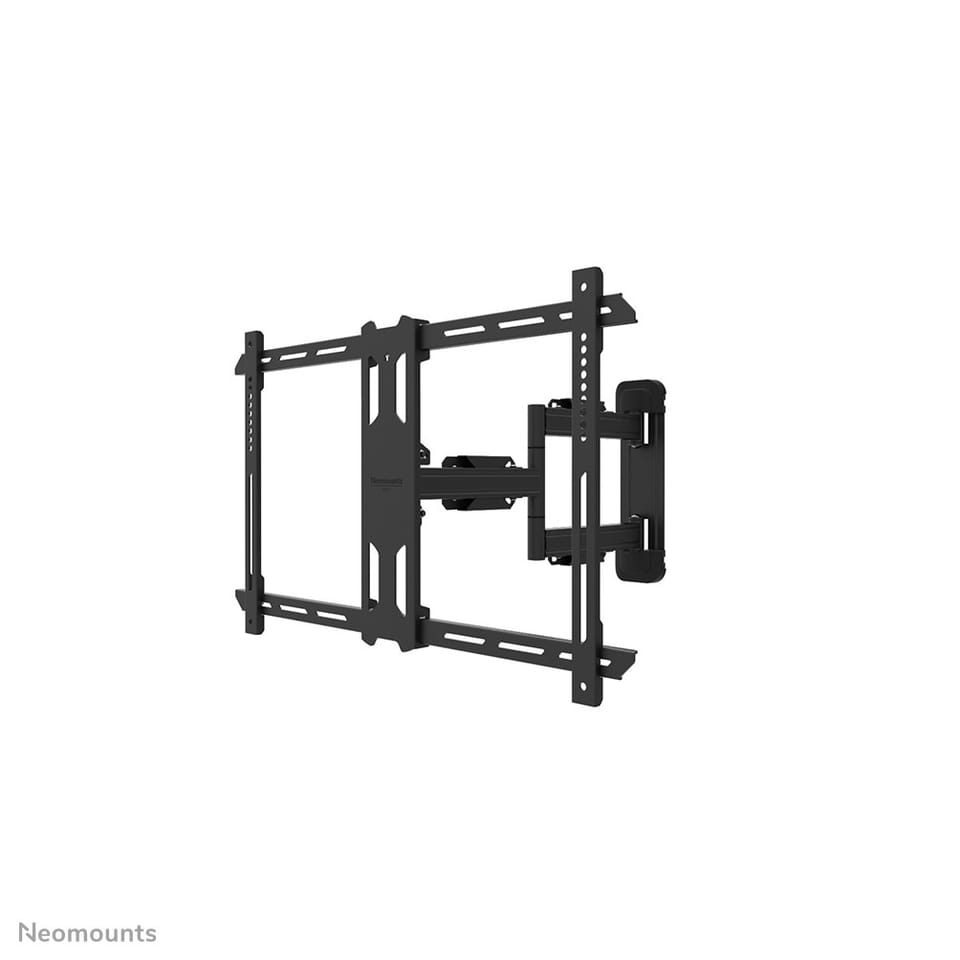

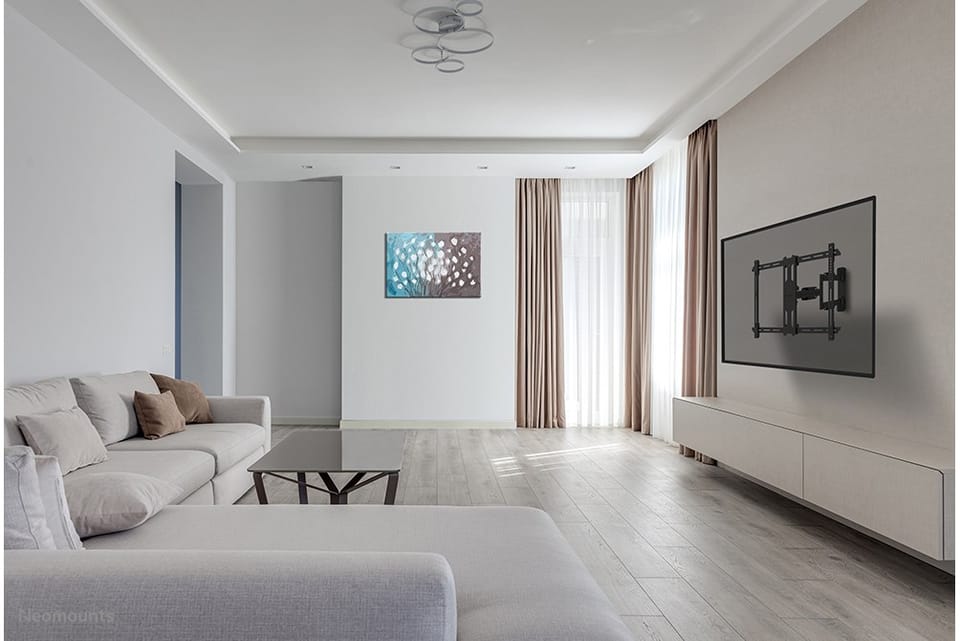

The Neomounts Select WL40S-850BL16 is a full range bracket designed for flat screens up to 70 and a maximum weight of 45kg.
WL40S-850BL16
€154.56
Shipping from warehouse: A3
Estimated shipping: Wed, Oct 29 - Mon, Nov 3
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- Neomounts by NewStar
- Product code:
- WL40S-850BL16 / 8717371448875
Share this product:
Specification

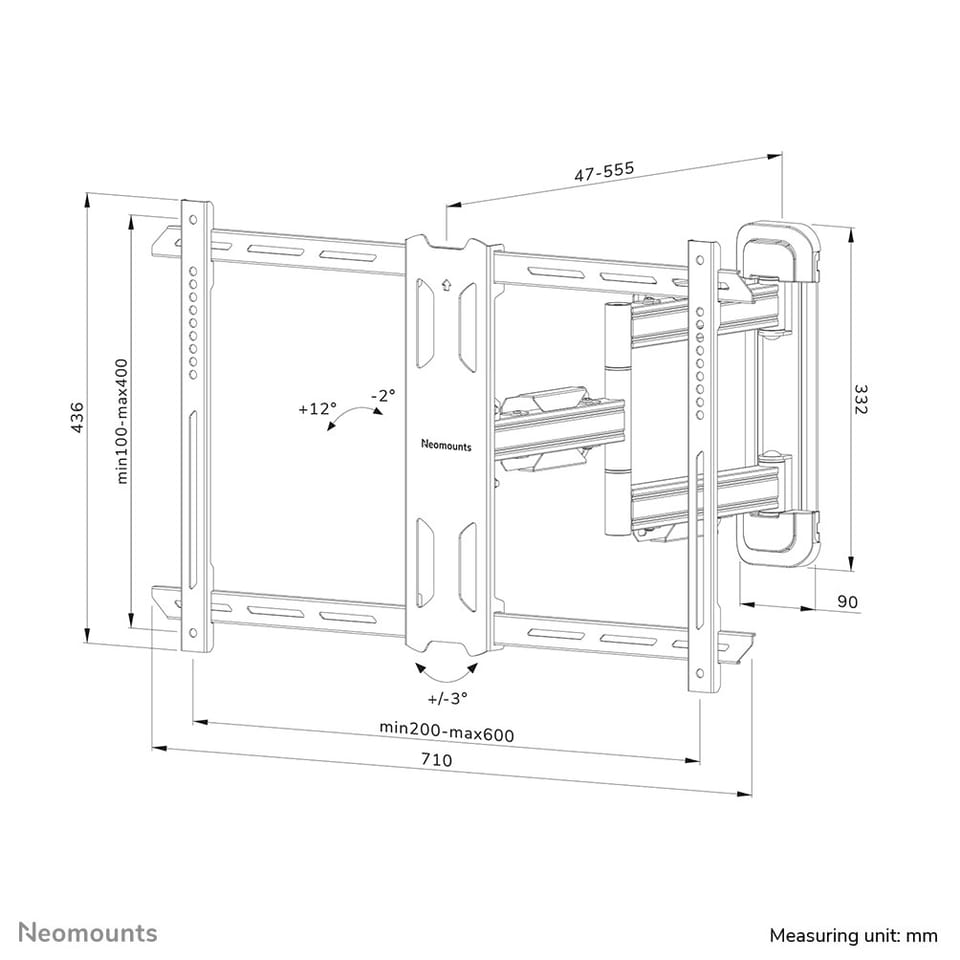

| Angle of rotation: | 6° |
|---|---|

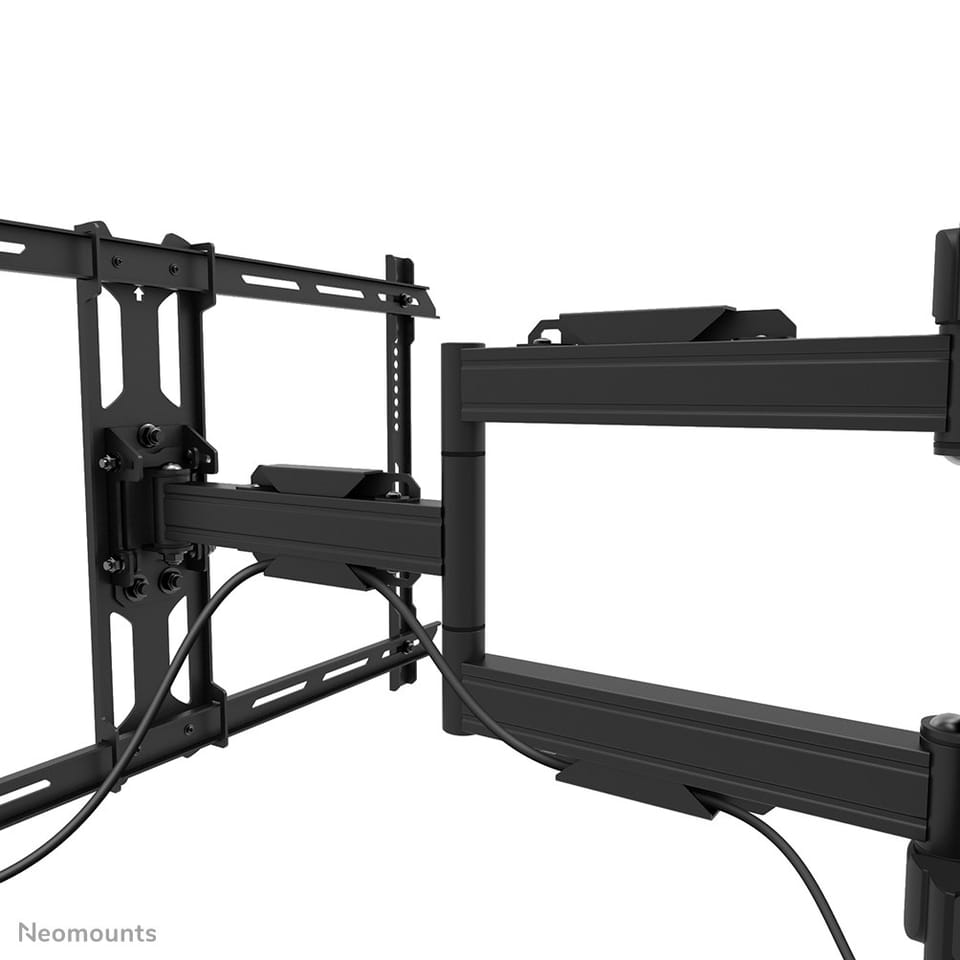

| Cable management: | Yes |
| Country of origin: | China |
| Depth: | 47 mm |
| Distance to the wall (max): | 55.5 cm |

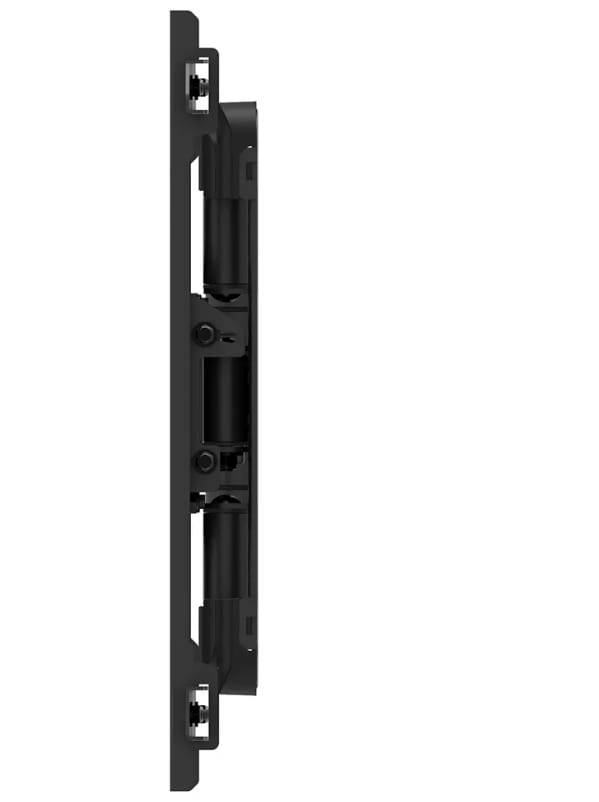

| Distance to the wall (min): | 4.7 cm |
| Harmonized system (hs) code: | 7326909890 |
| Height: | 436 mm |
| Height adjustment: | No |
| Hex key included: | Yes |
| Housing material: | Steel |
| Lockable: | Not lockable |
| Master (outer) case gross weight: | 24.1 kg |
| Master (outer) case height: | 386 mm |
| Master (outer) case length: | 198 mm |
| Master (outer) case net weight: | 18.9 kg |
| Master (outer) case width: | 756 mm |
| Maximum screen size: | 177.8 cm (70") |
| Maximum vesa mount: | 600 x 400 mm |
| Maximum weight capacity: | 45 kg |
| Minimum screen size: | 101.6 cm (40") |
| Minimum vesa mount: | 200 x 100 mm |

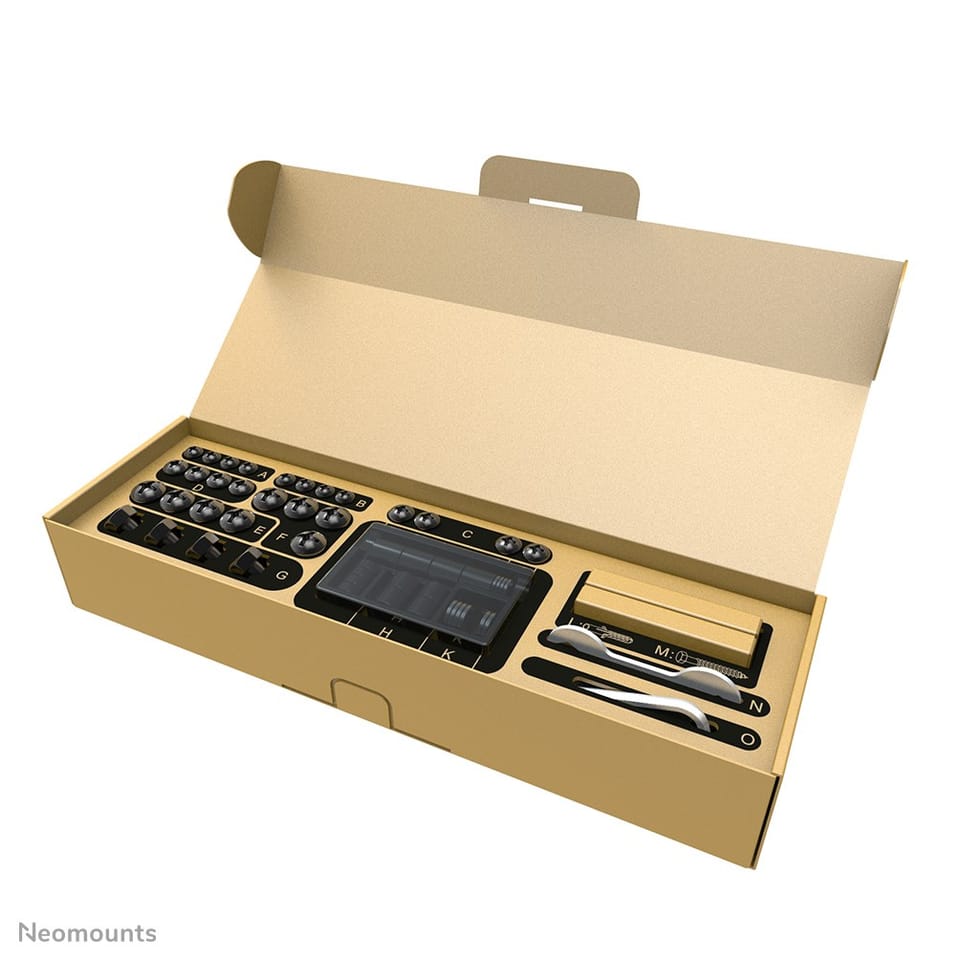

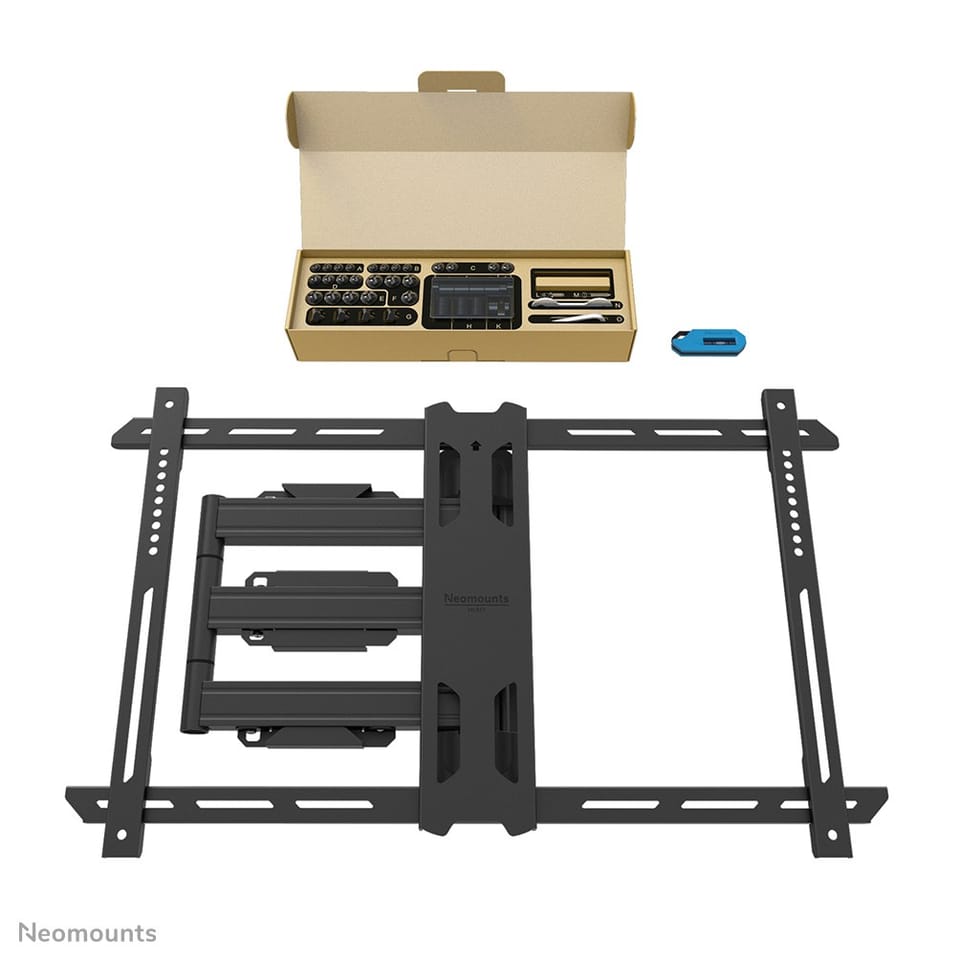

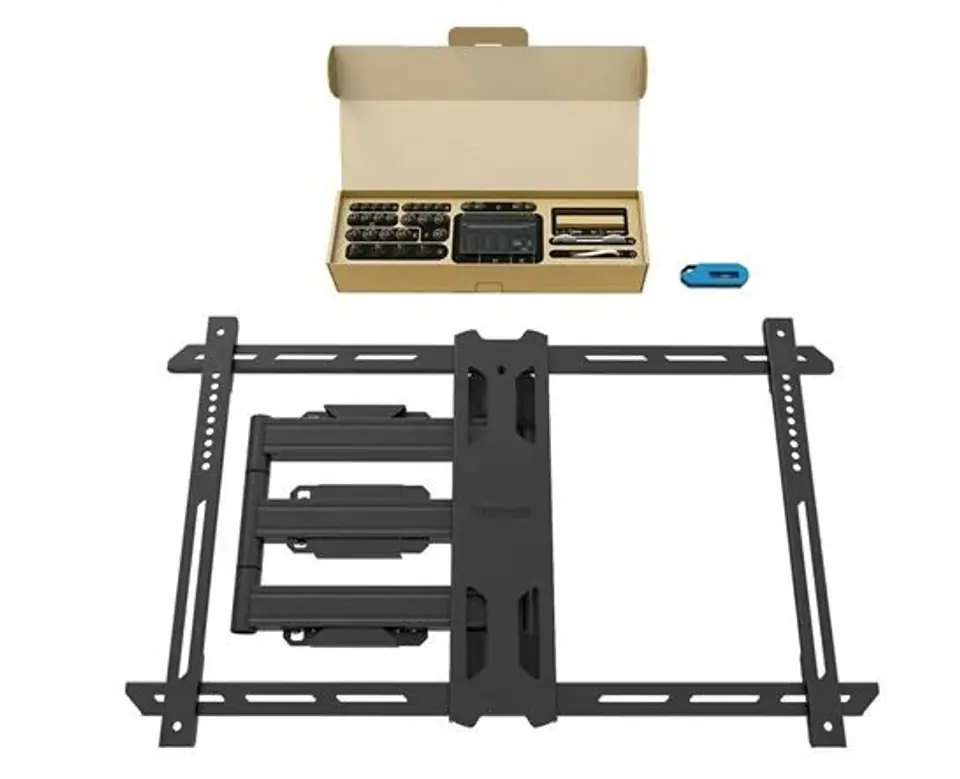

| Mounting kit: | Yes |
| Mounting type: | Wall |
| Number of displays supported: | 1 |
| Number of wrenches included: | 1 |
| Package depth: | 366 mm |
| Package height: | 60 mm |
| Package net weight: | 7.8 kg |
| Package width: | 736 mm |
| Panel mounting interface: | 400 x 200, 600 x 400, 400 x 400, 300 x 200, 200 x 400 mm, 300 x 100, 200 x 100 mm, 200 x 200 mm, 400 x 300, 600 x 300 mm, 300 x 300, 440 x 400, 200 x 300, 600 x 200 |
| Pivot angle: | -3 - 3° |
| Product colour: | Black |
| Products per master (outer) case: | 3 pc(s) |
| Products per pallet (eu): | 60 pc(s) |
| Quantity per pack: | 1 pc(s) |
| Rotating: | Yes |
| Swivel angle: | 40° |
| Swivel angle range: | -45 - 45° |
| Swivelling: | Yes |
| Tilt adjustment: | Yes |
| Tilt angle range: | -2 - 12° |
| Type: | Full motion |
| Width: | 710 mm |
