| Alarm inputs:: | 2 pcs. NO/NC |
|---|---|
| Alarm signaling:: | Signal to the control panel |
| Battery life:: | ~ 3 years |
| Colour:: | white |
| Compliance with standards:: | EN50131-1:2006+A1:2009, EN50131-1:2006+A2:2017EN50131-2-8:2016EN50131-2-6:2008EN 50131-5-3:2017 |
| Cooperation:: | HIKVISION AX PRO |
| Country of origin:: | China |
| Current consumption:: | Max. 70 mA |
| Detection:: | Door or window opening, Vibration, Shock, tilt < 25 ° |
| Dimensions:: | 22 x 103 x 23 mm - Transmitter 13 x 34 x 11 mm - Magnet |
| Environmental class:: | II |
| Frequency range:: | 868 MHz - Tri-X Wireless |
| Manufacturer / brand:: | Hikvision |
| Opening distance of reed switch contacts:: | ~ 43 mm |
| Operating temperature:: | -10 °C ... 55 °C |

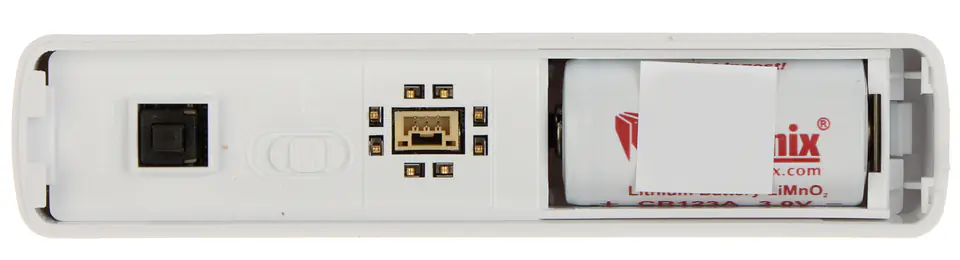

| Power:: | 1 x CR123A 3V battery (included) |
| Radio communication range (in open area):: | Max. 1600 m |
| Sap code:: | 314300097 |
| Scales:: | 0.046 kg - Transmitter 0.012 kg - Magnet |
| Selected features:: | Tamper protection Signal indicator LED signaling Digital detector Transmission coding - 128-bit AES encryption Two-way communication Protection against jamming by switching frequencies ensures reliable transmission Input : NO/NC |
| Warranty:: | 2 years |

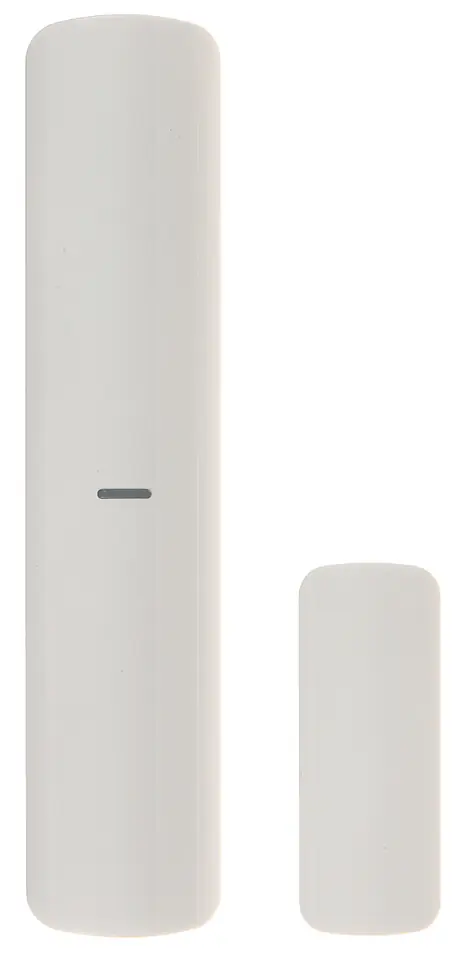

The DS-PDMCK-EG2-WE wireless detector is designed for installation in locations where a shock sensor is required or a combination of this sensor with a reed switch, such as walls, ceilings, door and window frames
DS-PDMCK-EG2-WE works with other devices compatible with the HIKVISION AX PRO wireless system
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
