| Alarm signaling:: | Signal for alarm control panel, LED |
|---|---|
| Battery life:: | ~ 6 years |

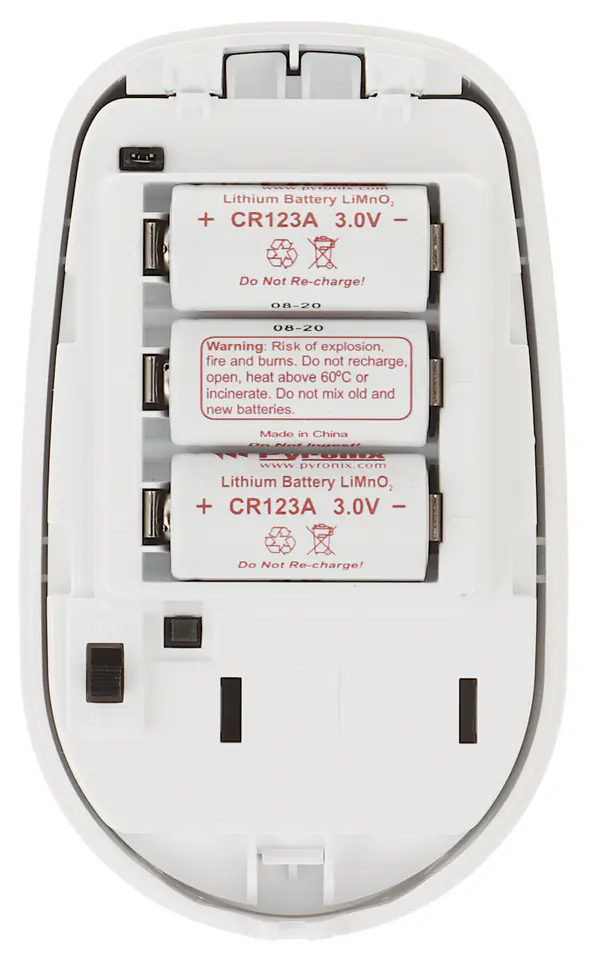

| Battery:: | 3 x CR123A 3V (included) |
| Colour:: | white |
| Cooperation:: | Wireless alarm systems HIKVISION AX PRO |
| Current consumption:: | Max. 1500 mA20 μA (standby) |
| Dimensions:: | 72 x 121 x 57 mm |
| Environmental class en 50130-5:: | II |
| Frequency band:: | 868 MHz |
| Grade:: | 2 |
| Manufacturer / brand:: | Hikvision |
| Operating temperature:: | -10 °C ... 55 °C |
| Permissible relative humidity:: | 10 % ... 90 % |
| Radio communication range (in open area):: | Max. 800 m |
| Sap code:: | 314300064 |
| Scales:: | 0.22 kg |

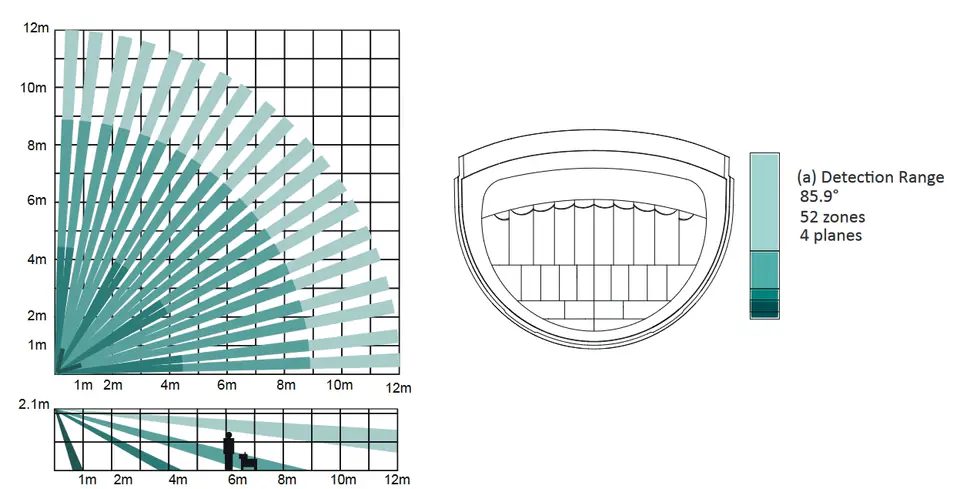

| Selected features:: | Bidirectional Communication AES 128-bit Data Encryption Cam-X Protocol Compatibility Digital Detector :- SEC (Smart Environmental Control) - Advanced Digital Signal Processing and 3D Optics- Detection Angle : 85.9 °- Sensor Range : 12 m- Animal Resistance : 30 kg- Motion Detection : 0.3 ... 2 m/s- Advanced temperature compensation Built-in CMOS camera :- Camera viewing angle: 88 °- Supported resolutions: 640 x 480 px, 320 x 240 px, 160 x 120 px- Photo recording format: JPEG- Day/night mode- IR illuminator: 12 m Remote configuration Wall mounting: 1.8 ... 2.4 m |
| Warranty:: | 2 years |

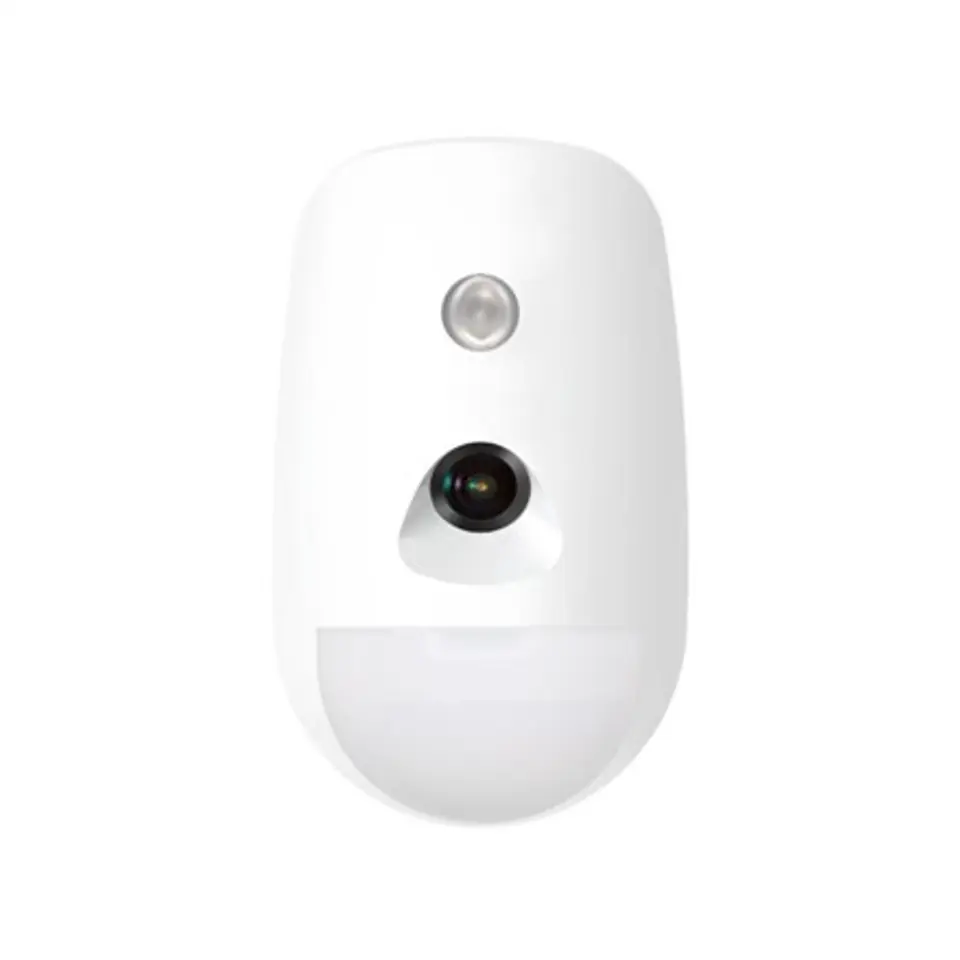

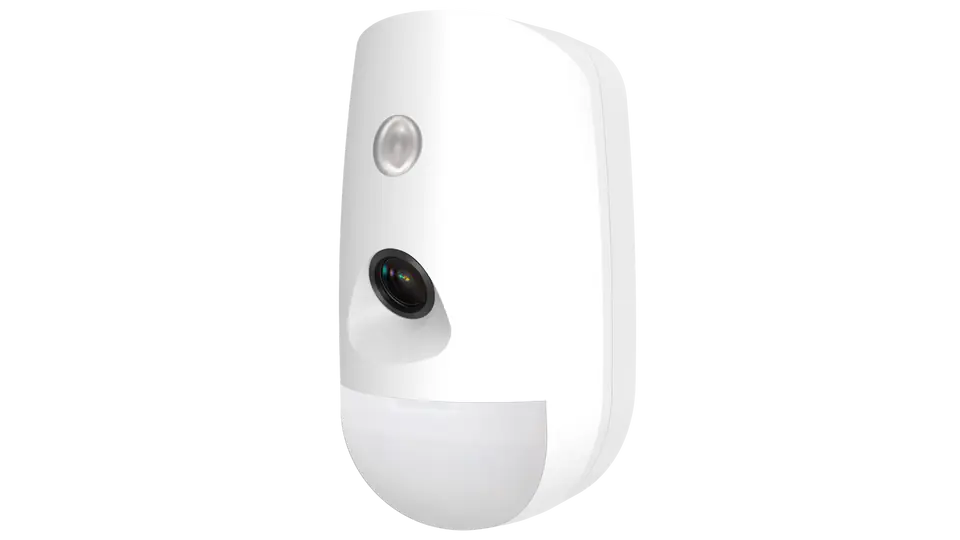

Wireless PIR detector with camera and IR illuminatorCamera enables video verification of triggered alarm eventsViewing images in real time, you can quickly and accurately respond to real alarm events
The device is designed to work with Hikvision AX PRO wireless access control systems operating in the 868 MHz band
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
