Manufacturer Name: STUD TORCH-4M

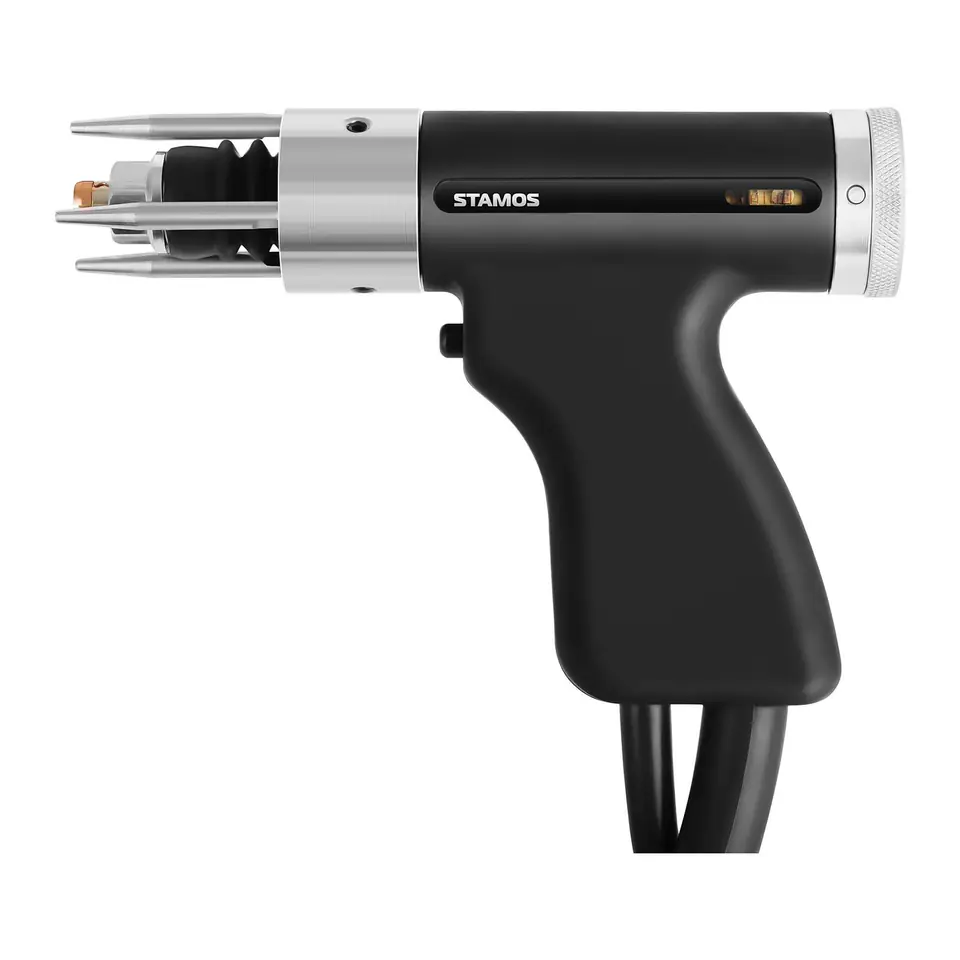

Stamos Germany equipment is designed to work with the S-STUD1600 and S-STUD2500 capacitor welding machines. The task of the STUD TORCH-4M model is to permanently connect the dowels with the surface of steel, stainless steel, aluminum, copper, brass, titanium. The device allows you to perform welds in the range of M3 – M10. Thanks to the rapid discharge of capacitors, it makes 10 – 20 connectors per minute, and a small accumulation of heat means that they are free of deformations, burns and discoloration.

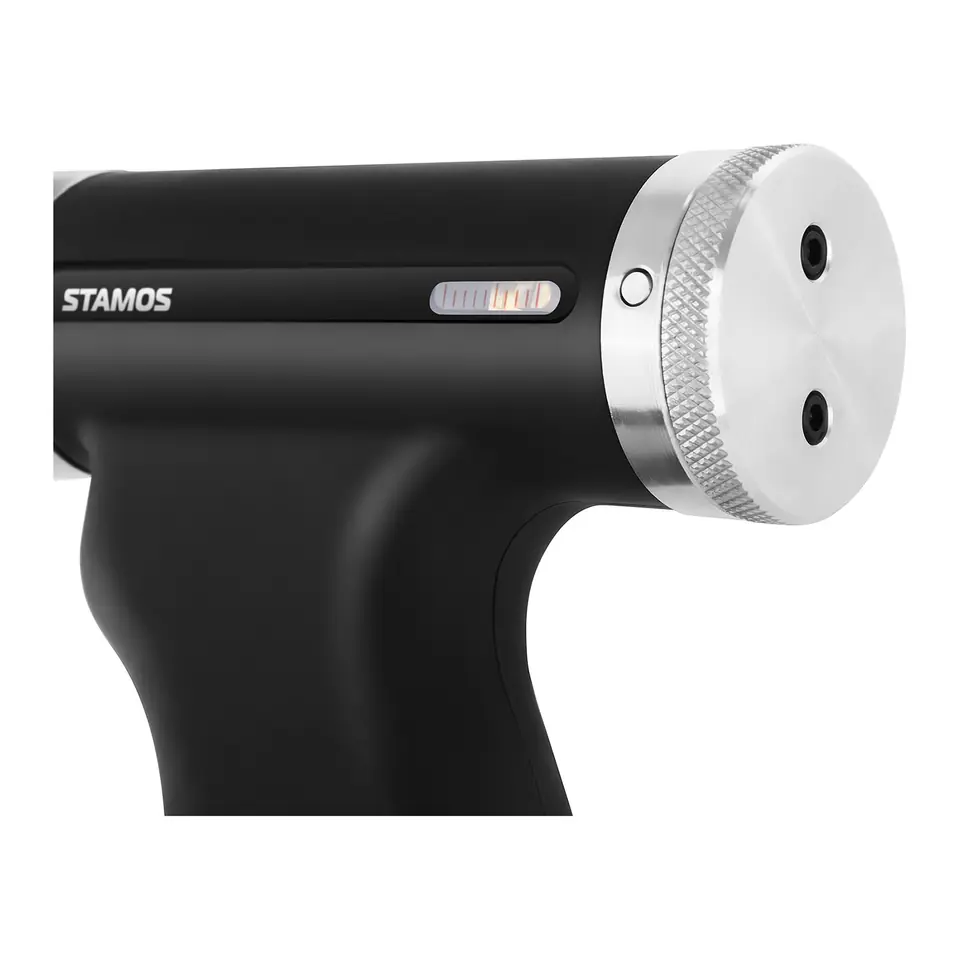

The presented welding gun has the function of adjusting the pressure level, allowing you to determine the depth of melting the pin into the metal. As a result, Stamos Germay equipment is useful against surfaces with a minimum thickness of up to 0.5 mm. It is therefore perfect for processing sheet metal, housings, mounting covers, insulation, etc.

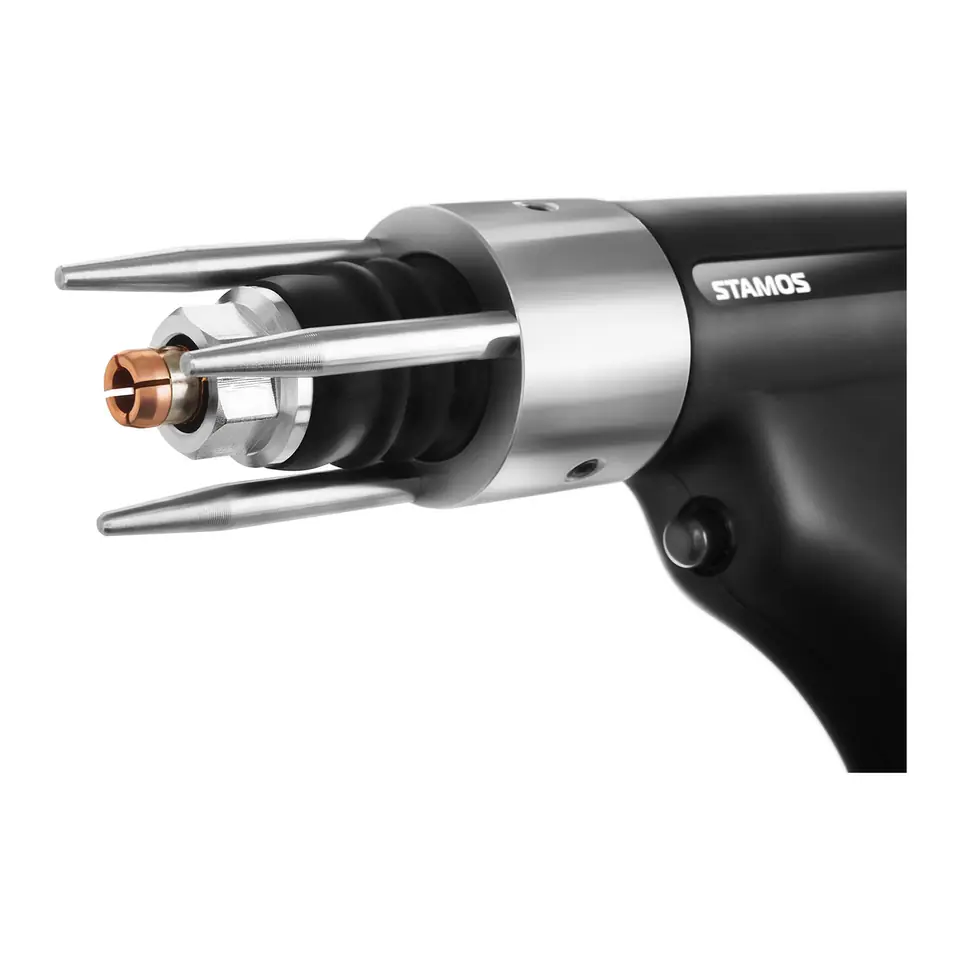

When working with the STUD TORCH-4M, there is no need to use shielding gases or any additional accessories. The capacitor welding gun from Stamos Germany is equipped with a head with three pins. They provide stability and perpendicular dowel alignment. Cable length (4 m).
Features:
- Fast capacitor discharge
- Pressure control function
- Aesthetics of welds
- Three-pin head
- No additional machining required
- - Model - STUD TORCH-4M
- - Catalogue number - 2163
- - Article status - New
- - Welding range - M3 – M10 / Ø 3 – 10 mm
- - Welding capacity - 10 – 20 welds/minute
- - Maximum length of pins - 40 mm

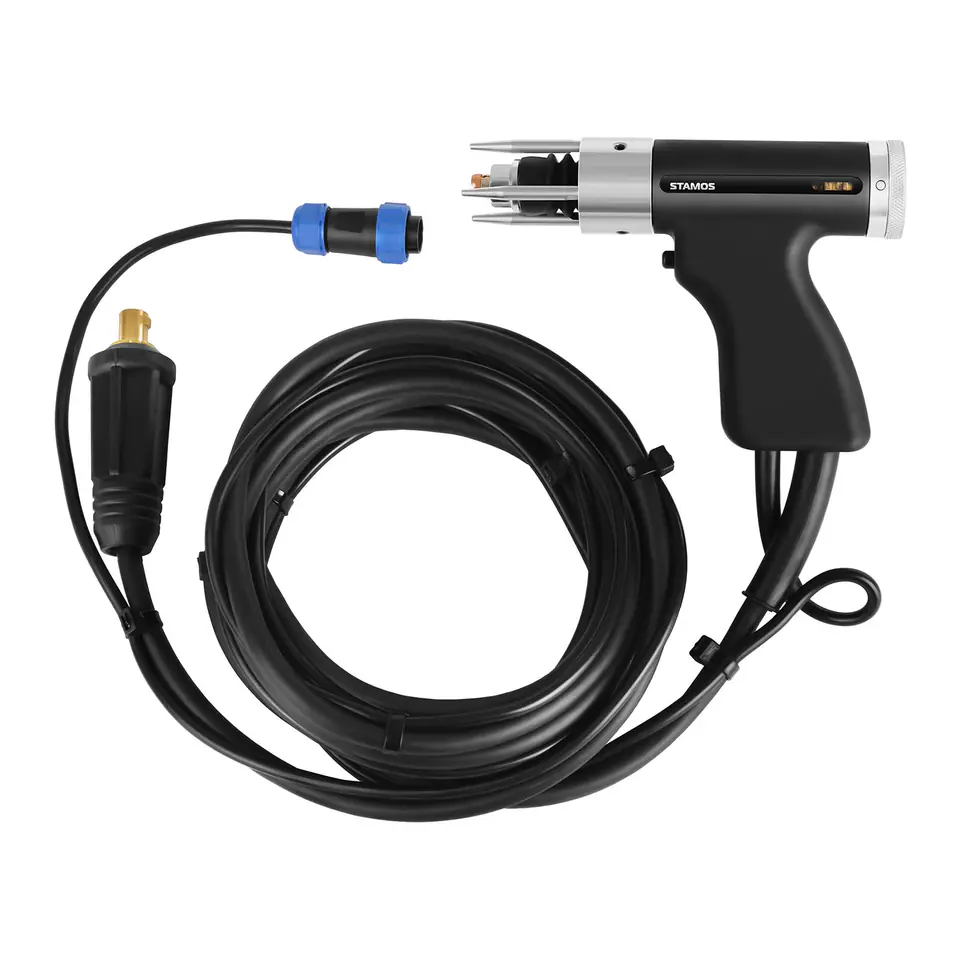

- - Cable - 4 m
- - Types of connectors - DKJ 35-50 / 12 PIN
- - Dimensions - 417 x 10 x 5 cm
- - Weight - 2.3 kg
- - Shipping dimensions (LxWxH) - 32.5 x 32.5 x 6 cm
- - Shipping weight - 2.8 kg

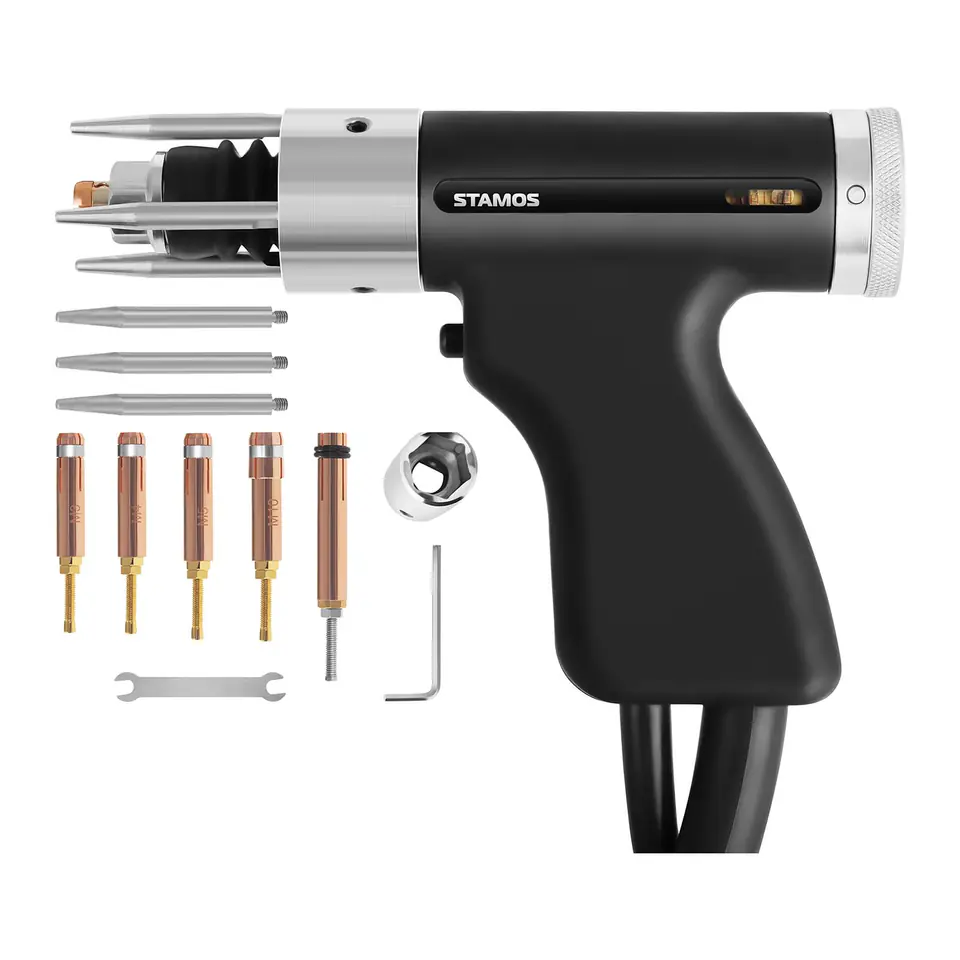

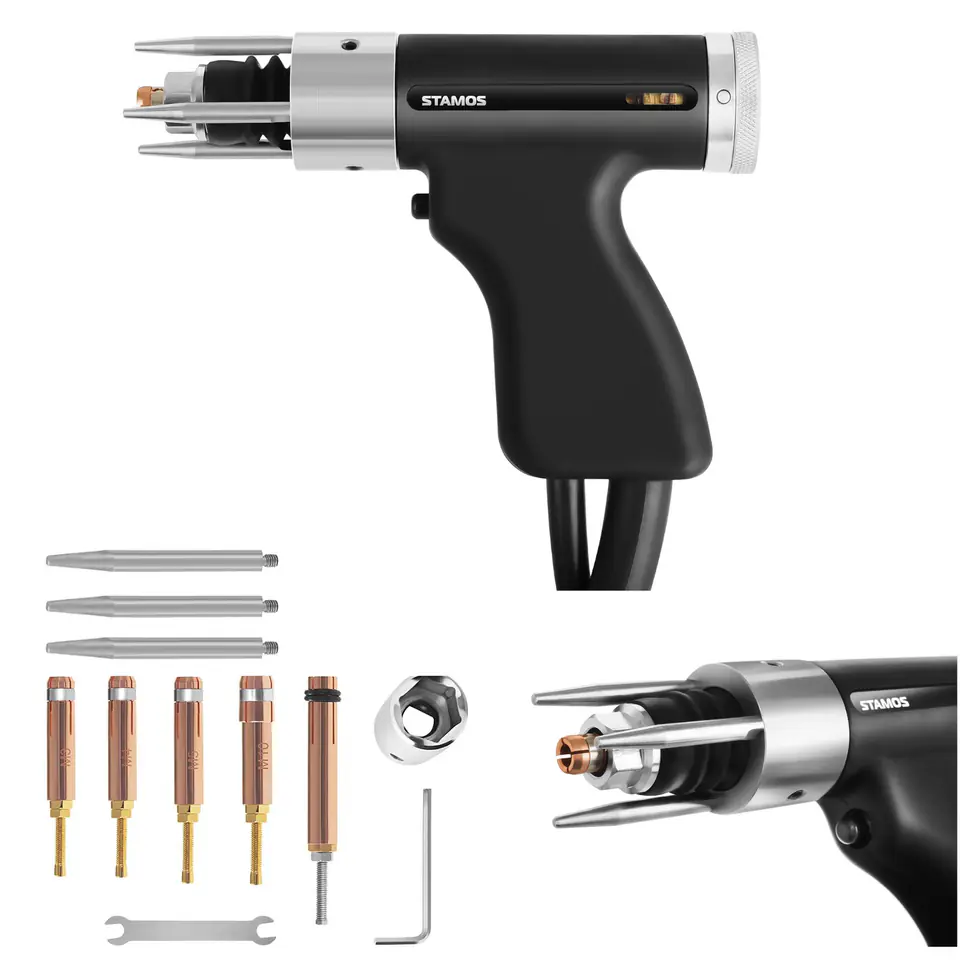

- - Capacitor welding gun STUD TORCH-4M

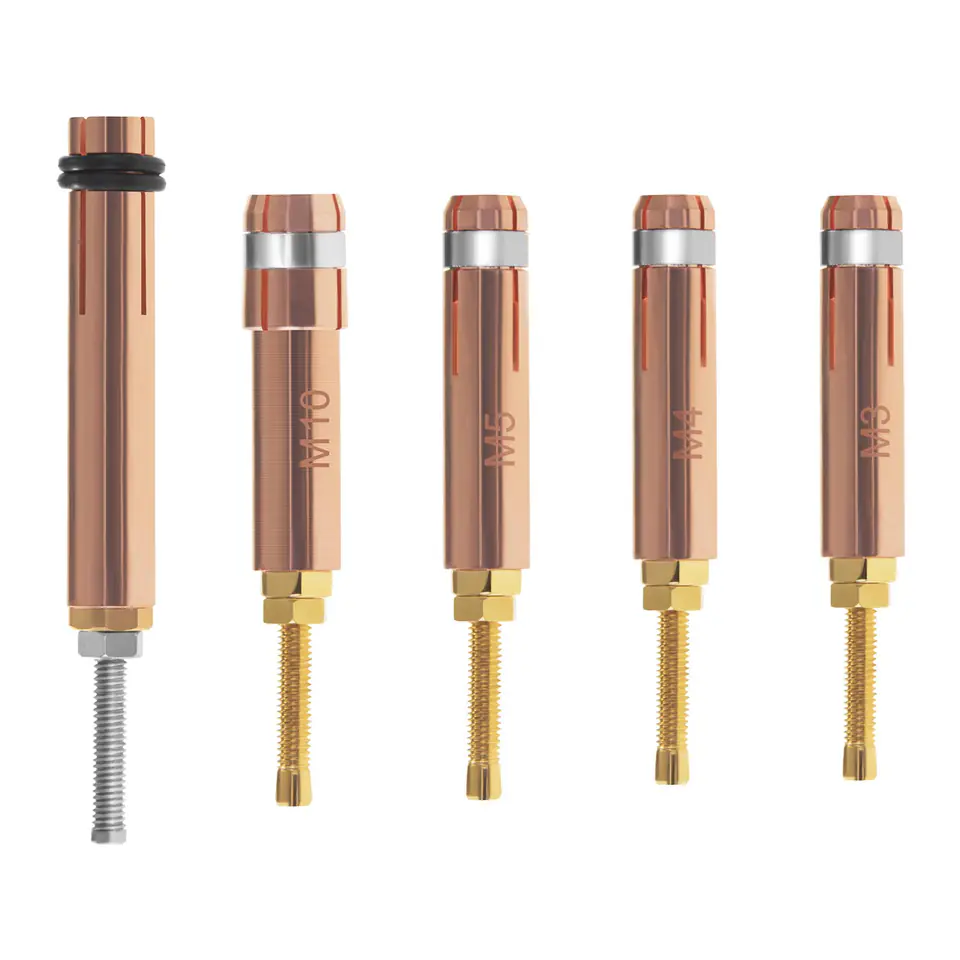

- - Dowel welding holder M10 - 1 pc.
- - Dowel welding holder M8 - 1 pc.
- - Dowel welding holder M6 - 1 pc.
- - Dowel welding holder M5 - 1 pc.
- - Dowel welding holder M4 - 1 pc.
- - Dowel welding holder M3 - 1 pc.
- - Pins - 3 pcs.
- - Long pins - 3 pcs,

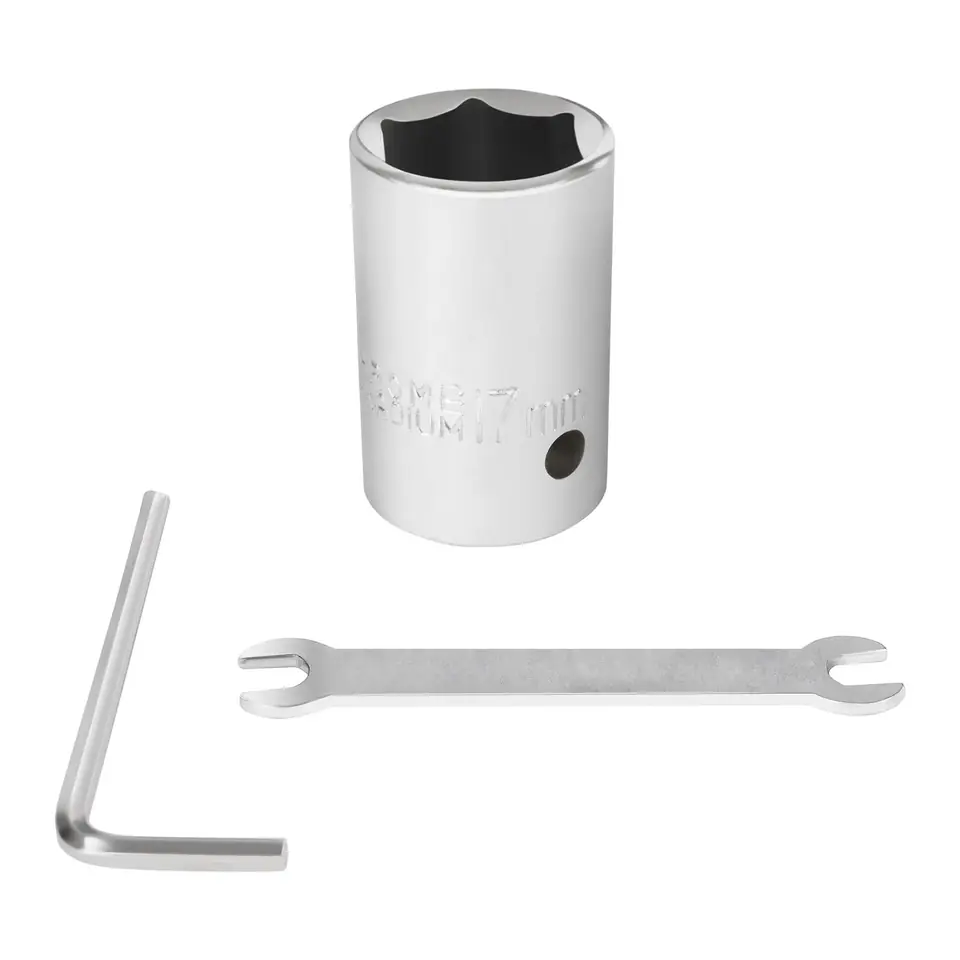

- - Accessories
- - Manual EN
