Manufacturer no: 10062021

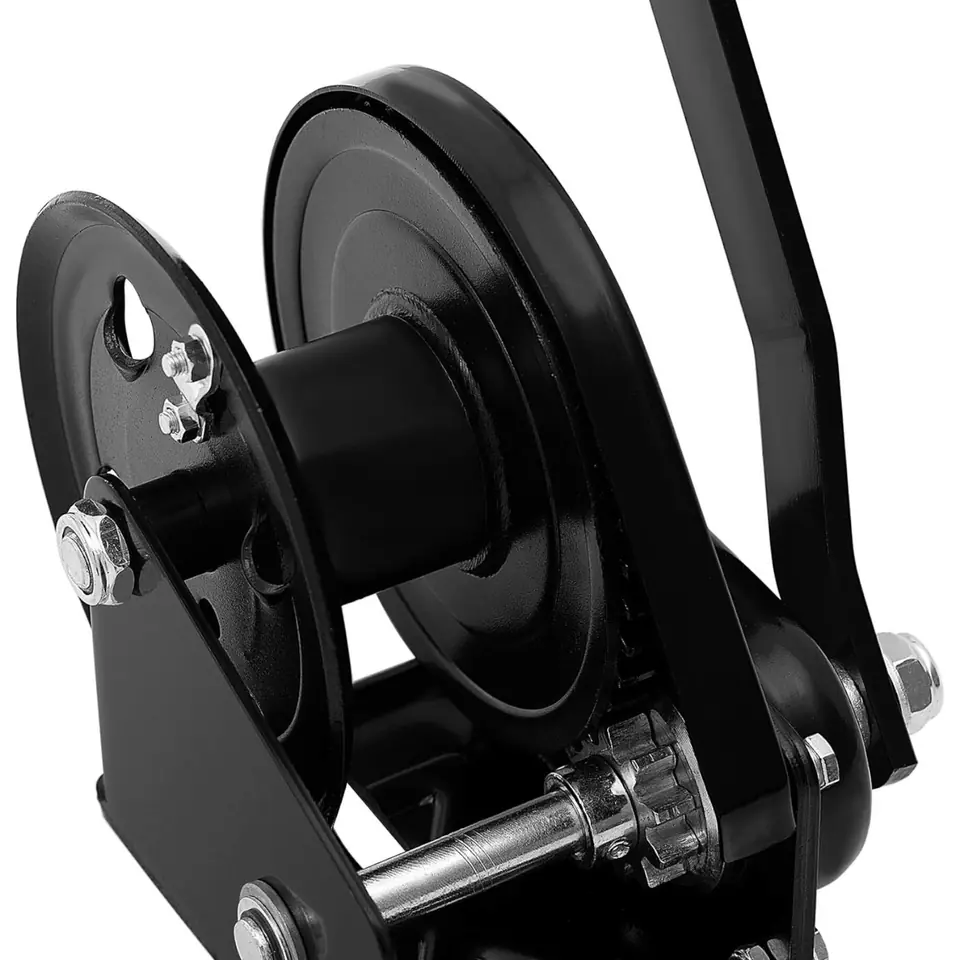

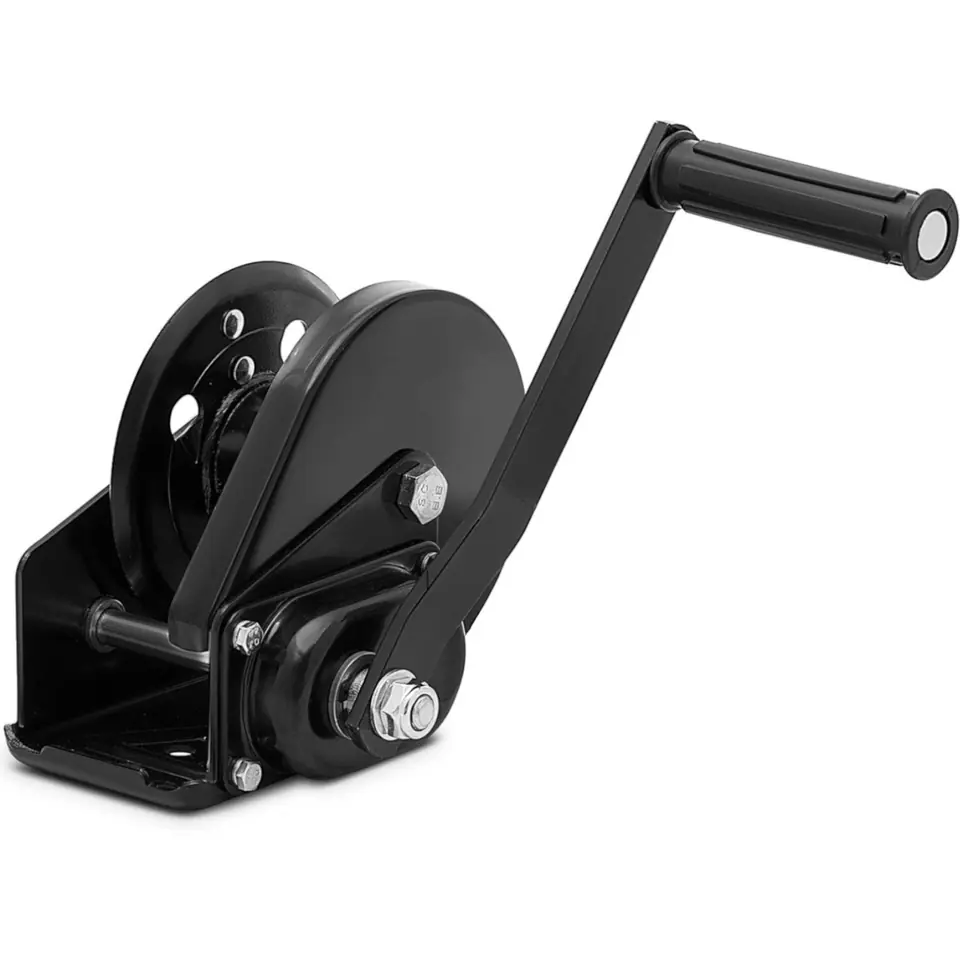

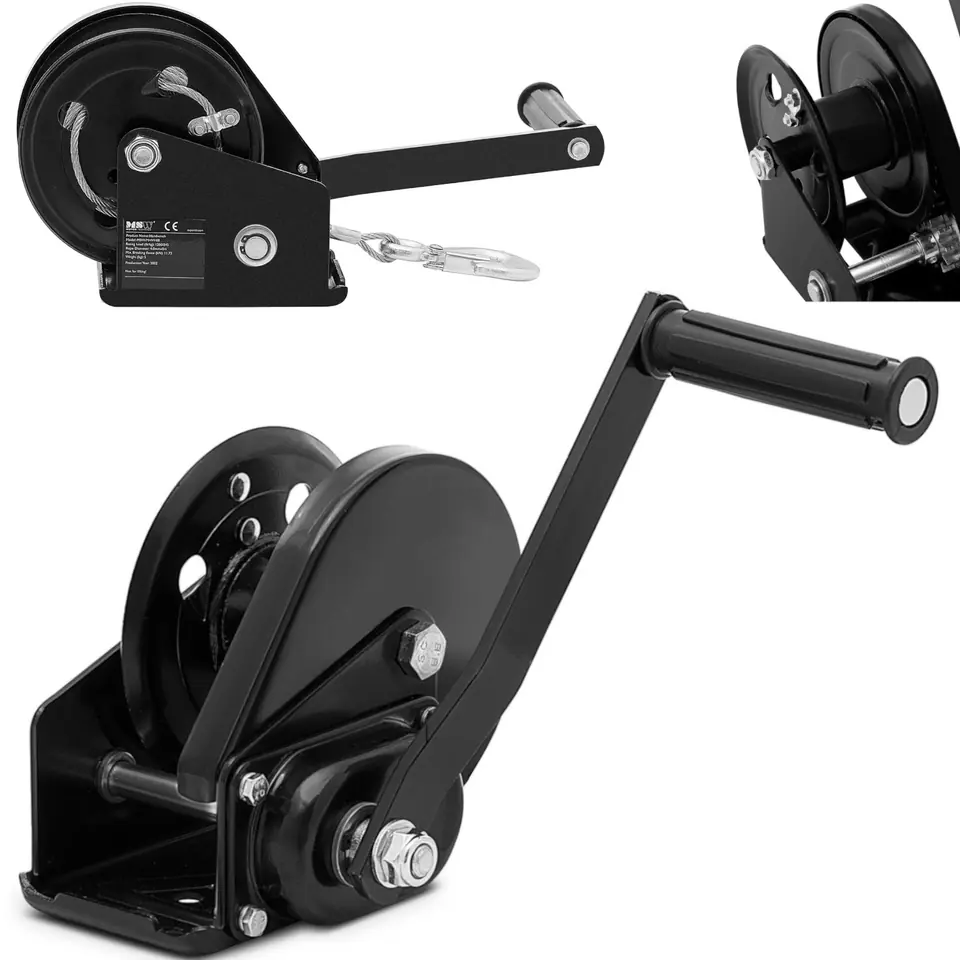

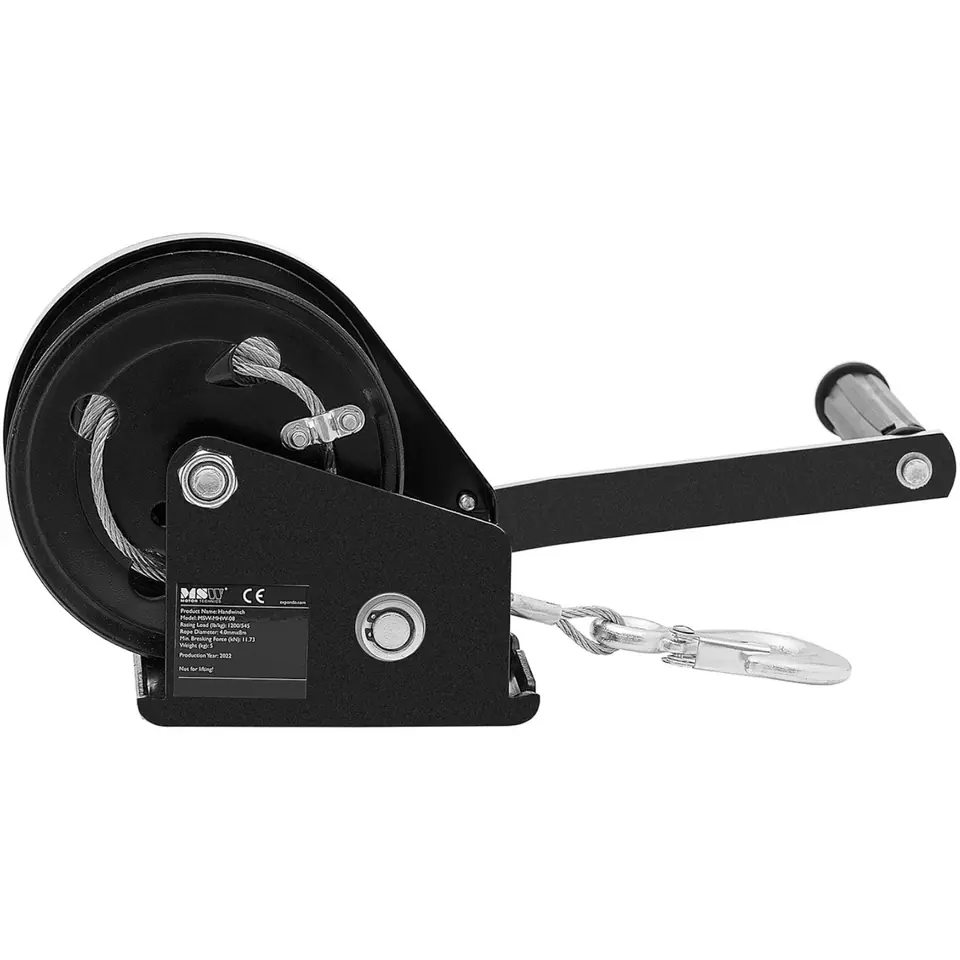

The MSW manual winch is suitable for towing boats, caravans and other loads at home, in the garden, at the marina or in the workshop. The robust construction and 4.2:1 gear ratio allow you to develop a pulling force of 550 kg. The device is operated manually, without the use of electricity. The transmission is quiet, the gears mesh precisely. The gearbox is made of alloy steel and protected with a galvanic coating. The braking mechanism keeps the cable (not included) securely in the desired position. Mechanical components are closed and secured during operation, the crank can be removed for storage.
Product features:
- - Pulling force 550 kg with a gear ratio of 4.2:1,

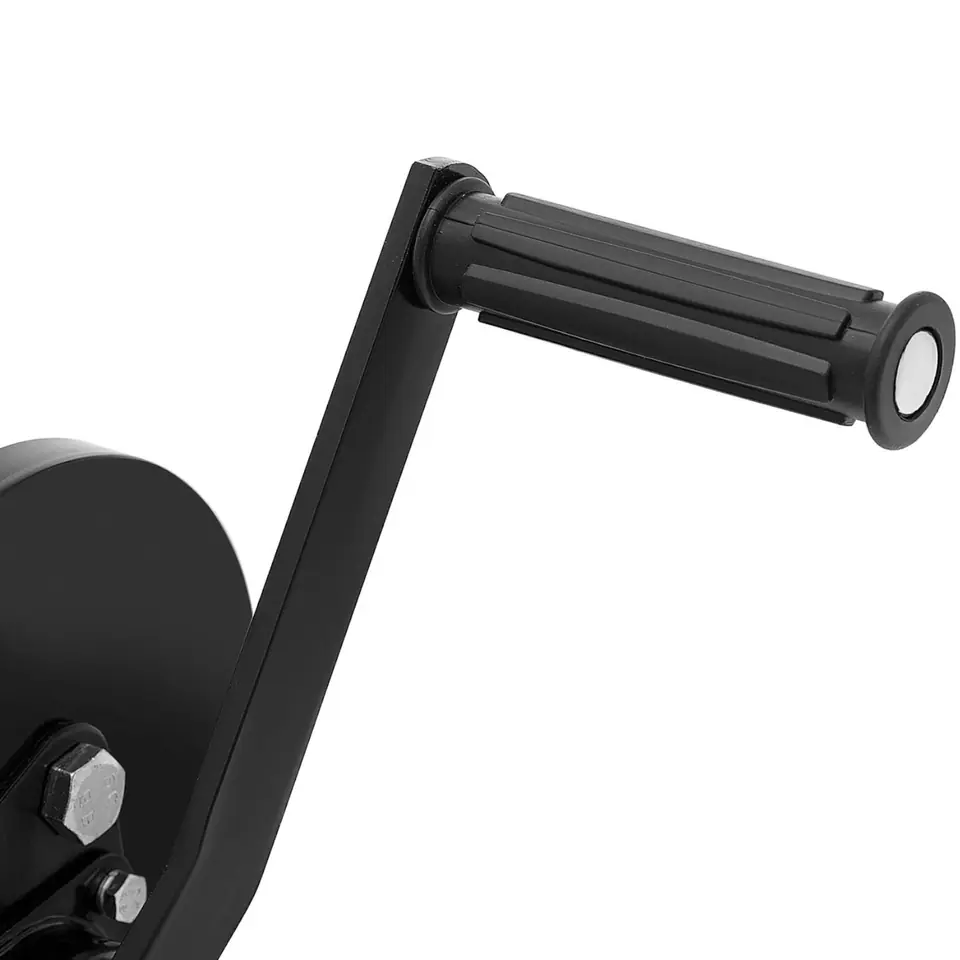

- - Hand crank with ratchet mechanism,
- - Mechanical braking system and hook with a diameter of 18 mm,
- - Threads made of alloy steel and protected against corrosion with galvanized coating,
- - Easy fastening via mounting plate.
- - Model - MSW-MHW-03
- - Catalogue number - 10062021
- - Article status - New
- - Hook - 18 mm
- - Load [kg] - 550
- - Gear ratio - 4.2:1
- - Material - Steel
- - Features - Automatic brake
- - Speed levels - 1
- - Dimensions (LxWxH) [cm] - 34 x 27 x 16
- - Weight [kg] - 3,5
- - Shipping dimensions (LxWxH) [cm] - 21 x 16 x 15
- - Shipping weight [kg] - 3,6
- - Hand winch
- - NO ROPE INCLUDED
- -Manual
