Manufacturer no: 10030800

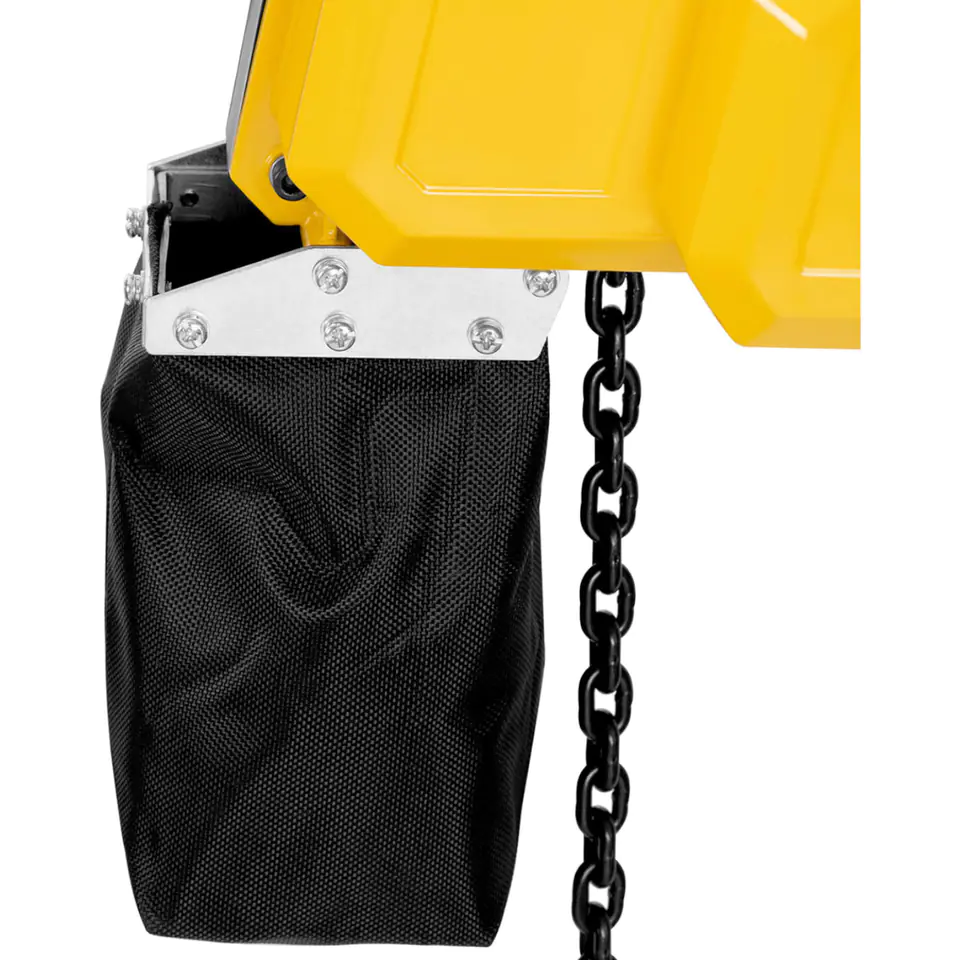

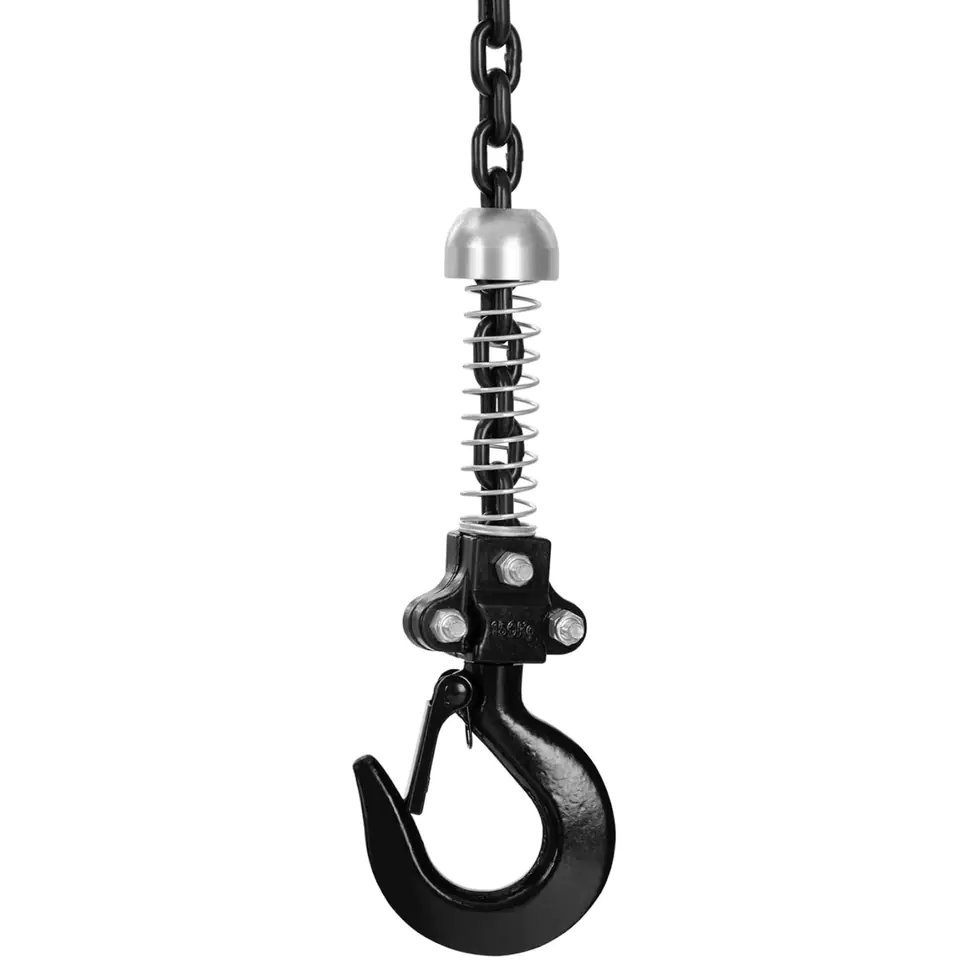

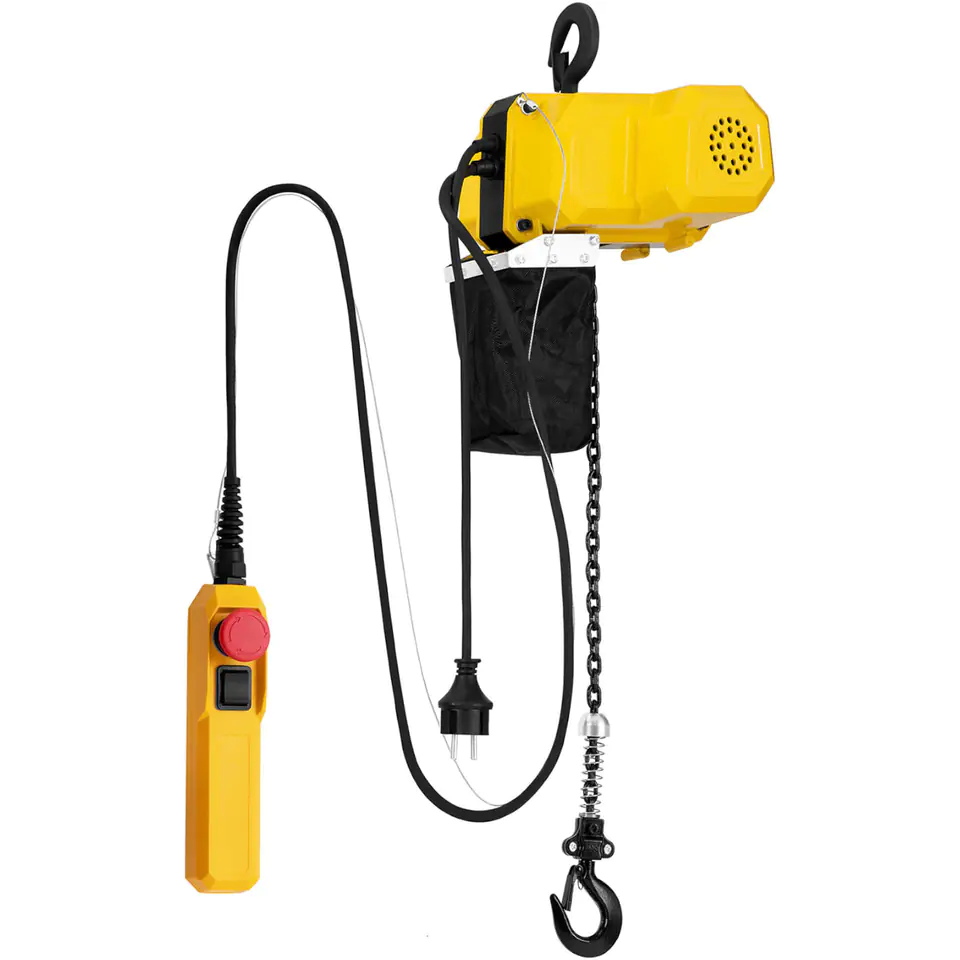

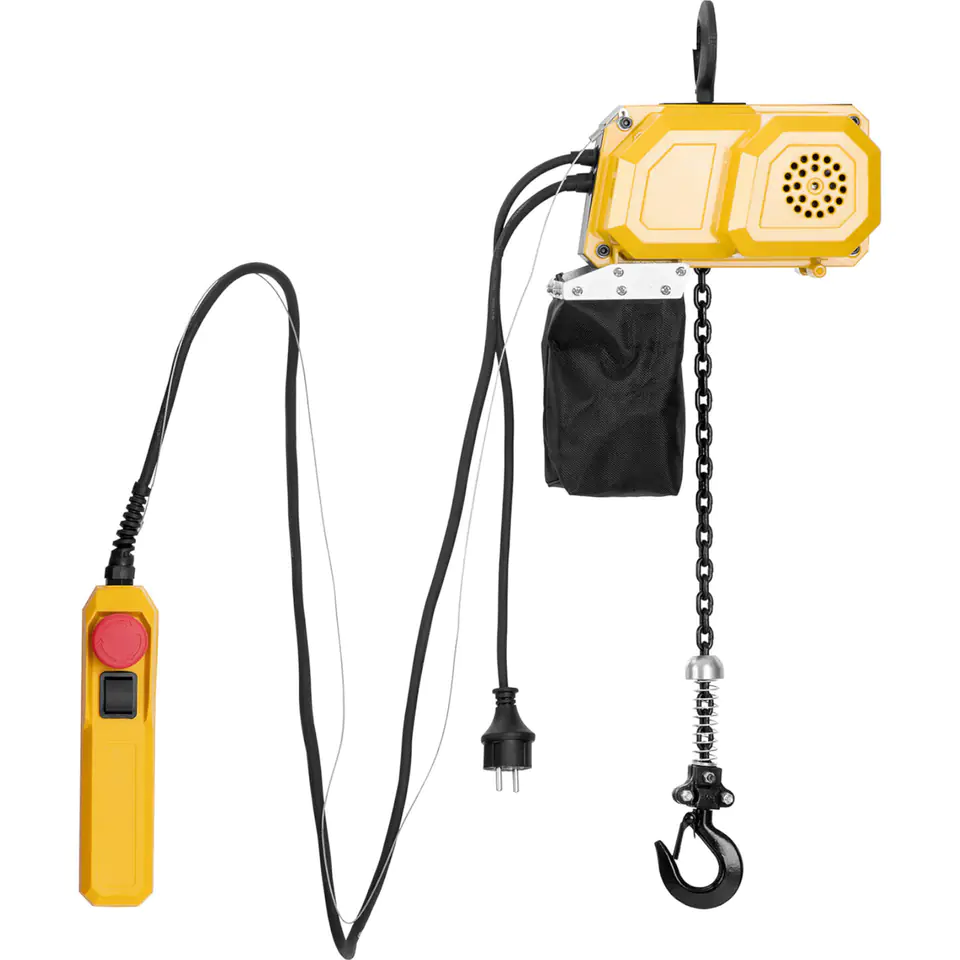

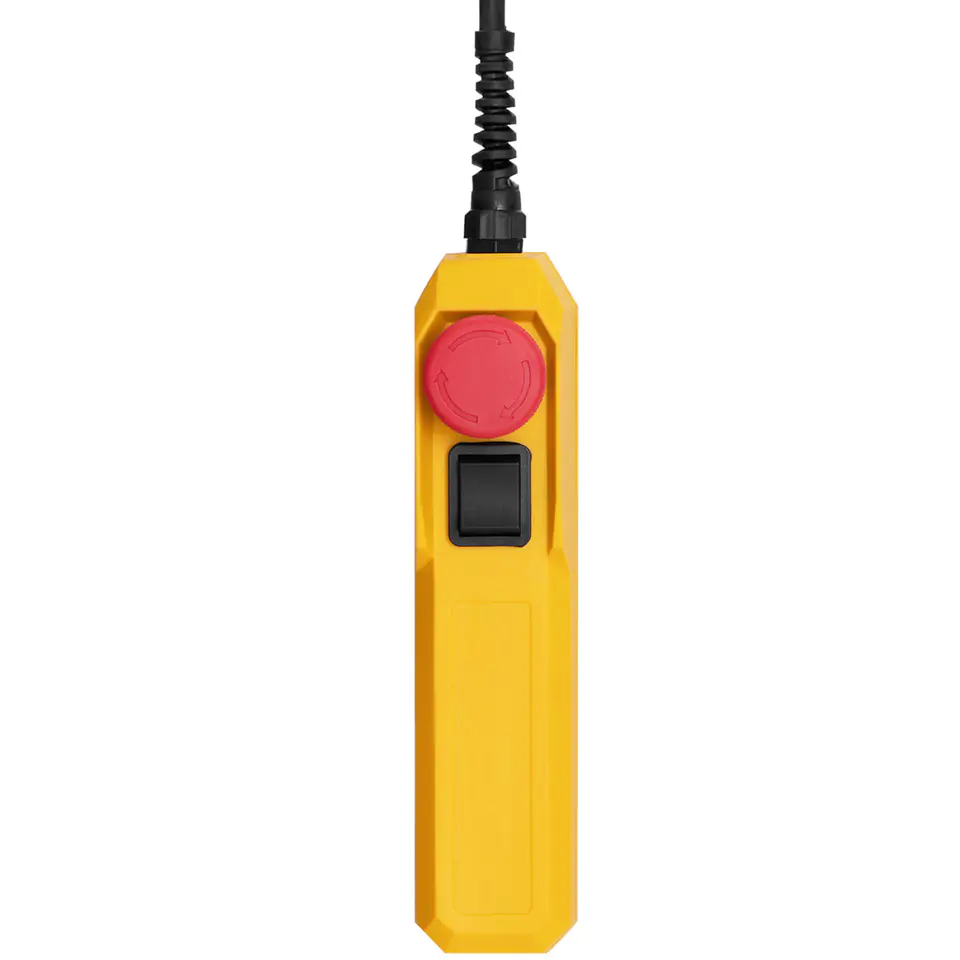

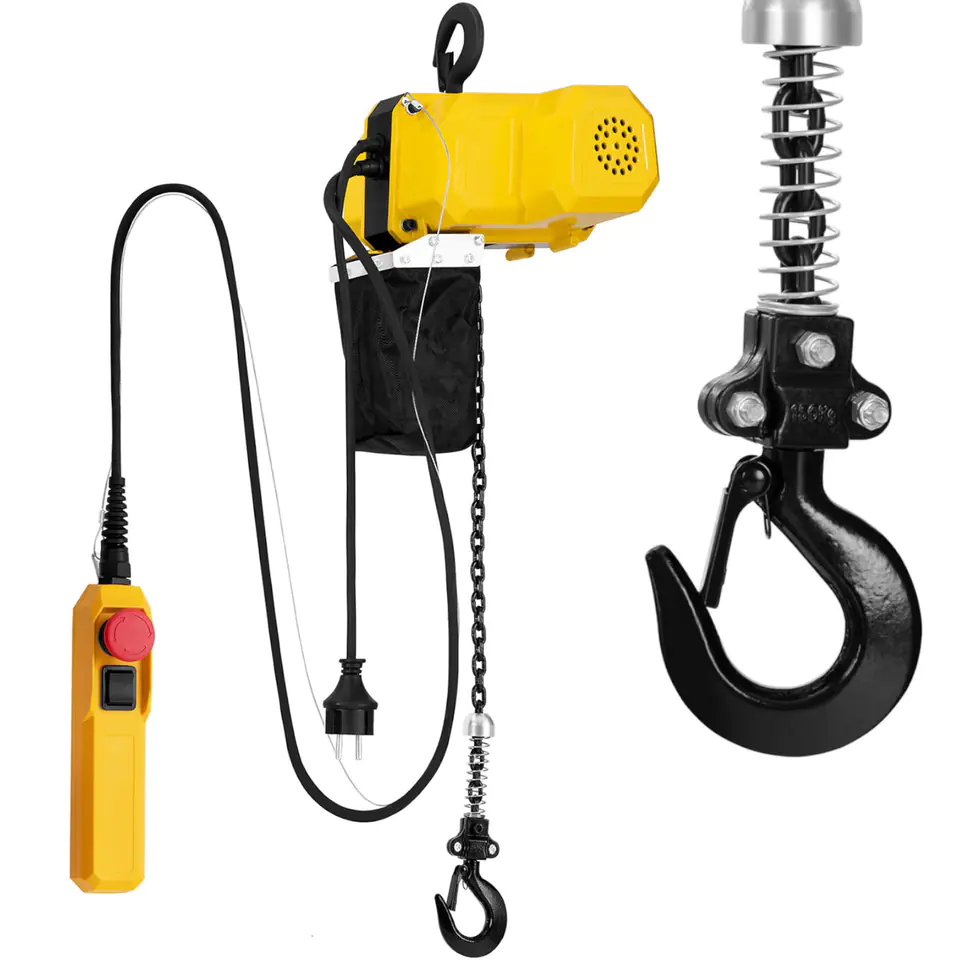

The rope winch from Steinberg Systems is suitable for lifting heavy loads in the warehouse and workshop. The winch has a 240 W motor that allows lifting heavy loads to a height of up to 6 m. The lifting speed is 3m/min. The wired remote control allows you to control the device from a distance. The emergency stop stops the chain. The load hook has a safety lock that ensures safe transport of the attached item. The 4mm diameter stainless steel chain is robust and wear-resistant. Suitable for lifting heavy goods up to 150kg. The housing of the device is made of durable steel, it is resistant to scratches, chips or corrosion. The winch has IP54 protection class, it is protected against the ingress of dirt or water. It also has overload protection.
Product features:
- - Chain hoist with a lifting capacity of 150 kg.
- - Lifting height 6 m,
- - Lifts loads at a speed of 3 m/min,
- - Steel chain with a diameter of 4 mm,
- - IP54 protection class and emergency stop.
- - Model - SBS-EH-150/6
- - Catalogue number - 10030800
- - Article status - New
- - Voltage [V] - 230
- - Load [kg] - 150
- - Chain diameter [mm] - 4
- - Material - Steel, copper
- - Permissible load [kg] - 150
- - Maximum load [kg] - 150
- - Engine power [W] - 240
- -Max. Pumping height [m] - 6
- -Max. lifting speed - 3
- - IP rating - IP54
- - Weighted hook - Yes
- - Emergency stop switch - Yes
- - Dimensions (LxWxH) [cm] - 22,5 x 18 x 21,5
- - Weight [kg] - 9
- - Shipping dimensions (LxWxH) [cm] - 31 x 31 x 26
- - Shipping weight [kg] - 9,9
- - Rope winch
- -Manual
