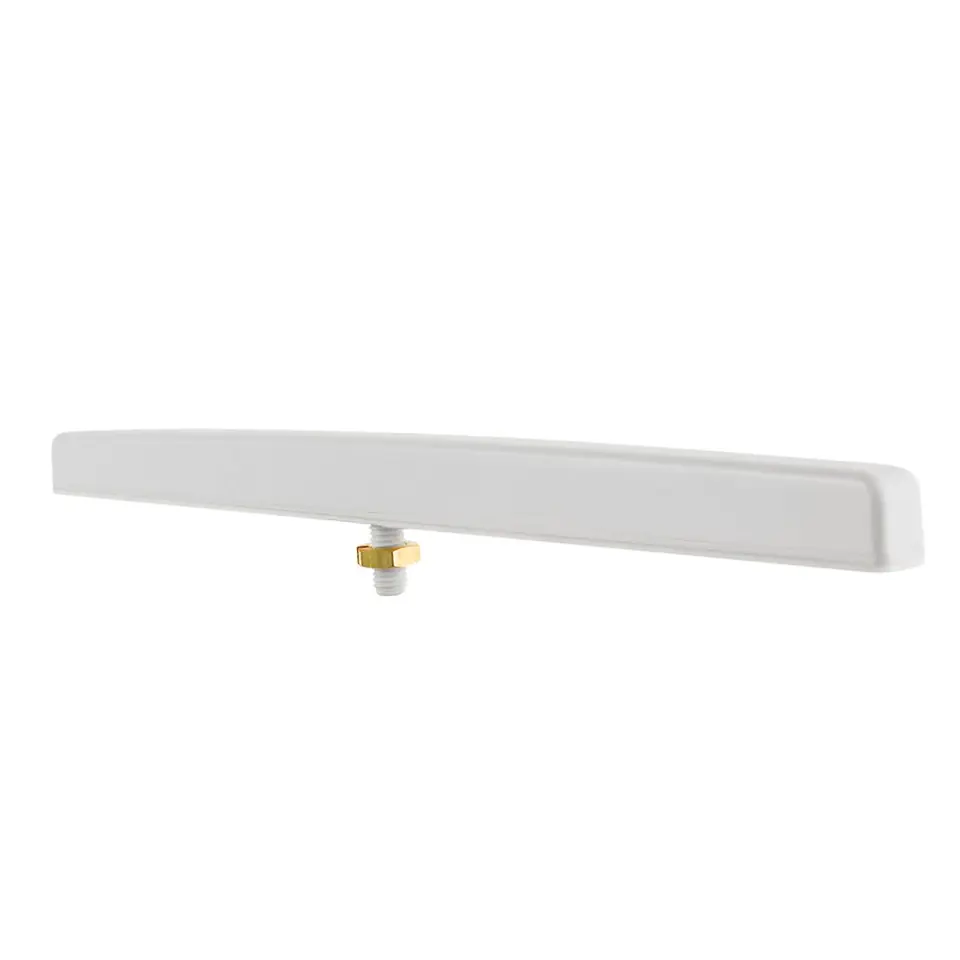

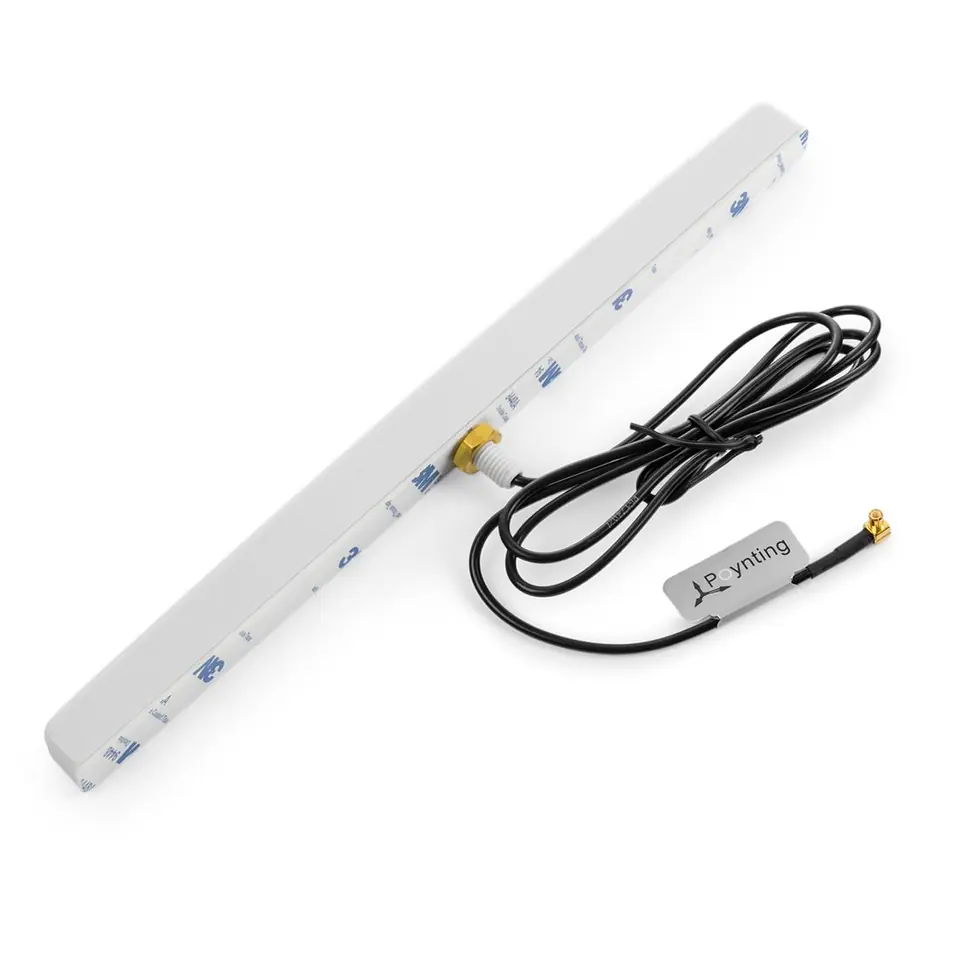

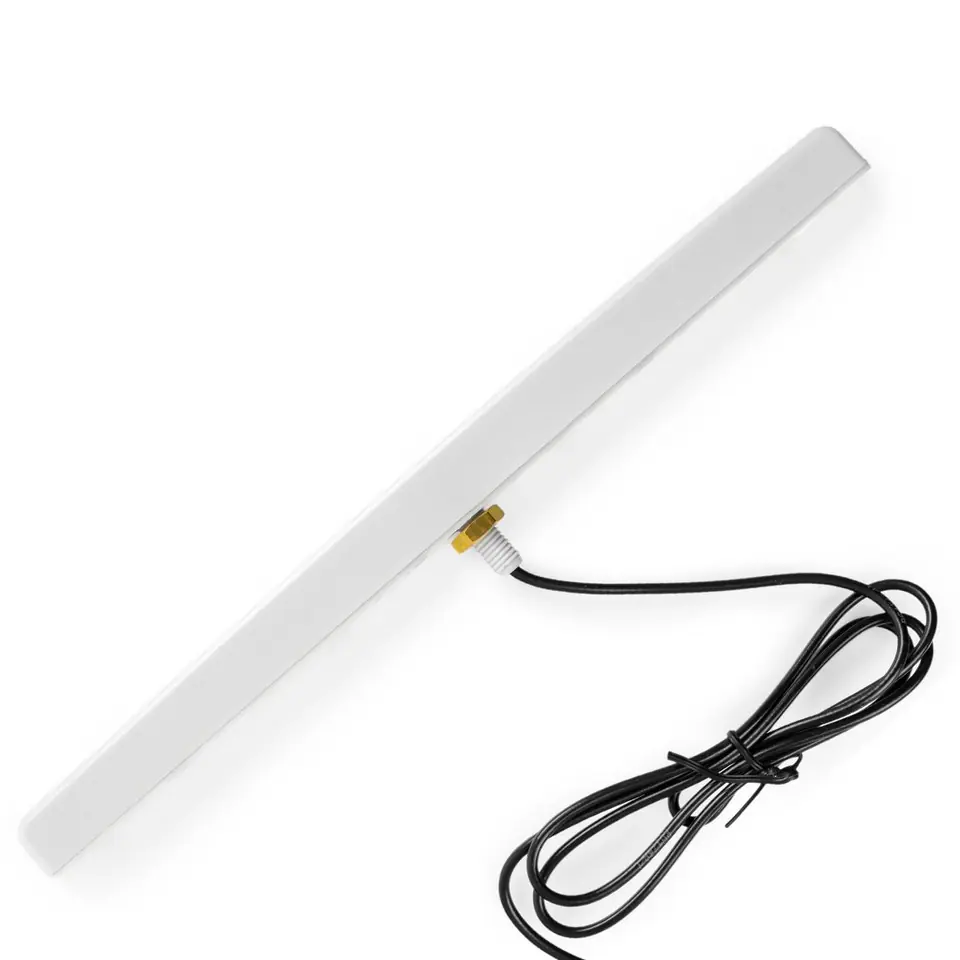

Wideband panel omnidirectional antenna Poynting DASH-1
The DASH-1 antenna is intentionally designed for low-profile requirements such as smart meters. This omnidirectional antenna is suitable for indoor and outdoor use, usually mounted on top or side of smart meters. The DASH-1 antenna is designed for simplicity of installation, while covering the LTE frequency bands 690-2700 MHz. This antenna has excellent electrical performance throughout the 690-2700 MHz LTE/cellular band.

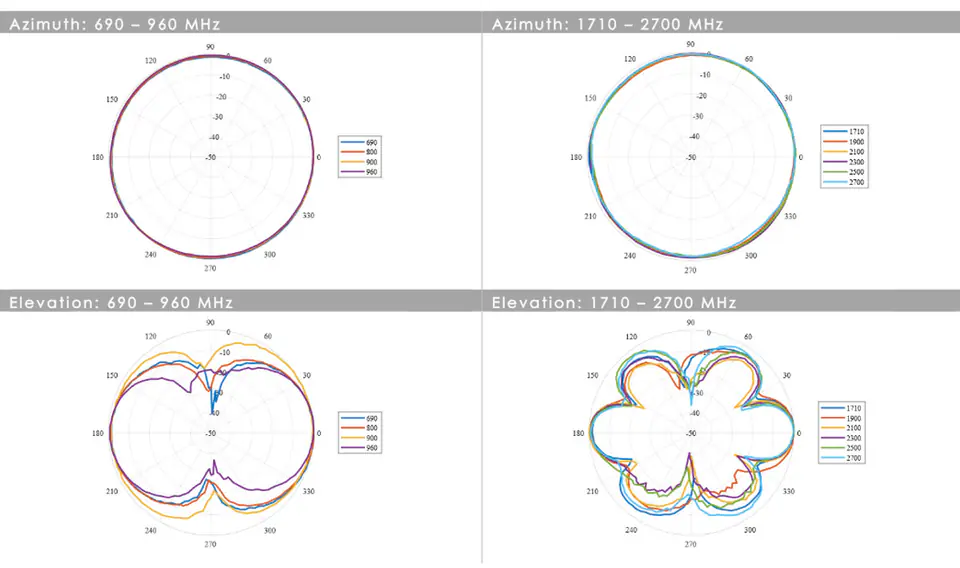

- Omnidirectional antenna
- Broadband frequency ranges from 690–2700 MHz
- Stylish but robust design
- Robust, vandal-proof and waterproof antenna (IP67)

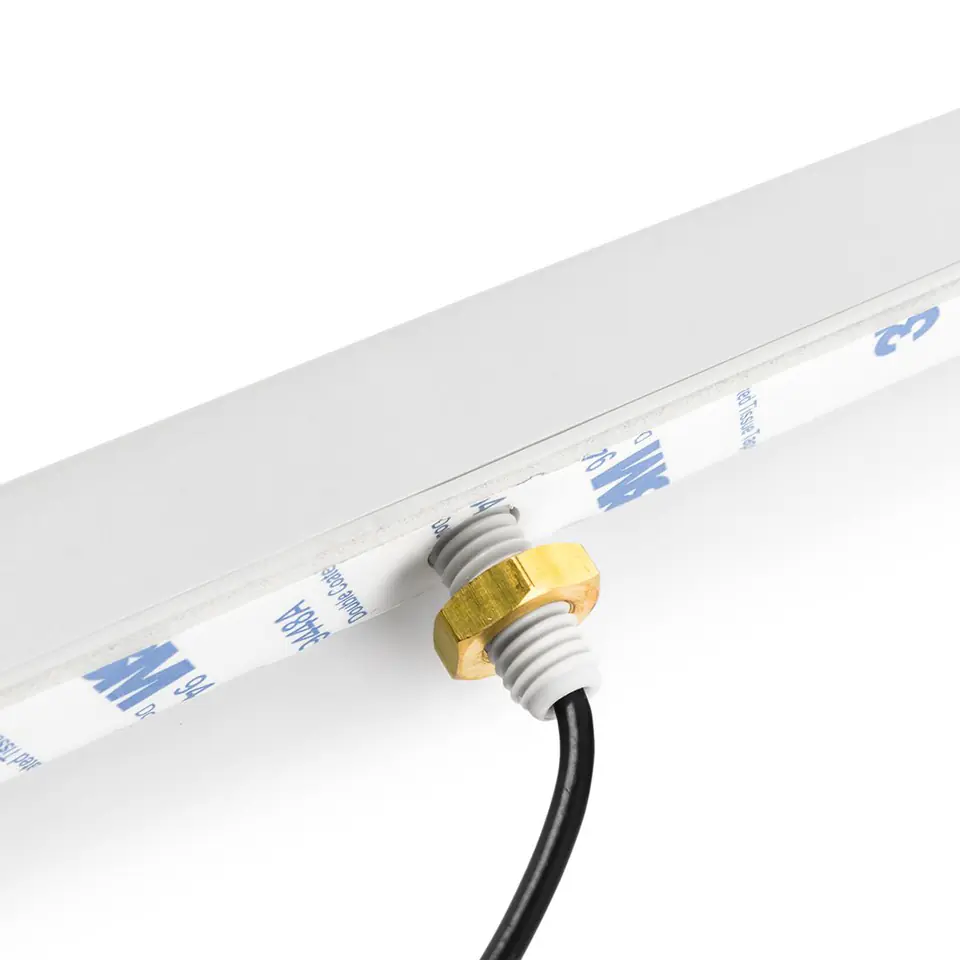

- Extremely versatile mounting options for easy installation
- Smart Tools: Smart Power Metering, Gas and Water Metering
- Smart buildings: climate control, access control, security, irrigation
- Digital signage
- Intelligent environmental and water systems
- Warehouses and logistics systems
- Industrial automation and M2M systems
- Agriculture and agriculture M2M and IoT
- Zigbee
- Z-Wave
- LoRaWAN
- Sigfox
- Wi-Fi
- Wi-Fi HaLow
- LTE-M / NB-IoT
- Bluetooth

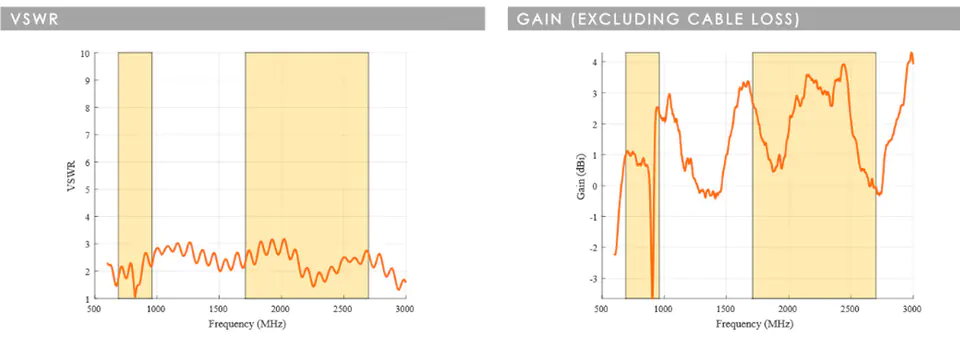

Voltage Wave Factor (VSWR)*
VSWR is a measure of the efficiency of transmitting radio frequency energy from a power source through a transmission line to a load. In an ideal system, 100% of the power is transmitted, which corresponds to a VSWR of 1:1, dash-1 provides excellent performance in all bands with VSWR 3:1 or better in 90% of the bands.
Gain in dBi
4dB is peak gain in all bands from 690-2700 MHz
- gain at 690-960 MHz: 1 dBi
- gain at 1710-2700 MHz: 4dBi
* Antenna gain measured with a standard antenna with polarity set.

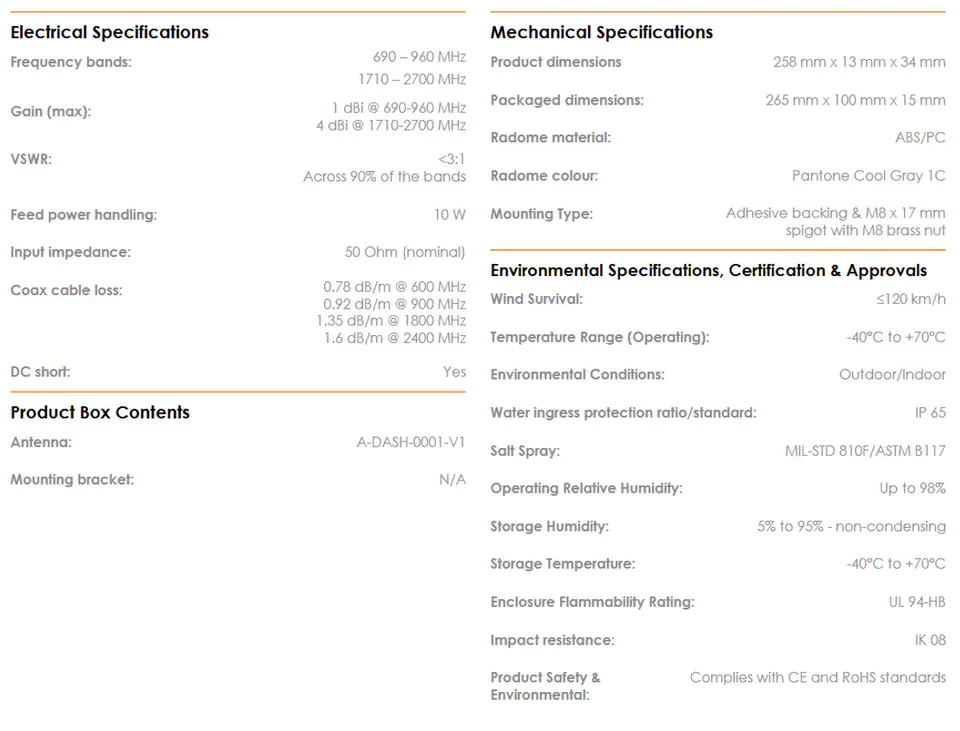

Click here for full technical documentation of the antenna.
