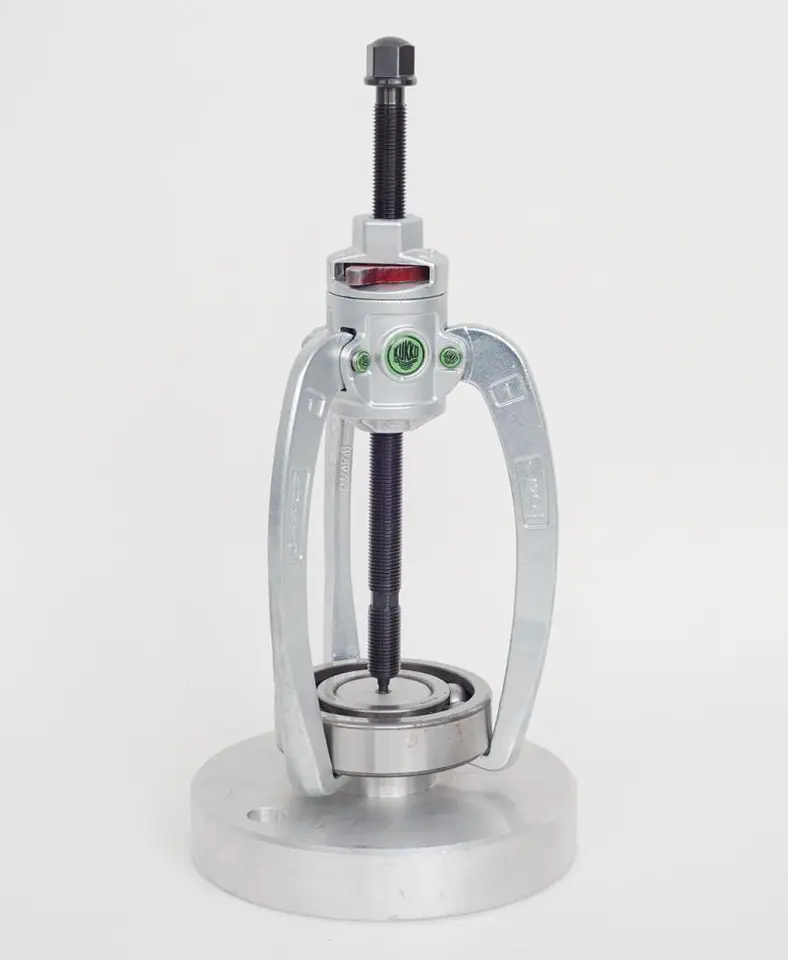

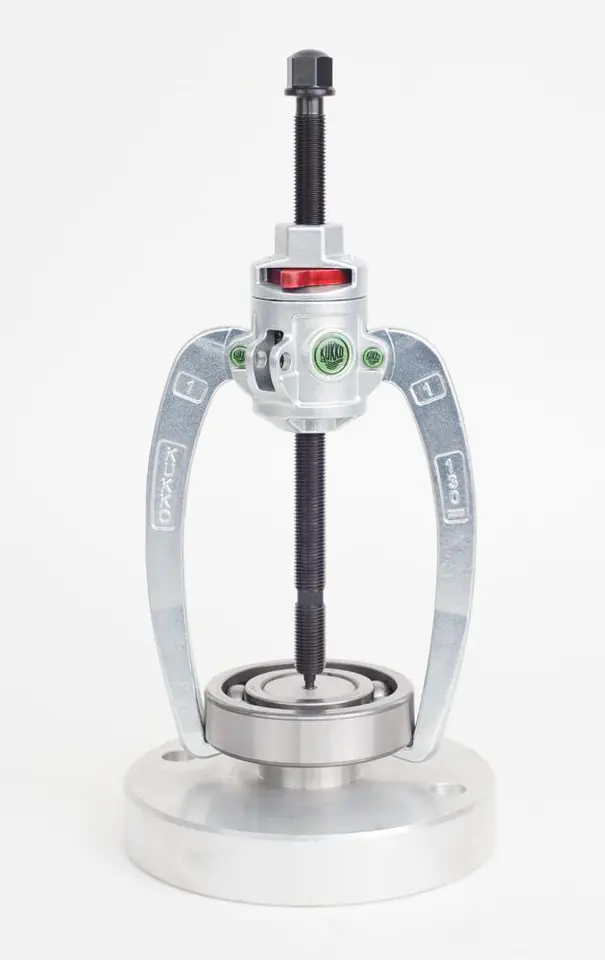

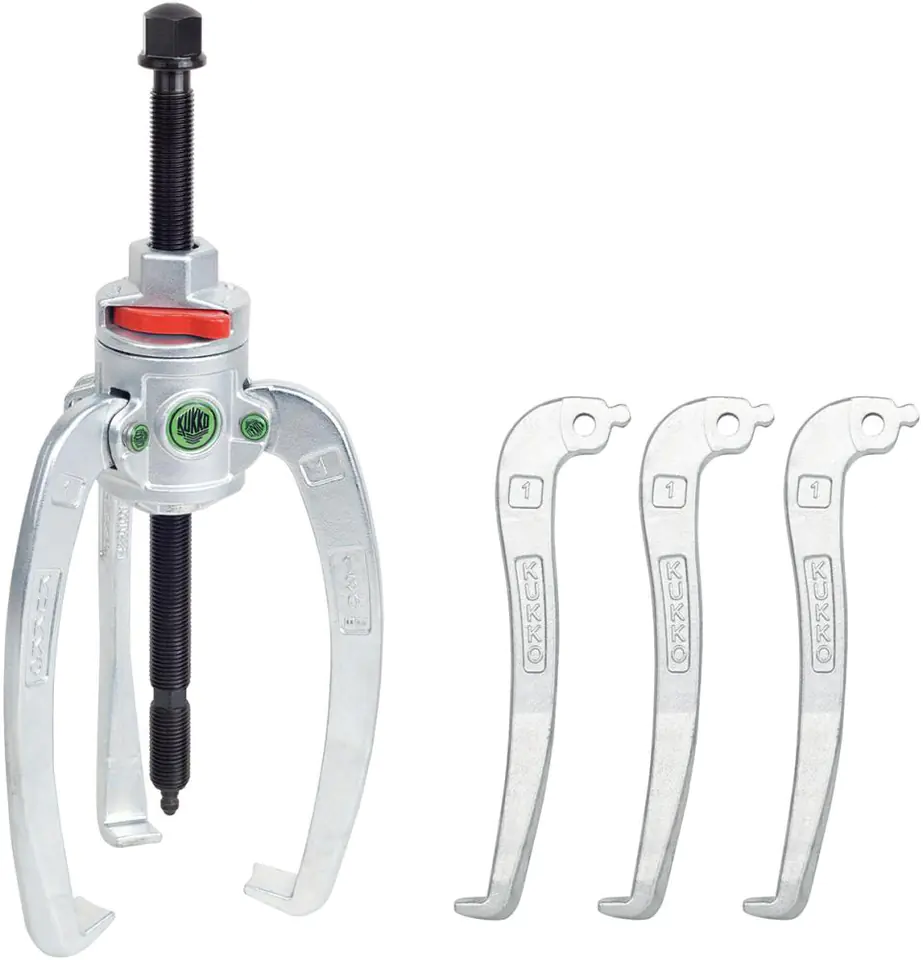

Three-arm combi puller set, with locking mechanism, series 486

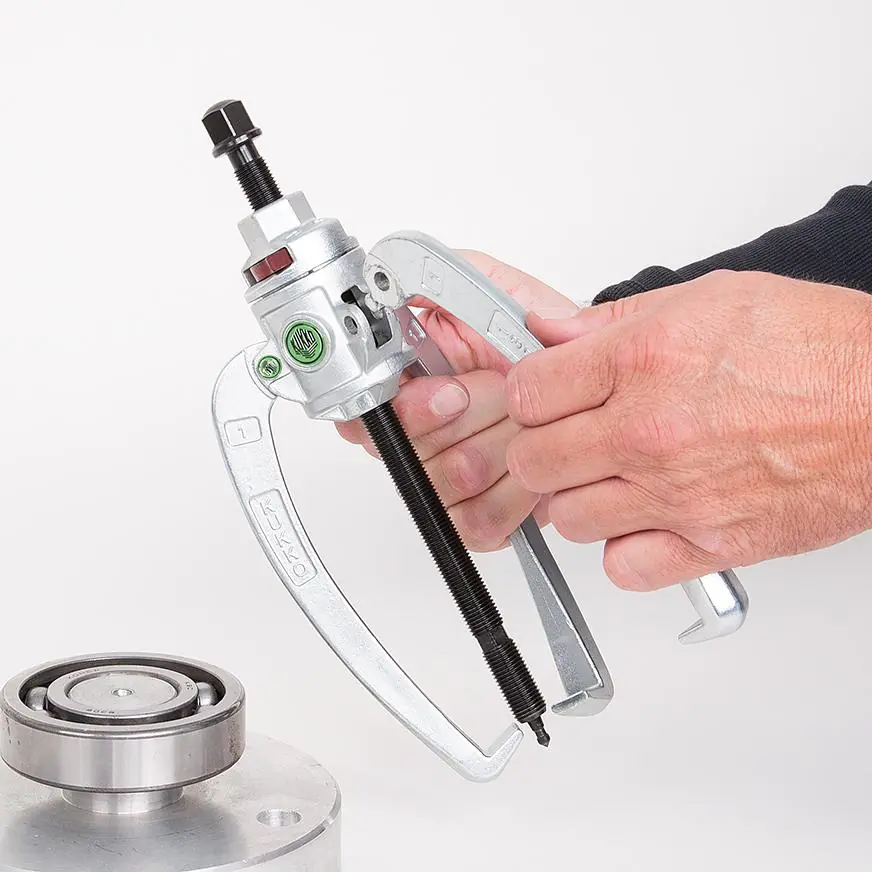

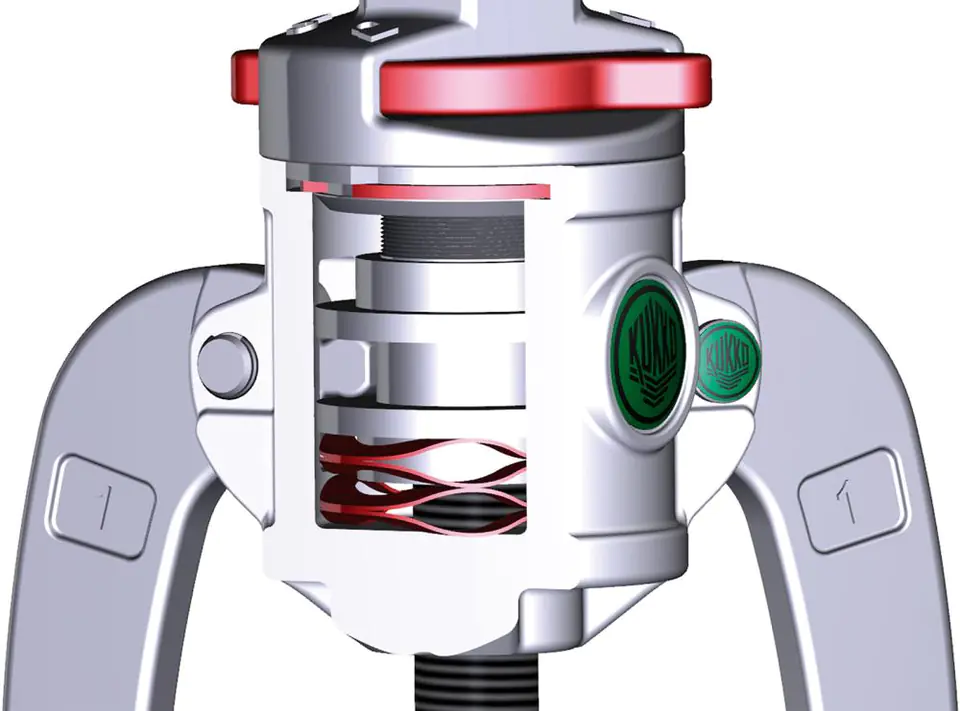

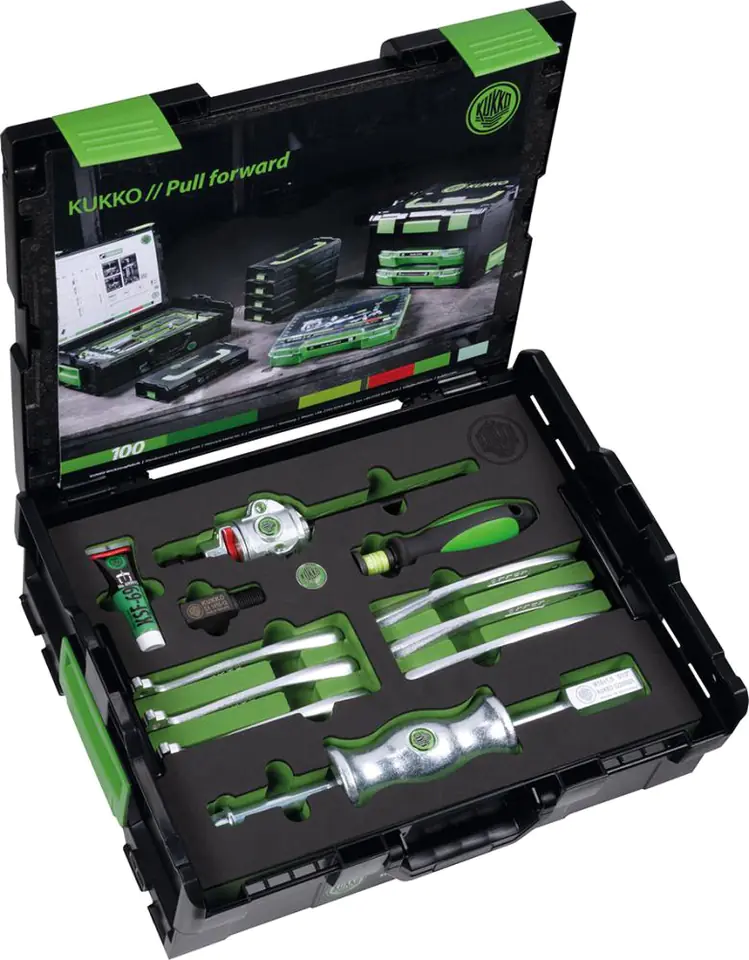

Design: self-locking pins provide quick and easy replacement of puller arms, without the need for prior compression springs. Automatic self-tensioning and centering of the arms to the welt. The position of the puller arms is fixed thanks to an easily accessible locking lever. No unintentional loosening of the puller from the bearing by locking lever or self-tensioning. Innovative spring-loaded technology allows for a compact and maintenance-free design. Delivery in the L-Boxx toolbox with always visible instruction manual on the lid.

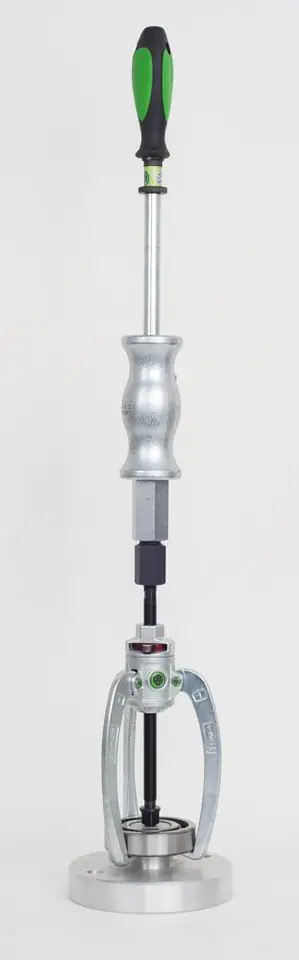

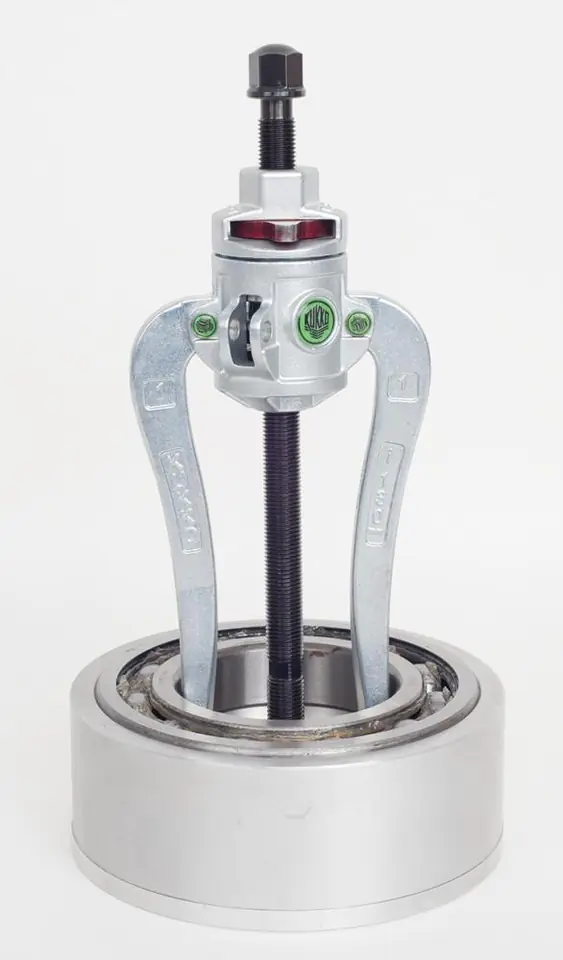

Application: as an external or internal puller, with 2 or 3 puller arms, use with or without a sliding hammer.
Kit Contents:
1 traverse
1 spindle
3 hooks (external)
3 hooks (internal)
3 plug pins
1 connecting nut
1 sliding hammer mechanism
1 3-component sliding hammer handle
1 thread adapter Kit Contents:
1 traverse
1 spindle
3 hooks (external)
3 hooks (internal)
3 plug pins
1 connecting nut
1 sliding hammer mechanism
1 3-component sliding hammer handle
1 thread adapter
