Weldon JISB6339ADB BT40 D16mm long HAIMER

€177.95
Shipping from warehouse: ⁨B6⁩
Estimated shipping: Thu, Apr 9 - Mon, Apr 13
14 days returnUnconditional return policy
Availability:
running out
Brand:
HAIMER
Product code:
40.501.16 / 4034221002341

Specification

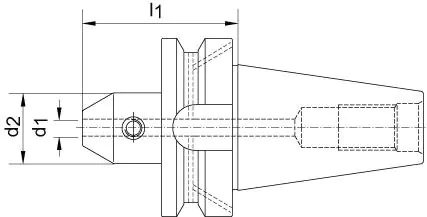

Bt:40
D1:16 mm
D2:48 mm
L1:100 mm

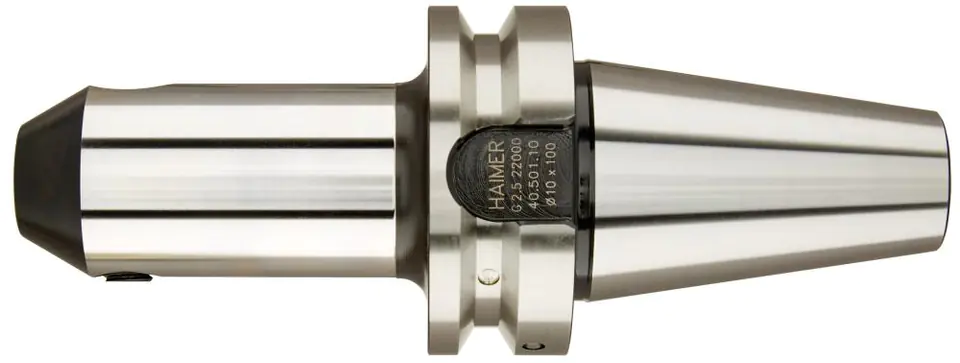

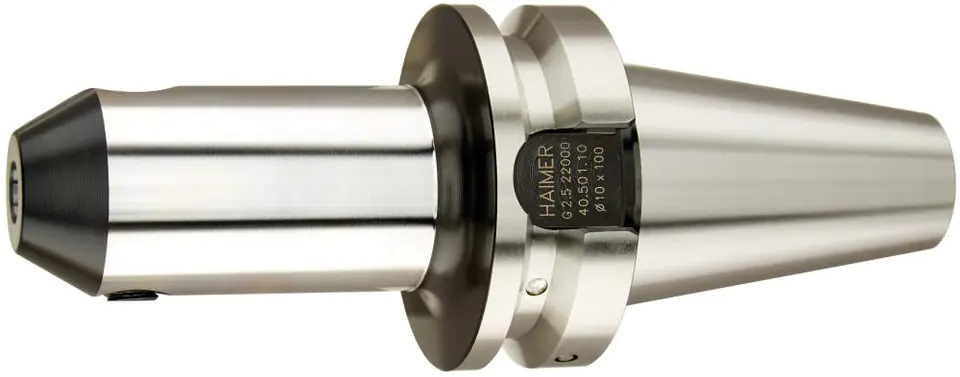

Weldon precision clampholder, BT 40

Made of: alloyed steel for carburizing, core tensile strength approx. 950 N/mm2, minimum hardening depth 0.5 mm. Cone according to DIN 254. All functional surfaces after finishing , guaranteed quality thanks to double 100% control.
Cone angle tolerance: AT3
Hardness after quenching: 60 –2 HRC
Application: for fixing tools with cylindrical shank and side carrier surface.
Scope of delivery: Weldon clamping holder with mounting screw.

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
