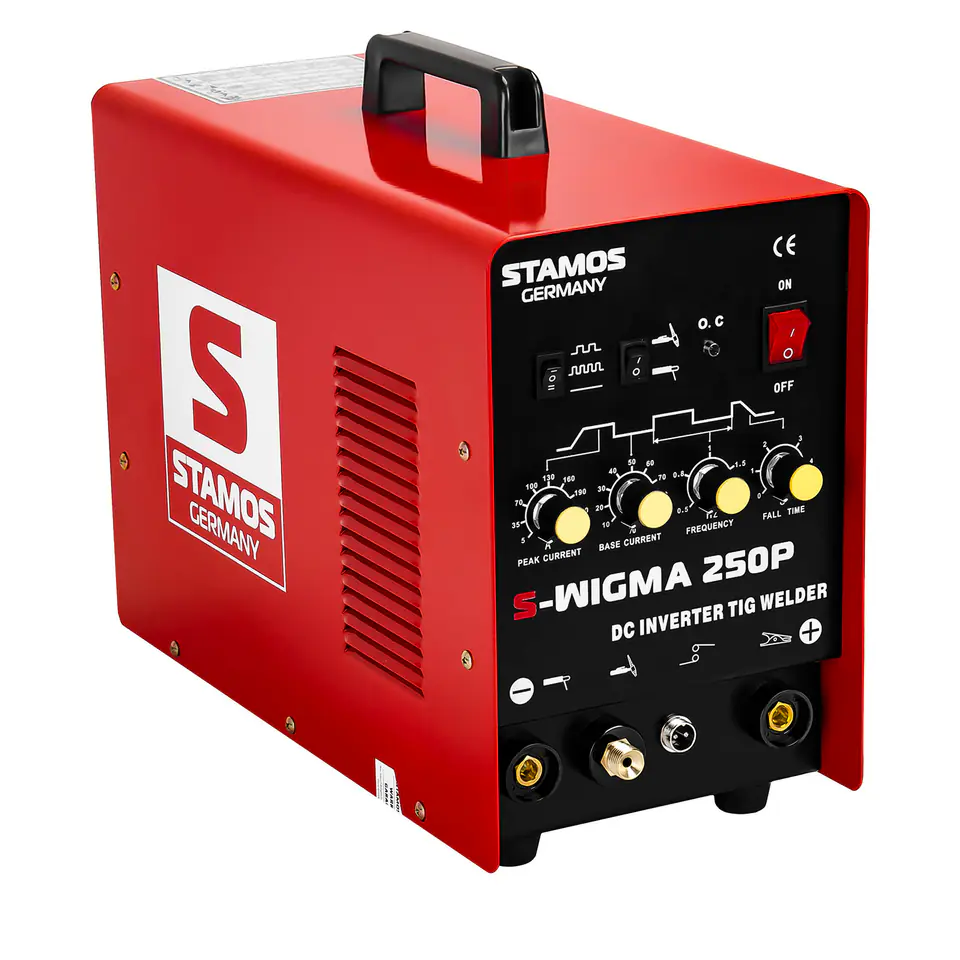

S-WIGMA 250PProfessional TIG Welding Machine Features of S-WIGMA 250P:
- - Efficiency - thanks to MOSFET inverter technology, the welding machine achieves an efficiency of up to 93%
- - Versatility - TIG welding and coated electrode,
- - Convenience - long MMA (3.6 m), TIG (4 m) and ground (3.6 m) cables increase the range and comfort of work, especially when reaching hard-to-reach places,
- - Mobility - comfortable handle, light weight and compact size make it easy to carry,
- - Intuitiveness - clear control panel equipped with LED indicators,
- - Multi-functionality - Non-contact HF arc ignition, Current drop time, Gas Post-Flow Time, Pulse, 2T, Hot Start, Arc-Force, Anti Stick, Gas solenoid valve,
- - Rich set - gas nozzle, long cap, collet, accessory bag and more.
- - Model - S-WIGMA 250P
- - Catalogue number - 2011
- - Article status - New
- - Rated input voltage - 230 V / 50 Hz
- - Rated input current - 18.8 A
- - Maximum input current - 28 A
- - Rated input power - 4,1 kVA
- - Maximum input power - 6 kVA
- - Idle voltage - 56 V
- - Welding current TIG DC - 5 - 250 A
- - Welding current MMA - 5 - 250 A
- - Rated duty cycle - 60%
- - Welding current in the duty cycle 100% - 193 A
- - Welding current in the duty cycle 60% - 250 A
- - Pulse frequency - 0.5 - 25 Hz
- - Current dropping time - 0 - 5 s
- - Gas outflow time after welding - 3 s
- - TIG electrode diameter - 0.5 - 3.2 mm
- - Electrode diameter MMA - 1.6 - 4 mm
- - Thickness of the welded material - 0.5 - 10 mm
- - Ignition - HF
- - Hot Start - Yes
- - TIG cable length - 4 m
- - MMA cable length - 3.6 m
- - Mass wire length - 3.6 m

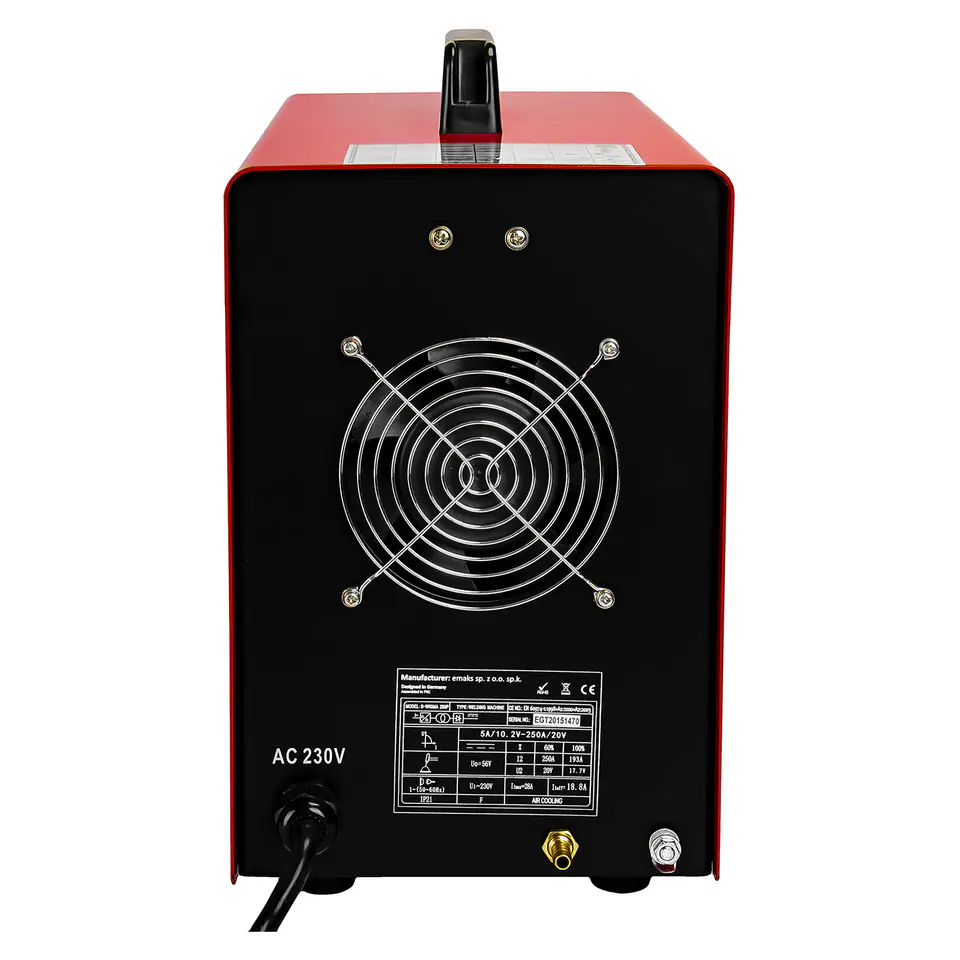

- - Chassis cooling - Fan
- - Efficiency - ≥0.85
- - Power factor - 0.93
- - Insulation class - F
- - Degree of protection - IP21S
- - Construction in accordance with - EN 60974-1
- - EG - CE compliant
- - Dimensions (LxWxH) - 43 x 29 x 20 cm
- - Weight - 10.95 kg
- - Shipping dimensions (LxWxH) - 64 x 29.5 x 39 cm
- - Shipping weight - 17,15 kg
- MMA (coated electrode) – it will work indoors and outdoors. It does not require shielding gas and is suitable for welding thin materials (from a thickness of 1.5 mm), e.g. copper, iron, nickel, aluminum or alloys m.in steel and cast iron. Welds made by this method have good operational and mechanical values.
- TIG – copes well with combining metals and their alloys, e.g. copper, aluminum, magnesium, nickel, titanium, steel and many others. It will work particularly well when machining very thin materials (with a thickness of 0.5 mm). This method can be used in any position – horizontal, vertical, flat and above the head, and its effect is a clean and precise weld that does not corrode.
- - 2T - pressing the button initiates welding, and letting it go interrupts this process,
- - Pulse temporarily increases power without changing temperature, resulting in a precise and easy-to-clean weld. It facilitates welding of thin sheets of aluminum,
- - Non-contact HF arc ignition (High Frequency Ignition) allows you to start welding without contact of the electrode with the material being processed, which reduces the risk of tungsten contamination of the weld and facilitates precise welding,
- - Gas Post-Flow Time, i.e. regulation of gas outflow. Prevents oxidation of the welding pool,
- - Hot Start consists in a temporary increase in the welding current during arc ignition,
- - Anti-Stick , thanks to minimizing voltage and current, facilitates the detachment of the electrode from the material,
- - Arc Force allows short arc welding with an increase in current value,
- - The gas solenoid valve ensures fast and safe switching of options and a high degree of reliability.

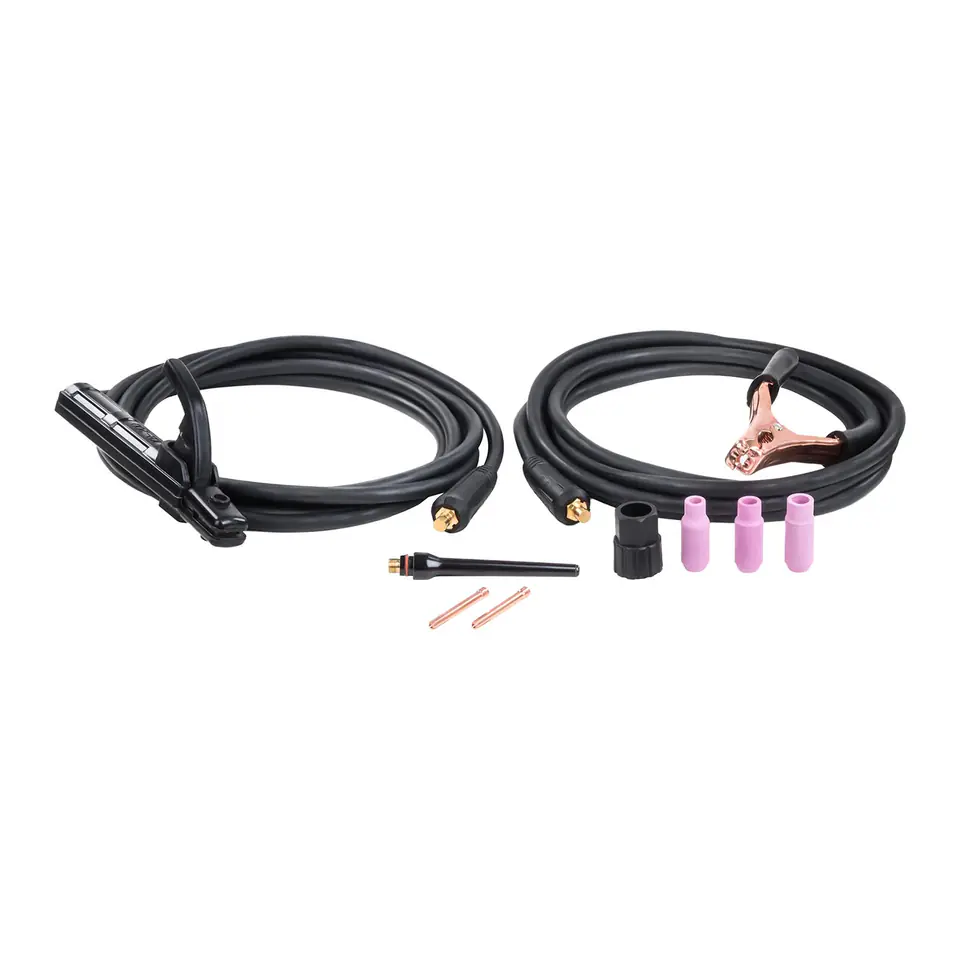

- - Welding machine,
- - MMA holder with cable – length 3.6 m,

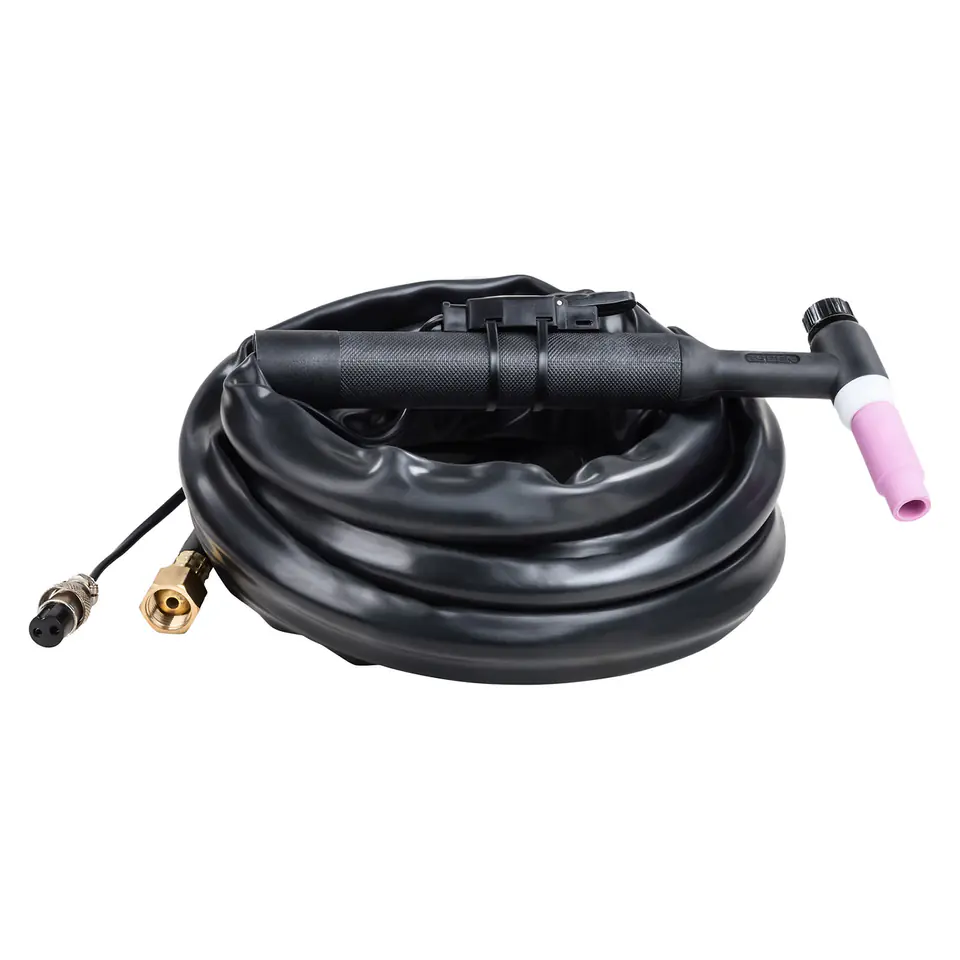

- - TIG holder with cable – 4 m,
- - Ground wire with clamp – 3.6 m,
- - Gas nozzle – 3 pcs.,
- - Long cap – 1 pc.,
- - Short cap – 1 pc.,
- - Clamping sleeve – 3 pcs.,
- - Clamping sleeve in the housing – 1 pc.,
- - Handbag for accessories,
- - Instruction PL.
