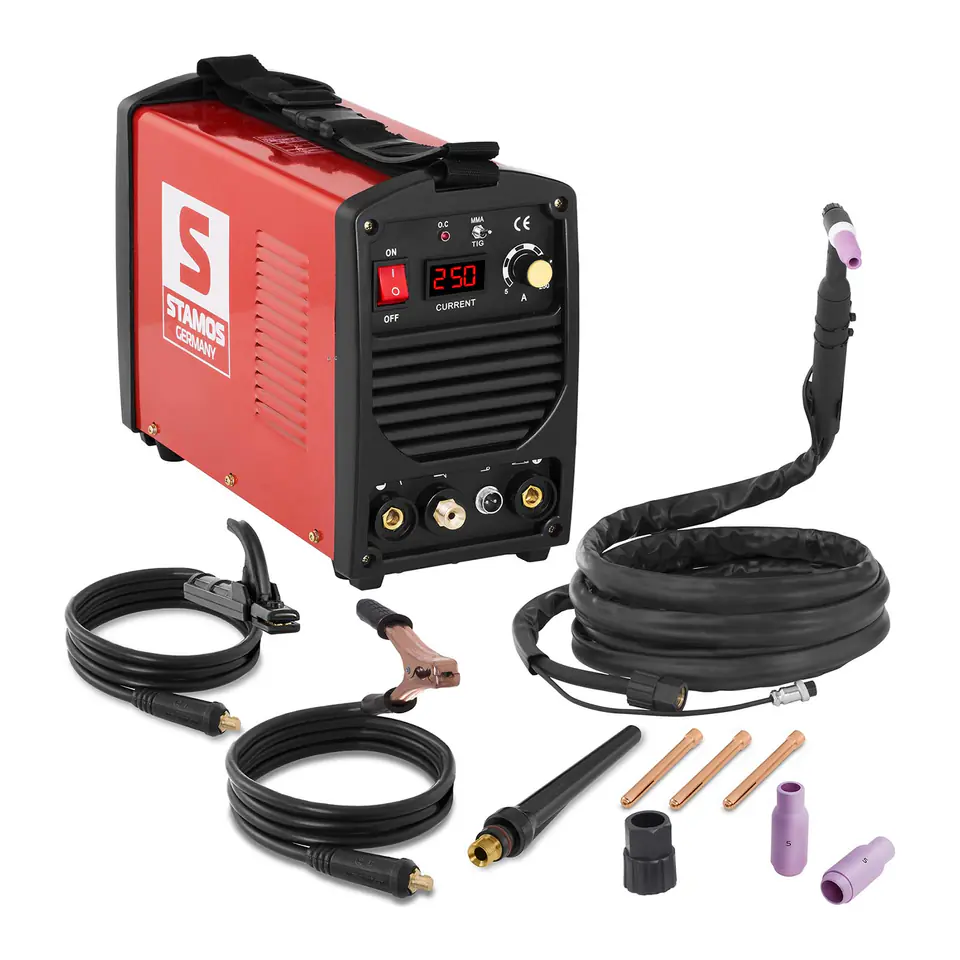

S-WIGMA 250Professional welding machine TIGCechy S-WIGMA 250:
- - Efficiency - thanks to MOSFET inverter technology, the welding machine achieves an efficiency of up to 93%
- - Versatility - TIG welding and coated electrode,
- - Convenience - long, four-meter MMA, TIG and bulk cables, increase the range and comfort of work, especially when reaching hard-to-reach places,
- - Mobility - shoulder strap, compact dimensions and low weight of the structure make the S-WIGMA 250 suitable for façade works or in hard-to-reach places,
- - Intuitiveness - clear control panel equipped with a display and LED indicators make it easy to use the device,
- - Multi-functionality - Non-contact HF arc ignition, Welding current adjustment, Gas Post-Flow Time, 2T, Hot Start, Arc-Force, Anti Stick,
- - Rich set - collets, gas nozzles, long and short cap, bag for accessories and others.
- - Model - S-WIGMA 250
- - Catalogue number - 2010
- - Article status - New
- - Rated input voltage - 230 V / 50 Hz
- - Rated input current - 19 A
- - Maximum input current - 28 A
- - Rated input power - 4,1 kVA
- - Maximum input power - 6 kVA
- - Idle voltage - 56 V
- - Welding current TIG DC - 5 - 250 A
- - Welding current MMA - 5 - 250 A
- - Rated duty cycle - 60%
- - Welding current in the duty cycle 100% - 193 A
- - Welding current in the duty cycle 60% - 250 A
- - TIG electrode diameter - 0.5 - 3.2 mm
- - Electrode diameter MMA - 1.6 - 4 mm
- - Gas outflow time after welding - 3 s
- - Ignition - HF
- - Hot Start - Yes
- - TIG cable length - 4 m
- - MMA cable length - 3.6 m
- - Mass wire length - 3.6 m
- - Chassis cooling - Fan
- - Efficiency - ≥0.85
- - Power factor - 0.7 - 0.9
- - Insulation class - F
- - Degree of protection - IP21S
- - Construction in accordance with - EN 60974-1
- - EG - CE compliant
- - Dimensions (LxWxH) - 16 x 36.5 x 24 cm
- - Weight - 13.15 kg
- - Shipping dimensions (LxWxH) - 58.5 x 24 x 33 cm
- - Shipping weight - 14,05 kg
- MMA (coated electrode) – it will work indoors and outdoors. It does not require shielding gas and is suitable for welding thin materials (from a thickness of 1.5 mm), e.g. copper, iron, nickel, aluminum or alloys m.in steel and cast iron. Welds made by this method have good operational and mechanical values.
- TIG – copes well with combining metals and their alloys, e.g. copper, aluminum, magnesium, nickel, titanium, steel and many others. It will work particularly well when machining very thin materials (with a thickness of 0.5 mm). This method can be used in any position – horizontal, vertical, flat and above the head, and its effect is a clean and precise weld that does not corrode.
- - 2T - pressing the button initiates welding, and releasing it interrupts this process
- - Non-contact HF arc ignition (High Frequency Ignition) allows you to start welding without contact of the electrode with the material being processed, which reduces the risk of tungsten contamination of the weld and facilitates precise welding,
- - Gas Post-Flow Time, i.e. regulation of gas outflow. Prevents oxidation of the welding pool,
- - Hot Start consists in a temporary increase in the welding current during arc ignition,
- - Anti-Stick , thanks to minimizing voltage and current, facilitates the detachment of the electrode from the material,
- - Arc Force allows short arc welding with an increase in current value.
- - Welding machine
- - TIG cable – 4 m
- - MMA cable with handle – 3.6 m
- - Ground cable with clamp – 3.6 m
- - Collets – 2,0; 2.4 and 3.2 mm
- - Clamping sleeve in the housing – 1 pc.
- - Gas nozzles – 3 pcs.
- - Long cap – 1 pc.
- - Short cap – 1 pc.
- - Handbag for accessories
- - User Manual
