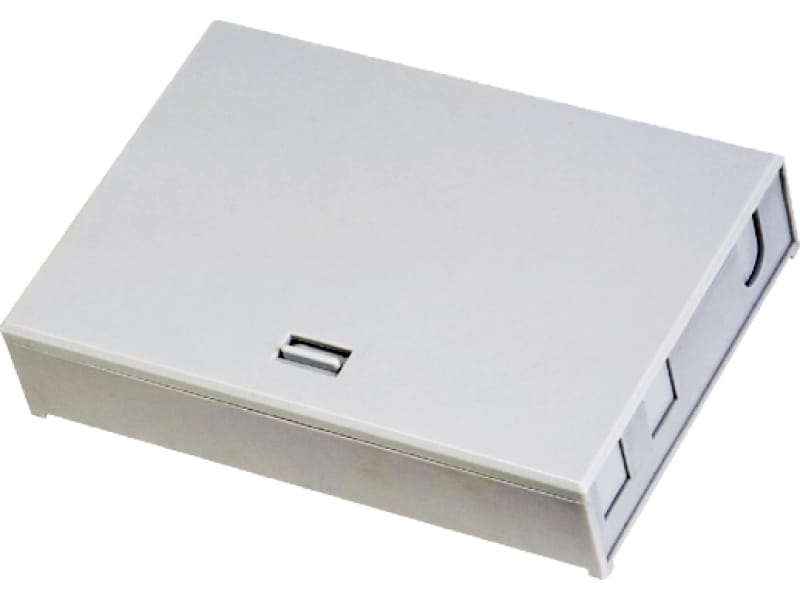

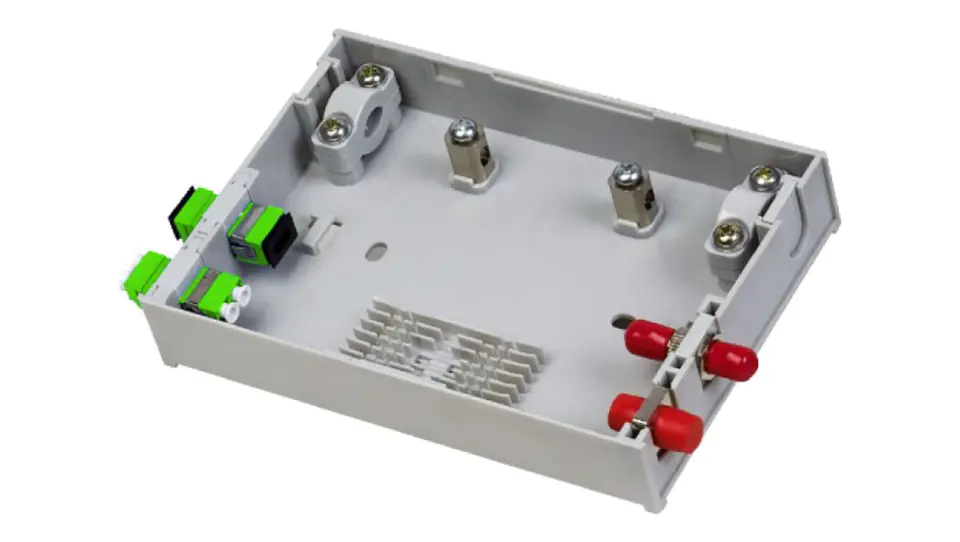

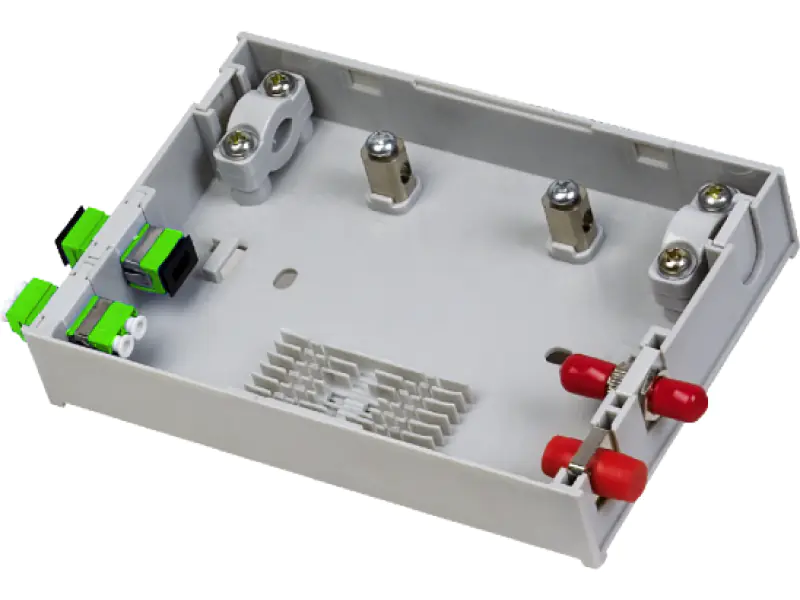

A small fiber optic distribution box allows the organization of up to 8 optical fibers. It is designed for indoor installations. Equipped with 2 inlet/outlet ports, it has adjustable cable holders. It allows you to introduce two fiber optic cables and install up to four SC simplex or LC duplex adapters. It is a universal solution for the distribution of telecommunications equipment, server rooms, where space is limited, does not require the output of a large number of fibers in one place.
USE
- Telecommunication networks
- Sieci LAN, WAN
- CCTV systems
- FTTx
| DANE TECHNICZNE | DANE TECHNICZNE2 |
|---|---|
| Liczba portów wlotu/wylotu | 2 |
| Max. średnica wlotu/wylotu | Ø12mm |
| Max. liczba adapterów | 4 x SC simplex / 4 LC duplex |
| Organizacja ilości włókien | 8 |
| Wymiary | wys. 150mm × szer. 104mm × głęb. 25mm |
| Materiał | plastik - tworzywo sztuczne |
| Zamykanie | klips zatrzaskowy |
