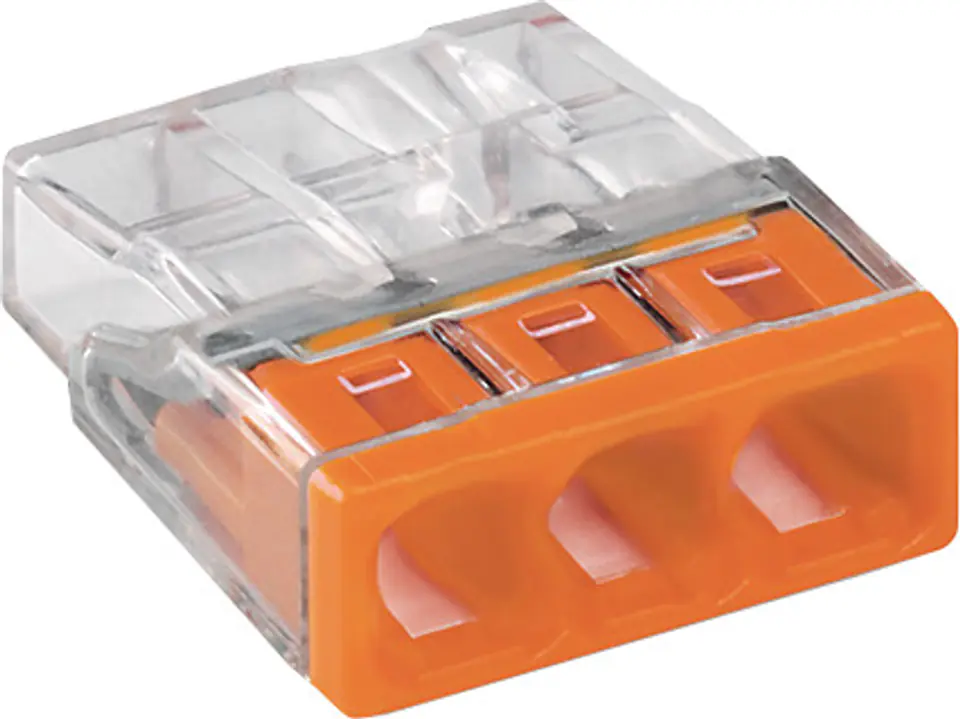

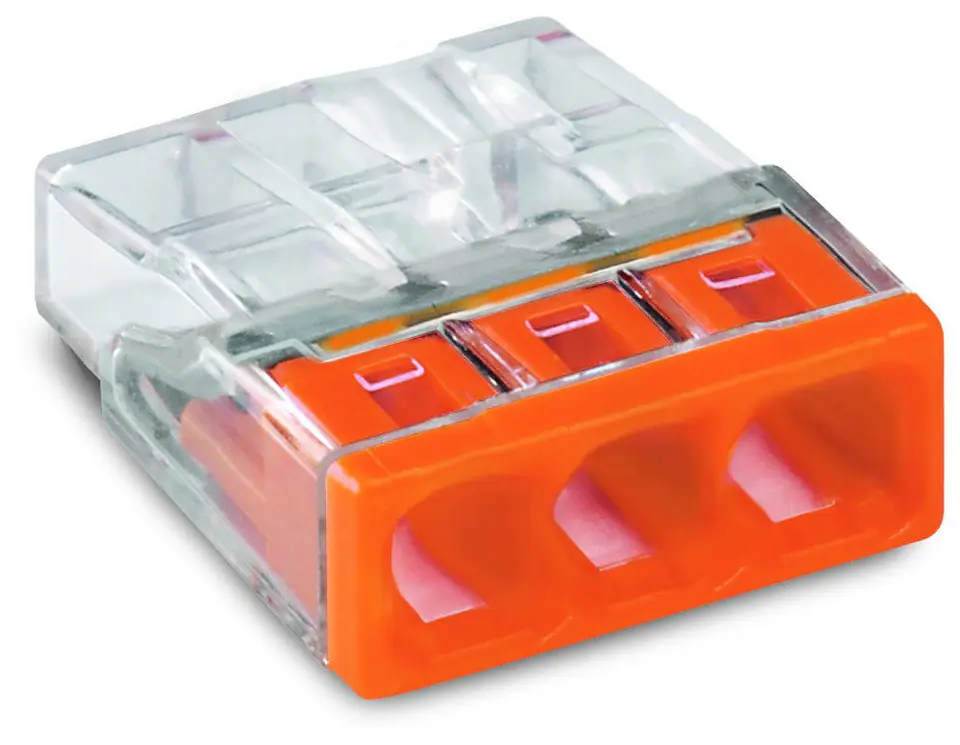

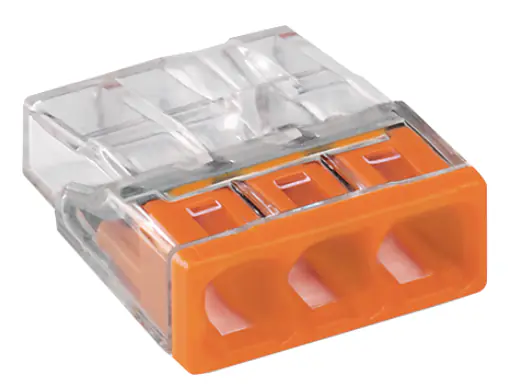

The WAGO push-in connector is used to quickly connect full wires.
Technical specification:
- number of wires: 3
- conductor cross section: 0.5- 2.50 mm²
- mounting: press-fit
- UL94 flammability rating: V2
- color: transparent / orange
- supply voltage: ~450V
- Current: 24A

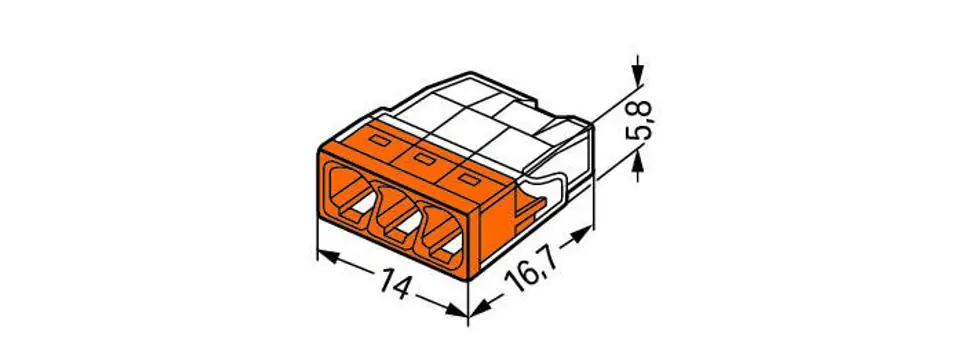

- dimensions: 14 x 5.8 x 16.7 mm
Included:
- press-fit connector 3-lane WAGO (2273-203) - 5 pcs.
