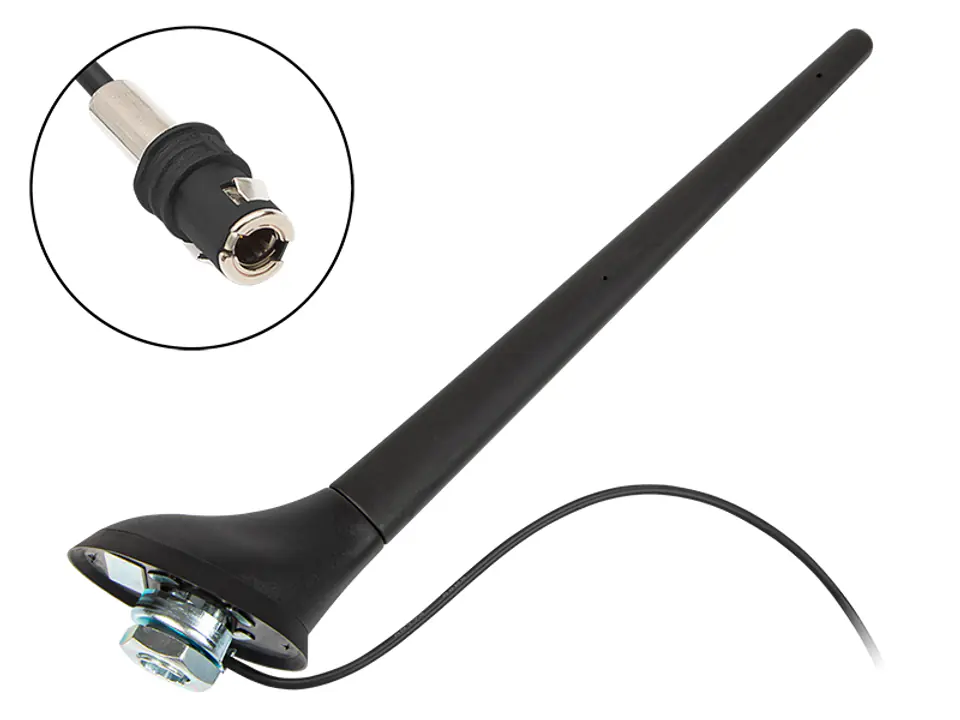

Professional AM/FM SNAP rooftop antenna with high gain amplifier with original mast. The antenna is the equivalent of the original antenna used for the first assembly. It performs the function of receiving AM/FM radio waves. The antenna has a built-in high-quality SMD amplifier, which is located in the antenna foot. The antenna amplifier inside the antenna has a Phantom power supply, which means that it is powered through an internal conductor (antenna cable). The antenna works with any factory or non-factory radio with a SNAP installation. In the case of a non-factory radio, it is necessary to use the so-called antenna separator (which you will find here), which supplies power to the internal conductor of the antenna cable. The antenna does not work with an external antenna amplifier.
The antenna can be used for cars:
• VW New Beetle 1999-2010
• VW Bora 1999-2005
• VW Fox-EU since 2005
• VW Fox-Africa 2004-2010
• VW Golf 5 2004-2010
• VW Golf 4 1998-2006
• VW Lupo 1999-2006
• VW Passat 1997-2005
• VW Polo 2000-2010
• AUDI A3 8L, A4 B5 (sedan, station wagon),
• AUDI A6 C5 (station wagon only)
Specification:
External thread of antenna base: M14
Detachable mast: yes
Mast length: 20 cm
Wire length: 27.5cm
SNAP Connector - FM/AM Signal
