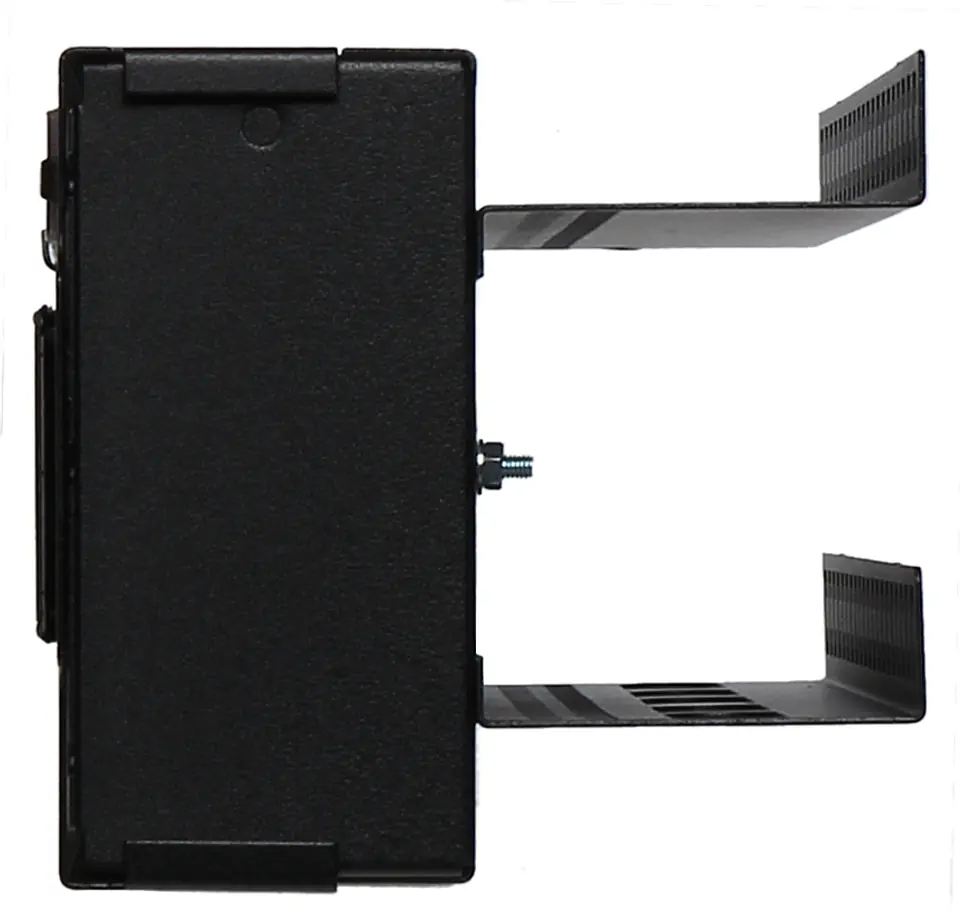

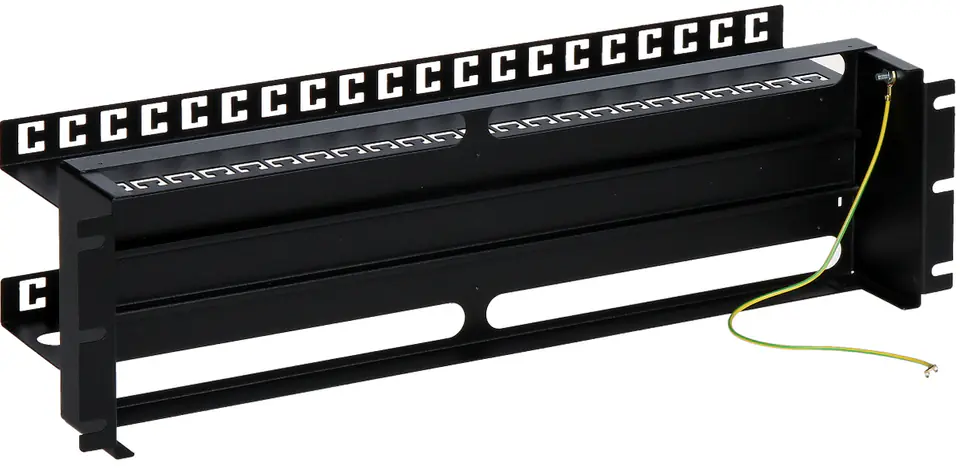

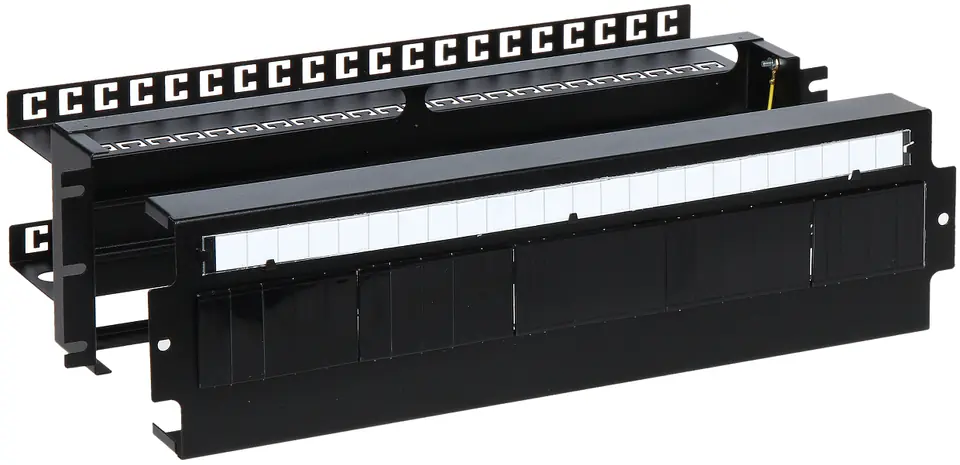

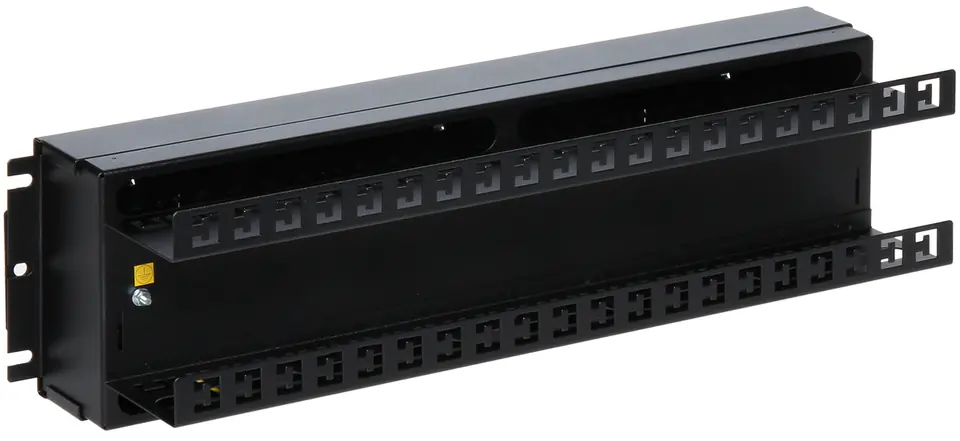

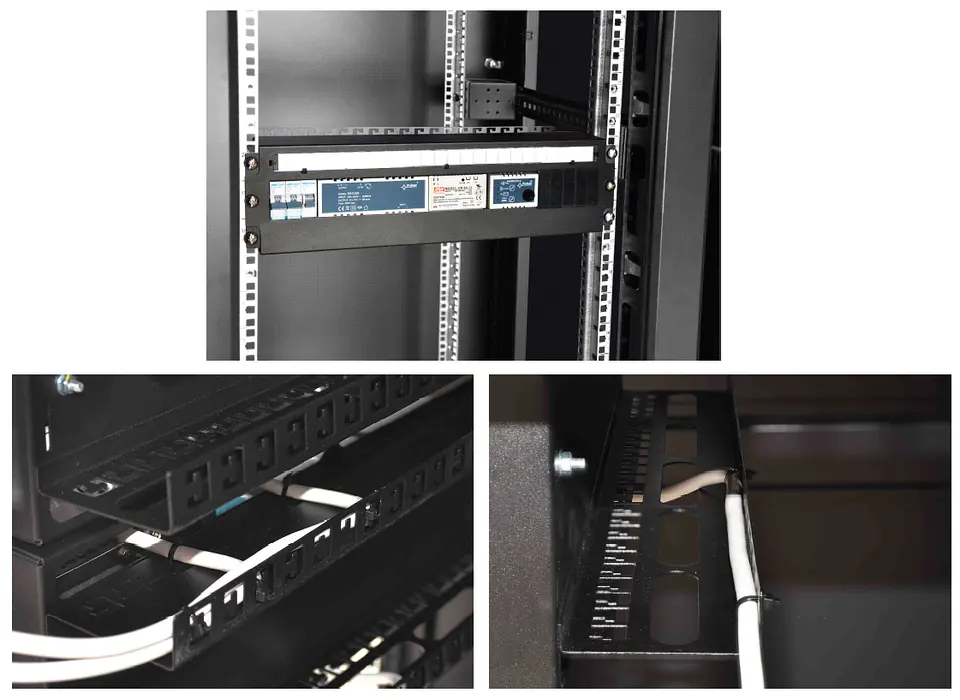

The A19-TS-35/PD-3U voltage distribution panel is designed for mounting S-type electrical fuses in a 19" RACK cabinet, up to 24 fuses with a width of 1 S can be inserted into the housing.
VOLTAGE DISTRIBUTION PANEL A19-TS-35/PD-3U
PLN 171.93
Shipping from warehouse: D4
Estimated shipping: Mon, Oct 27 - Wed, Oct 29
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- Product code:
- A19-TS-35/PD-3U / 5901643195373
Share this product:
Specification
| Colour:: | Black (RAL 9005) |
|---|---|
| Destiny:: | Rack 19" |

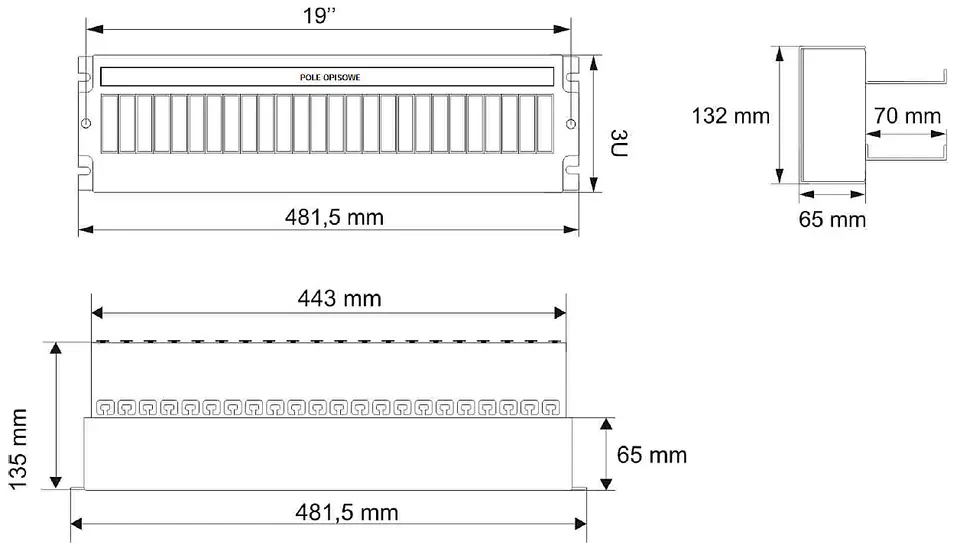

| Dimensions:: | 445 x 125 x 55 mm Internal dimensions481 x 132 x 135 mm External dimensions |
| Height:: | 3 U |
| Manufacturer / brand:: | PULSAR |
| Material:: | Steel - powder coating |
| Operating temperature:: | -10 °C ... 40 °C |
| Scales:: | 2.06 kg |
| Sealing:: | IP20 |

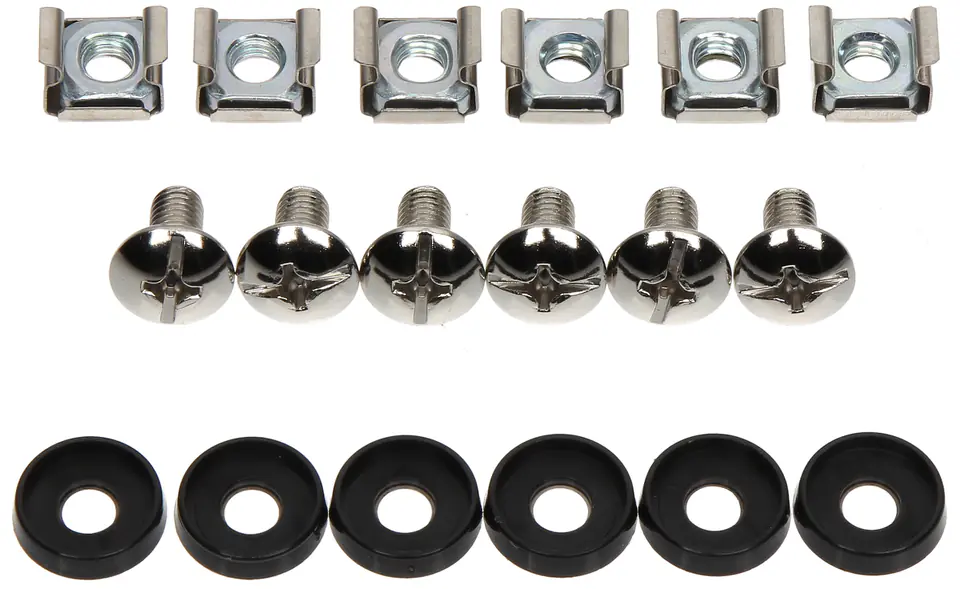

| Selected features:: | TH-35 Rail Corrosion resistance Possibility of mounting 24 fuses with a width of 1 S 6-o butt mounting for RACK profiles Included with 6 M6 screws with cages The housing is equipped with a descriptive field 420x20 mm |
| Warranty:: | 2 years |
| Width:: | 19 " |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
