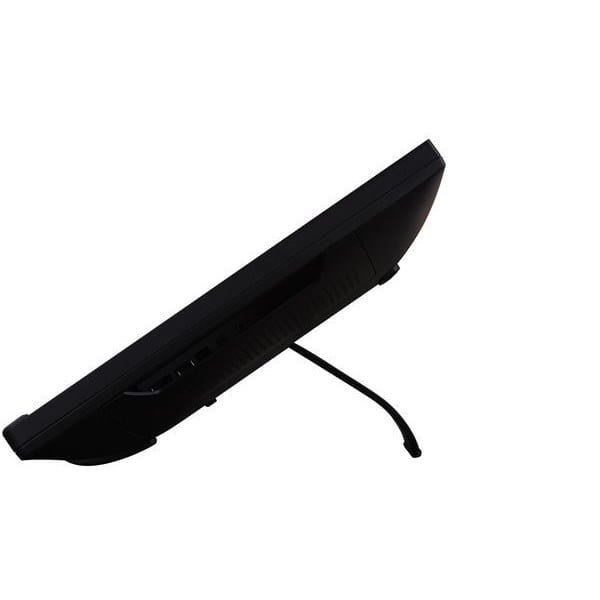

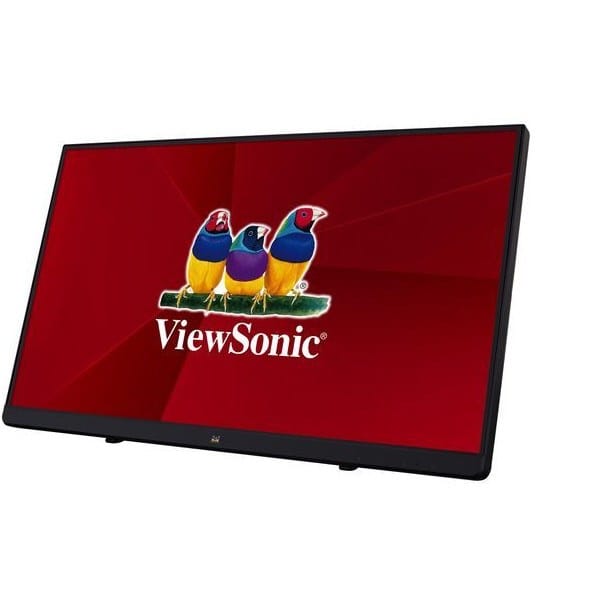

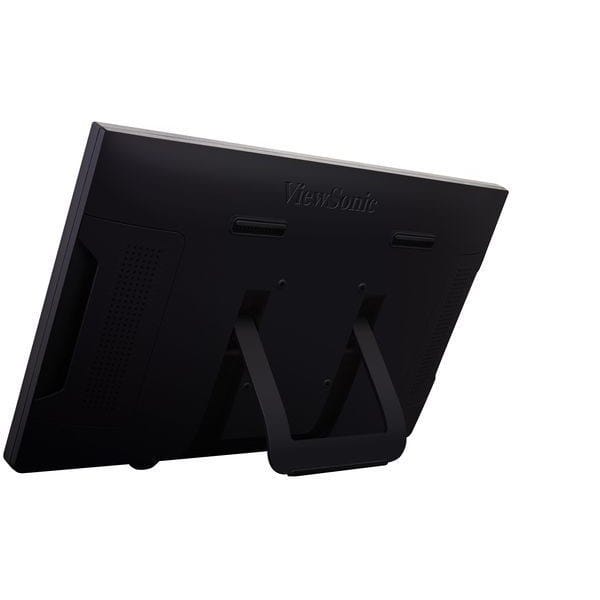

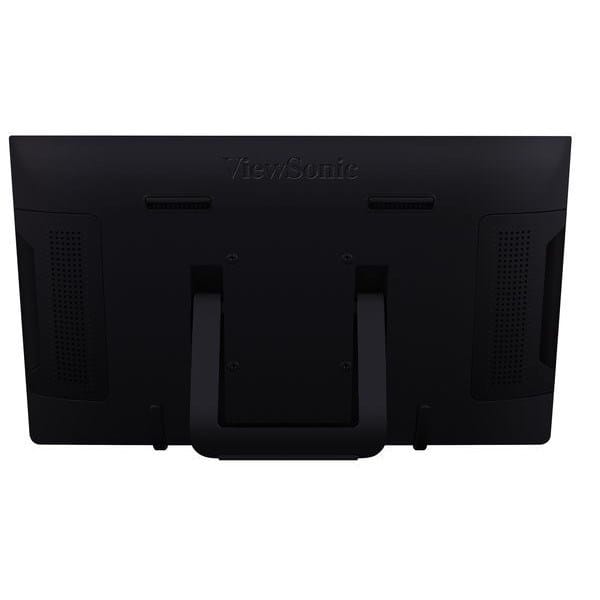

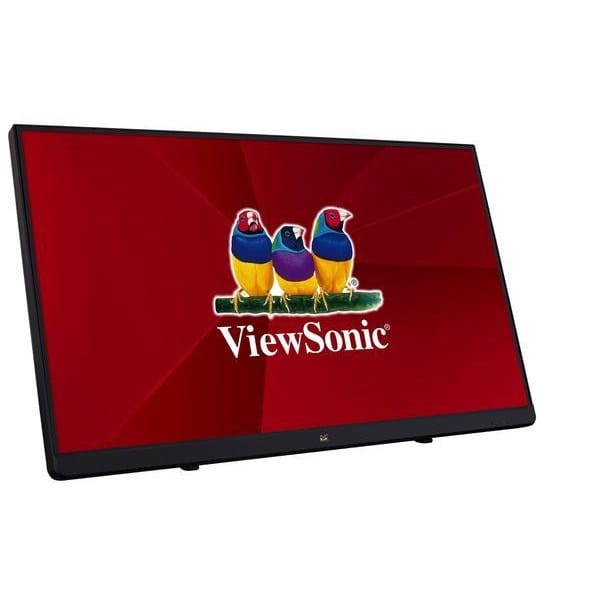

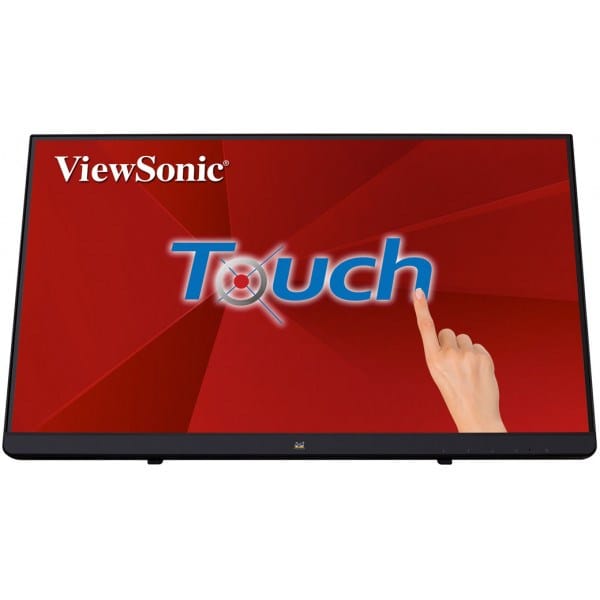

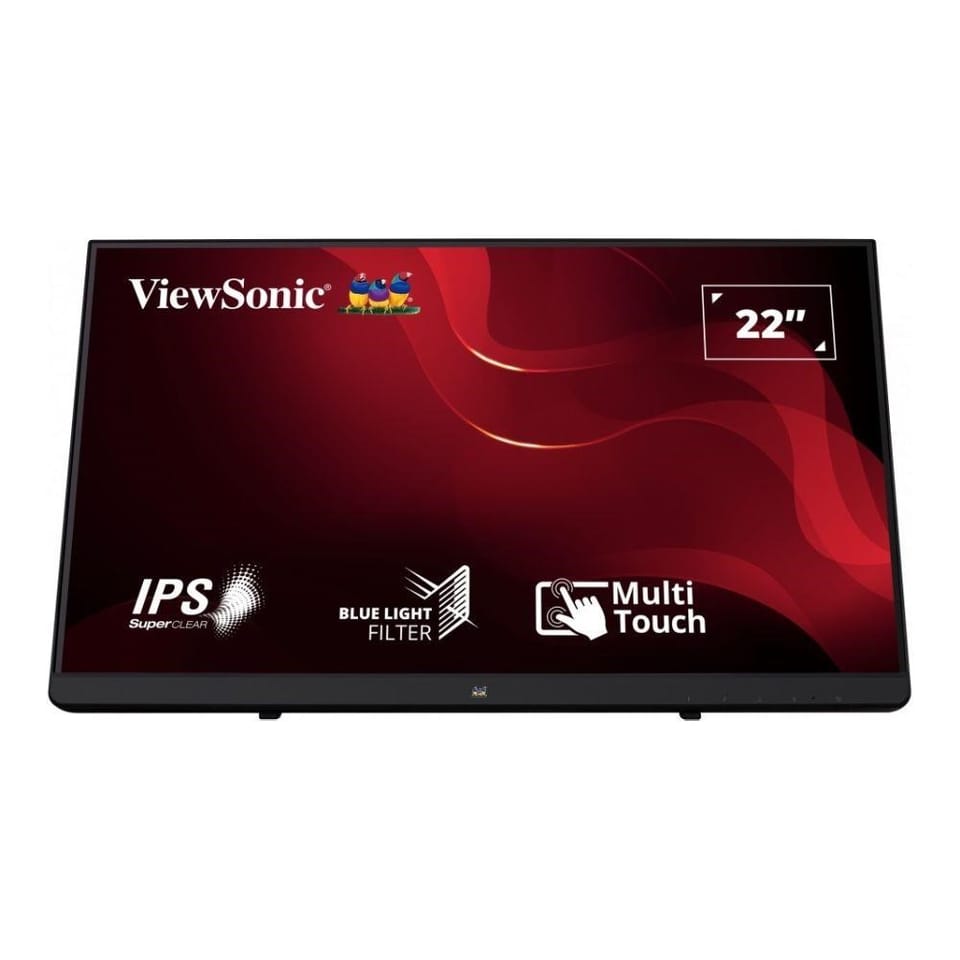

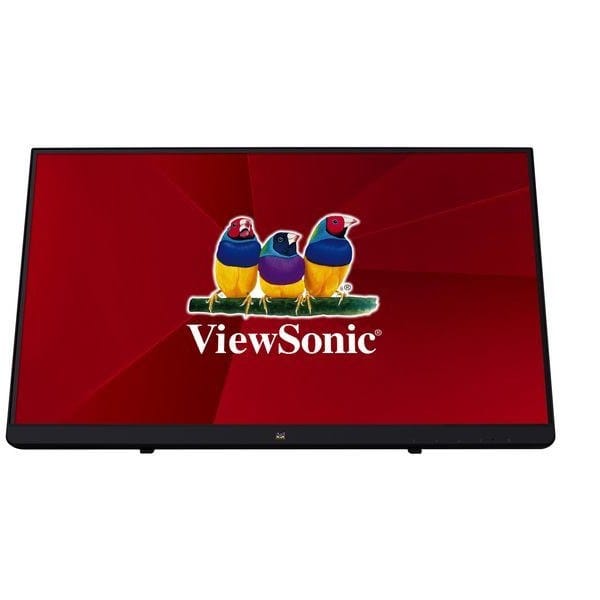

Viewsonic TD2230 computer monitor 54.6 cm 21.5") 1920 x 1080 pixels Full HD LCD Touchscreen Multi-user Blac
This product is not available
- Availability:
- expected delivery
- Brand:
- ViewSonic
- Product code:
- TD2230 / 0766907842418
Share this product:
Specification
| Ac input frequency: | 50 - 60 Hz |
|---|---|
| Ac input voltage: | 100-240 V |
| Amd freesync: | No |
| Audio input: | 1 |
| Audio output: | 1 |
| Built-in camera: | No |
| Built-in microphone: | No |
| Built-in speaker(s): | Yes |
| Built-in usb hub: | Yes |
| Cables included: | USB, AC, Audio (3.5mm), HDMI |
| Contrast ratio (dynamic): | 50000000:1 |
| Contrast ratio (typical): | 1000:1 |
| Depth (with stand): | 47 mm |
| Display brightness: | 250 cd/m² |
| Display diagonal: | 54.6 cm (21.5") |
| Display diagonal (metric): | 54.6 cm |
| Display resolution: | 1920 x 1080 pixels |
| Display technology: | LCD |
| Display viewable area (hxv): | 476.64 x 268.11 mm |
| Displayport version: | 1.2 |
| Displayports quantity: | 1 |
| Energy consumption (sdr) per 1000 hours: | 19 kWh |
| Energy efficiency class (sdr): | F |
| European product registry for energy labelling (eprel) code: | 389769 |
| Harmonized system (hs) code: | 85285210 |
| Hd type: | Full HD |

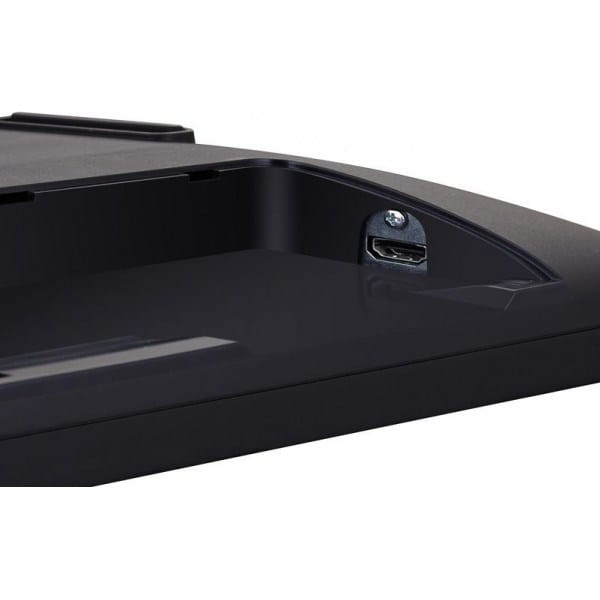

| Hdmi: | Yes |
| Hdmi ports quantity: | 1 |
| Hdmi version: | 1.4 |
| Height (with stand): | 299 mm |
| Horizontal scan range: | 24 - 82 kHz |
| Linux operating systems supported: | Yes |
| Mac operating systems supported: | Yes |
| Maximum refresh rate: | 76 Hz |
| Number of osd languages: | 12 |
| Number of simultaneous touchpoints: | 10 |
| Number of speakers: | 2 |
| Number of upstream ports: | 1 |
| Number of usb type-b upstream ports quantity: | 1 |
| Nvidia g-sync: | No |
| On screen display (osd): | Yes |
| Operating relative humidity (h-h): | 20 - 90% |
| Operating temperature (t-t): | 0 - 40 °C |
| Other operating systems supported: | Android |
| Package depth: | 114 mm |
| Package height: | 371 mm |
| Package weight: | 4.7 kg |
| Package width: | 550 mm |
| Panel mounting interface: | 100 x 100 mm |
| Panel type: | ADS |
| Pixel pitch: | 0.24825 x 0.24825 mm |
| Power consumption (typical): | 25 W |
| Power supply type: | AC |
| Product colour: | Black |
| Response time: | 5 ms, Keine Daten verfügbar |
| Rms rated power: | 6 W |
| Screen shape: | Flat |
| Storage relative humidity (h-h): | 5 - 90% |
| Storage temperature (t-t): | -20 - 60 °C |
| Supported graphics resolutions: | 1280 x 1024 (SXGA), 1024 x 768 (XGA), 1440 x 900 (WXGA+), 720 x 400, 1920 x 1080 (HD 1080), 800 x 600 (SVGA), 640 x 480 (VGA), 1680 x 1050 (WSXGA+) |
| Sustainability certificates: | CE, ErP, RoHS, EPEAT Bronze, REACH |
| Tilt adjustment: | Yes |
| Tilt angle range: | 20 - 70° |
| Touch technology: | Multi-touch |
| Touchscreen: | Yes |
| Touchscreen technology: | Projected capacitive system |
| Touchscreen type: | Multi-user |
| Usb hub version: | 3.2 Gen 1 (3.1 Gen 1) |
| Usb type-a downstream ports quantity: | 2 |
| Usb upstream port type: | USB Type-B |
| Vertical scan range: | 50 - 76 Hz |
| Vesa mounting: | Yes |
| Viewing angle, horizontal: | 178° |
| Viewing angle, vertical: | 178° |
| Wall mountable: | Yes |
| Weight (with stand): | 3.58 kg |
| Width (with stand): | 490 mm |
| Windows operating systems supported: | Windows 7, Windows 8.1, Windows 8, Windows 10 |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
