VIDEO SURGE ARRESTER OPV-4S

PLN 126.10

Shipping from warehouse: ⁨D4⁩

Estimated shipping: Tue, May 21 - Fri, May 24

14 days returnUnconditional return policy

Availability:: moderate quantity
Brand:: Delta
Product code:: OPV-4S / 5902887041907

Specification

Balanced i/o connector type:	RJ-45 (8-pin, 4 pairs)
Capacity:	7 pF
Destiny:	video device, where the signal is transmitted differently (symmetrically) device operating in 10/100 Ethernet network: IP camera, router, switch, hub, expansion card, etc.
Dimensions (w x h x d) / weight:	120 mm x 30 mm x 60 mm / 0.08 kg
Ground:	5mm screw
Ground protection voltage (wire-ground):	> 18.4 volts
Line series impedance:	1 Ω
Maximum discharge current (8/20μs):	5 kA
Number of channels:	4
Operating temperature / relative humidity:	-50 °C ... 55 °C / < 95 %
Producer / brand:	DELTA
Protected cables in rj-45 connector:	1, 2, 3, 4, 5, 6, 7, 8
Protection voltage (vein-vein):	> 2.4 volts
Response time:	15 ns
Standard:	AHD - 5 Mpx, HD-CVI - 8 Mpx 4K UHD, HD-TVI - 5 Mpx, CVBS - PAL / NTSC
Warranty:	3 years

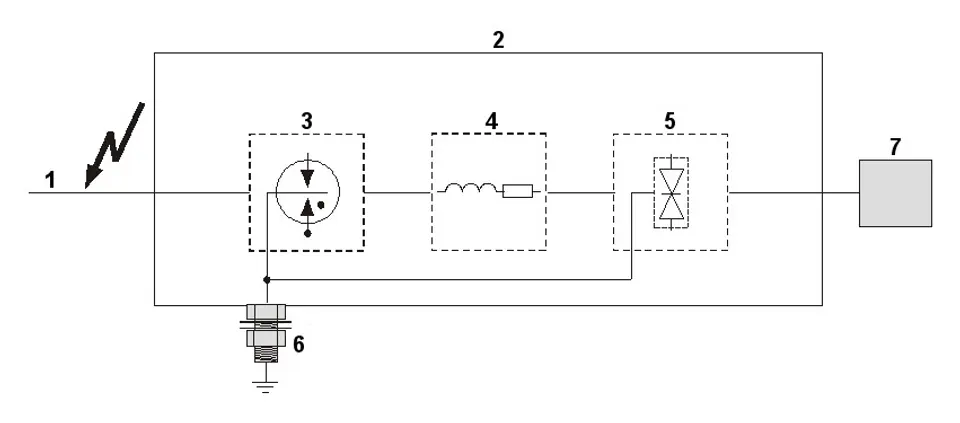

The OPV-4S surge arrester effectively protects the transmission line by enabling the surge current to be discharged to the ground, thus providing proper surge protection for electronic devicesThe device is dedicated to applications in which video signals are transmitted differentially via twisted pair cableOPV-4S does not cause loss of signal quality and is a passive device that does not require power supply

REMARK! Before installation, please review the following recommendations: Connection work cannot be done during a thunderstorm. OPV-4S should be connected to a good grounding installation. The limiter should be placed as close as possible to the device to be protected

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
