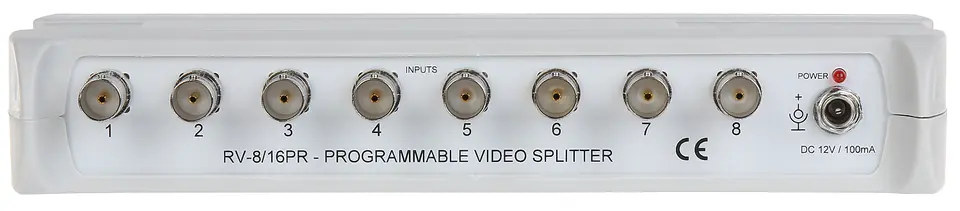

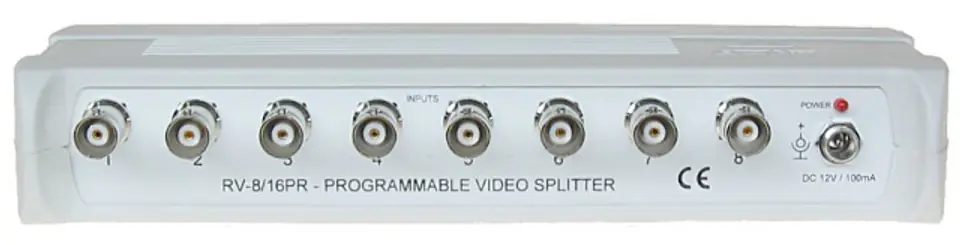

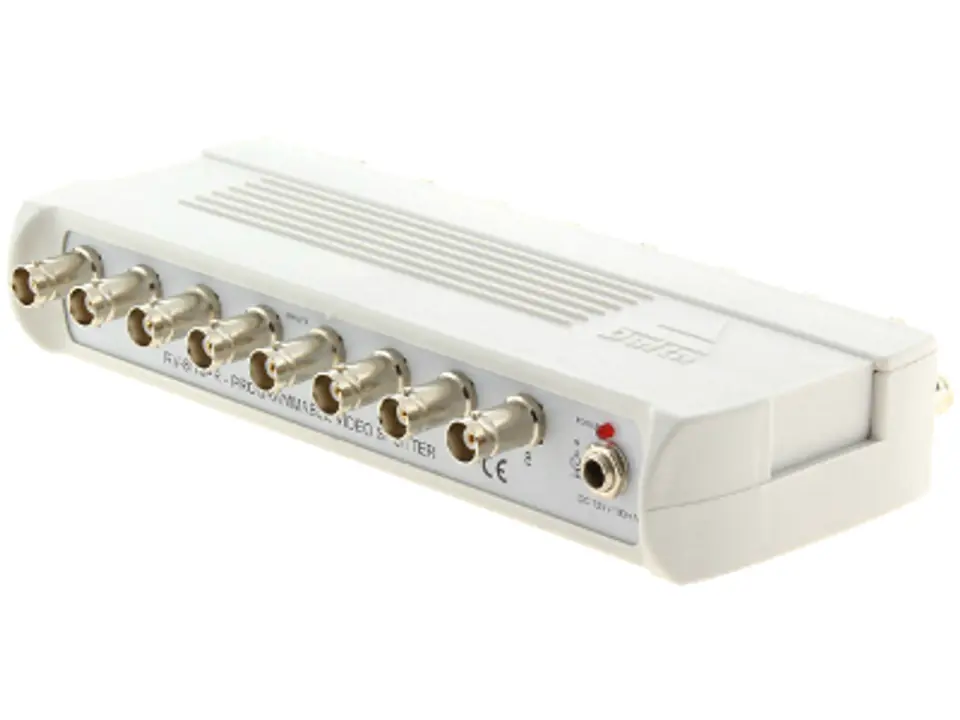

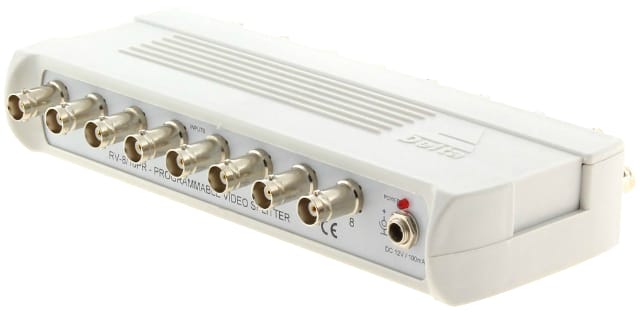

VIDEO SPLITTER RV-8/16PR

€55.20

Shipping from warehouse: ⁨D4⁩

Estimated shipping: Tue, Apr 30 - Fri, May 3

14 days returnUnconditional return policy

Availability:: moderate quantity
Brand:: Delta
Product code:: RV-8/16PR / 5902887015571

Specification

Amplification::	0 dB
Current consumption::	100 mA
Dimensions::	222 x 36 x 110 mm
Input impedance::	75 Ω
Manufacturer / brand::	DELTA

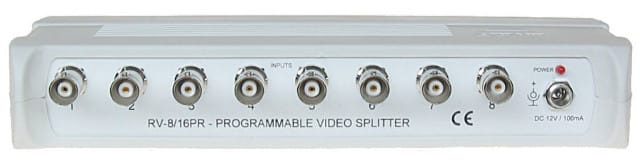

Number of inputs::	8 pcs. BNC

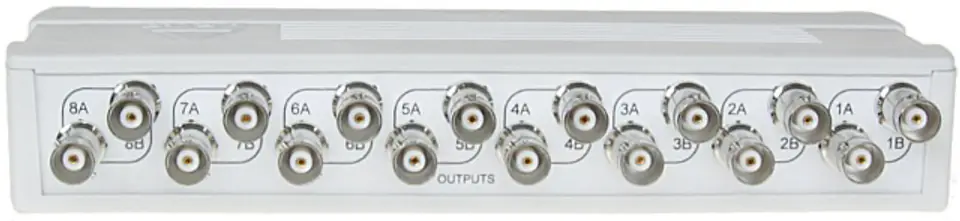

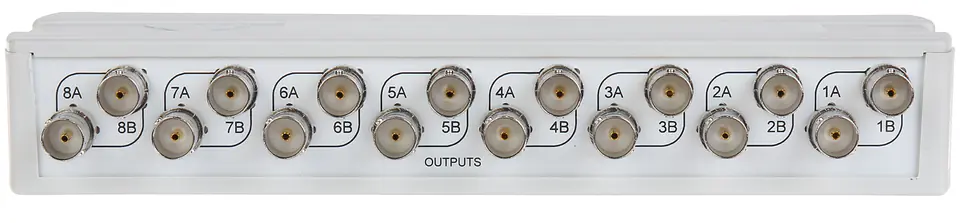

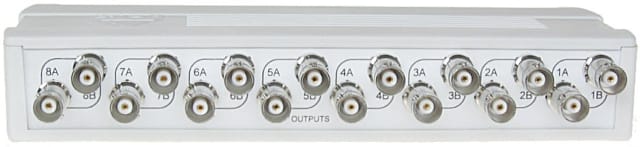

Number of outputs::	16 pcs. BNC
Operating band::	0 ... 40 MHz (-3dB)
Output impedance::	75 Ω
Power::	12 V DC (no power supply included)
Scales::	0.350 kg
Standard::	CVBS - PAL, NTSC
Warranty::	3 years

RV-8/16PR video splitter allows video signals to be separatedThe device is designed for continuous operation, indoorsA device adapted to color, black and white cameras, PALOuly distance between sockets, allow free finger tightening of any BNC plug

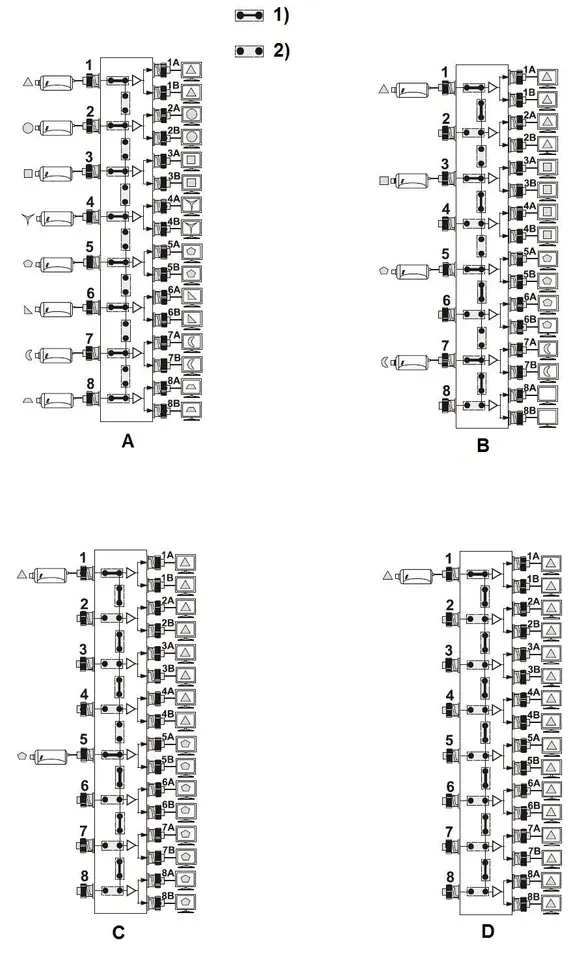

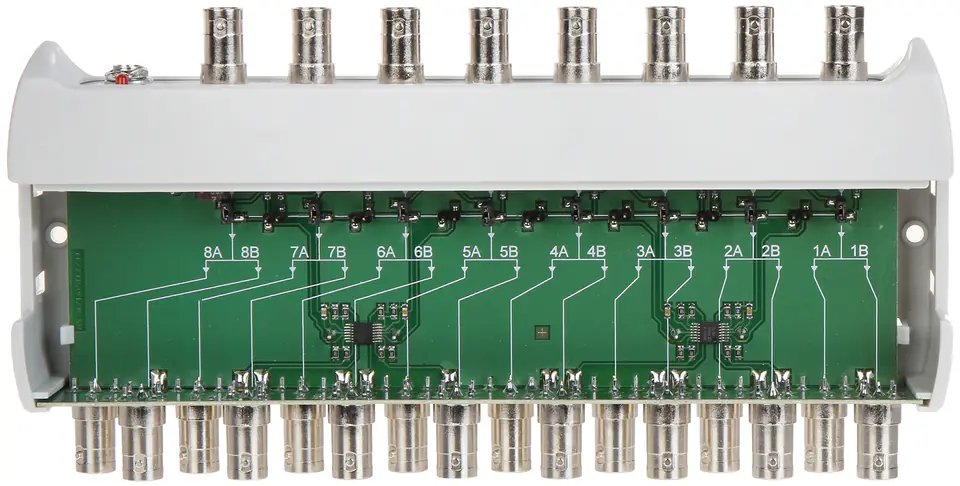

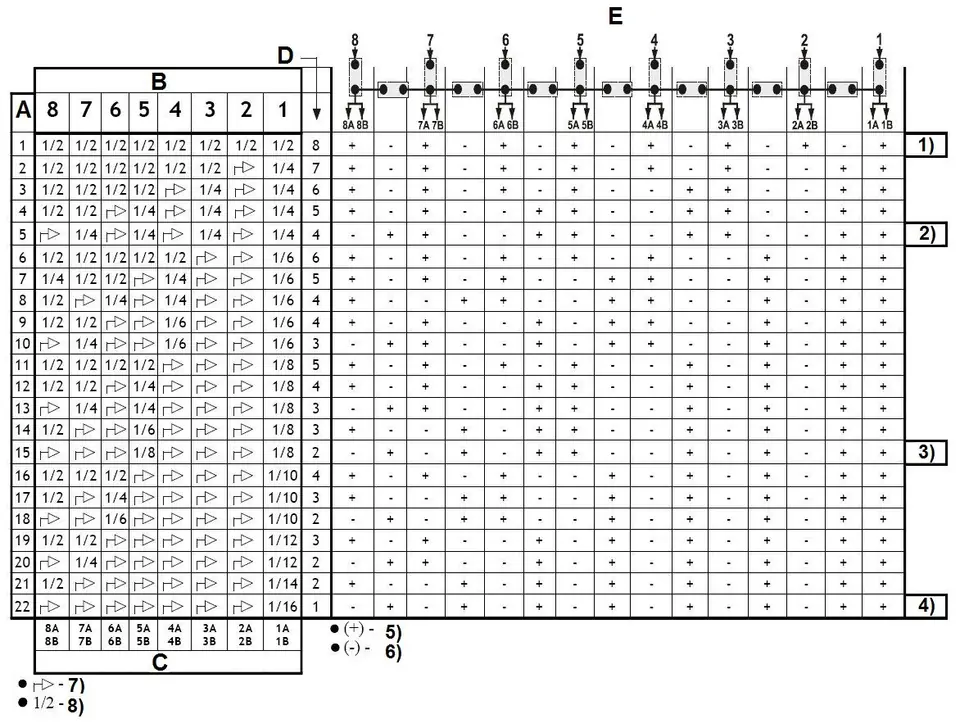

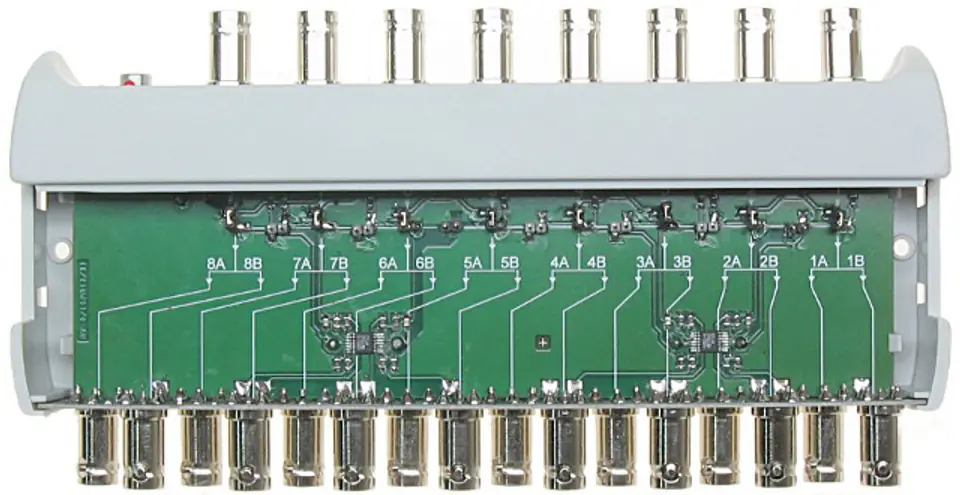

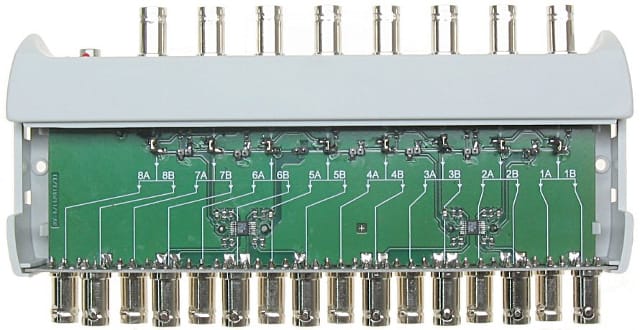

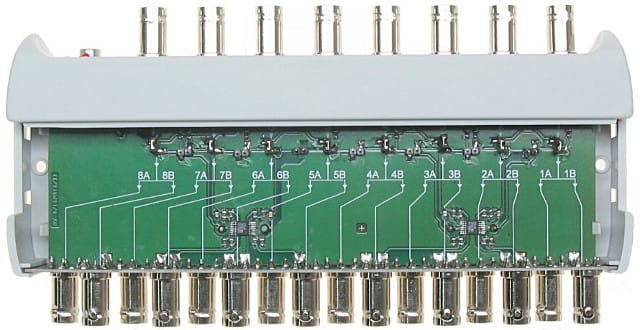

By default, the RV-8/16PR is set as eight independent 1/2 video splitters (Fig. 1)It is very easy to reprogram it using jumpers located on the front panel. Number of combinations:22. Examples of four of them are visible in the drawings. When programming, use the table. Vertical jumpers activate individual entrances, while horizontal jumpers connect the exits

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
