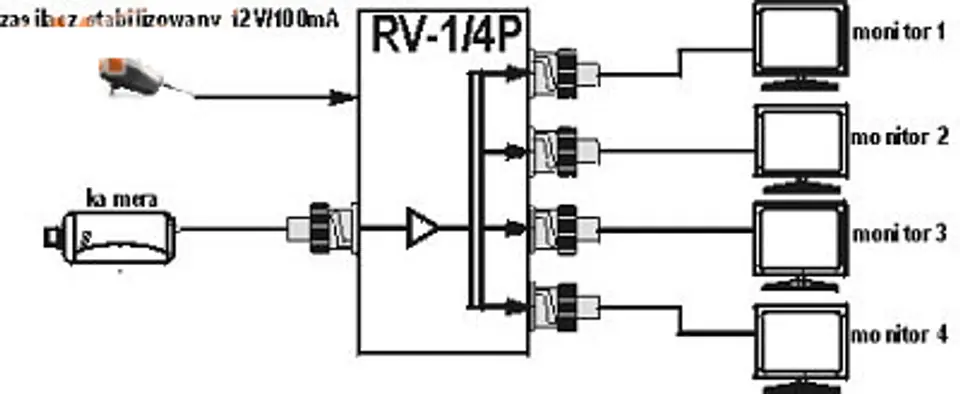

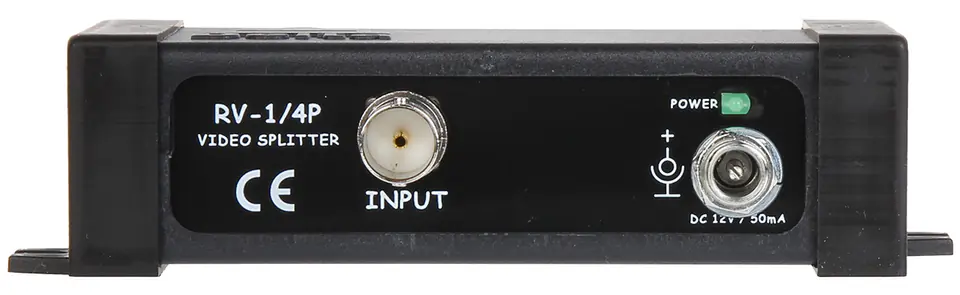

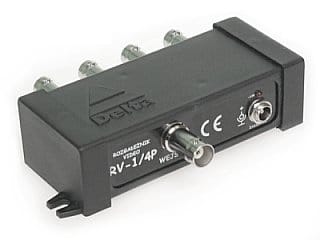

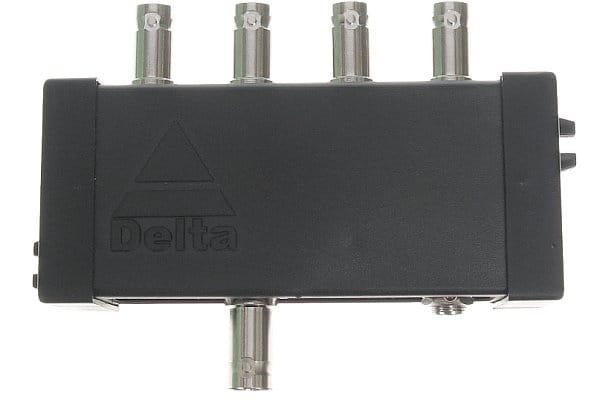

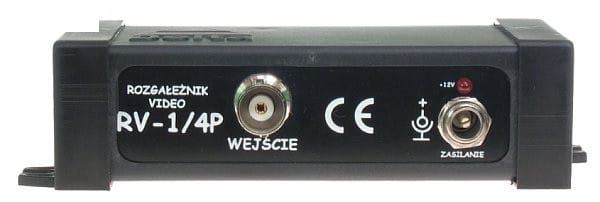

RV-1/4P video splitter allows video signals to be separatedThe device is adapted for continuous operation, indoorsA device adapted to color, black and white cameras, PALOase distance between sockets, allow free finger tightening of any BNC plug

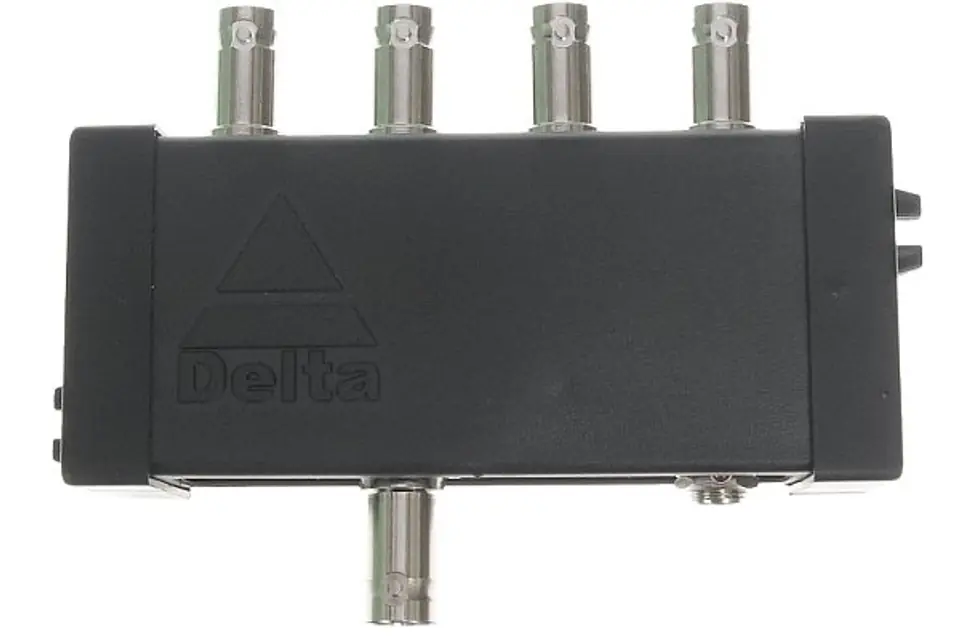

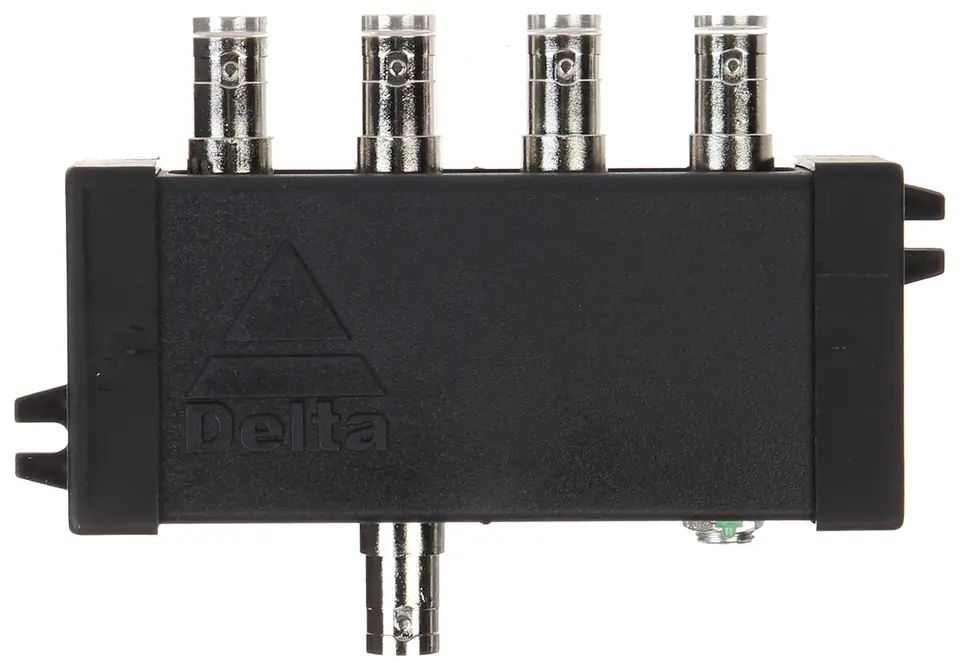

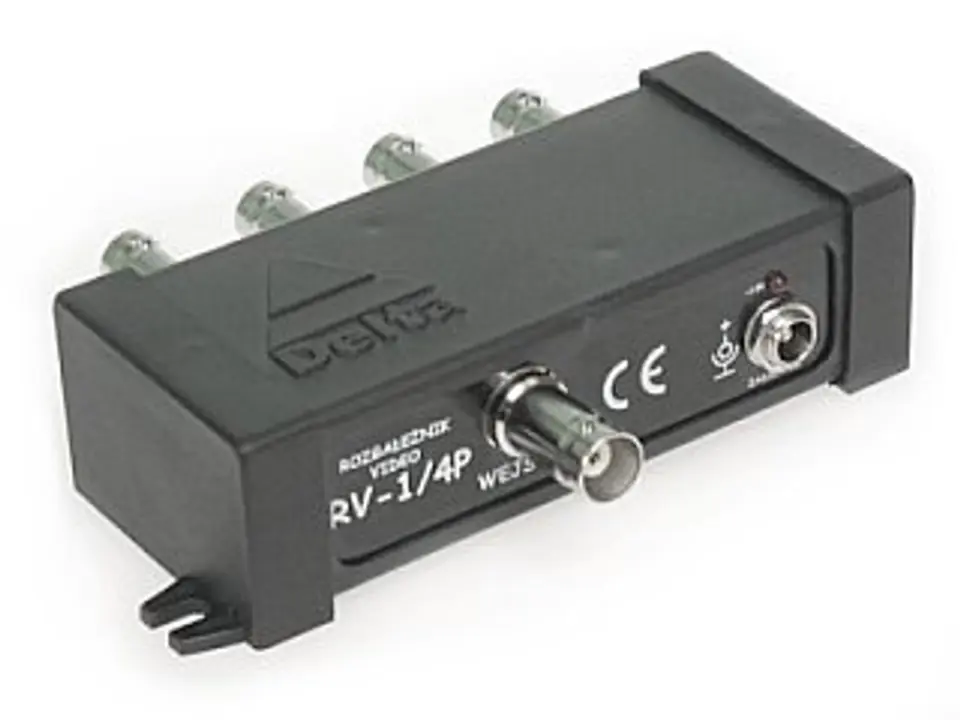

VIDEO SPLITTER RV-1/4P
€22.48
Shipping from warehouse: D4
Estimated shipping: Tue, Apr 30 - Fri, May 3
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- Delta
- Product code:
- RV-1/4P / 5902887016516
Share this product:
Specification
| Amplification:: | 0 dB |
|---|---|
| Current consumption:: | 60 mA |
| Dimensions:: | 117 x 30 x 80 mm |
| Input impedance:: | 75 Ω |
| Manufacturer / brand:: | DELTA |

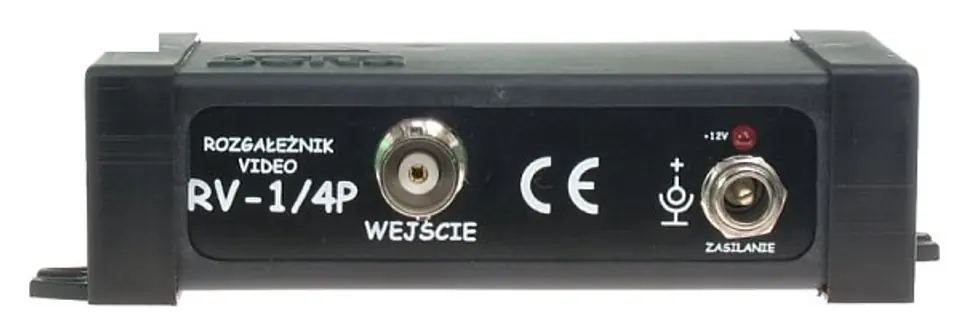

| Number of inputs:: | 1 pc. BNC |

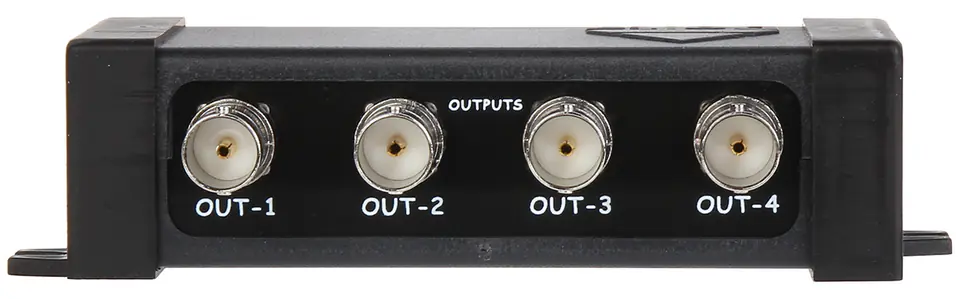

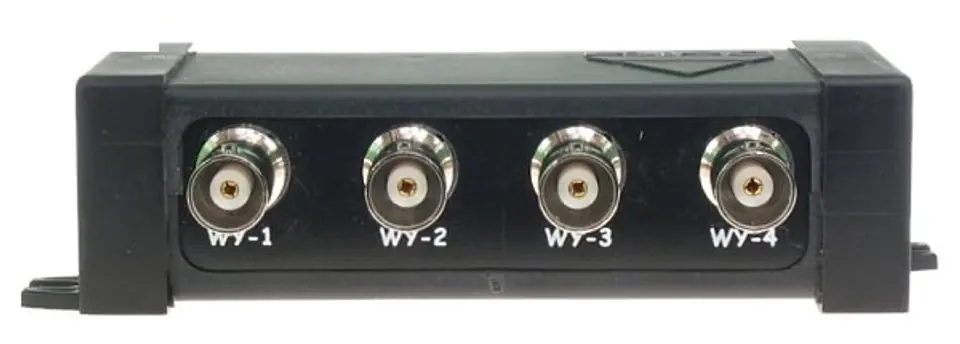

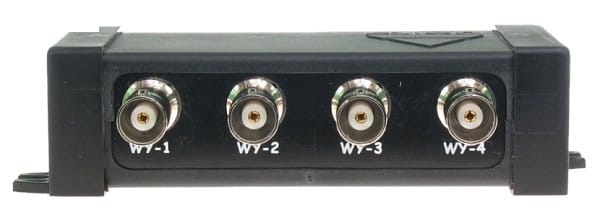

| Number of outputs:: | 4 pcs. BNC |

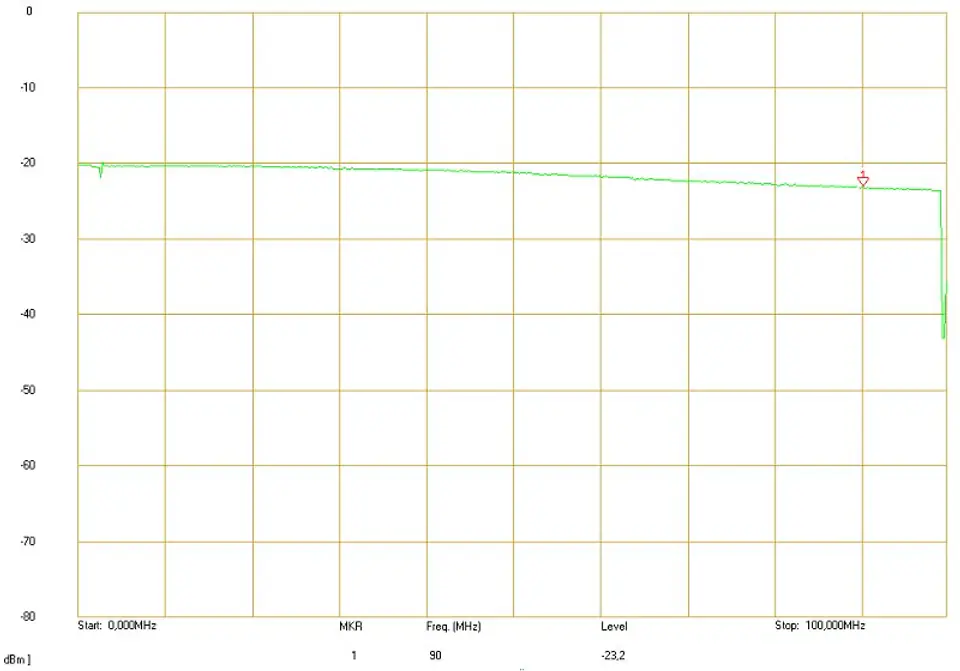

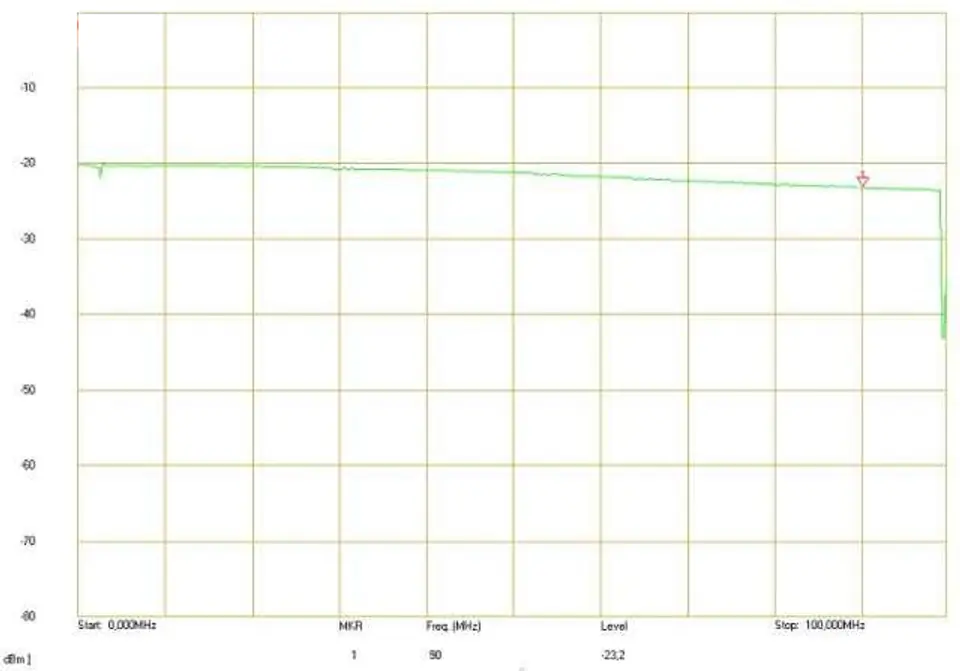

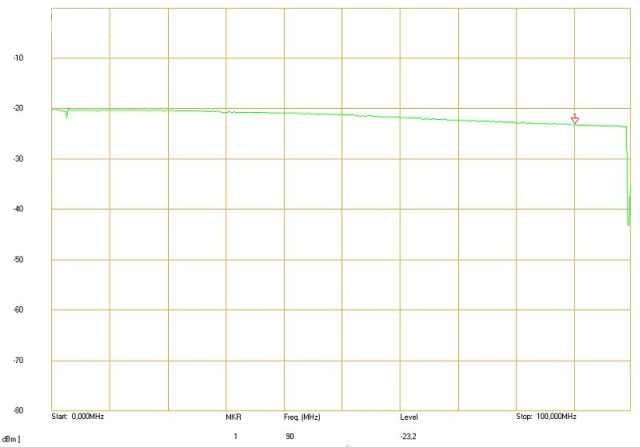

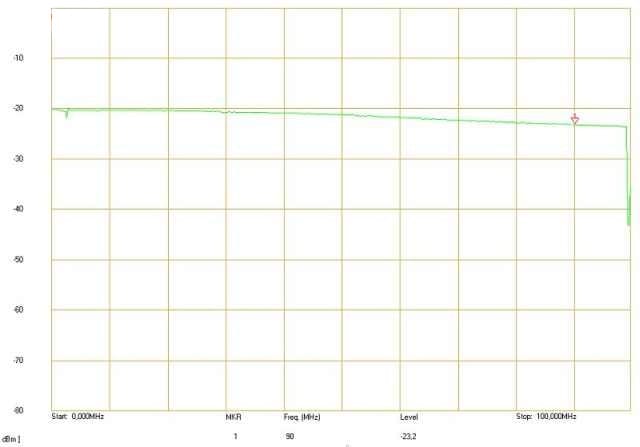

| Operating band:: | 0 ... 40 MHz (-3dB) |
| Output impedance:: | 75 Ω |
| Power:: | 12 V DC (no power supply included) |
| Scales:: | 0.098 kg |
| Standard:: | CVBS - PAL / NTSC |
| Warranty:: | 3 years |
