| Amplification:: | 0 dB |
|---|---|
| Current consumption:: | 40 mA |
| Dimensions:: | 117 x 30 x 62 mm |
| Entrance protection:: | ESD, IEC 61000-4-2, ±30kV contact, ±30kV airLightning, IEC 61000-4-5, 12A (tP=8/20μs) |
| Input impedance:: | 75 Ω |
| Manufacturer / brand:: | DELTA |
| Number of inputs:: | 1 pc. BNC |
| Number of outputs:: | 2 pcs. BNC |
| Operating band:: | 0 ... 120 MHz (-3dB) |
| Output impedance:: | 75 Ω |
| Output protection:: | ESD, IEC 61000-4-2, ±30kV contact, ±30kV airLightning, IEC 61000-4-5, 12A (tP=8/20μs) |
| Power:: | 12 V DC (no power supply included) |
| Scales:: | 0.07 kg |
| Standard:: | AHD - 8 Mpx 4K UHD, HD-CVI - 8 Mpx 4K UHD, HD-TVI - 8 Mpx 4K UHD, CVBS - PAL, NTSC |
| Warranty:: | 5 years |

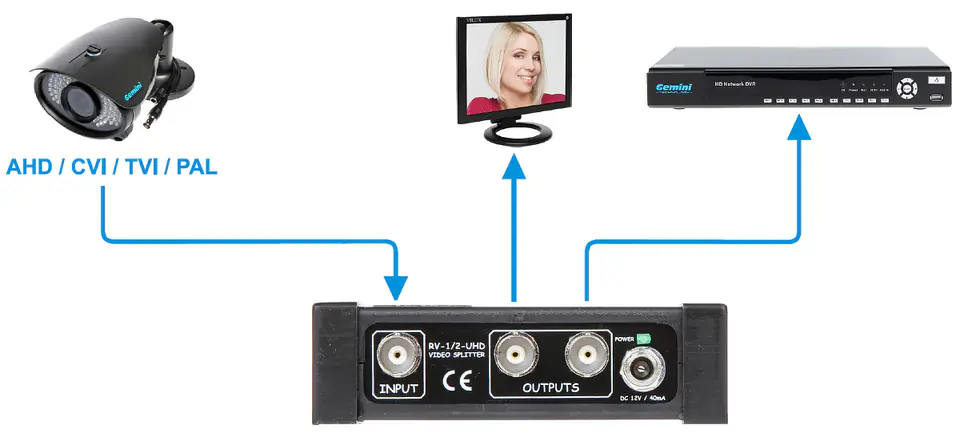

Active video splitter RV-1/2-UHD allows you to separate the video signal from one source without loss of signal qualityThe device is dedicated to applications using video signal standards: AHD, HD-CVI, HD-TVI, PAL
The splitter is characterized by a modern design and is compatible with 4K UHD sourcesThe RV-1/2-UHD product has a very large frequency response up to 120MHz (-3dB)

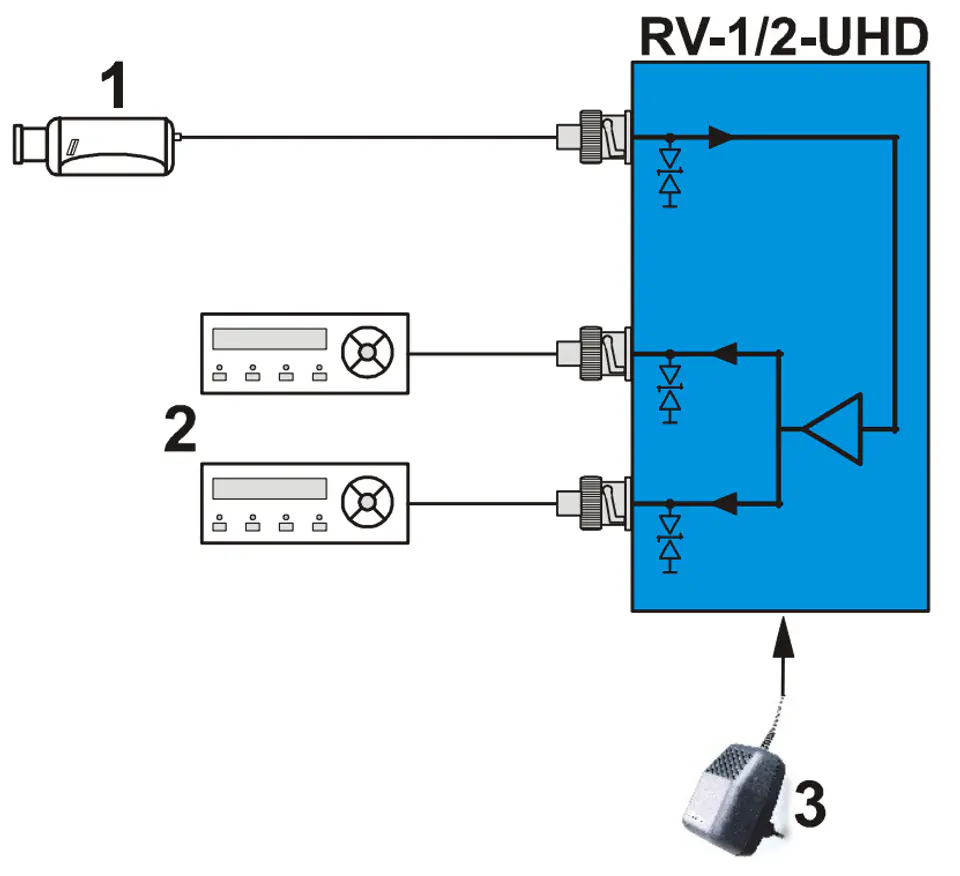

Each input and output of the device is protected by a specialized TVS diode
