| Access from a mobile phone:: | Port: 37777 or cloud access (P2P) Android: Free DMSS iOS app (iPhone): Free DMSS app |
|---|---|
| Alarm input/output: | Yes |
| Auto focus: | Yes |
| Bluetooth: | No |
| Built-in loudspeaker: | Yes |
| Built-in microphone: | Yes |
| Card reader integrated: | Yes |
| Case:: | Aluminium |
| Colour:: | silver |
| Compatibility:: | DAHUA |
| Compatible memory cards: | MicroSDHC, MicroSD (TransFlash), MicroSDXC |
| Connectivity technology: | Wired |
| Dc output current: | 3 A |
| Dc output voltage: | 48 |
| Depth: | 28.5 mm |
| Dimensions:: | 130 x 96 x 28.5 mm |
| Display type: | TFT |
| Ethernet interface type: | Gigabit Ethernet |
| Ethernet lan: | Yes |
| Ethernet lan (rj-45) ports: | 1 |
| Focal length range: | 1.9 mm |
| Focus: | Auto/Manual |
| Frame rate: | 30 fps |
| Height: | 96 mm |
| Housing material: | Aluminium, Polycarbonate (PC) |
| Ik code: | IK07 |
| Image compression method:: | H.265 |
| International protection (ip) code: | IP65 |
| Lens viewing angle, diagonal: | 176.7° |
| Lens viewing angle, horizontal: | 168.6° |
| Lens viewing angle, vertical: | 87.1° |
| Maximum memory card size: | 64 GB |
| Maximum resolution: | 1920 x 1080 pixels |
| Mechanical resistance class:: | IK07 |
| Mounting type: | Wall |
| Noise reduction: | Yes |
| Noise reduction technology: | 3D-DNR digital noise reduction |
| Number of cameras: | 1 |
| Number of languages: | 2 |
| Number of lenses: | 1 |
| Number of sensors: | 1 |
| Objective:: | 1.95 mm |
| Operating temperature (t-t): | -30 - 60 °C |
| Operating temperature:: | -30 °C ... 60 °C |
| Optical sensor size: | 25.4 / 2.5 mm (1 / 2.5") |
| Placement supported: | External / Internal |
| Power consumption (max): | 144 W |
| Power consumption:: | ≤ 12 W |
| Power source type: | DC, PoE |
| Power:: | PoE (802.3af), 2-Wire IP Interface |
| Processor base frequency: | 1.2 GHz |
| Processor family: | Dual-Core |
| Product colour: | Silver |
| Ram capacity: | 0.128 GB |
| Rom capacity: | 128 MB |
| Scales:: | 0.33 kg |
| Sealing:: | IP65 - after additional sealing of the housing connection with the mounting surface, e.g. silicone |
| Selected features:: | Support SD cards up to 32GB (local recording possible), Doorbell button, LEDs, Individual door status monitoring, WDR - 120 dB - Wide dynamic range of lighting, 3D-DNR - Digital noise reduction in the image, Two-way communication, Built-in microphone, Built-in speakers, Tamper detection - ground detachment, Power output 12 V DC / 100 mA |
| Sensor type: | CMOS |
| Storage relative humidity (h-h): | 10 - 90% |
| Supported graphics resolutions: | 1280 x 720 (HD 720), 1920 x 1080 (HD 1080) |
| Supported languages:: | Polish, English |
| Total megapixels: | 2 MP |
| Transducer:: | 2 Mpx CMOS |
| Type: | Video-intercom set |
| Utp category:: | UTP cat. 5e |
| Video compression formats: | H.265 |
| Video streaming: | Yes |
| Viewing angle:: | 168 ° |
| Weight: | 330 g |
| Wi-fi: | No |
| Wide dynamic range (wdr): | 120 dB |
| Width: | 130 mm |
IP video intercom set with a 7-inch touch monitor, the possibility of alarm integration and a remote intercom from the mobile applicationIt can also act as a simplified alarm control panel, or a notification module by operating 6 alarm inputsThe video recorder is mounted in a flush-mounted housing

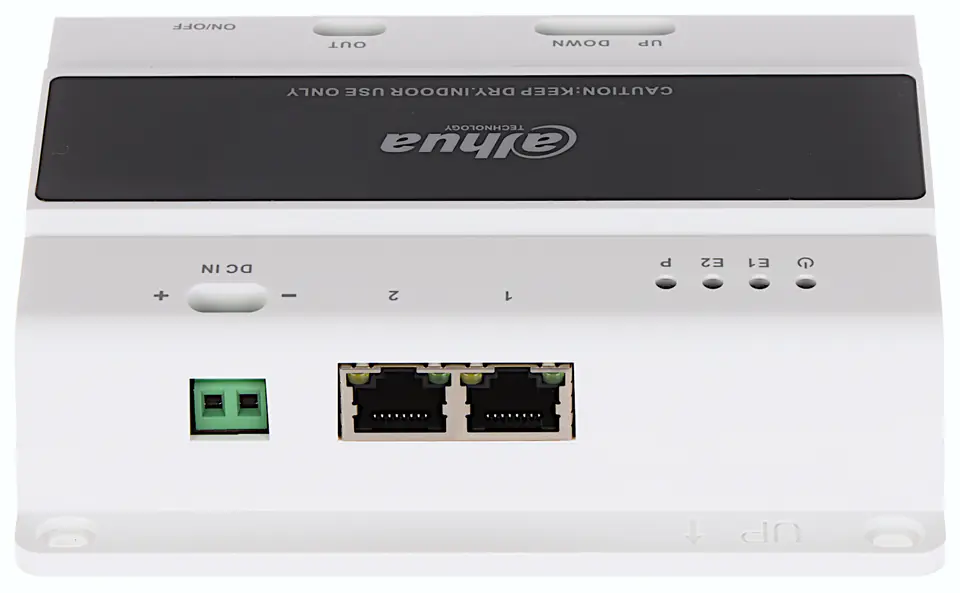

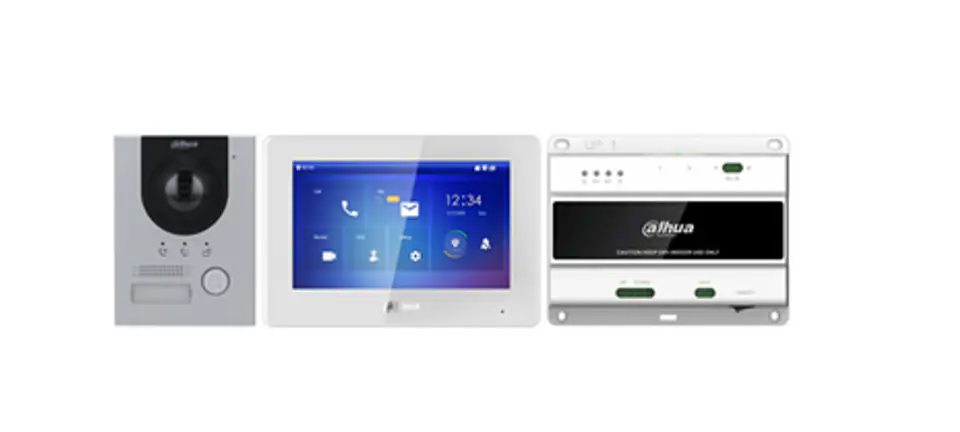

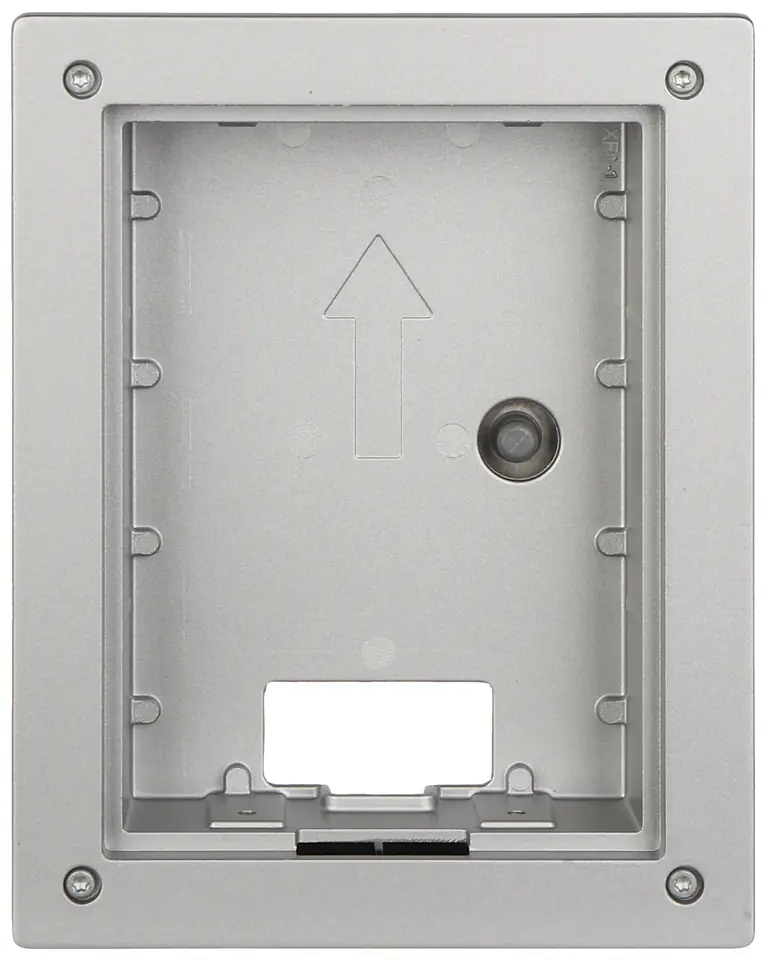

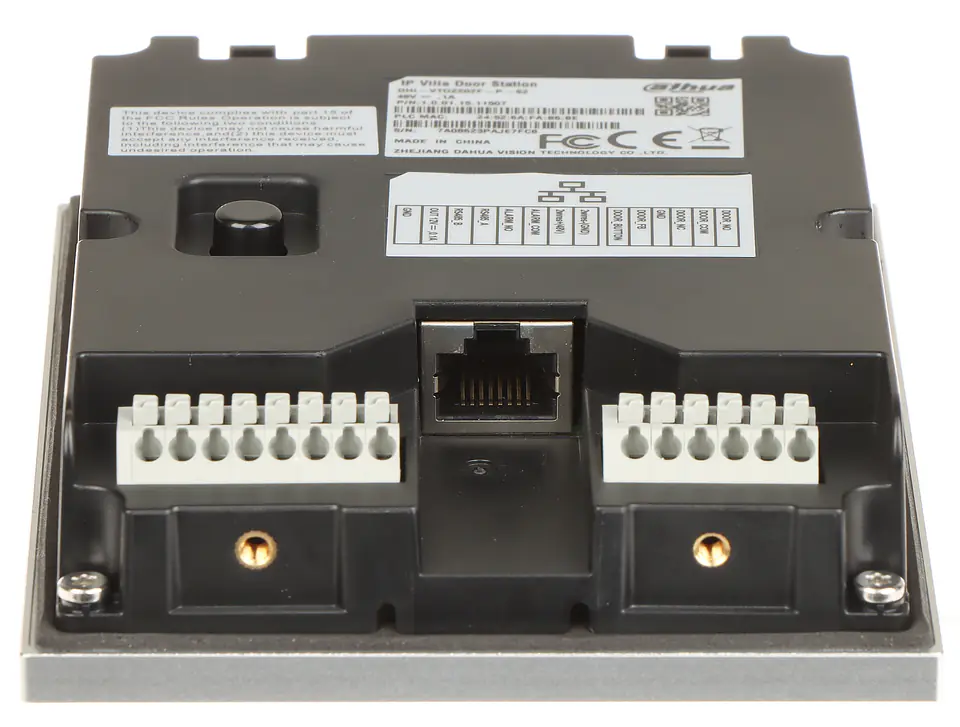

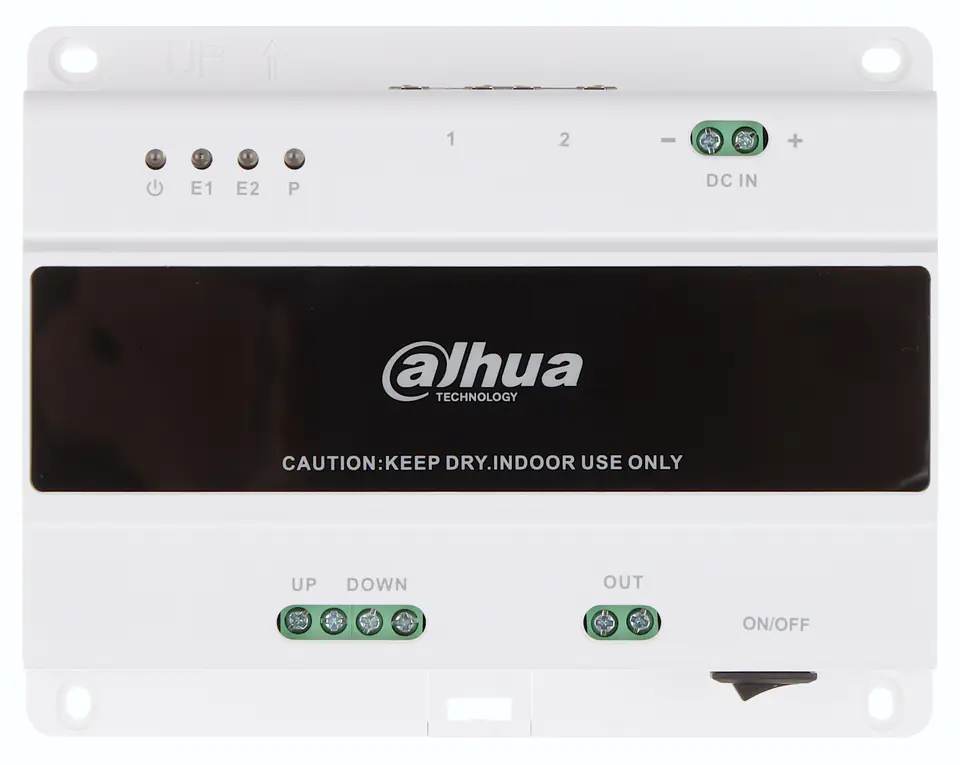

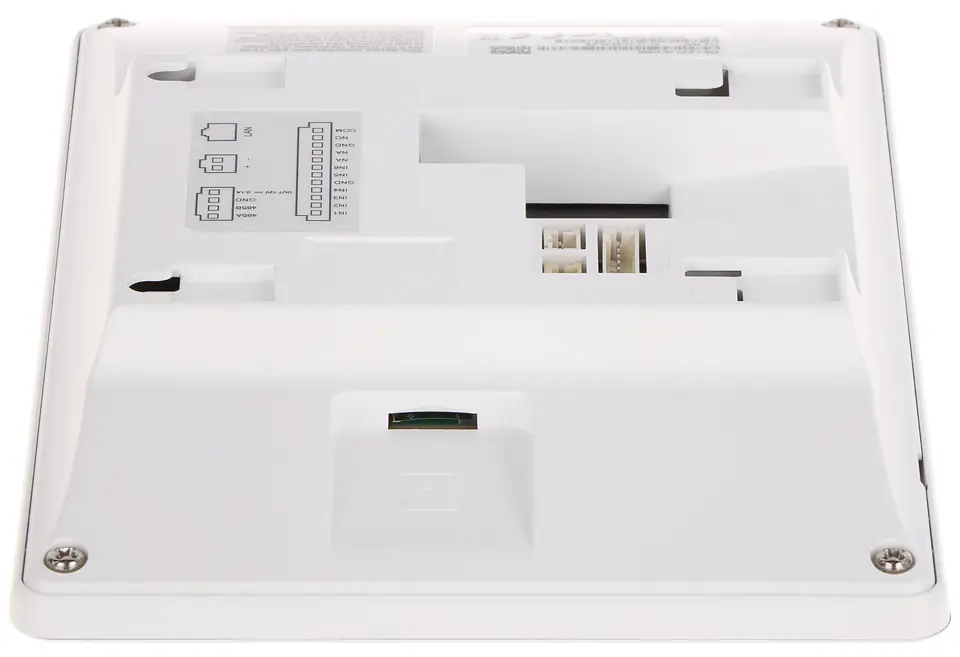

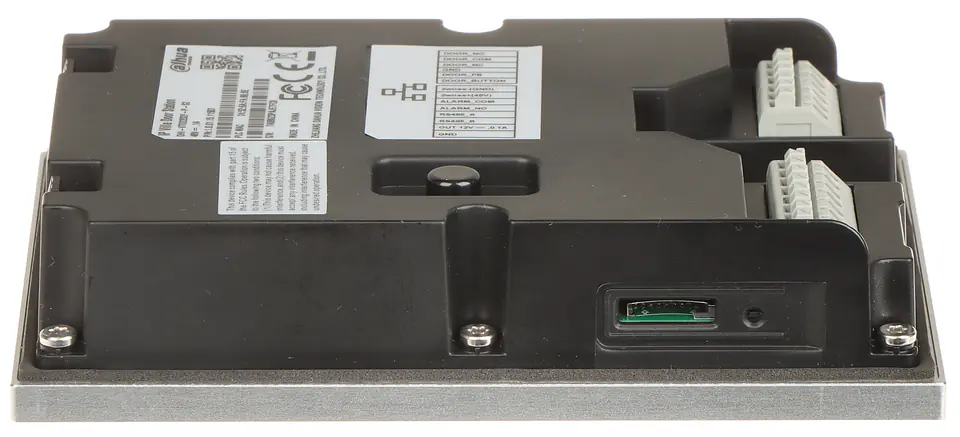

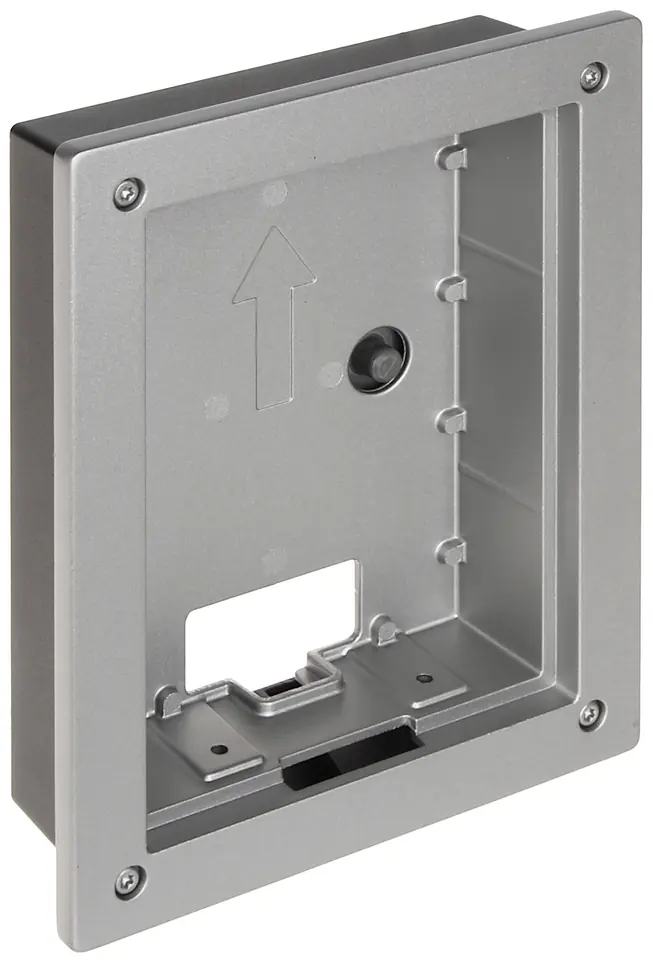

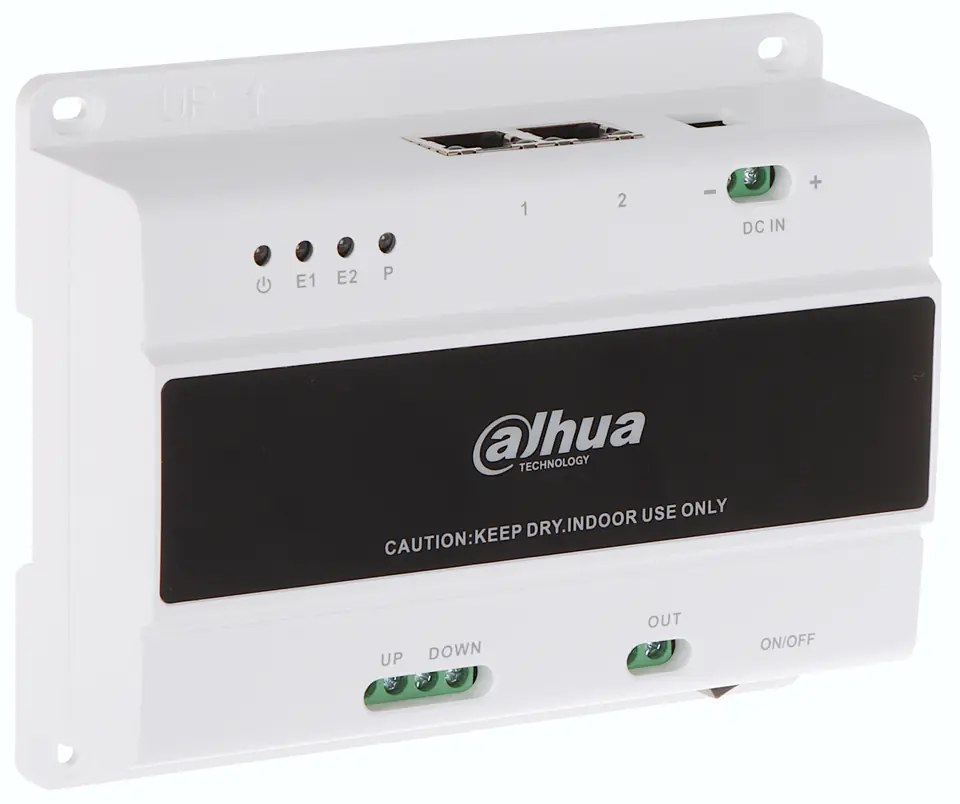

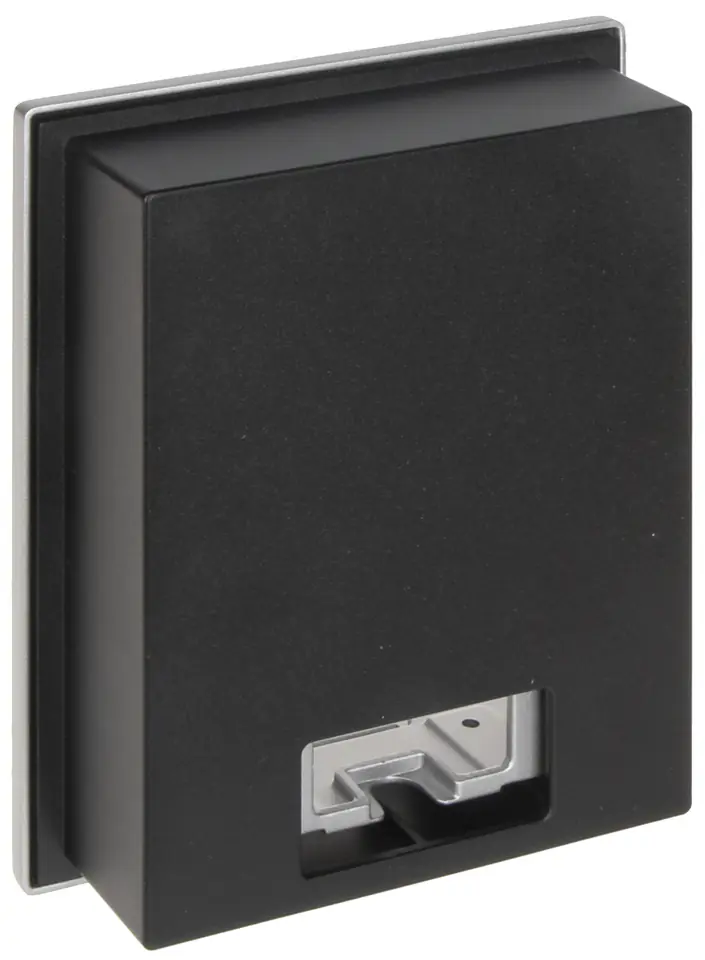

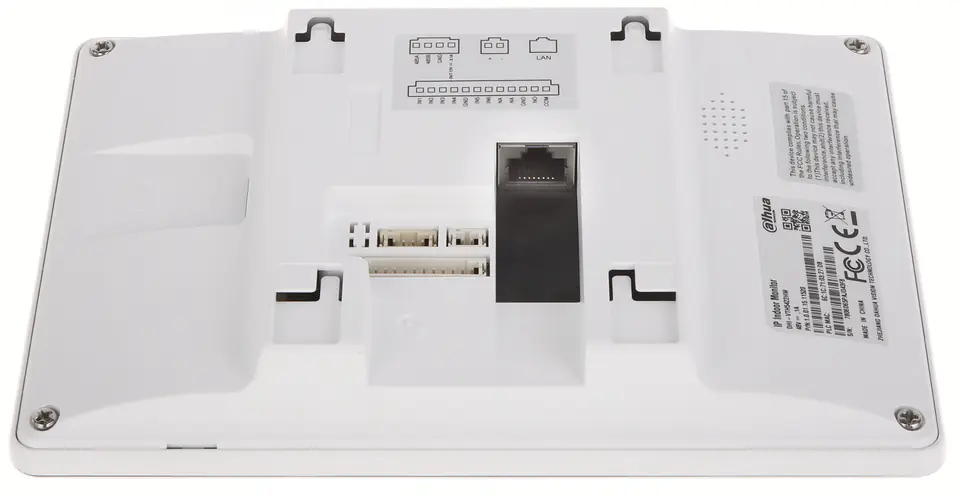

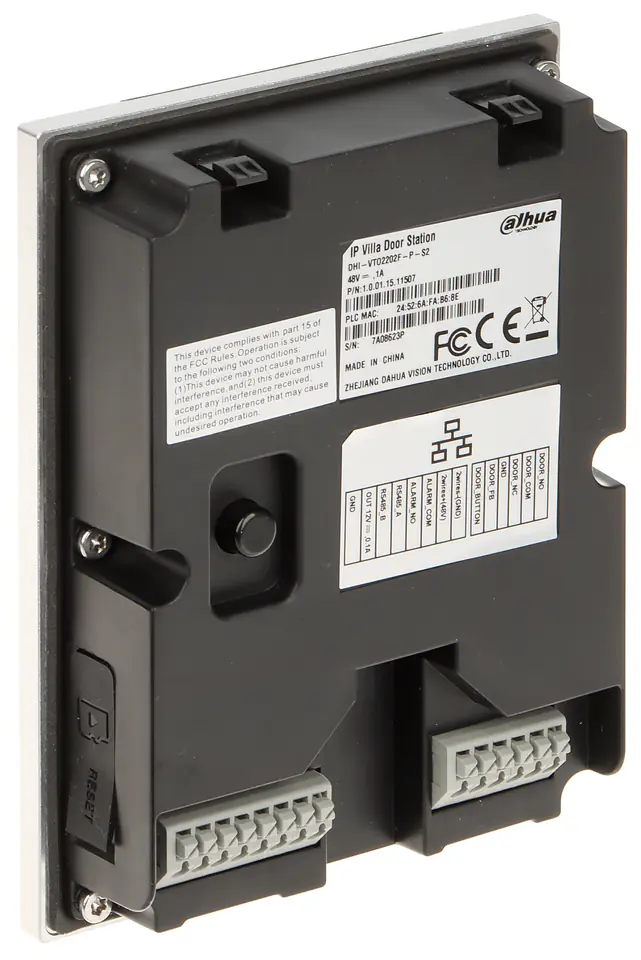

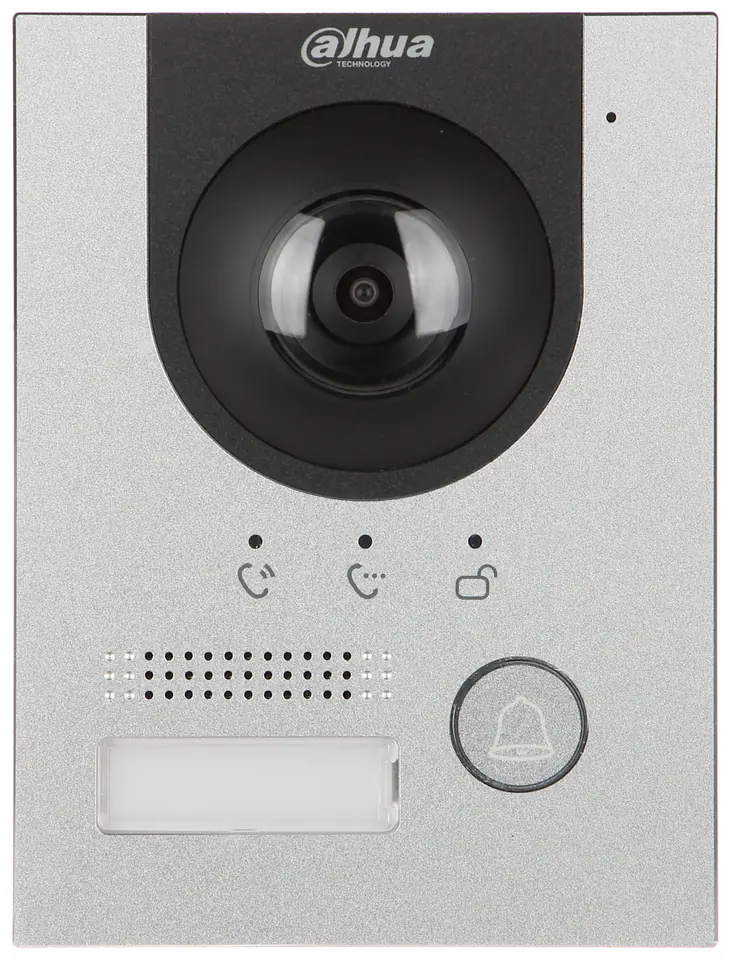

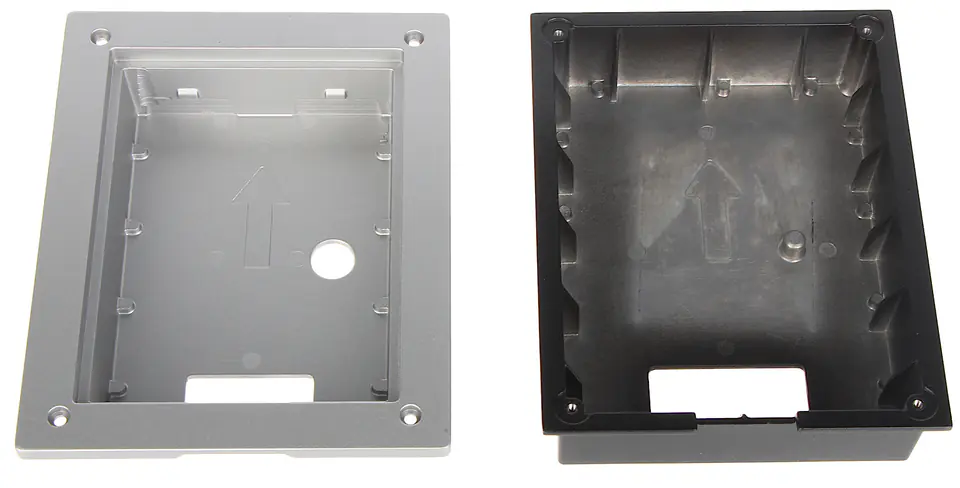

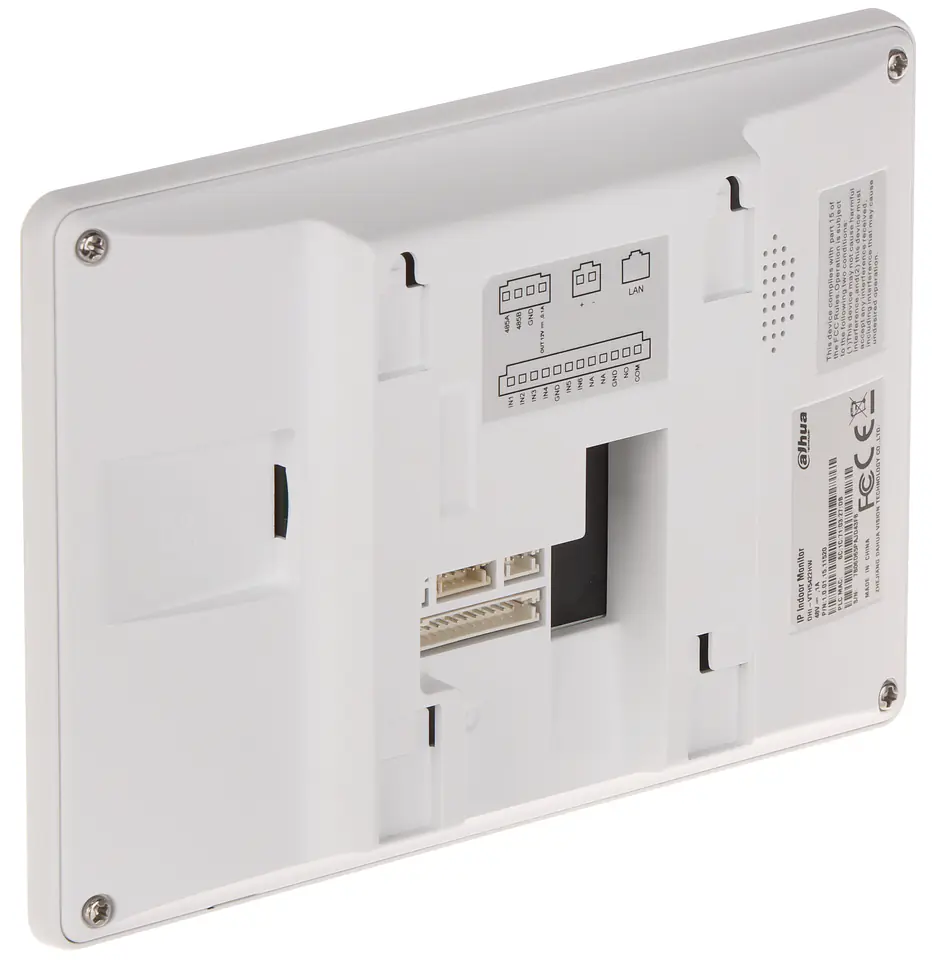

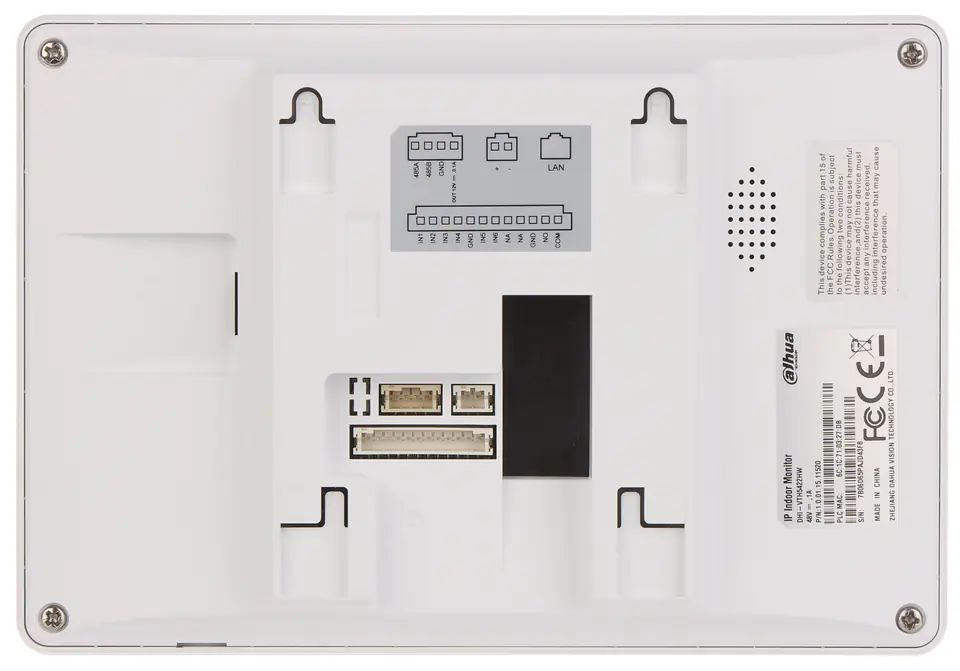

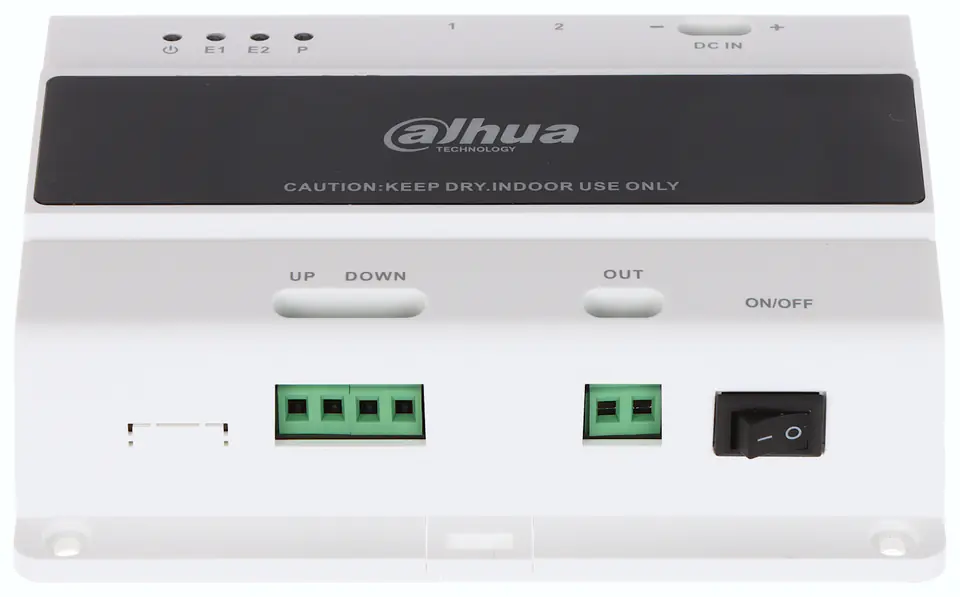

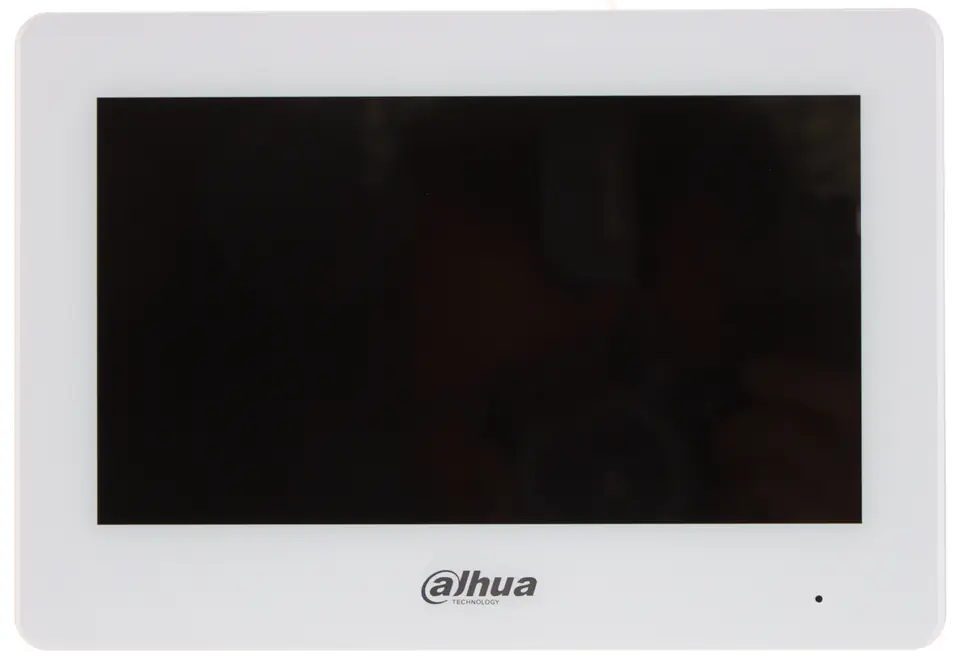

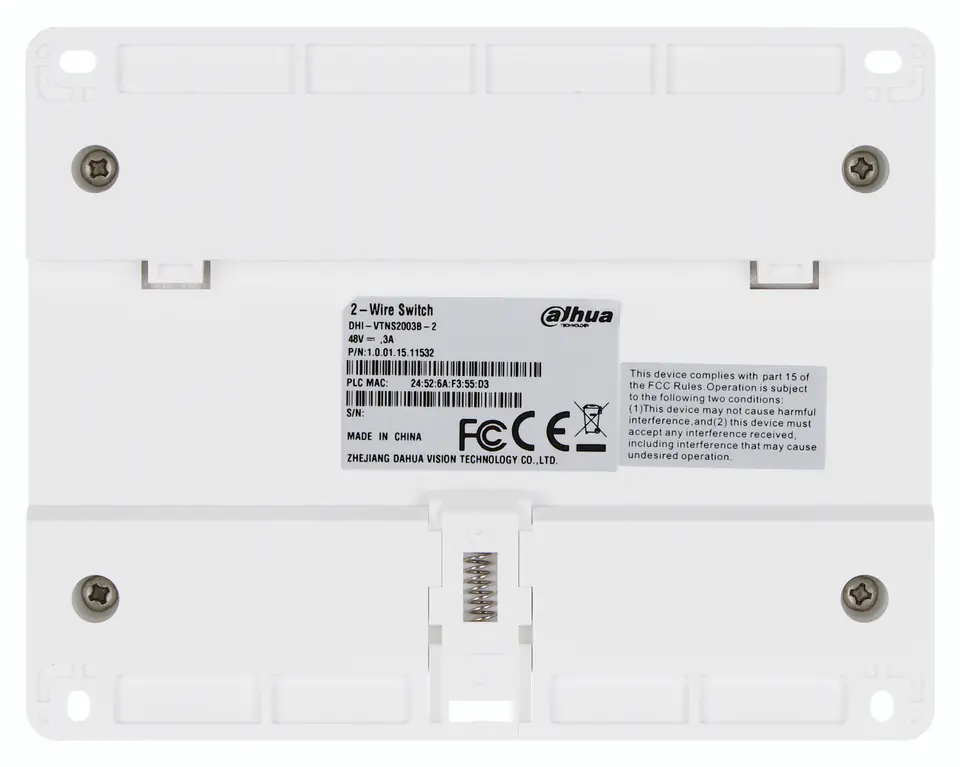

The set includes: internal panel VTH5422HW, video intercom VTO2202F-P-S2, 2-wire bus switch VTNS2003B-2 and flush-mounted housing VTM114
REMARK! The device does not work with the analog Dahua system
