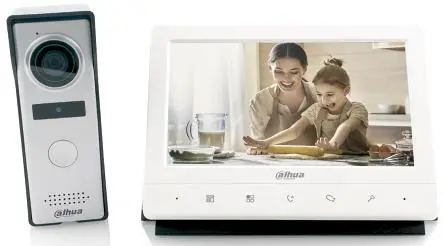

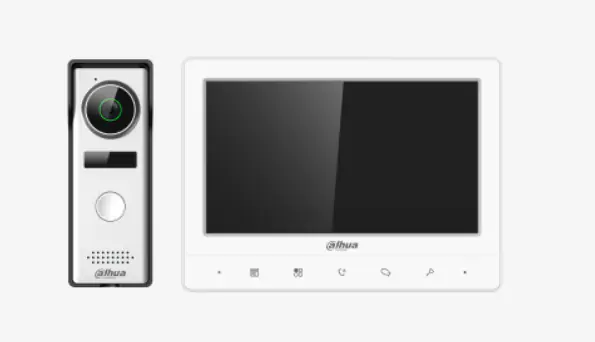

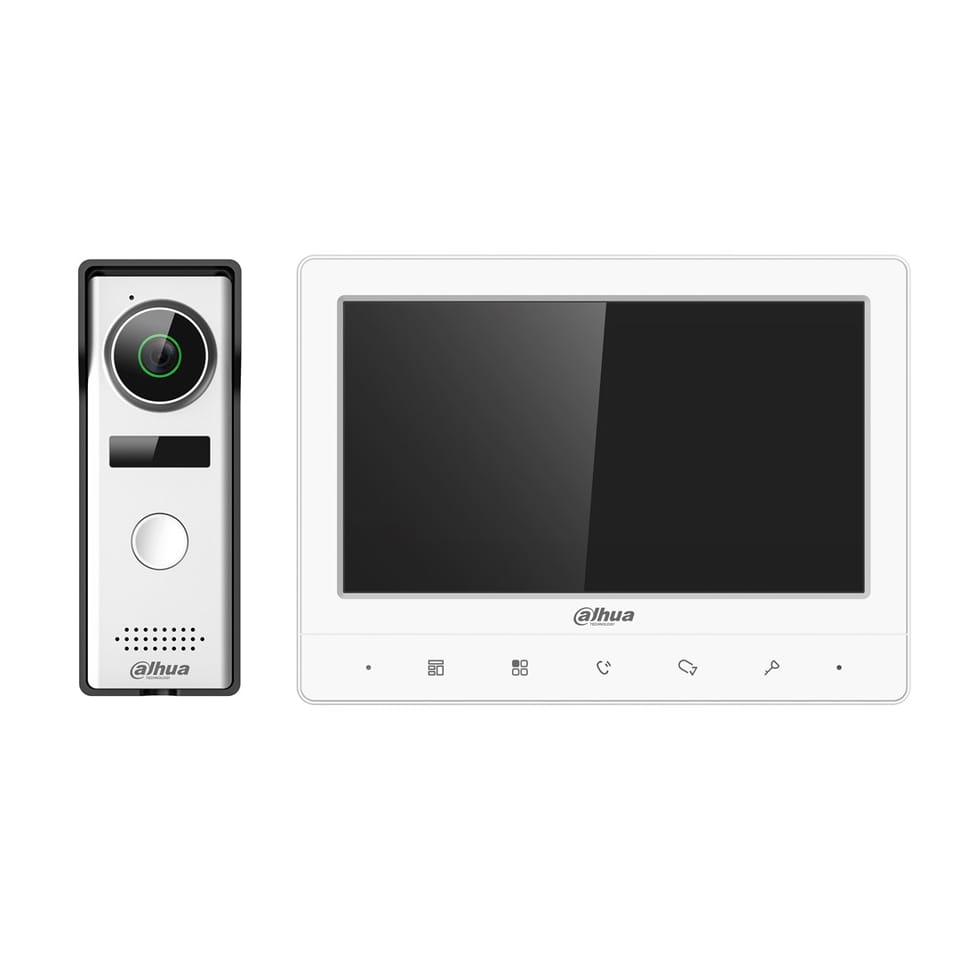

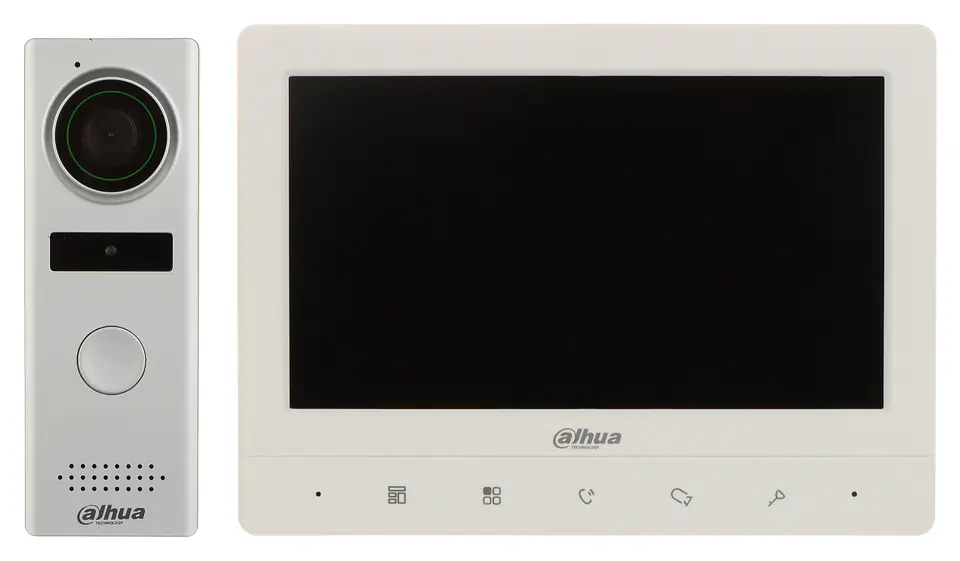

VIDEO INTERCOM SET KTA02 DAHUA
€88.14
Shipping from warehouse: H7
Estimated shipping: Tue, Oct 28 - Fri, Oct 31
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- Dahua
- Product code:
- KTA02 / 6939554951268
Share this product:
Specification
| Audio inputs:: | 1 - Microphone |
|---|---|
| Audio outputs:: | 1 - Speaker |
| Built-in ir leds: | Yes |
| Camera viewing angle:: | ~ 70° |
| Case:: | Plastic (PC + ABS) |
| Colour display: | Yes |
| Colour:: | white |
| Connectivity technology: | Wired |
| Digital wide dynamic range (dwdr): | Yes |
| Dimensions of the indoor unit: | 133,9 × 182,7 × 17,7 mm |
| Dimensions of the outdoor unit: | 131,45 × 46 × 33,8 mm |
| Dimensions:: | 183 x 134 x 18 mm |
| Display diagonal: | 17.8 cm (7") |
| Display resolution: | 1024 x 600 pixels |
| Display type: | TFT |
| Door station:: | DOOR STATION:2 |
| Housing material: | Polycarbonate (PC), Acrylonitrile butadiene styrene (ABS) |
| Indoor unit included: | Yes |
| Indoor unit weight: | 0,48 kg |
| Inner panel:: | INNER PANEL: |
| Internal lte wireless modem: | Y |
| Ir illuminator:: | Built-in IR illuminator for night observation |
| Manufacturer / brand:: | DAHUA |
| Megapixel (approx.): | 1.3 MP |
| Mounting options: | Wall |
| Night mode: | Yes |
| Number of displays supported: | 3 |
| Operating relative humidity (h-h): | 10 - 95% |
| Operating temperature (t-t): | -10 - 55 °C |
| Operating temperature:: | -10 °C ... 55 °C |
| Outdoor unit included: | Yes |
| Outdoor unit weight: | 380 g |
| Power consumption (standby): | 2 W |
| Power consumption (typical): | 5 W |
| Power consumption:: | ≤ 5 W Active≤ 2 W Standby |
| Power supply included: | Yes |
| Power supply voltage: | 15 V |
| Power:: | 12 V DC / 1 A - Monitor12 V DC / 2 A (power supply included) |
| Product colour: | White, Silver |
| Rain cover: | Yes |
| Resolution:: | 1024 x 600 mm |
| Scales:: | 0.25 kg |
| Screen:: | 7" Color Matrix TFT-LCD |
| Sealing:: | IP66 - after additional sealing of the housing connection with the mounting surface, e.g. silicone |

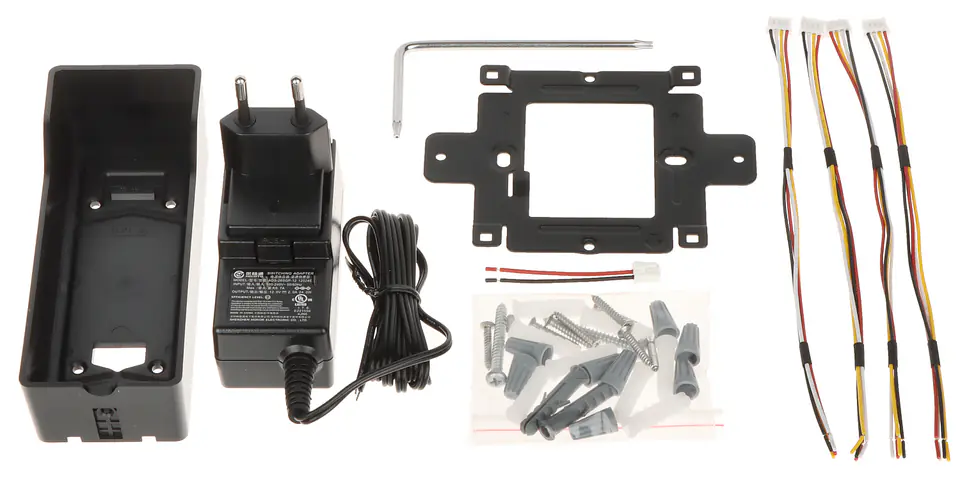

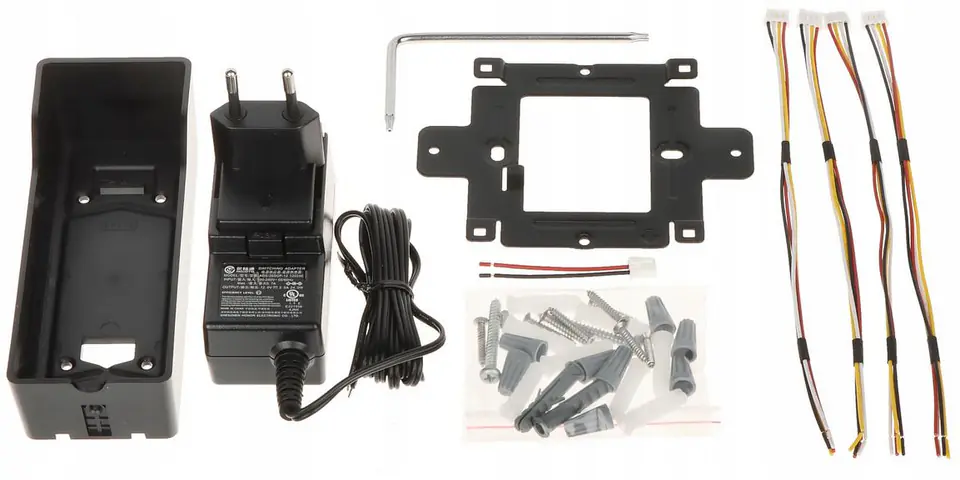

| Selected features:: | Touch control buttons, LED indicator indicating the operating status - LED green - power signal, Maximum number of door stations in the system : 2, Maximum number of internal panels in the system : 3, Selection of ringing tone, Smooth adjustment of monitor parameters: image brightness, ringtone and conversation volume, Preview of the image from the door station with the possibility of turning on the sound and opening the gate, Mounting on a four-core cable, Communication : compatibility with the daHUA analog video intercom system Mounting surface-mounted, Included: Holder |
| Sensor type: | CMOS |
| Transducer:: | 1.3 Mpx CMOS |
| Video output:: | compatible with DAHUA analog video intercom system |
| Viewing angle, horizontal: | 70° |
| Viewing angle, vertical: | 40° |
| Warranty:: | 3 years |
