| Built-in proximity reader : | Standard - Unique EM 125kHz |
|---|---|
| Case: | Aluminium / Plastic, Waterproof |
| Colour: | Silver |
| Compatibility: | Analog video intercoms VIDOS |

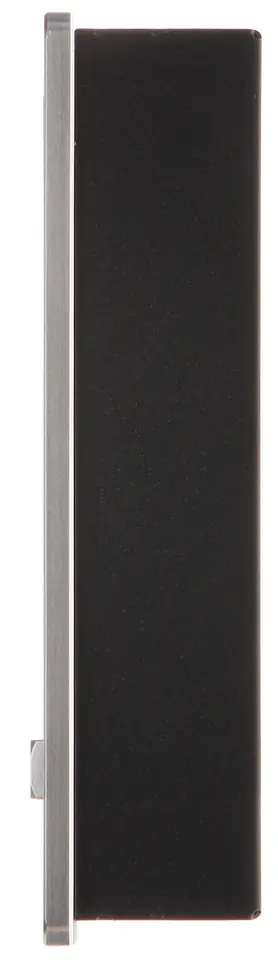

| Dimensions: | 150 x 84 x 39 mm |
| Number of subscribers served: | 1 |
| Operating temperature: | -25 °C ... 55 °C |
| Power: | 12 volts DC ... 15 volts DC |
| Power consumption: | 0.95 W (operating) 0.4 W (standby) |
| Producer / brand: | VIDOS |
| Scales: | 0.4 kg |
| Sealing: | IP65 |

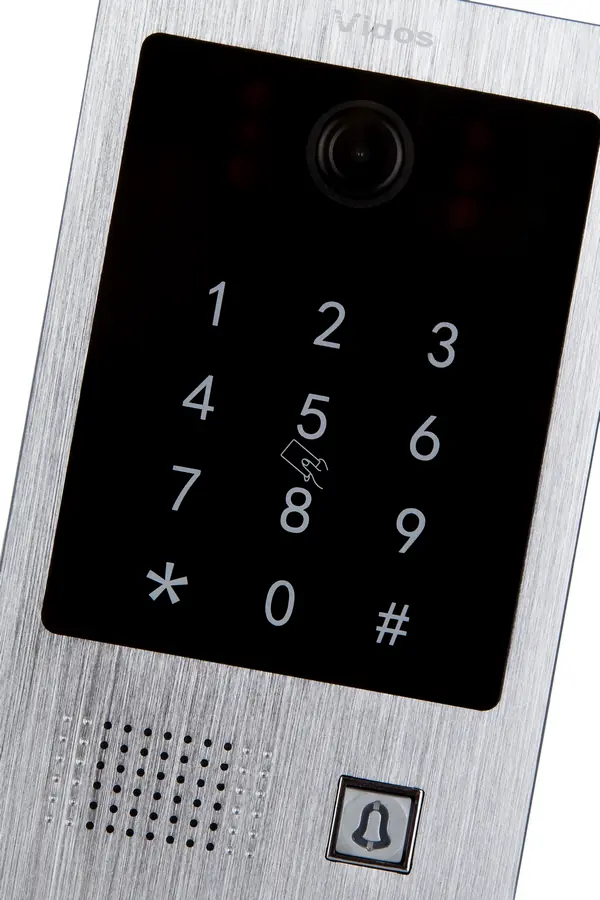

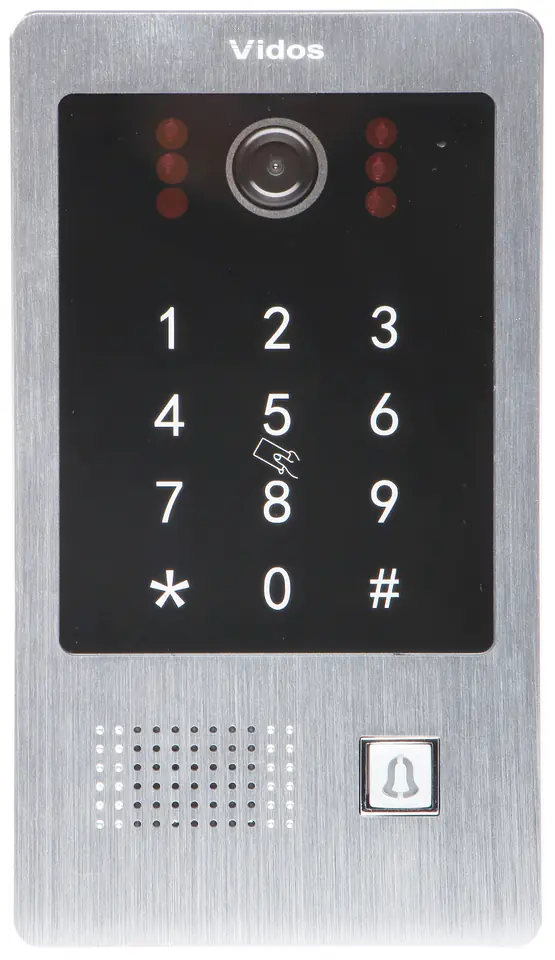

| Selected features: | Number of contactless cards supported - 200 Number of supported PIN codes : 200 - Protection against unauthorized use Operation of electric strikes and electromagnetic locks Vandal-resistant front panel Illuminated buttons and name sign |
| Transducer: | 1/3" 800 TVL |
| Video output: | compatibility with the analog video door phone system VIDOS |
| Viewing angle: | 110 ° |
| Warranty: | 3 years |

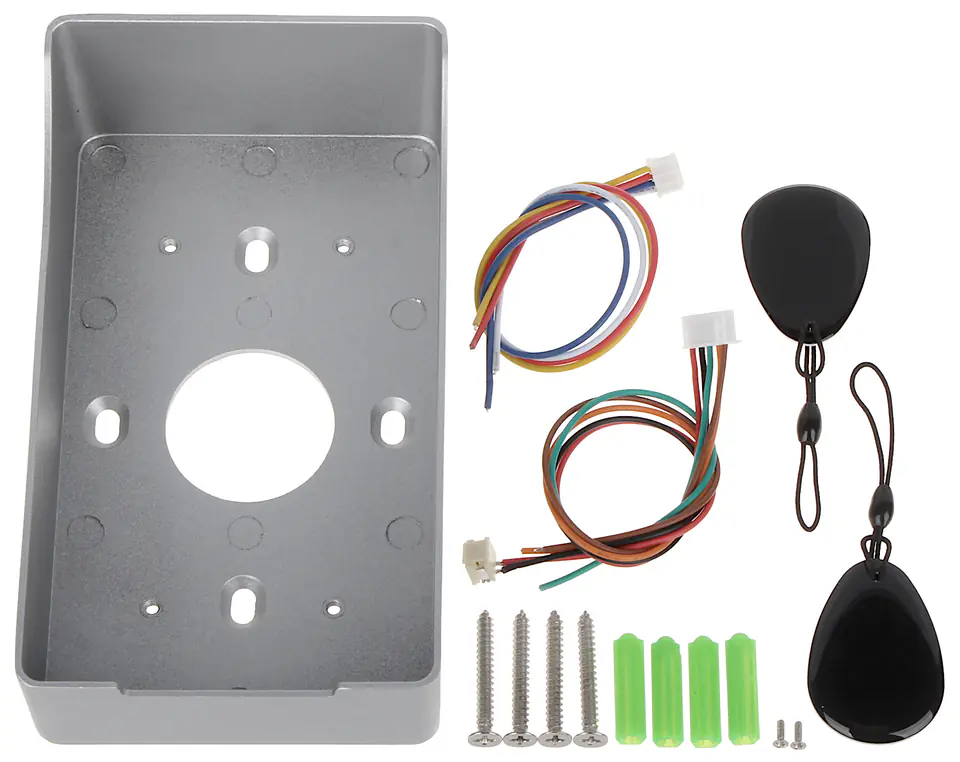

The built-in RFID reader allows you to control the electric strike using key rings, proximity cards and tags operating in the Unique EM 125kHz standardThe user configures whether he will open the input using the PIN code entered on the keyboard, or using a key ring or proximity card, or by combining both

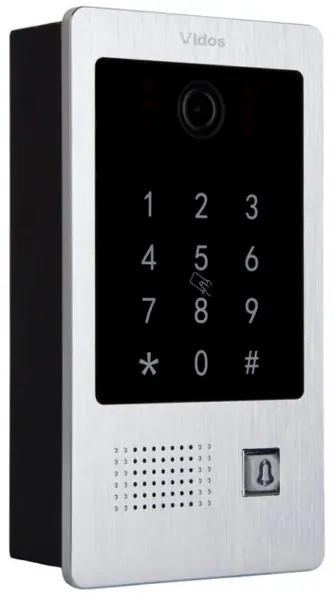

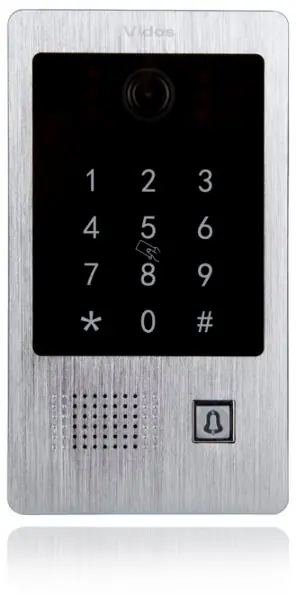

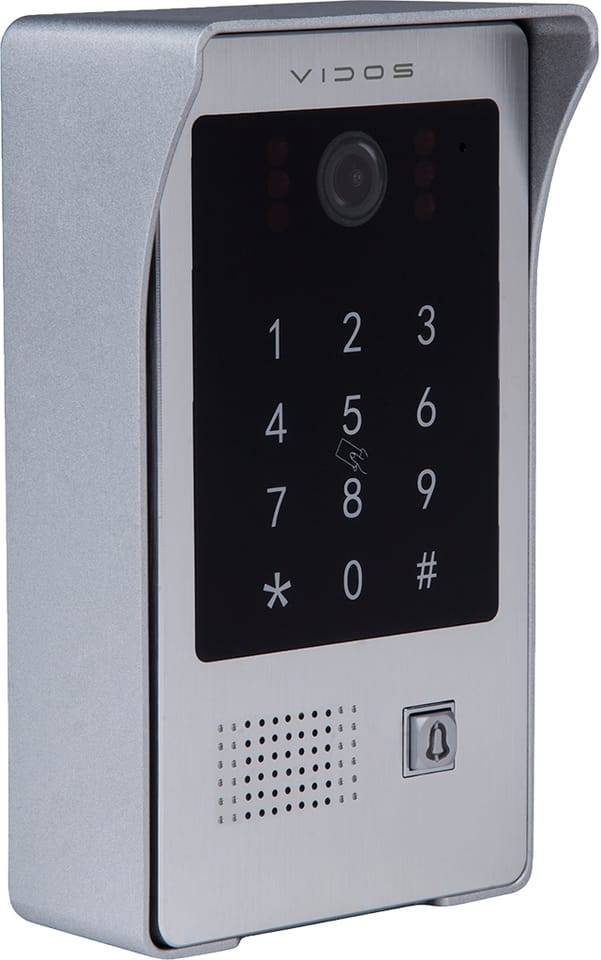

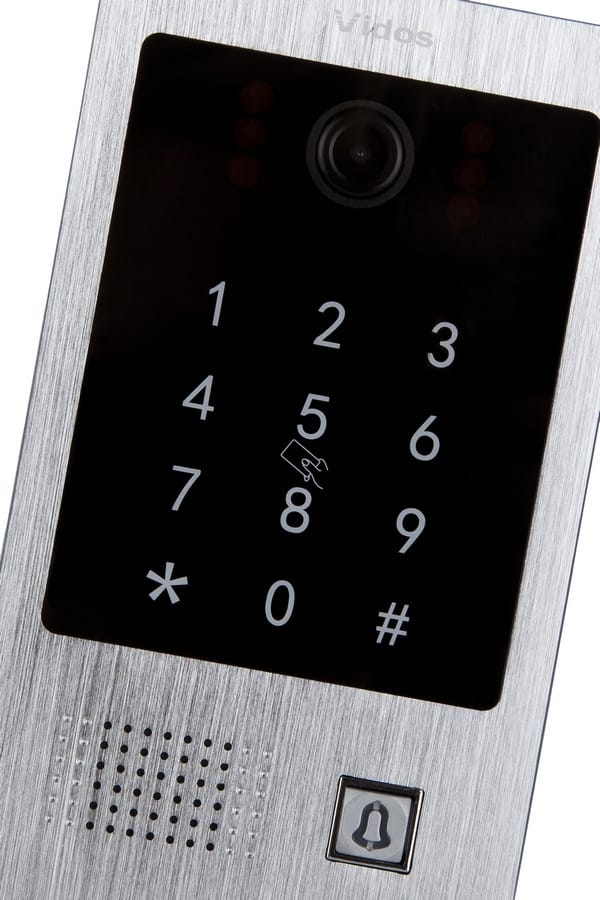

S20DA is designed to work with video door phones and panels compatible with the analog VIDOS system
