| Case:: | Stainless steel - Front panel, Back panel Galvanized steel - Drawer |
|---|---|
| Colour:: | silver |
| Compatibility:: | VIDOS DUO |

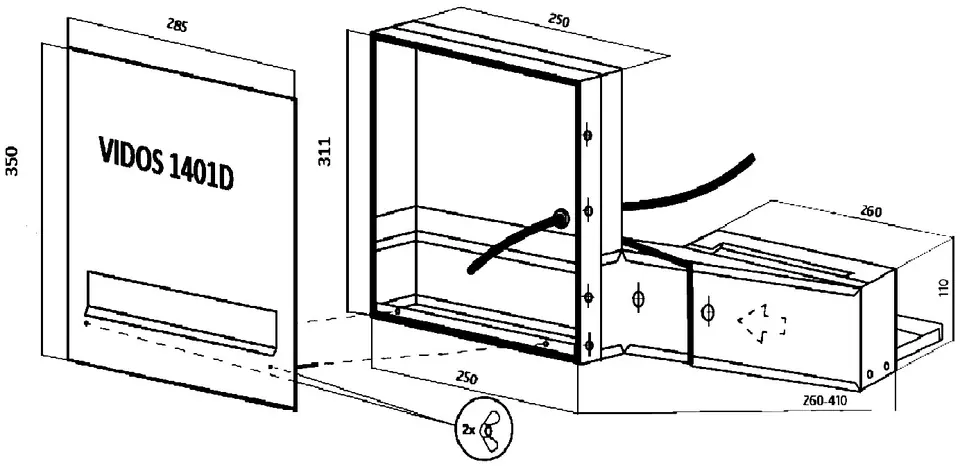

| Dimensions:: | Front panel : 285 x 350 mm Back panel : 260 x 110 mm Adjustable box depth : 260 ... 410 mm |
| Manufacturer / brand:: | VIDOS |
| Number of supported subscribers:: | 1 |
| Operating temperature:: | -18 °C ... 55 °C |
| Power consumption:: | ≤ 3 W (Operating) ≤ 0.8 W (Standby) |
| Power:: | 24 VDC |
| Scales:: | 4.54 kg |
| Sealing:: | IP54 |
| Selected features:: | Integrated Letter Box - Fisheye Pass-through Lens Wiring - 2 Wires Without Polarization Relay Output: 1 Pcs. or 2 pcs. - Module B5 Support for up to 12 internal devices (monitors / uniphones) Touch control buttons Illuminated buttons and a sign in the name Cooperation with PIR detectors Constant or cyclic close-up of the observed image Support for electric strikes and solenoid valve Power supply: 12V DC / max. 300mA Call Start & Bolt Open Indicator |
| Transducer:: | 1/2.7", 2.0 Mpx |
| Video output:: | compatible with the VIDOS DUO digital video intercom system |
| Viewing angle:: | 170 ° |
| Warranty:: | 3 years |

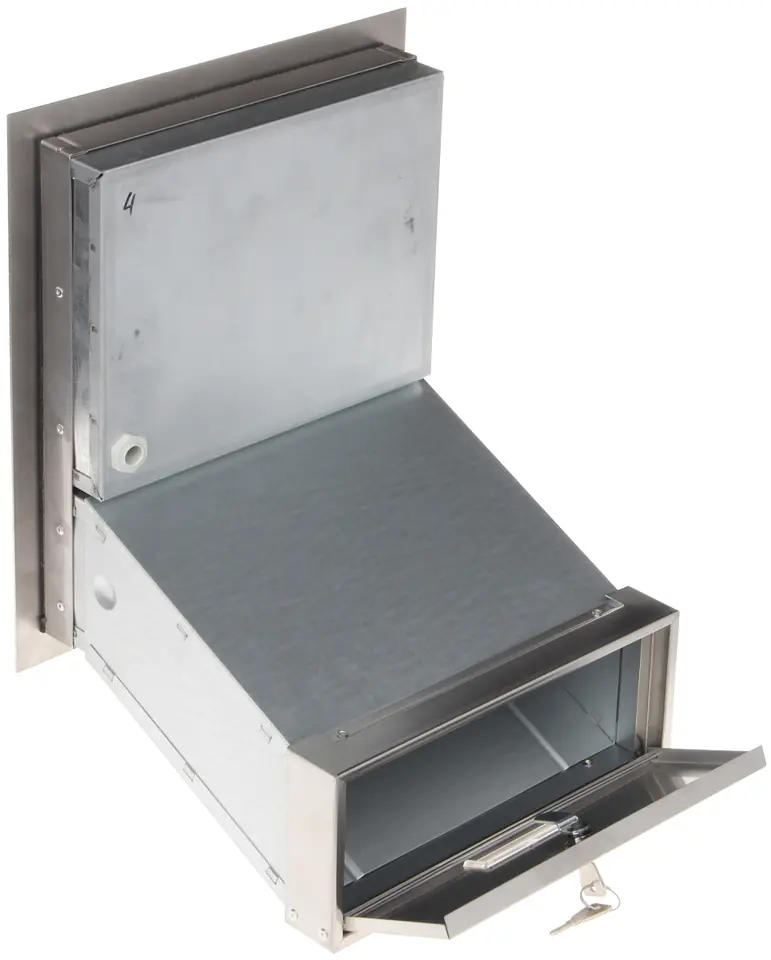

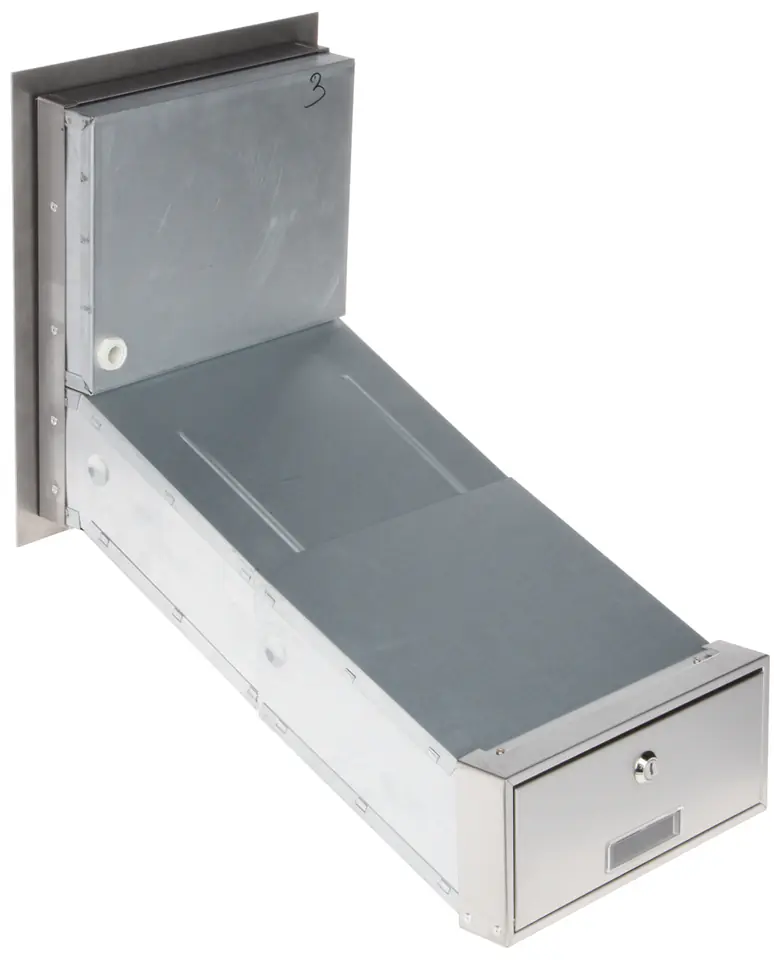

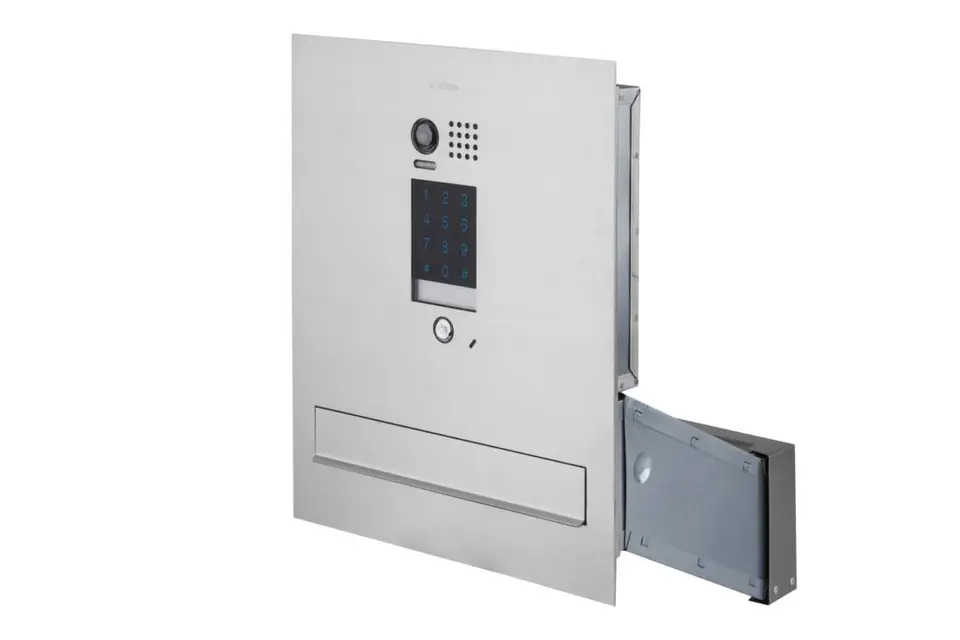

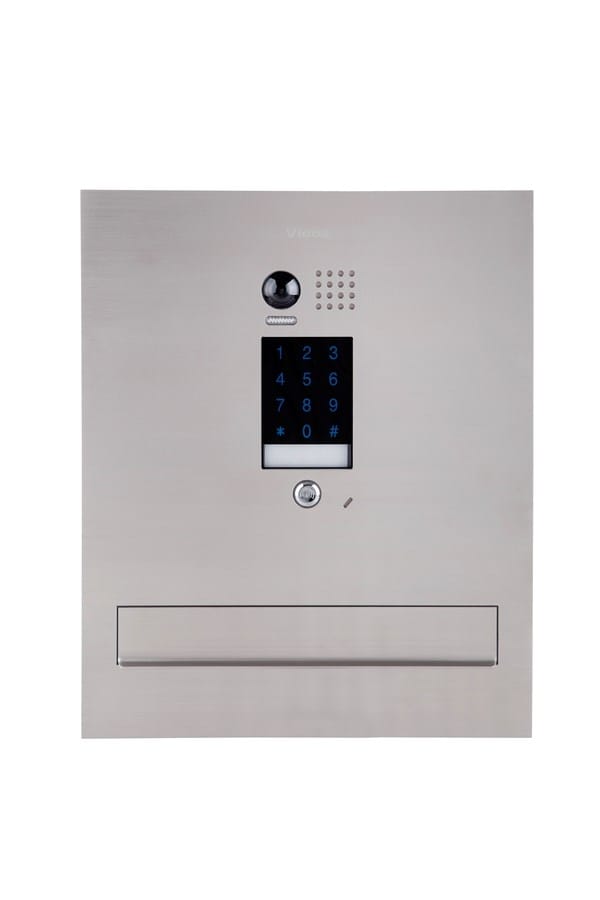

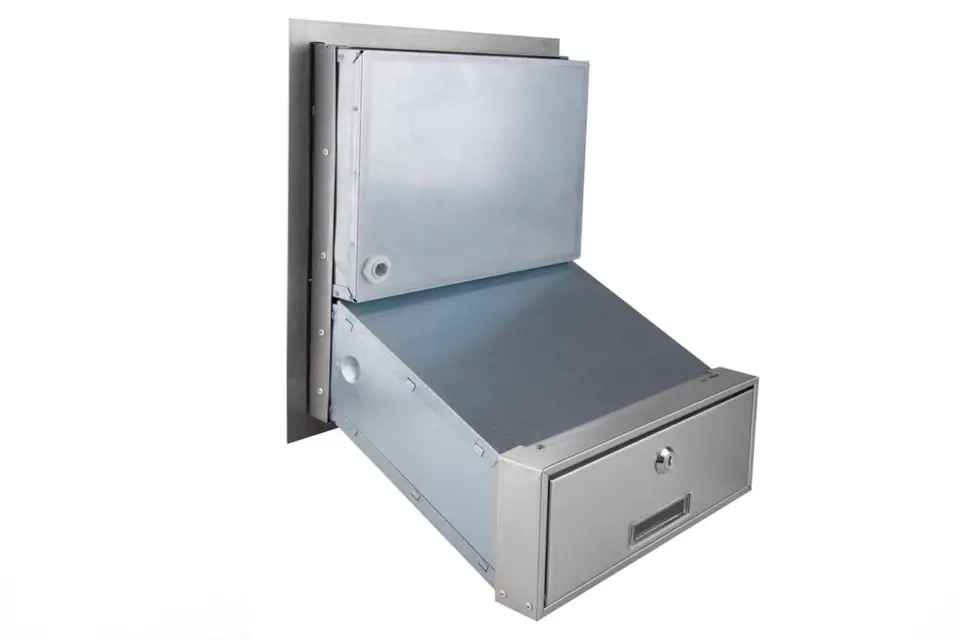

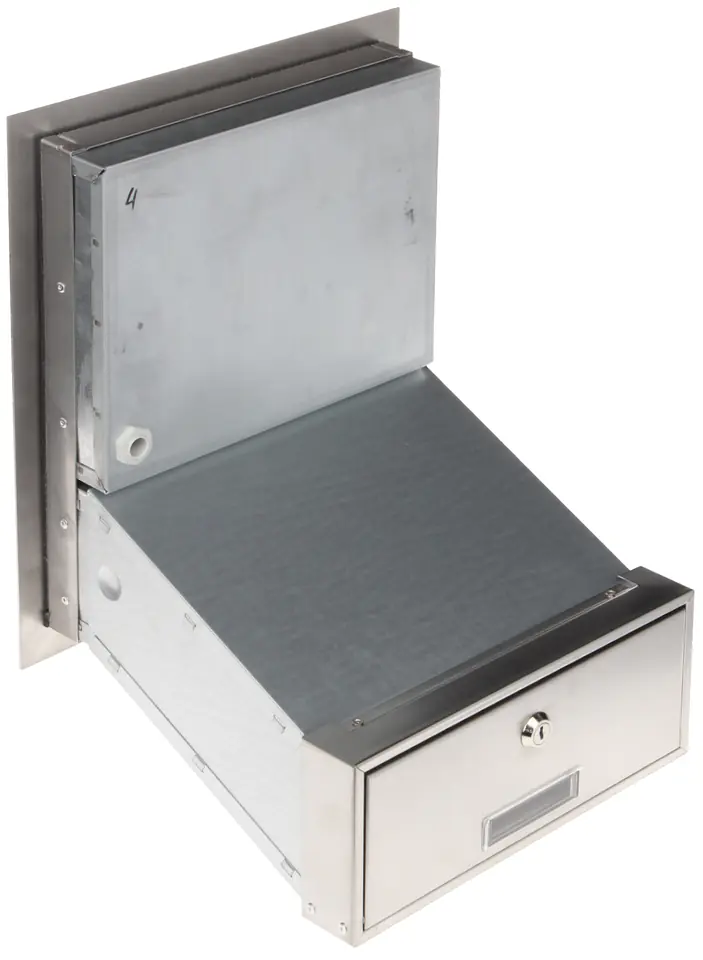

Video intercom integrated with a single-throw, through letter boxThe box is designed for installation in a fence post or wallThanks to the use of the highest quality materials, it is resistant to weather conditions

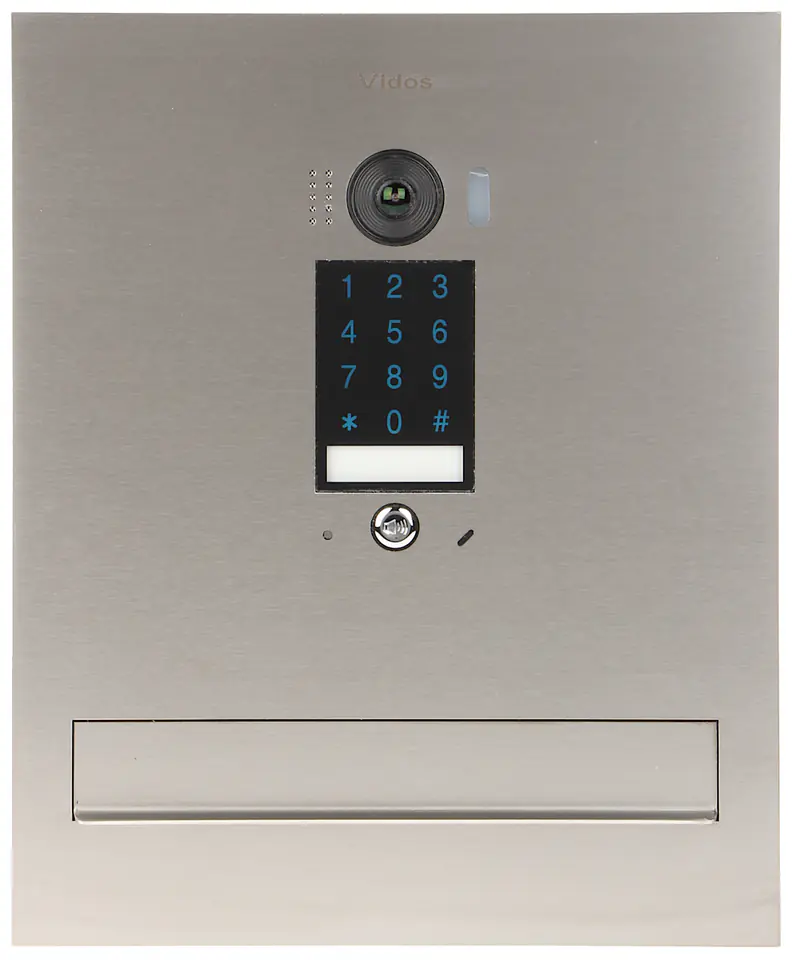

The video intercom has been equipped with a color camera with the possibility of horizontal and vertical adjustment in the range of several degrees
S1401D-SKM is dedicated to work with video intercoms and panels compatible with the digital VIDOS DUO system
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
