| Built-in proximity reader : | Access Control Cards - MIfare S50 |
|---|---|
| Case: | Aluminum alloy + Plastic (PC + ABS), Waterproof |
| Colour: | Graphite |
| Dimensions: | 170 x 57 x 35 mm (with cover) 160 x 50 x 30 mm (without cover) |
| Image compression method: | H.264 / H.265 |
| Mobile phone access: | Port: 37777 or cloud access (P2P) Android: Free DMSS app iOS (iPhone): Free DMSS app |
| Network interface: | Ethernet 10 / 100 Mbps Wi-Fi 2.4 GHz |
| Number of subscribers served: | 1 |
| Operating temperature: | -40 °C ... 60 °C |
| Power: | PoE (802.3af), 12 V DC / 1 A |
| Power consumption: | ≤ 6 W (operating) ≤ 3.5 W (standby) |
| Resolution: | Main stream : 1280 x 720, 800 x 480, 720 x 576, 352 x 288 Sub stream : 1920 x 1080, 800 x 480, 720 x 576, 352 x 288, 320 x 240 |
| Scales: | 0.24 kg (with cover) 0.18 kg (without cover) |
| Sealing: | IP65 |
| Selected features: | Can work without VTH monitor, only with mobile APP, Monitor function with the possibility of opening the door, can be performed by a smartphone, tablet or VTH internal panel, Support Micro SD cards up to 256GB (local recording possible), Two-way communication, Built-in microphone, Built-in speakers, Echo attenuation and reduction / digital noise reduction, Detection of tampering - opening the housing, Possibility of connecting the exit button and reed switch to check the status of the door, Output for additional bolt release button, SOS support, WDR - 120 dB - Wide dynamic range, 2D-DNR, 3D-DNR - Digital image noise reduction, Day/night mode, ICR - Mechanical IR filter |
| Standard wi-fi: | IEEE 802.11b / IEEE 802.11g / IEEE 802.11n |
| Transducer: | 1/2.8", 2 Mpx CMOS |
| Utp category: | UTP cat. 5e |
| Viewing angle: | 110 ° |
| Wireless transmission range: | Range limited only by Wi-Fi availability |

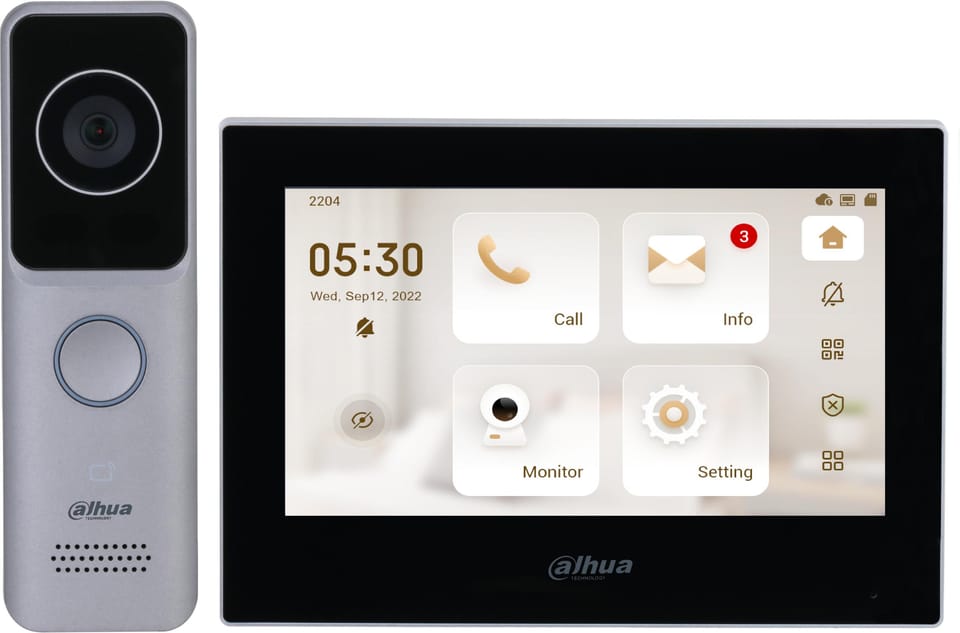

IP video intercom set with a 7-inch touch monitor, the possibility of alarm integration and 1 input, as well as a remote intercom from a mobile applicationIt can also act as a simplified alarm control panel or a notification module by operating 6 alarm inputs
The set includes: VTH2621G-WP internal panel, VTO2311R-WP video intercom and 2 12V/2A power supplies
REMARK! The device does not work with the Dahua analog system
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
