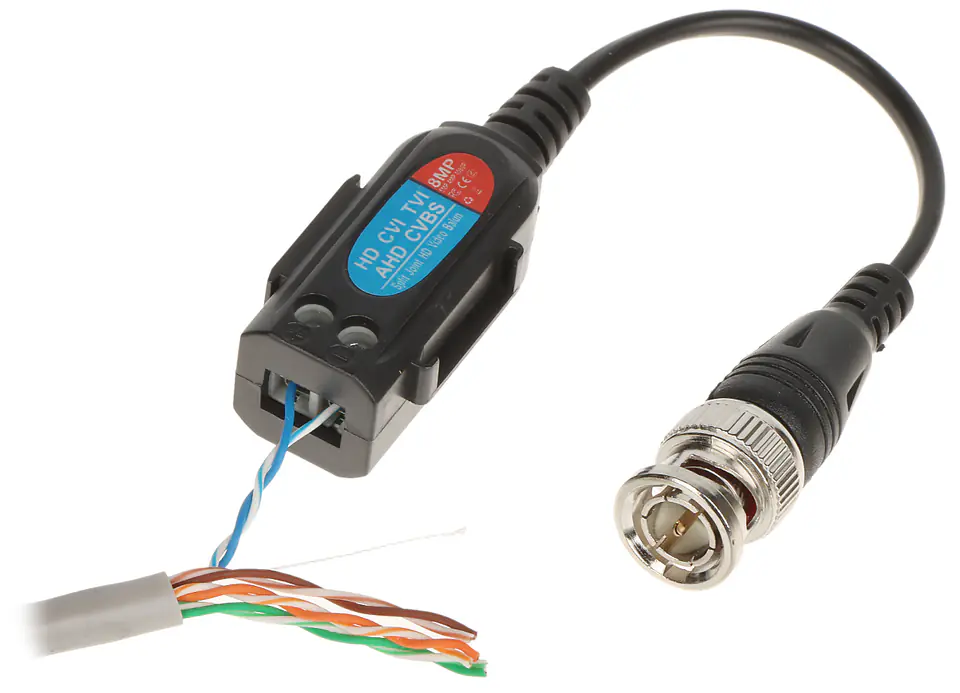

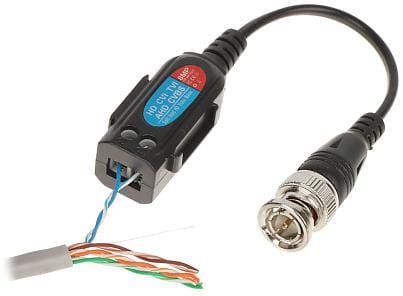

TR-1D-UHD*P2 is designed for video transmission via twisted-pair cable

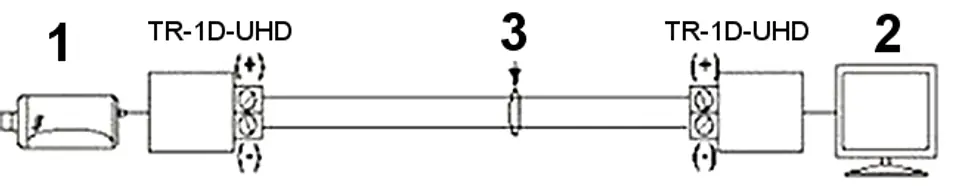

Pay attention to the correct connection of terminals (+) and (-)Reverse connection will cause image distortion

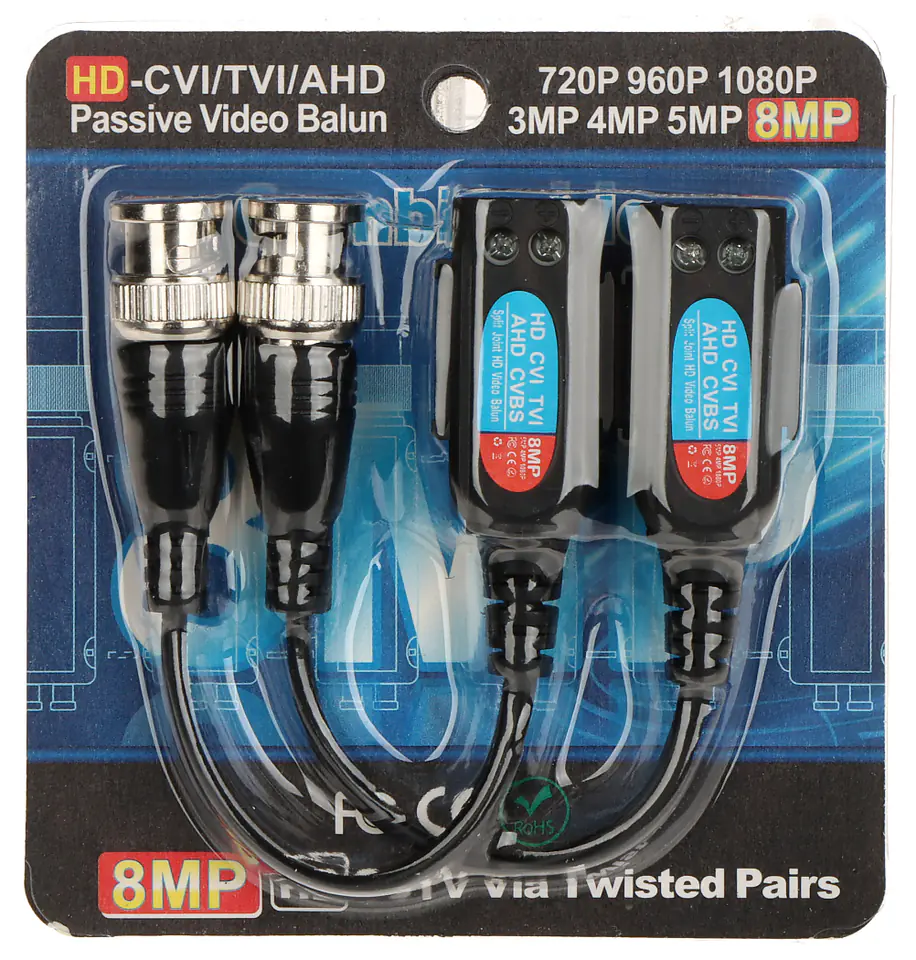

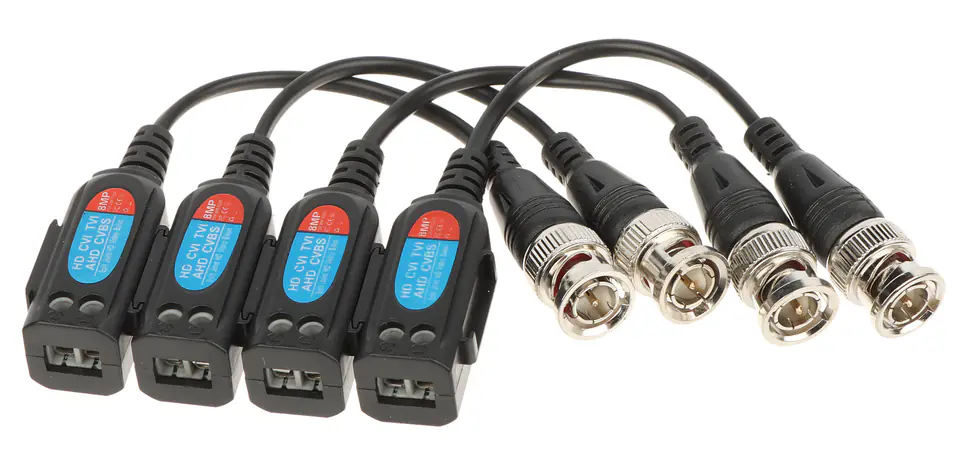

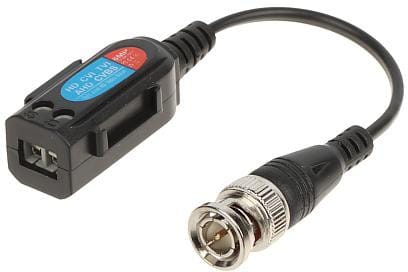

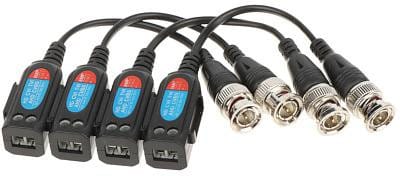

VIDEO BALUN TR-1D-UHD*P2
€3.47
Shipping from warehouse: D4
Estimated shipping: Tue, Nov 4 - Fri, Nov 7
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Product code:
- TR-1D-UHD*P2 / 5902887024429
Share this product:
Specification
| Attenuation: | 4.43 MHz @ 0.34 dB 11 MHz @ 0.52 dB 21 MHz @ 0.73 dB 38 MHz @ 1.15 dB 42 MHz @ 1.39 dB 67.5 MHz @ 2.00 dB The attenuation is for two devices connected to each other |
|---|---|
| Balanced connector impedance: | 100 Ω |
| Cmrr (db@5mhz): | 60 dB |
| Coaxial connector type: | BNC Plug on cable |
| Coaxial junction impedance: | 75 Ω |

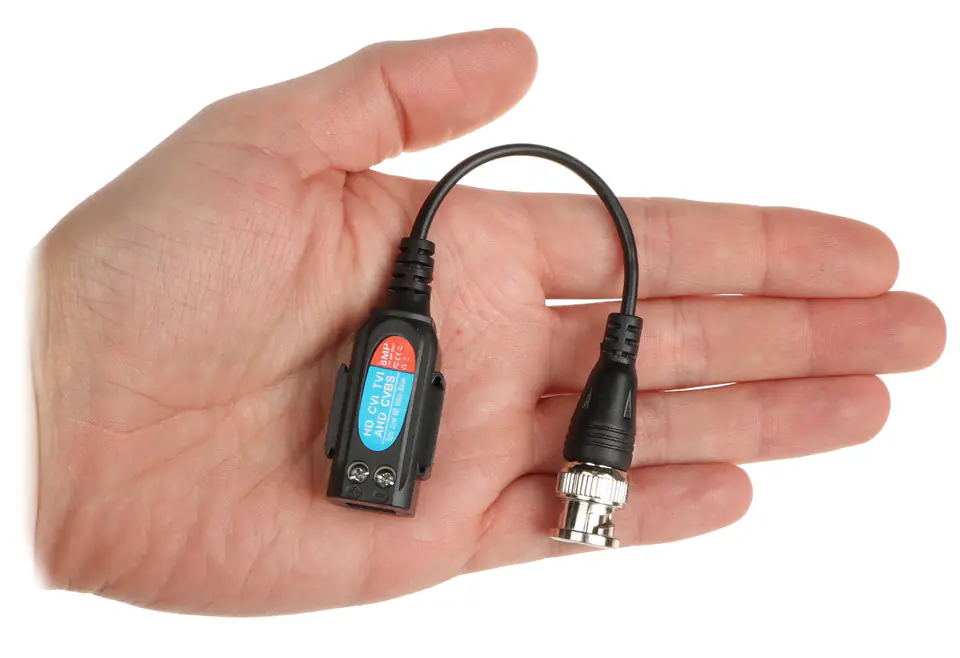

| Dimensions: | 36.5 x 20 x 16 mm |
| In the package: | 2 pcs. Price per pack |
| Number of channels: | 1 |
| Operating temperature: | -10 °C ... 70 °C |
| Permissible relative ambient humidity: | < 95 % |
| Scales: | 0.022 kg |
| Standard: | AHD - 8 Mpx 4K UHD, HD-CVI - 8 Mpx 4K UHD, HD-TVI - 8 Mpx 4K UHD, CVBS - PAL, NTSC |
| Symmetrical connector type: | cable clamps |
| Type of device: | Passive |
| Video coverage: | 250 m @ 720p - UTP cat. 5e 150 m @ 1080p - UTP cat. 5e 400 m @ CVBS - PAL, NTSC - UTP Cat. 5e |
| Warranty: | Lifetime warranty |
