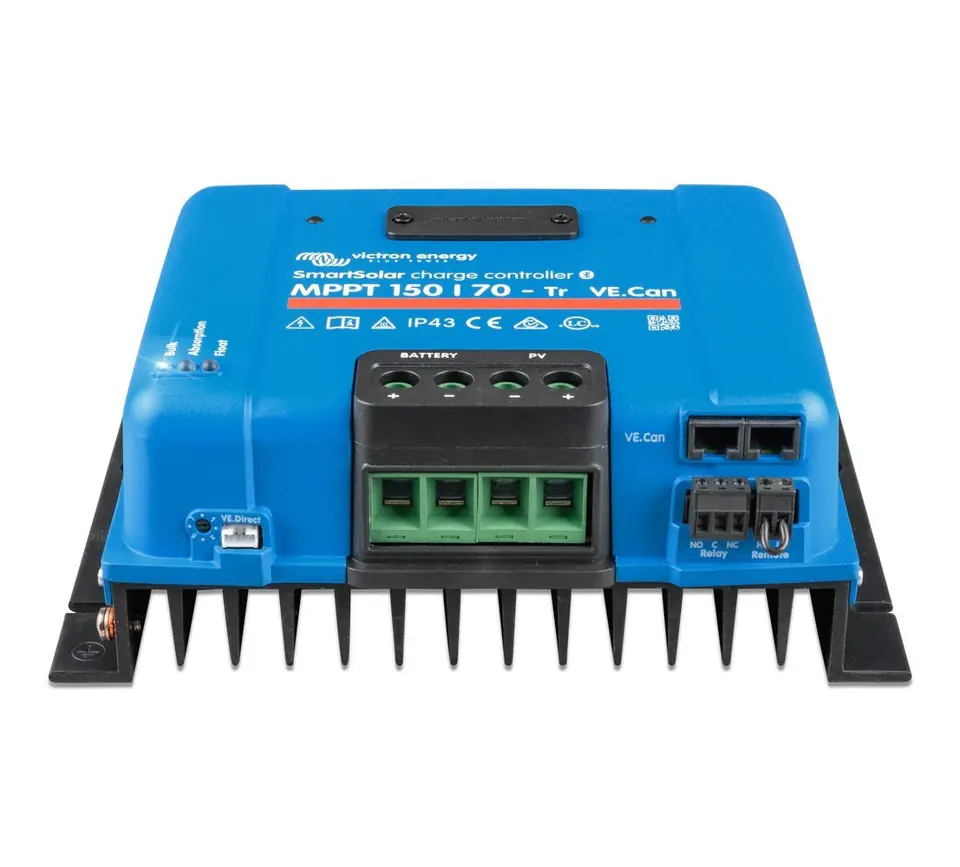

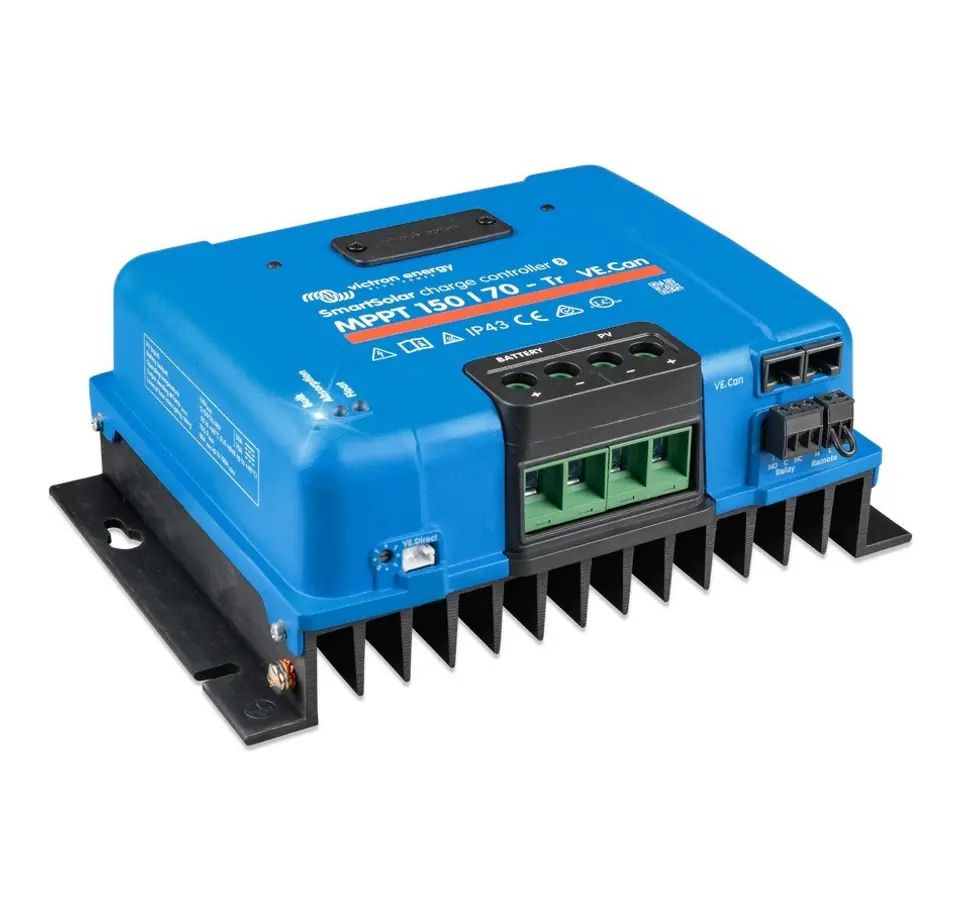

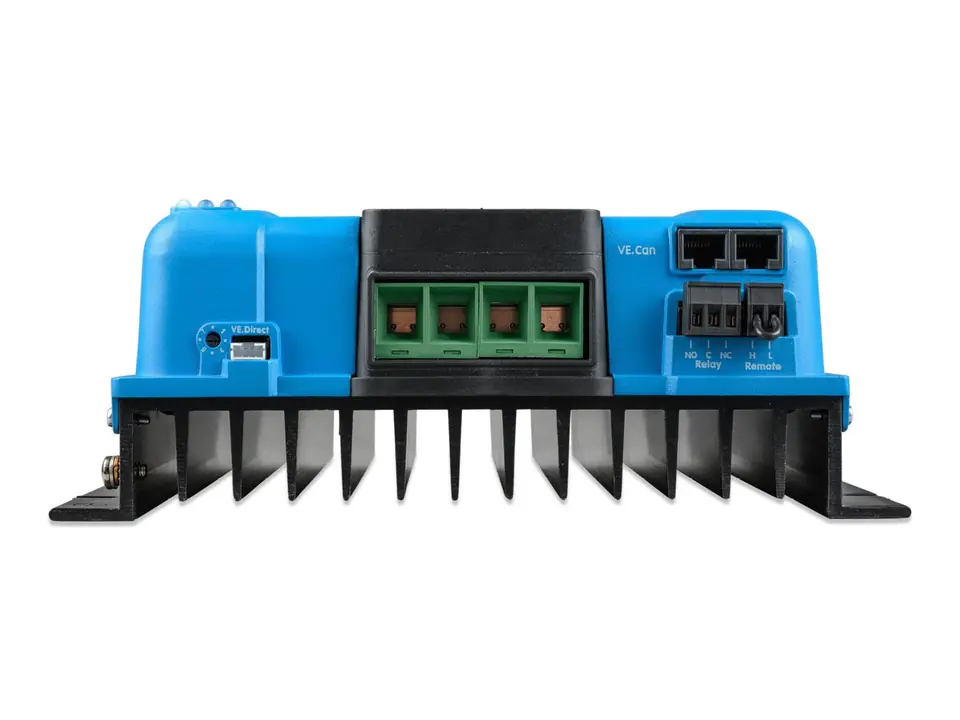

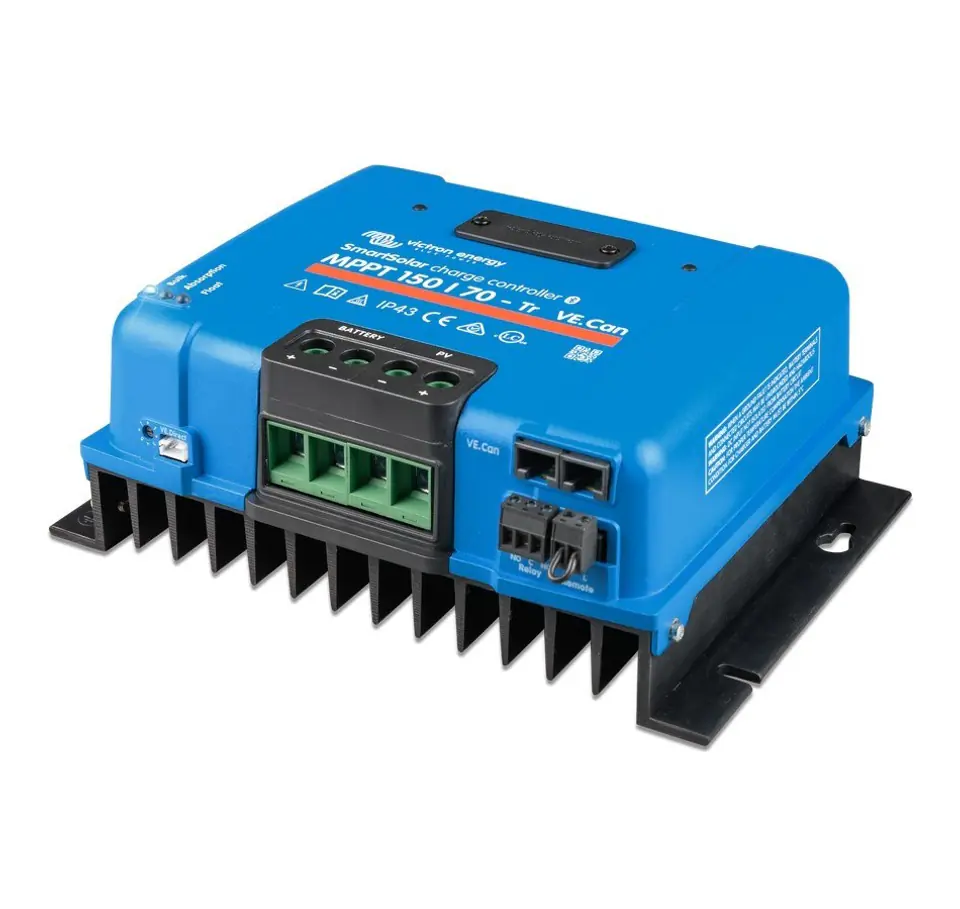

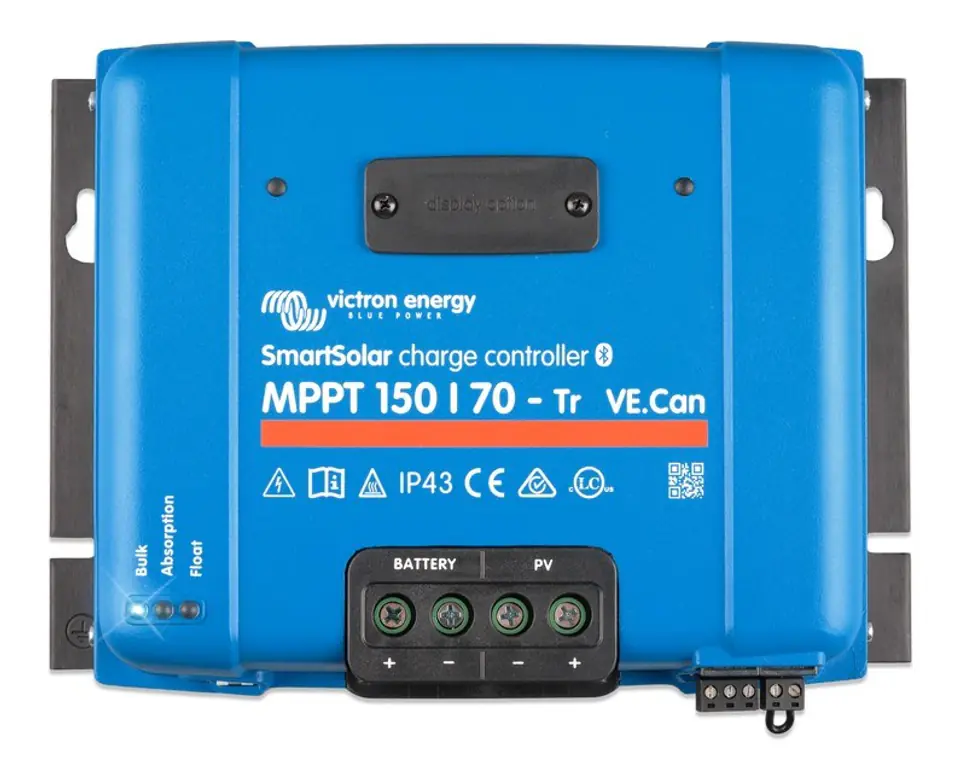

Victron Energy SmartSolar MPPT 150/70-Tr controller
This product is not available
- Availability:
- expected delivery
- Brand:
- Victron Energy
- Product code:
- SCC115070411 / 8719076050322
Share this product:
Specification
| Bluetooth: | Yes |
|---|---|
| Brand compatibility: | Victron Energy |
| Built-in display: | No |
| Charging voltage (absorption): | 14.4 V |
| Charging voltage (liquid): | 13.8 V |
| Dc battery voltage: | 12 / 24 / 48 V |
| Dedicated application: | VictronConnect |
| Depth: | 185 mm |
| Efficiency: | 98% |
| Height: | 95 mm |
| International protection (ip) code: | IP43 |
| Led indicators: | Yes |
| Maximum pv open circuit voltage: | 150 V |
| Number of ve.can ports: | 2 |
| Operating temperature (t-t): | -30 - 60 °C |
| Product colour: | Blue |
| Product type: | Charging regulator |
| Rated current: | 70 A |
| Suitable for: | Photovoltaic system |
| Temperature sensor: | Yes |
| Ve.direct port: | Yes |
| Voltage monitoring: | Yes |
| Weight: | 3 kg |
| Width: | 250 mm |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
