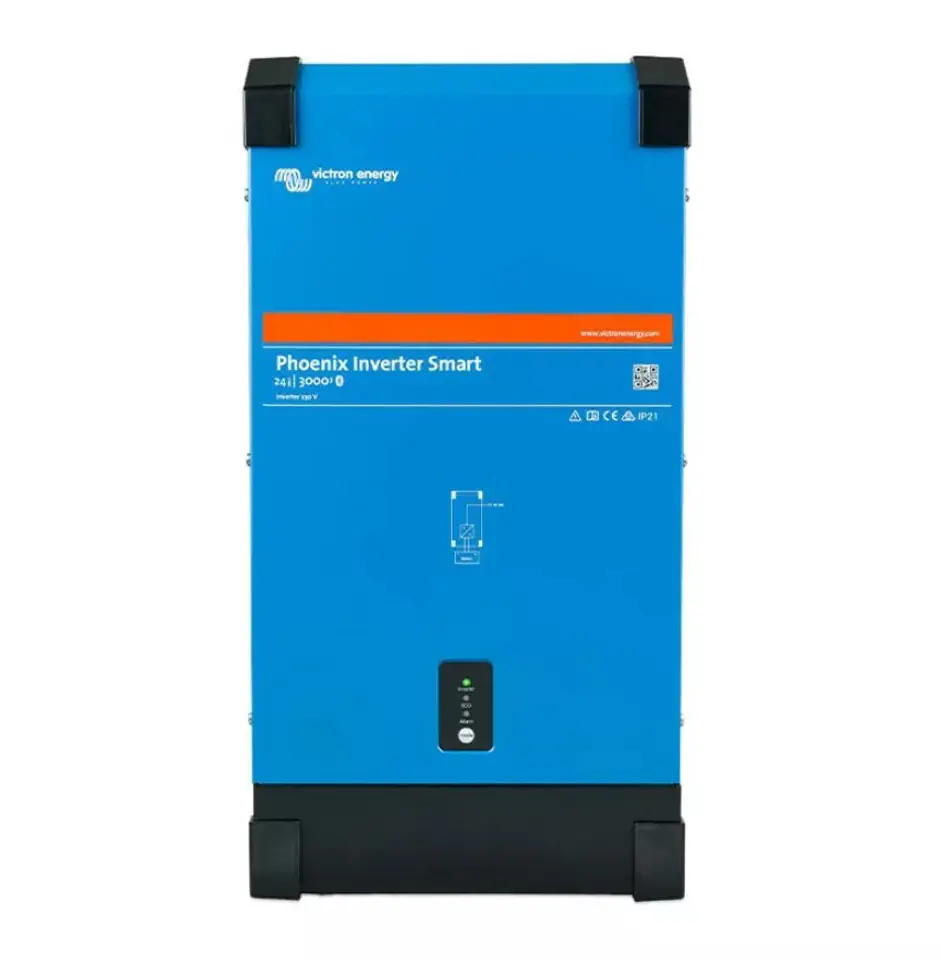

Victron Energy Phoenix 24/3000 230 V inverter
This product is not available
- Availability:
- expected delivery
- Brand:
- Victron Energy
- Product code:
- PIN242300000 / 8719076047377
Share this product:
Specification
| Alarm input/output: | Yes |
|---|---|
| Apparent power: | 3000 VA |
| Battery-connection: | M8 |
| Bluetooth: | Yes |
| Brand compatibility: | Victron Energy |
| Built-in display: | No |
| Dc battery voltage: | 24 V |
| Dedicated application: | VictronConnect |
| Depth: | 150 mm |
| Eco mode: | Yes |
| Efficiency: | 94% |
| Frequency: | 50 / 60 Hz |
| Height: | 485 mm |
| Input voltage range: | 9,3 - 17 V |
| International protection (ip) code: | IP21 |
| Material: | Steel |
| Number of ve.direct ports: | 1 |
| Operating relative humidity (h-h): | 0 - 95% |
| Operating temperature (t-t): | -40 - 65 °C |
| Output power at 25°c: | 2400 W |
| Output power at 40°c: | 2200 W |
| Output voltage: | 230 V |
| Peak power: | 10000 W |
| Power at zero load: | 13 W |
| Power current type: | DC/AC |
| Product colour: | Blue |
| Programmable relay: | Yes |
| Protection class: | a - g |
| Quantity per pack: | 1 pc(s) |
| Remote on/off switch: | Yes |
| Voltage monitoring: | Yes |
| Weight: | 19 kg |
| Width: | 285 mm |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
