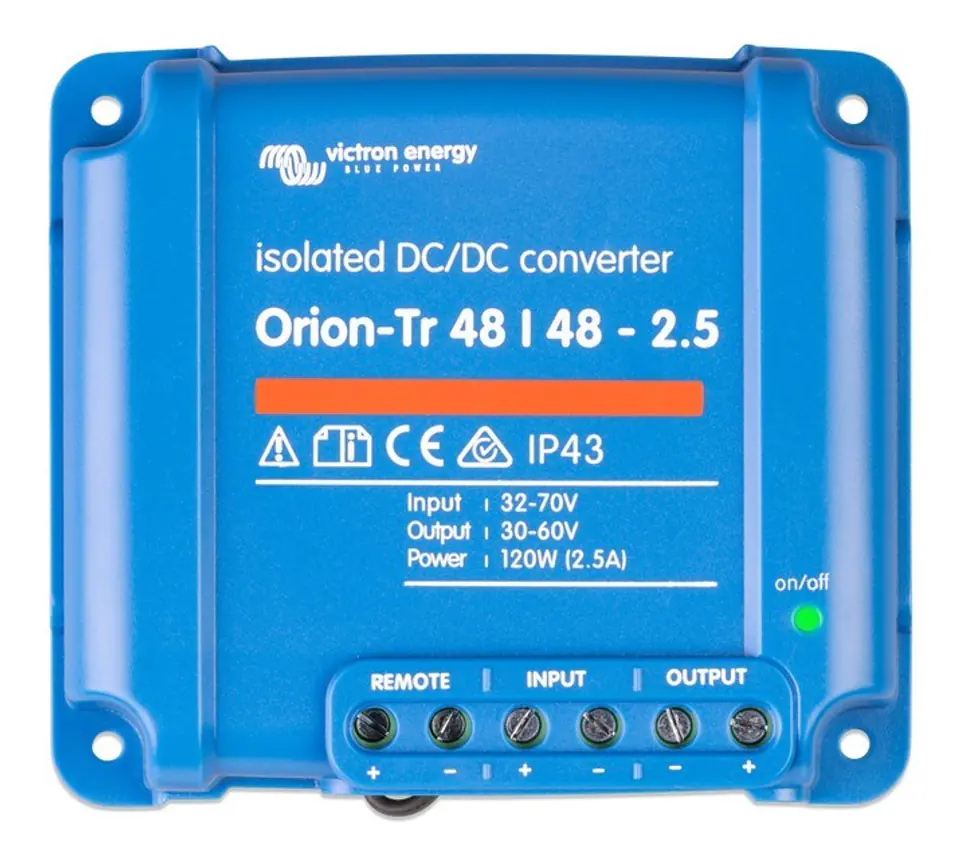

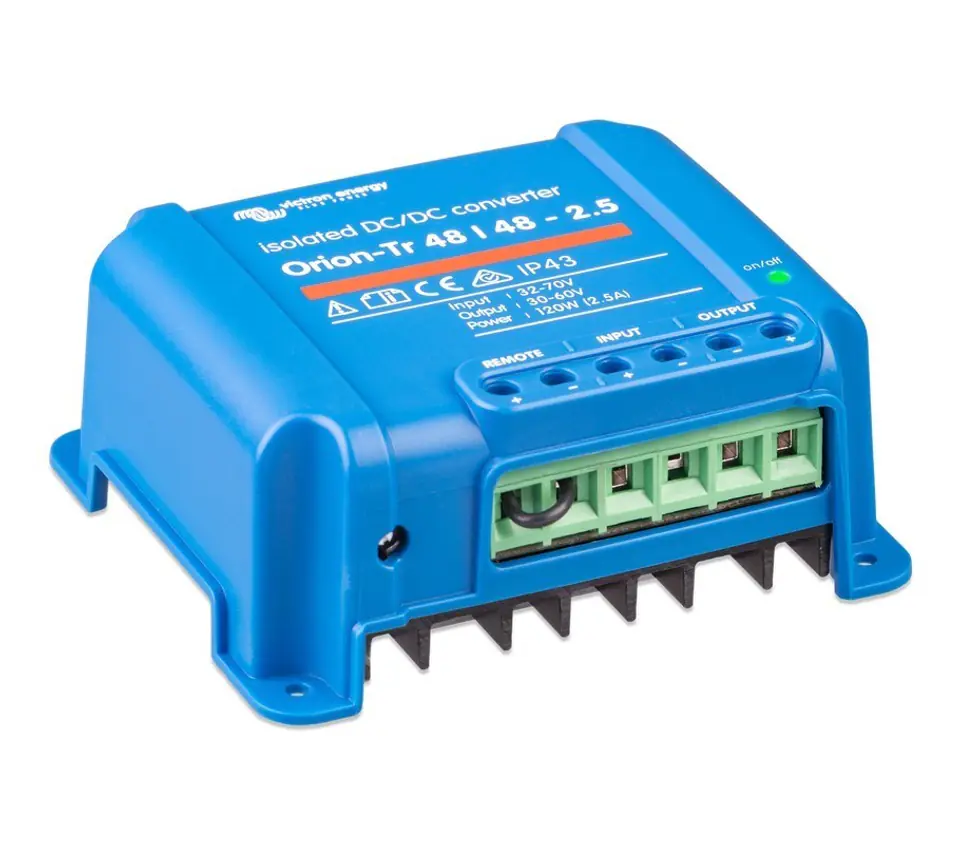

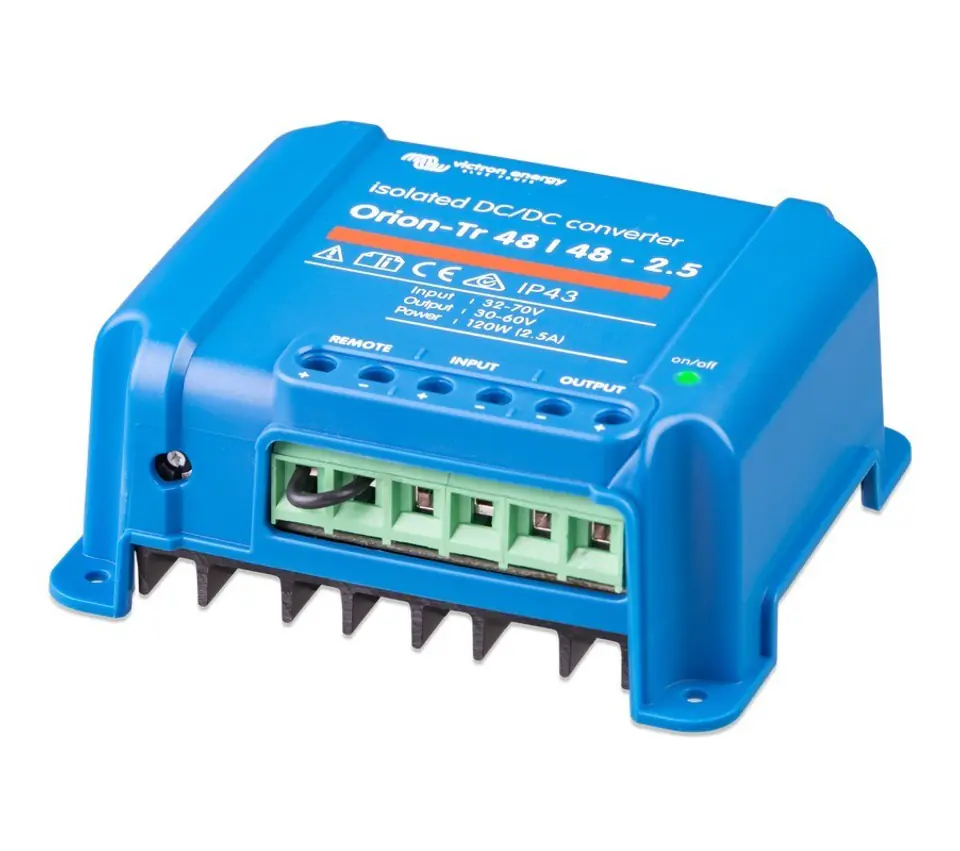

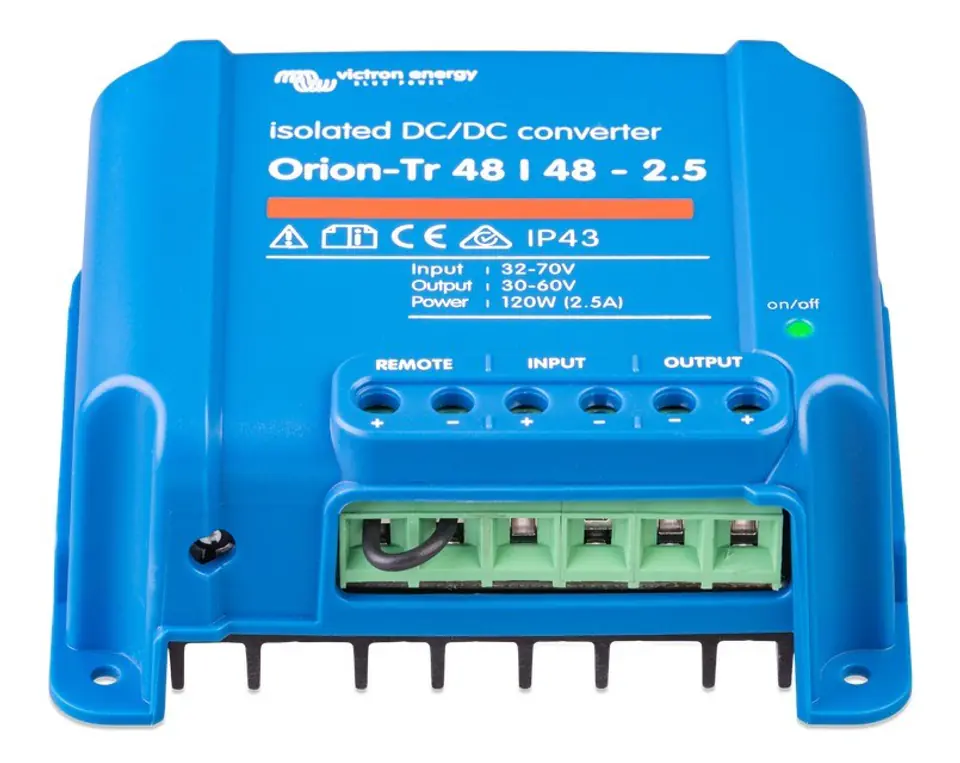

Victron Energy Orion-Tr 48/48-2.5A DC-DC isolated converter/converter (120 W)
This product is not available
- Availability:
- expected delivery
- Brand:
- Victron Energy
- Product code:
- ORI484810110 / 8719076016786
Share this product:
Specification
| Brand compatibility: | Victron Energy |
|---|---|
| Built-in display: | No |
| Conductor cross section: | 6 mm² |
| Dc battery voltage: | 48 V |
| Depth: | 100 mm |
| Easy to install: | Yes |
| Efficiency: | 89% |
| Heat protection: | Y |
| Height: | 47 mm |
| Input voltage range: | 32 - 70 V |
| International protection (ip) code: | IP43 |
| Operating temperature (t-t): | -20 - 55 °C |
| Output current: | 2.5 A |
| Output power at 25°c: | 120 W |
| Output power at 40°c: | 85 W |
| Output voltage: | 48,2 V |
| Parallel connection possible: | Unlimited number of devices |
| Product colour: | Blue |
| Product type: | Converter |
| Remote on/off switch: | Yes |
| Short circuit protection: | Yes |
| Short-circuit current: | 17 A |
| Suitable for: | Photovoltaic system |
| Weight: | 420 g |
| Width: | 113 mm |
