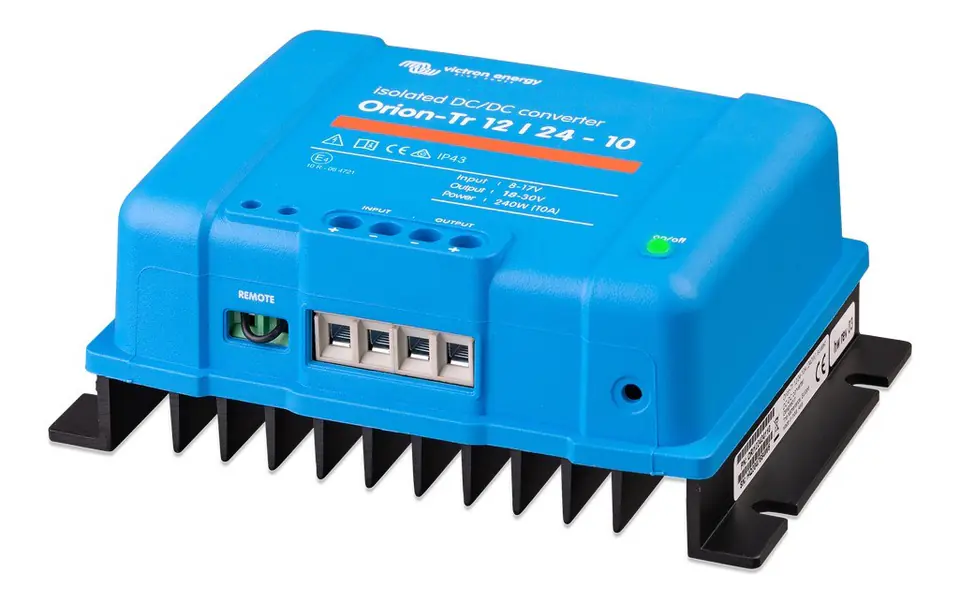

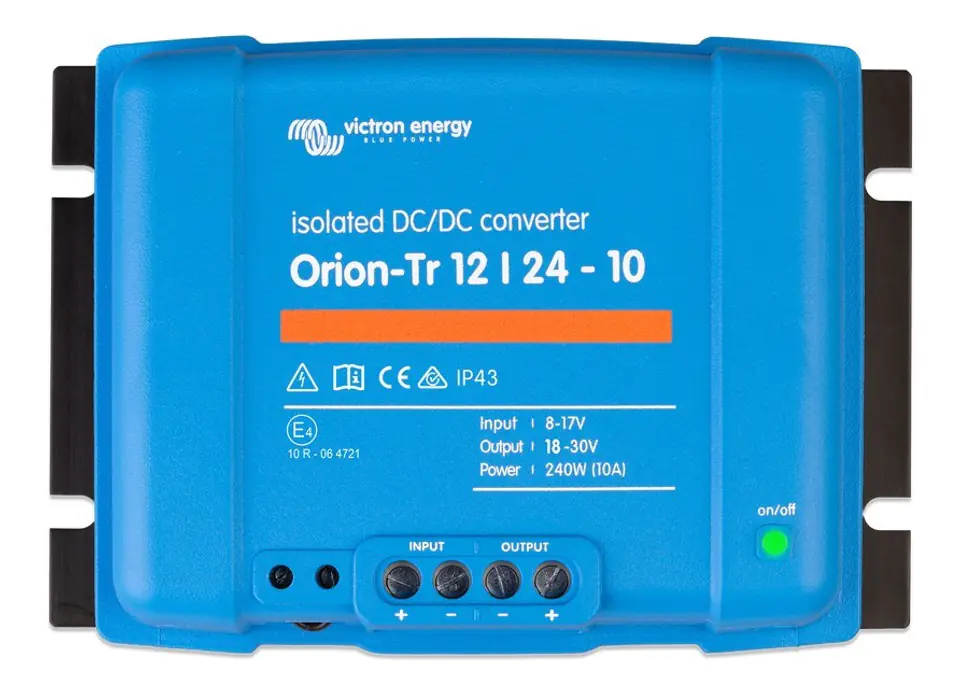

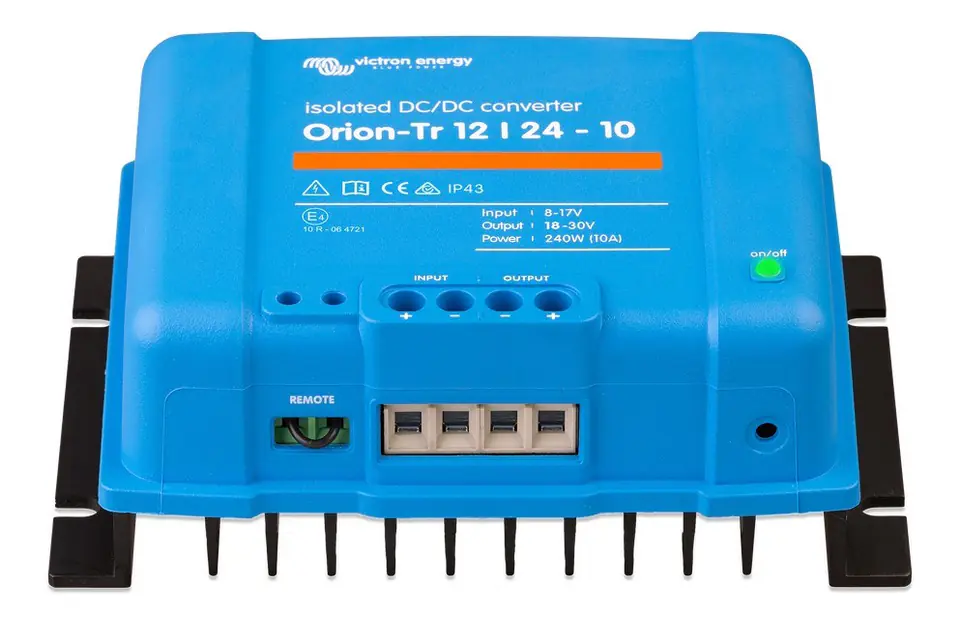

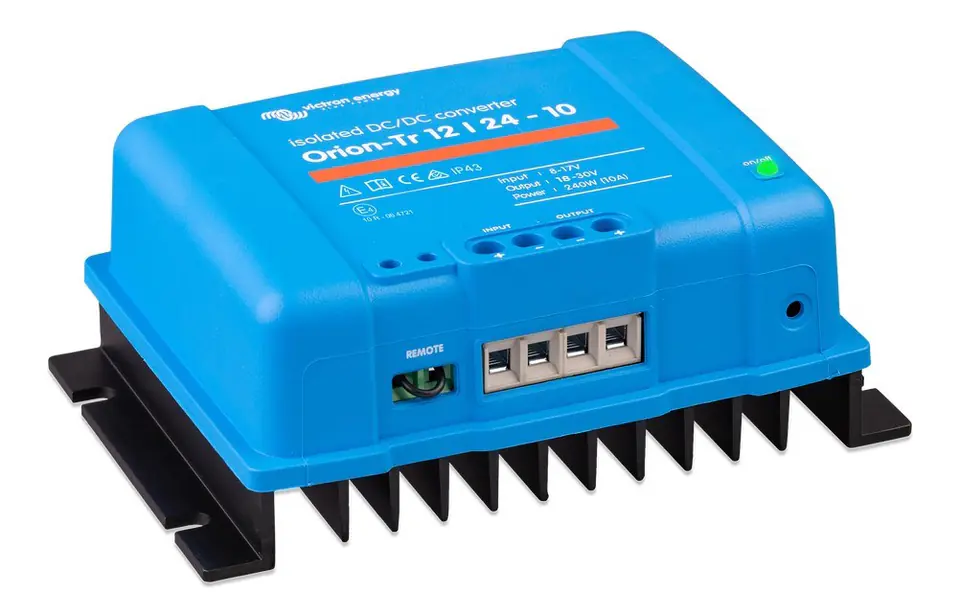

Victron Energy Orion-Tr 12/24-10A DC-DC 240 W isolated converter
€131.34
Shipping from warehouse: A3
Estimated shipping: Mon, May 12 - Wed, May 14
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- Victron Energy
- Product code:
- ORI122424110 / 8719076035244
Share this product:
Specification
| Brand compatibility: | Victron Energy |
|---|---|
| Built-in display: | No |
| Conductor cross section: | 16 mm² |
| Depth: | 130 mm |
| Easy to install: | Yes |
| Efficiency: | 88% |
| Heat protection: | Y |
| Height: | 70 mm |
| Input voltage range: | 8 - 17 V |
| International protection (ip) code: | IP43 |
| Operating temperature (t-t): | -20 - 55 °C |
| Output current: | 10 A |
| Output power at 25°c: | 280 W |
| Output power at 40°c: | 240 W |
| Output voltage: | 24,2 V |
| Power: | 240 W |
| Product colour: | Blue |
| Product type: | Converter |
| Short circuit protection: | Yes |
| Suitable for: | Photovoltaic system |
| Weight: | 1.3 kg |
| Width: | 186 mm |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
