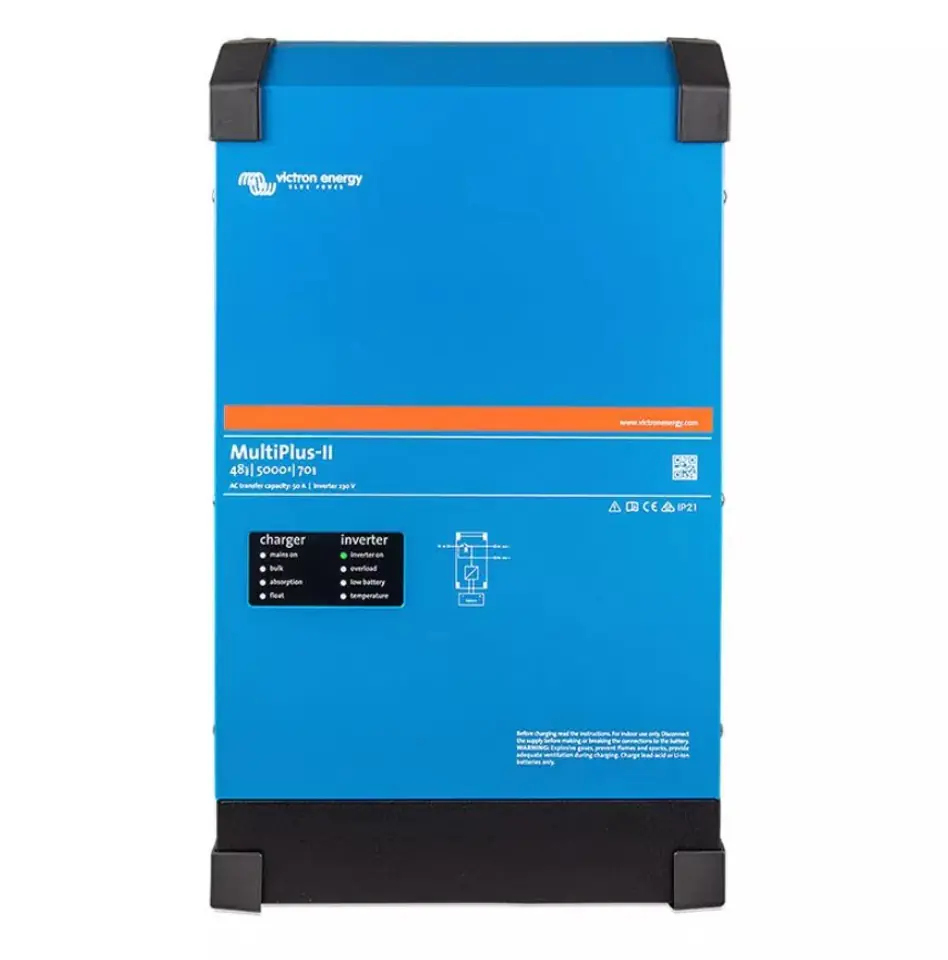

Victron Energy MultiPlus II 48/5000/70-50 inverter
€1,086.66
Shipping from warehouse: A3
Estimated shipping: Mon, May 20
14 days returnUnconditional return policy
- Availability:
- large quantity
- Brand:
- Victron Energy
- Product code:
- PMP482505010 / 8719076047599
Share this product:
Specification
| Ac input voltage: | 187 - 265 V |
|---|---|
| Apparent power: | 5000 VA |
| Brand compatibility: | Victron Energy |
| Built-in display: | No |
| Charging voltage (absorption): | 57.6 V |
| Charging voltage (liquid): | 55.2 V |
| Cross-section connections supported: | 13 mm² |
| Dc input voltage: | 48 V |
| Depth: | 149 mm |
| Efficiency: | 96% |
| Frequency: | 50 Hz |
| Frequency range: | 45 - 65 Hz |
| Height: | 607 mm |
| Input voltage: | 38 - 66 V |
| International protection (ip) code: | IP22 |
| Led indicators: | Yes |
| Material: | Steel |
| Maximum battery charge current: | 70 A |
| Mounting type: | M8 |
| Number of ve.bus ports: | 2 |
| Operating relative humidity (h-h): | 0 - 95% |
| Operating temperature (t-t): | -40 - 65 °C |
| Output power at 25°c: | 4000 W |
| Output power at 40°c: | 3700 W |
| Output power at 65°c: | 3000 W |
| Output voltage: | 230 V |
| Peak power: | 9000 W |
| Power at zero load: | 18 W |
| Power current type: | DC/AC |
| Power protection features: | Overheating, Overvoltage protection, Under voltage, Over voltage, Over power |
| Power supply type: | Indoor/outdoor |
| Product colour: | Blue |
| Purpose: | Solar panel |
| Quantity per pack: | 1 pc(s) |
| Three-phase and parallel operation: | Yes |
| Weight: | 30 kg |
| Width: | 330 mm |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
