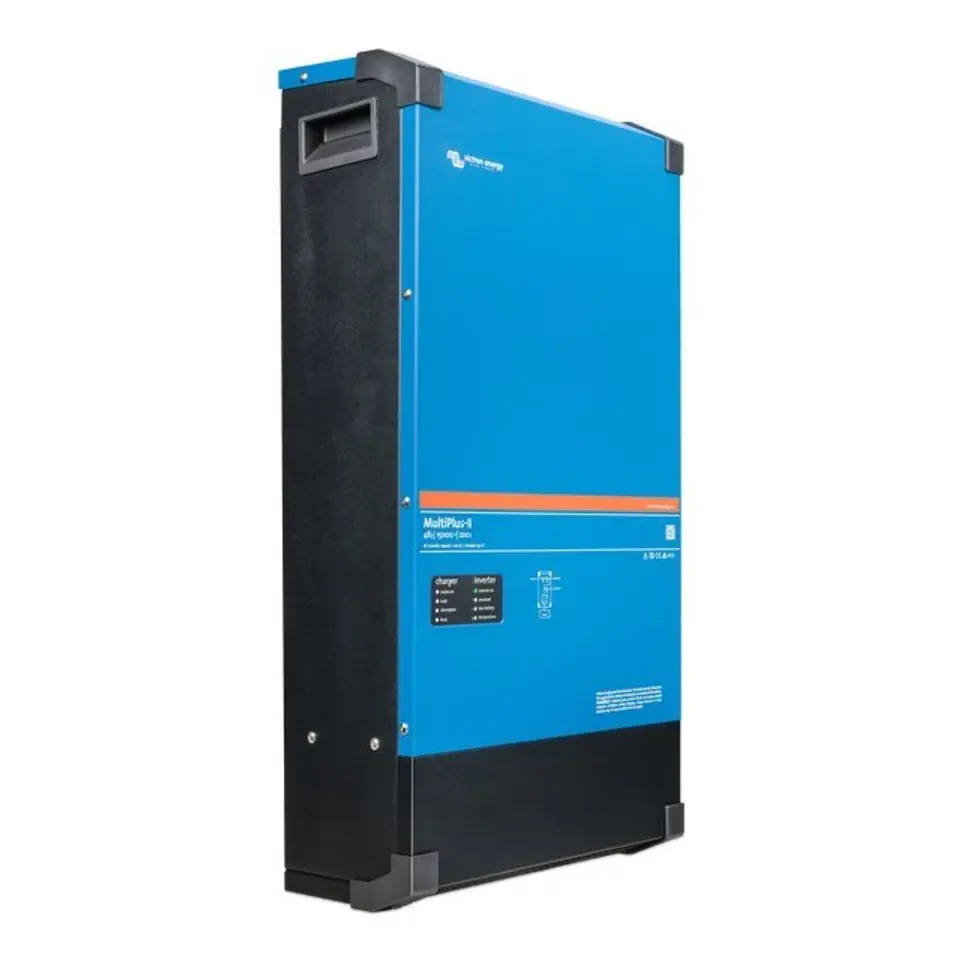

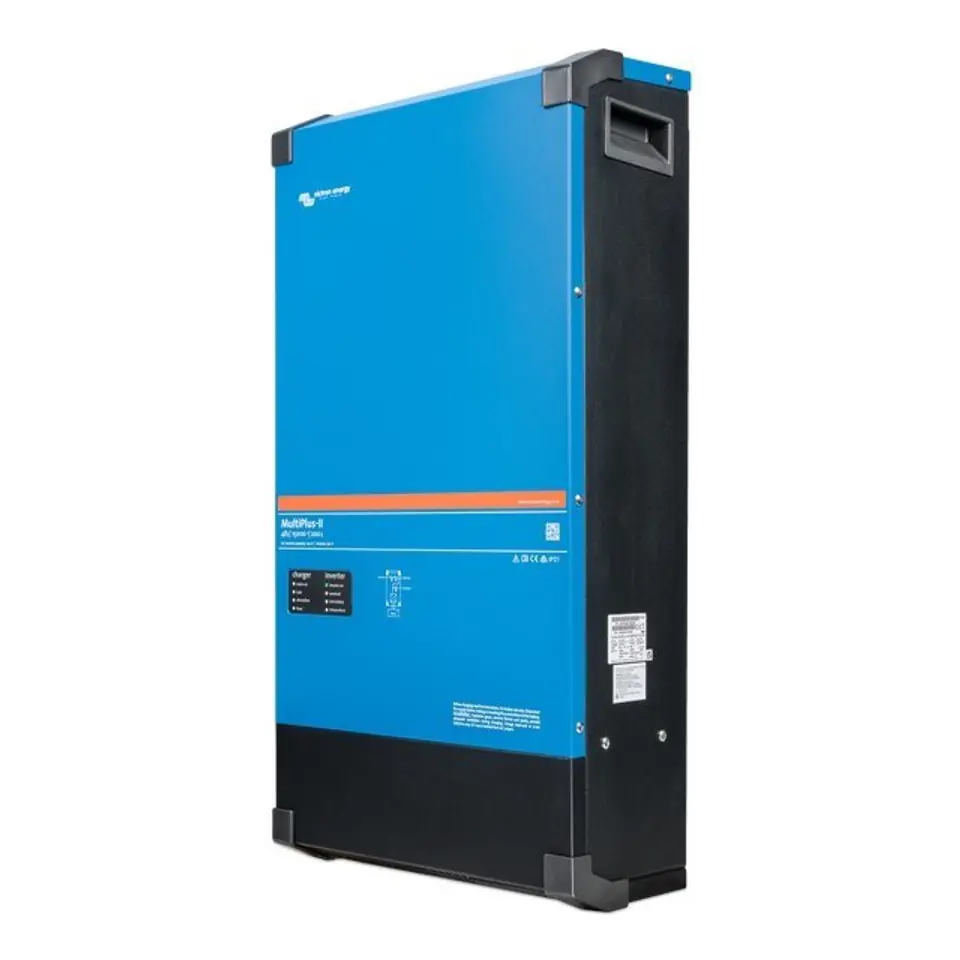

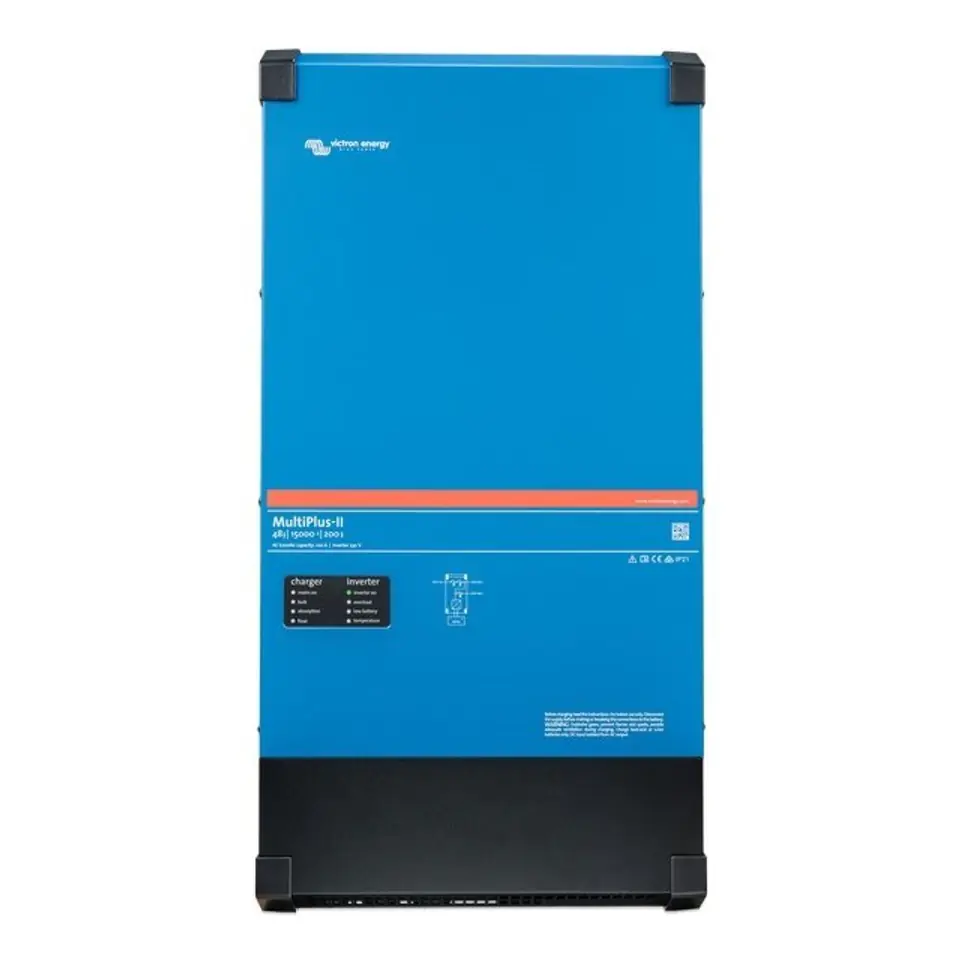

Victron Energy MultiPlus-II 48/15000/200-100 inverter
This product is not available
- Availability:
- expected delivery
- Brand:
- Victron Energy
- Product code:
- PMP483150000 / 8719076056324
Share this product:
Specification
| Ac input voltage: | 187 - 265 V |
|---|---|
| Apparent power: | 15000 VA |
| Brand compatibility: | Victron Energy |
| Built-in display: | No |
| Built-in fan: | Yes |
| Charging the current battery: | 200 A |
| Charging voltage (absorption): | 57.6 V |
| Charging voltage (liquid): | 55.2 V |
| Dc output voltage: | 48 V |
| Depth: | 217 mm |
| Efficiency: | 95% |
| Frequency: | 50 Hz |
| Frequency range: | 45 - 65 Hz |
| Height: | 810 mm |
| Input voltage: | 38 - 66 V |
| International protection (ip) code: | IP22 |
| Led indicators: | Yes |
| Material: | Steel |
| Number of ve.bus ports: | 2 |
| Output power at 25°c: | 12000 W |
| Output power at 40°c: | 10000 W |
| Output power at 65°c: | 7000 W |
| Output voltage: | 230 V |
| Peak power: | 27000 W |
| Power at zero load: | 55 W |
| Power current type: | AC/AC |
| Power protection features: | Overheating, Overvoltage protection, Over voltage, Over power, Under voltage |
| Product colour: | Blue |
| Purpose: | Solar panel |
| Weight: | 80 kg |
| Width: | 405 mm |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
