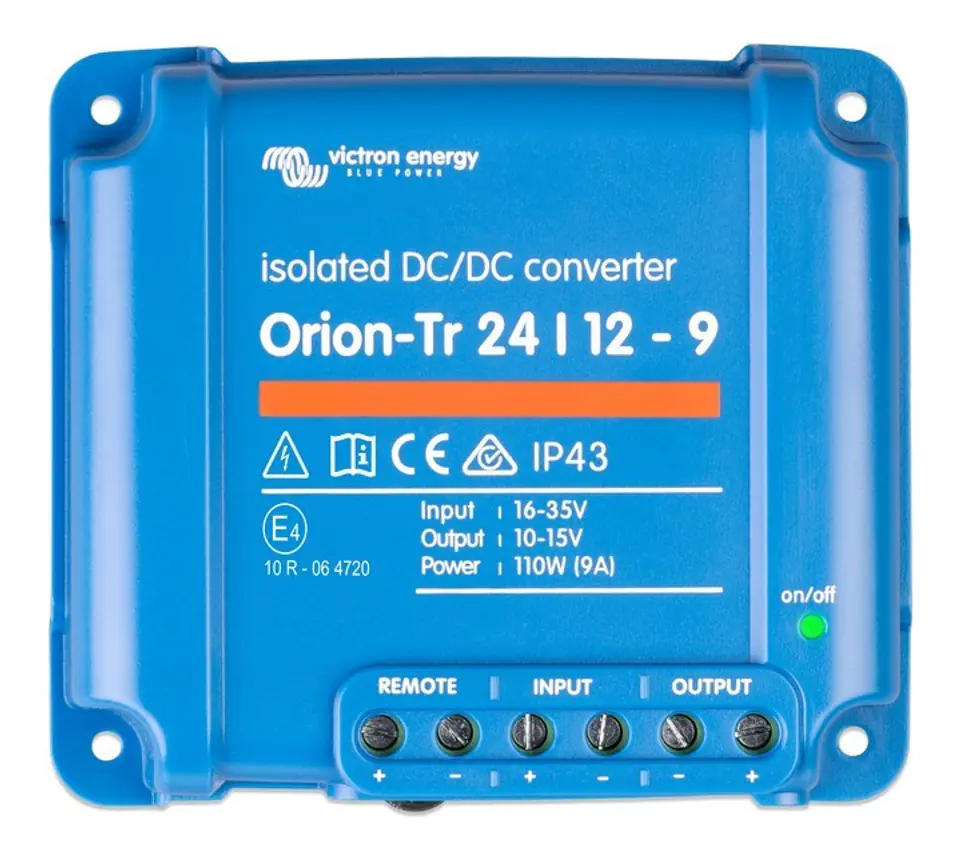

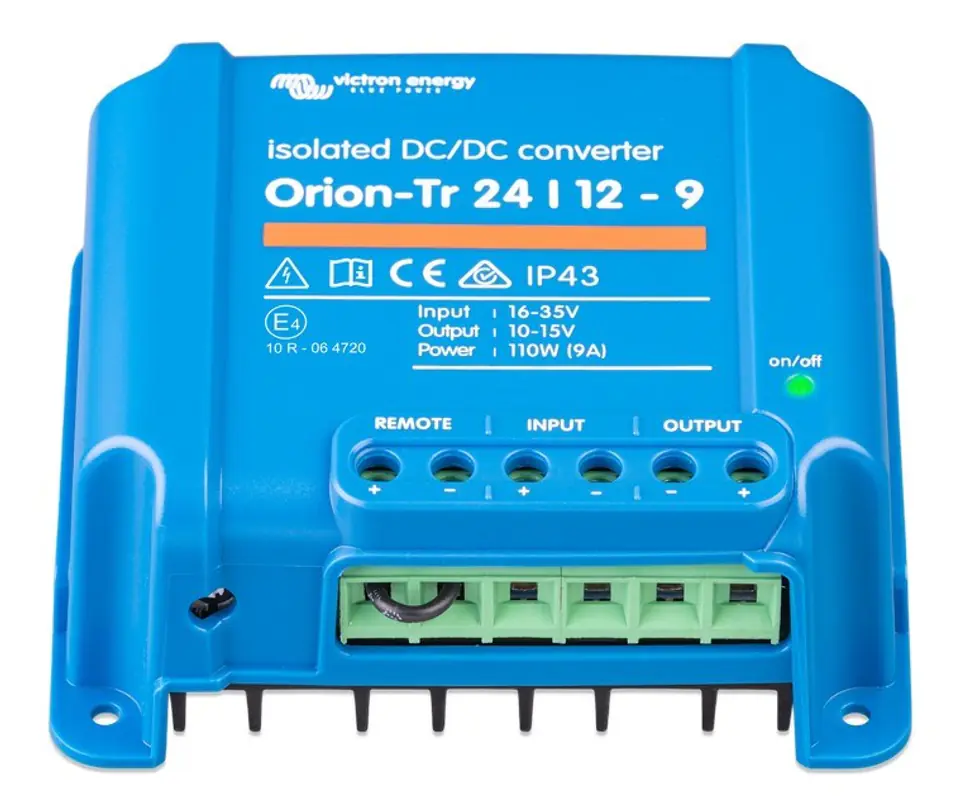

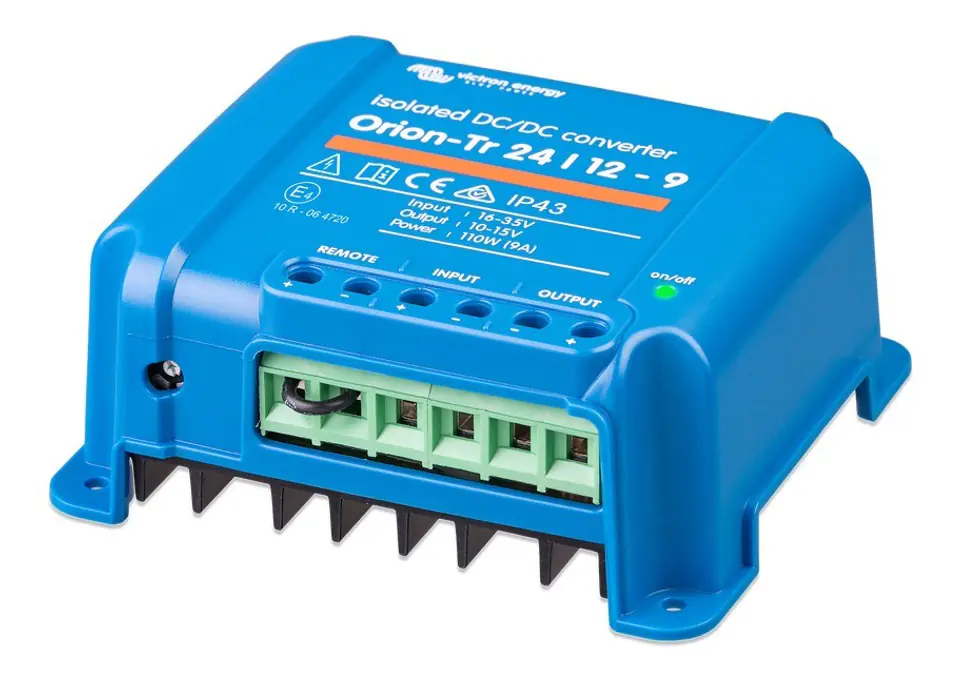

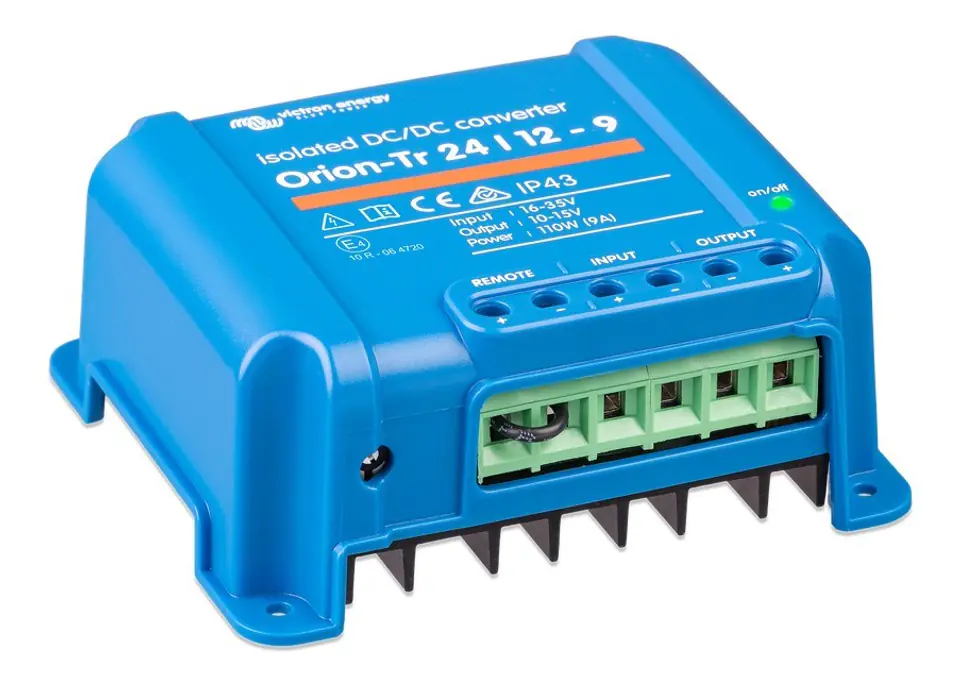

Victron Energy Converter Orion-Tr DC-DC 24/12-9A 110W isolated
€333.43
Shipping from warehouse: H6
Estimated shipping: Tue, Jun 30 - Fri, Jul 3
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- Victron Energy
- Product code:
- ORI241240110 / 8719076038849
Share this product:
Specification
| Brand compatibility: | Victron Energy |
|---|---|
| Built-in display: | No |
| Conductor cross section: | 6 mm² |
| Dc battery voltage: | 24 V |
| Depth: | 100 mm |
| Easy to install: | Yes |
| Efficiency: | 85% |
| Heat protection: | Y |
| Height: | 47 mm |
| Input voltage range: | 16 - 35 V |
| International protection (ip) code: | IP43 |
| Operating temperature (t-t): | -20 - 55 °C |
| Output current: | 9 A |
| Output power at 25°c: | 110 W |
| Output power at 40°c: | 85 W |
| Output voltage: | 12,2 V |
| Parallel connection possible: | Unlimited number of devices |
| Product colour: | Blue |
| Product type: | Converter |
| Remote on/off switch: | Yes |
| Short circuit protection: | Yes |
| Suitable for: | Photovoltaic system |
| Weight: | 420 g |
| Width: | 113 mm |
