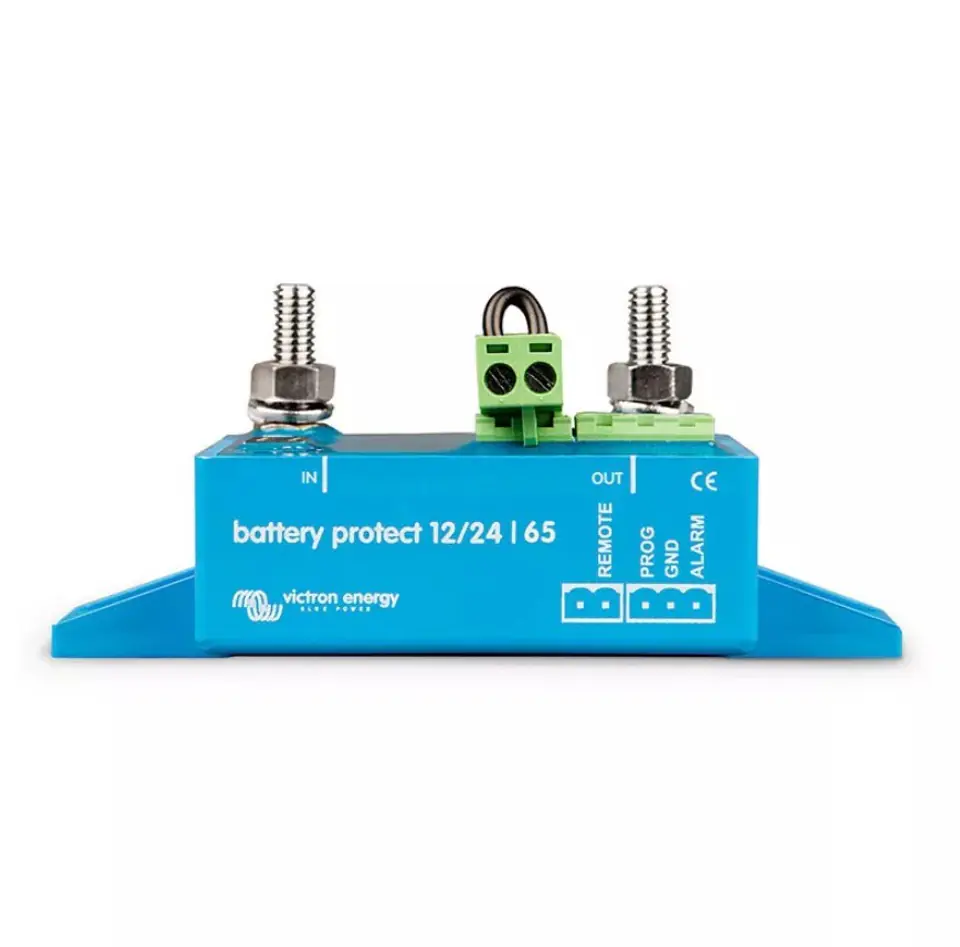

Victron Energy 12/24V 65A battery disconnector
This product is not available
- Availability:
- expected delivery
- Brand:
- Victron Energy
- Product code:
- BPR000065400 / 8719076034193
Share this product:
Specification
| Alarm input/output: | Yes |
|---|---|
| Automatic on/off switch: | Yes |
| Automatic voltage detection: | Yes |
| Bluetooth low energy (ble): | Yes |
| Brand compatibility: | Victron Energy |
| Built-in display: | Yes |
| Cables included: | Connector with preassembled DC minus cable |
| Dc battery voltage: | 12 / 24 V |
| Dedicated application: | VictronConnect |
| Depth: | 55 mm |
| Discharge protection: | Yes |
| Height: | 48 mm |
| International protection (ip) code: | IP67 |
| Led indicators: | No |
| Maximum continuous load current: | 65 A |
| Maximum current: | 250 A |
| Mounting type: | M6 |
| Number of ve.bus ports: | 1 |
| Operating voltage range: | 6 - 35 V |
| Overvoltage protection: | Y |
| Product colour: | Blue |
| Product type: | Battery isolator |
| Setting of on/off levels: | 9 predefined levels |
| Spark protection: | Yes |
| Suitable for: | Photovoltaic system |
| Switching on and off delay at set voltage: | 30 seconds |
| Voltage monitoring: | Yes |
| Weight: | 200 g |
| Width: | 106 mm |
