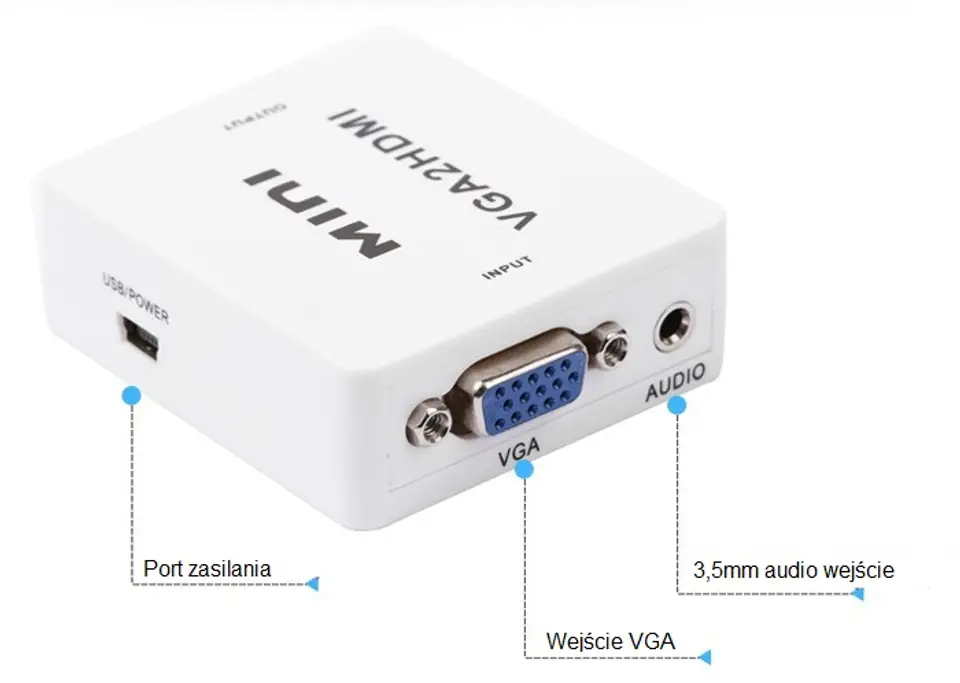

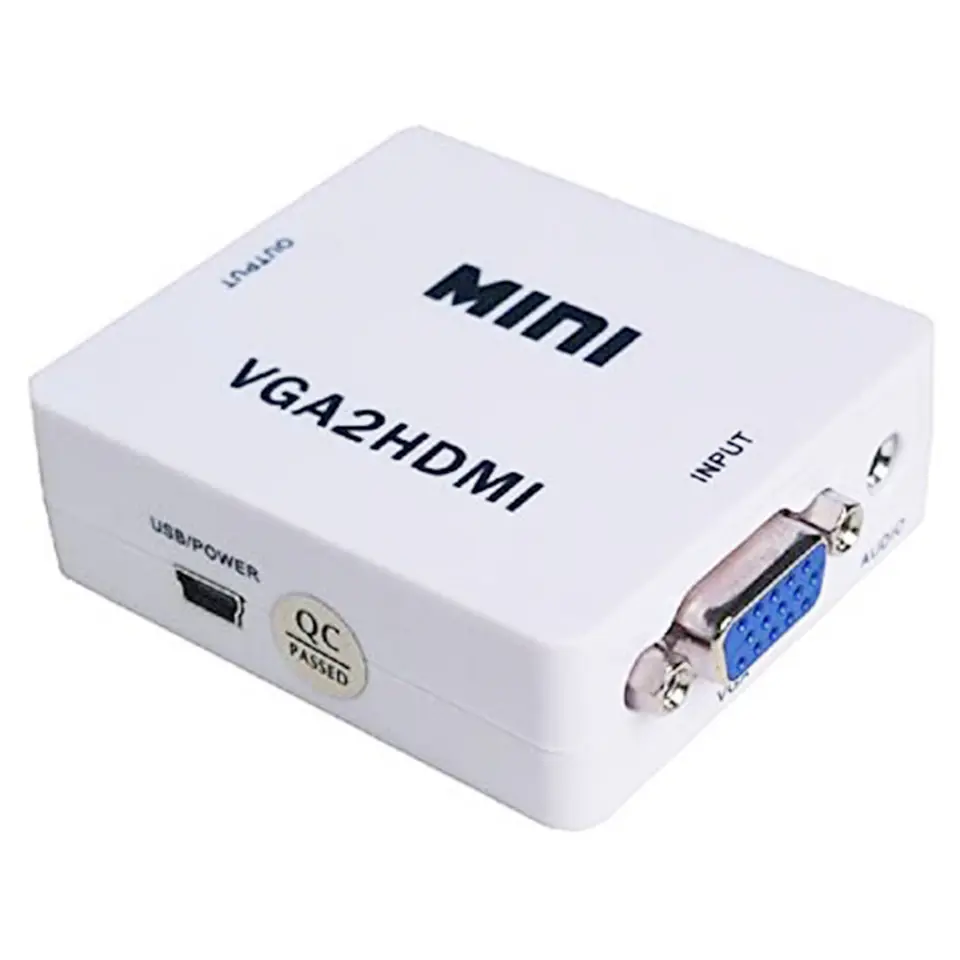

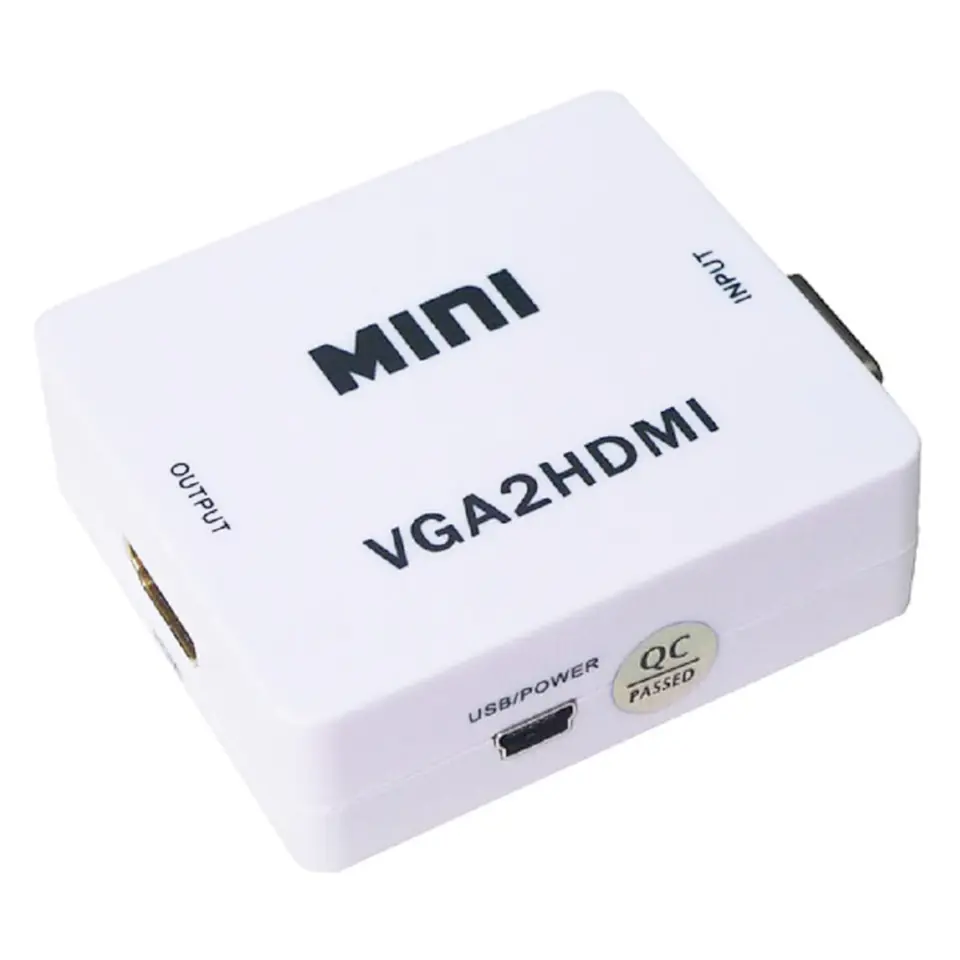

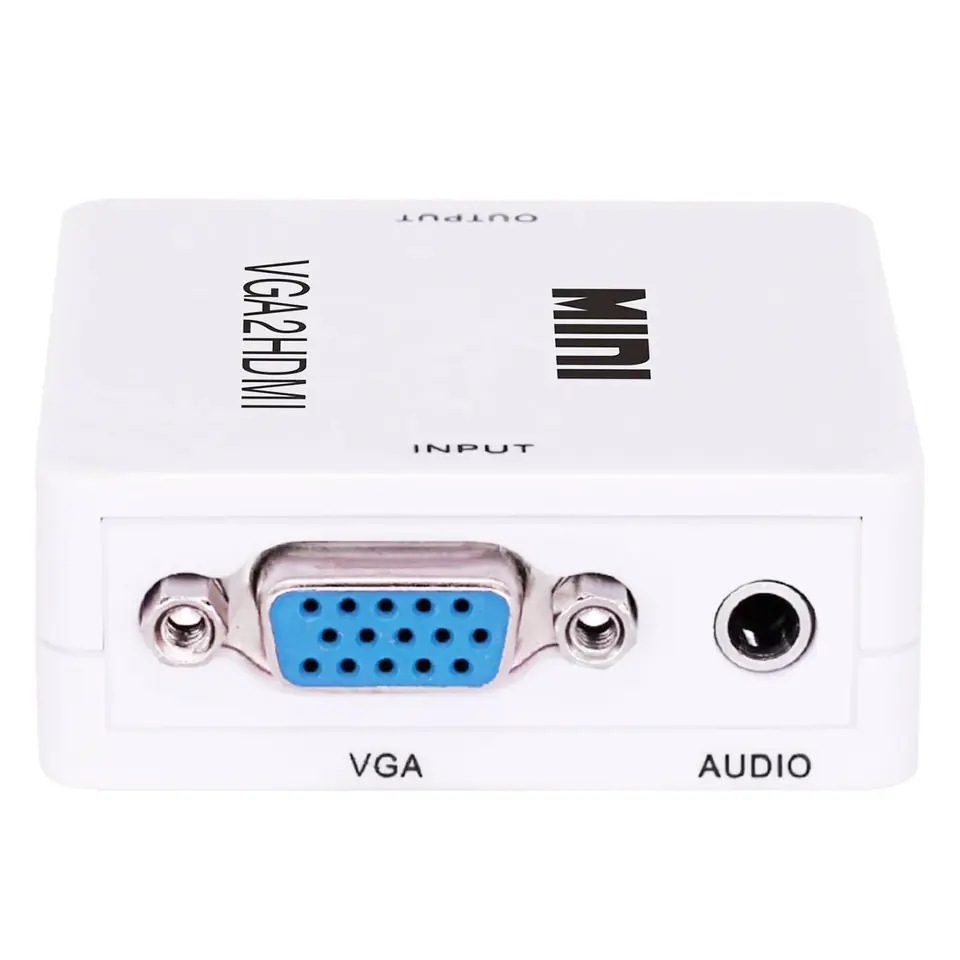

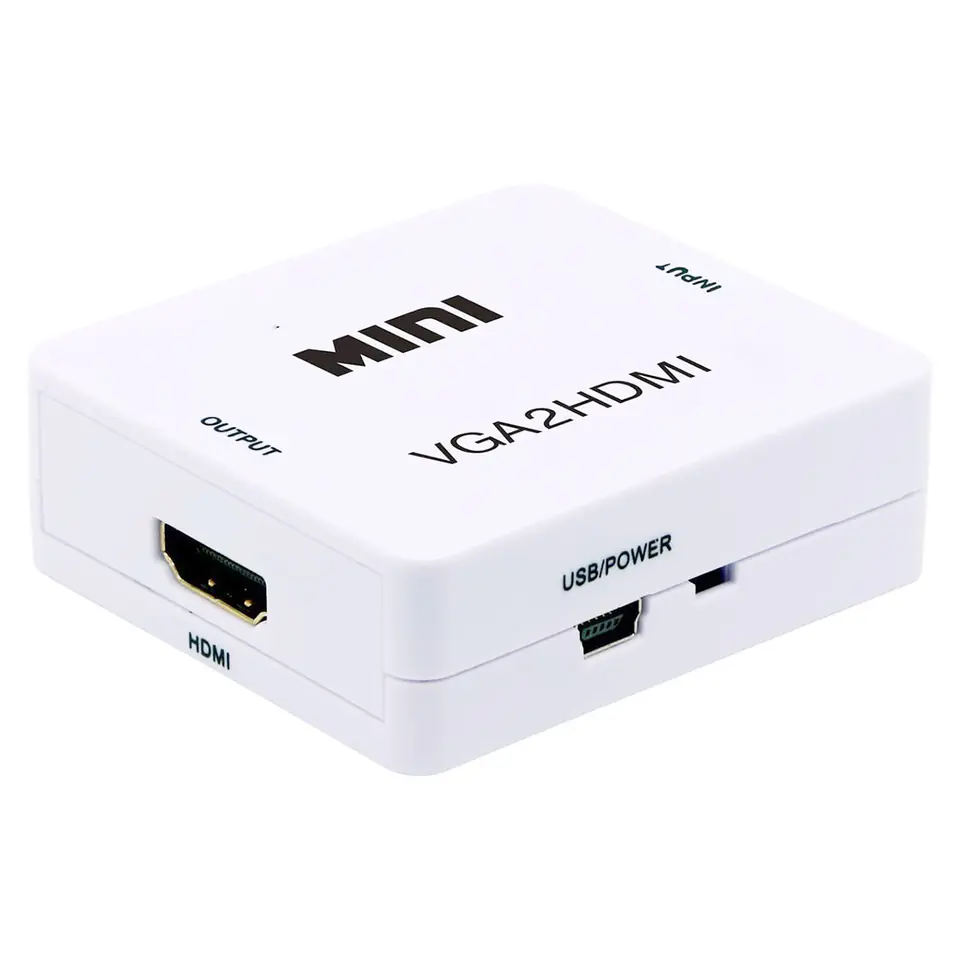

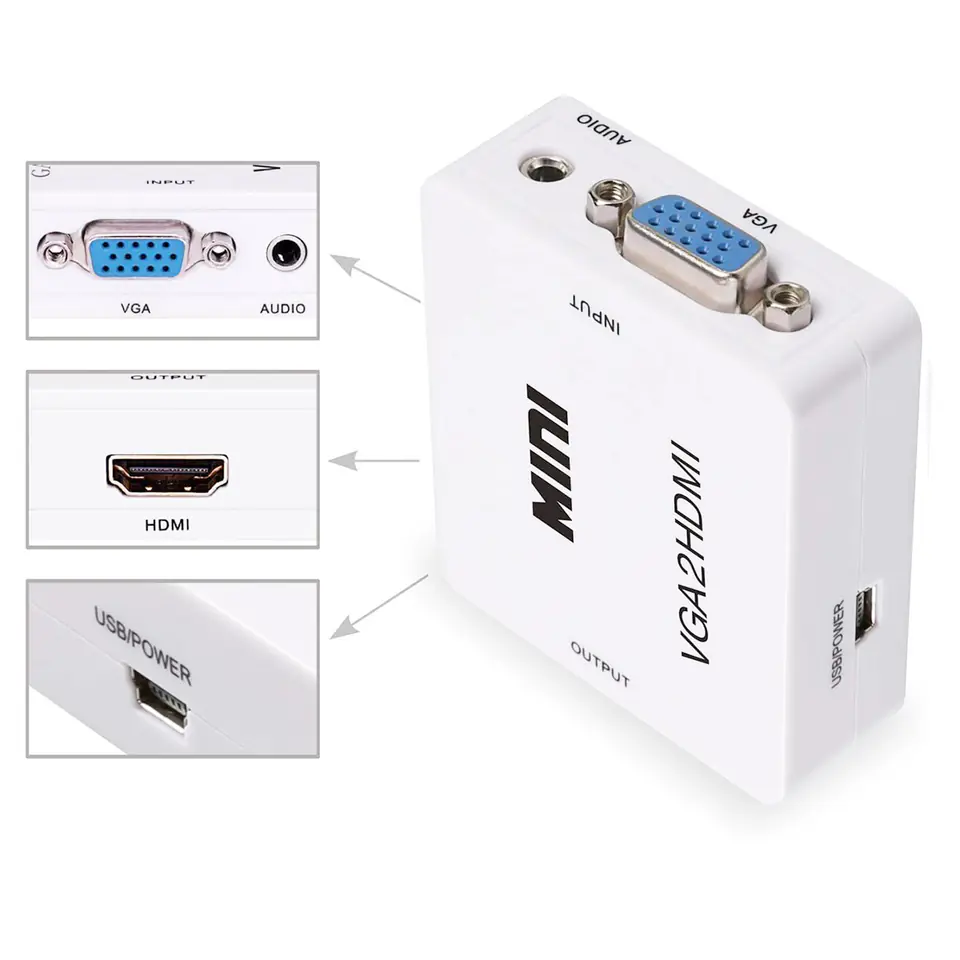

The Spacetronik SPVA-H01 converter can convert the input signal from the VGA and audio ports (3.5mm Jack) into an HDMI digital signal. The VGA input port can be connected to the device to display the picture (TV/monitor/projector). The audio input is used to connect to home theater, speakers or other devices with audio output (3.5mm Jack). The HDMI output port can be connected to any standard device on which the image can be displayed, such as DVD player, PS4, XboxONE, STB, PC.

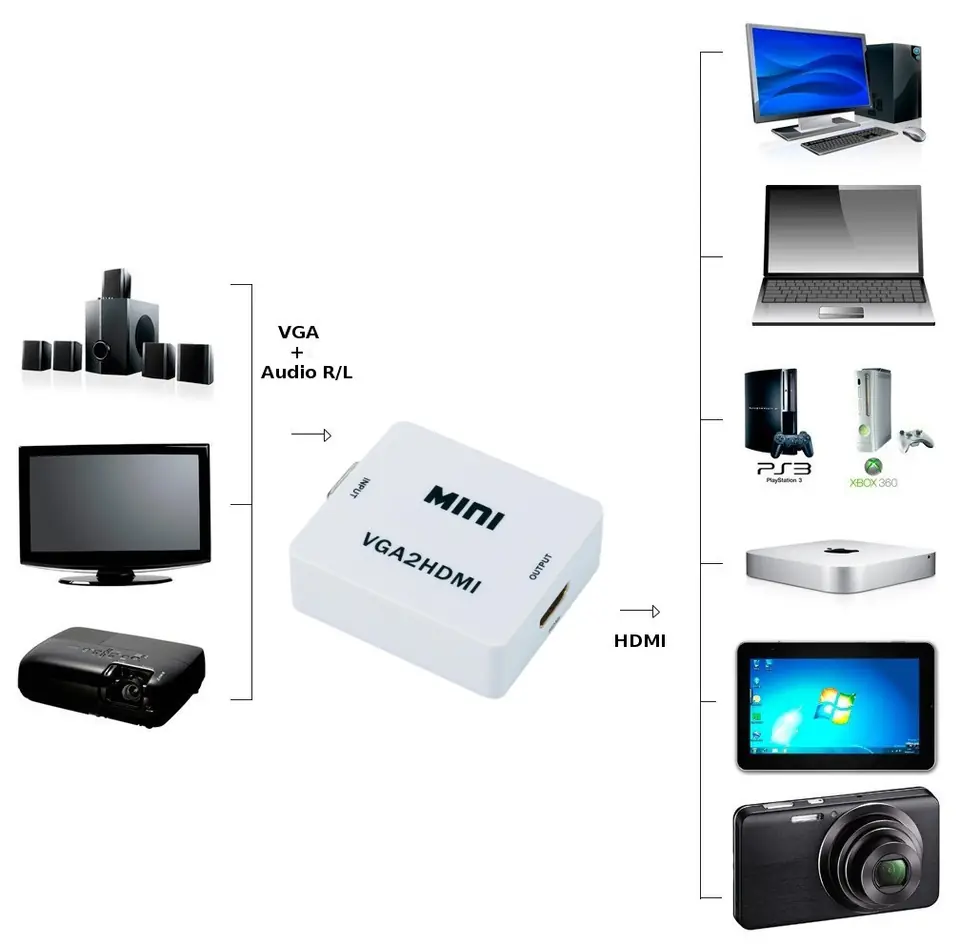

Example of use:
Specification:
- VGA signal input + 3.5mm audio output for conversion to HDMI signal
- Input signal: 1* VGA signal, 1*3.5mm audio
- HDMI signal format on output: 480i/60Hz, 480p/60Hz, 576i/60Hz, 576p/60Hz, 720p50/60Hz, 1080i50/60Hz, 1080p50/60Hz
- output image format: PAL, NTSC.
- impedance: 75 Ohms
- compatible with HDCP protocol
- powered from the USB port - does not need an additional power source!
- mini USB cable included
