| 4g lte: | N |
|---|---|
| Access point: | N |
| Active tampering alarm: | Yes |
| Adjustment shutter speed: | Auto/Manual |
| Alarm input/output: | N |
| Angle of rotation: | 355° |
| Appliance placement: | Ceiling/wall |
| Audio: | Built-in microphone Sound detection |
| Audio codecs: | G.711a, G.711Mu, G726 |
| Audio detection: | Yes |
| Audio recording: | Yes |
| Audio support: | Yes |
| Back light compensation (blc): | Yes |
| Bit rate: | 12 kbps–6144 kbps |
| Bit rate control: | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Bluetooth: | No |
| Built-in battery: | No |
| Built-in hdd: | No |
| Built-in ir leds: | Yes |
| Built-in loudspeaker: | No |
| Built-in microphone: | Yes |
| Built-in reflector: | N |
| Built-in speaker(s): | No |
| Camera pan control: | Yes |
| Camera shutter speed: | 1/3 - 1/100000 s |
| Camera shutter type: | Electronic |
| Camera tilt control: | Yes |
| Card reader integrated: | Yes |
| Case: | Dome - Metal |
| Closest focusing distance: | 1.1 m |
| Cloud recording: | Yes |
| Cloud-managed: | Yes |
| Colour: | white |
| Compatible memory cards: | MicroSD (TransFlash) |
| Connectivity technology: | Wired |
| Day/night mode: | Yes |
| Dc output voltage: | 12 |
| Dedicated application: | DMSS (Android, iOS) |
| Default administrator login / password: | admin / -Administrator password must be set on first run |
| Default ip address: | 192.168.1.108 |
| Degree of protection ik: | IK10 |
| Depth: | 109.9 mm |
| Detect distance: | 63.6 m |
| Detection distance (humans): | 63,6 m |
| Diameter: | 11 cm |
| Dimensions: | Ø 110 x 81 mm |
| Electronic fog removal: | Yes |
| Embedded web server: | Yes |
| Ethernet interface type: | Fast Ethernet |
| Ethernet lan: | Yes |
| Ethernet lan (rj-45) ports: | 1 |
| Fixed focal length: | 2.8 mm |
| Fixed focus: | Yes |
| Focal length range: | 2.8 mm |
| Form factor: | Dome |
| Frame rate: | 30 fps |
| Gain control type: | Auto/Manual |
| Height: | 81 mm |
| Highlight compensation (hlc): | Yes |
| Horizontal rotation angle: | 0 - 355° |
| Housing material: | Metal |
| Identification distance (humans): | 6,4 m |
| Identify distance: | 6.4 m |
| Ik code: | IK10 |
| Image compression method: | H.265+ / H.265 / H.264+ / H.264 / MJPEG |
| Image sensor size: | 1/2.8" |
| Infrared (ir) cut-off filter: | Yes |
| Instruction sheet: | Y |
| Integrated antenna: | N |
| Intelligent video surveillance (ivs) system features: | Tripwire, Intrusion |
| Internal memory: | 128 MB |
| International protection (ip) code: | IP67 |
| Ip address filtering: | Yes |
| Ir illuminator range: | 30 m |
| Led type: | IR |
| Lens diaphragm: | F/1.6 |
| Lens type: | Fixed focal length lens |
| Lens viewing angle, diagonal: | 121° |
| Lens viewing angle, horizontal: | 102° |
| Lens viewing angle, vertical: | 54° |
| Light compensation: | BLC/HLC |
| Live video preview: | Y |
| Local recording: | Yes |
| Main stream transmission speed: | 20 fps @ 4 Mpx 25 fps @ 3.7 Mpx |
| Max. number of on-line users: | 6 |
| Maximum aperture number: | 1.6 |
| Maximum data transfer rate: | 100 Mbit/s |
| Maximum frame rate: | 30 fps |
| Maximum memory card size: | 256 GB |
| Maximum resolution: | 2688 x 1520 pixels |
| Memory card included: | No |
| Memory card slot: | Micro SD card support up to 256GB (local recording possible) |
| Memory card slot(s): | Yes |
| Mimo: | N |
| Minimum illumination: | 0.006 lx |
| Mirror: | Yes |
| Mirror display mode: | Yes |
| Mobile app access port: | 37777 |
| Mobile operating systems supported: | iOS, Android |
| Mobile phone access: | Port: 37777 or cloud access (P2P) Android: Free DMSS app iOS (iPhone): Free DMSS app |
| Motion detection: | Yes |
| Motion sensor: | Yes |
| Mounting kit: | Yes |
| Mounting template: | Yes |
| Mounting type: | Ceiling |
| Network interface: | 10/100 Base-T (RJ-45) |
| Network protocols: | IPv4/IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, NTP, Multicast, ICMP, IGMP |
| Networking standards: | IEEE 802.3af |
| Night vision: | Yes |
| Night vision distance: | 30 m |
| Noise reduction: | Yes |
| Noise reduction technology: | 3D noise reduction |
| Number of cameras: | 1 |
| Number of illumination leds: | 3 |
| Number of infrared leds: | 3 |
| Number of lenses: | 1 |
| Number of privacy masking areas: | 4 |
| Number of sensors: | 1 |
| Number of users: | 6 user(s) |
| Objective: | 2.8 mm |
| Observe distance: | 25.4 m |
| On screen display (osd) languages: | Polish, Vietnamese, Russian, Czech, Spanish, Portuguese, French , Romanian, Ukrainian, Hungarian, English, German, Italian, Dutch, Turkish |
| Onvif: | 21.06 |
| Onvif standard: | Yes |
| Operating relative humidity (h-h): | 0 - 95% |
| Operating temperature: | -40 °C ... 60 °C |
| Operating temperature (t-t): | -40 - 60 °C |
| Optical sensor size: | 25.4 / 2.9 mm (1 / 2.9") |
| Package weight: | 490 g |
| Pan range: | 0 - 355° |
| Pc app access ports: | 37777 |
| People detection: | Yes |
| Placement supported: | Indoor & outdoor |
| Port onvif: | 80 |
| Power: | PoE (802.3af), 12 V DC / 420 mA |
| Power consumption: | .max. 6 W @ PoEmax. 5 W @ 12 V DC |
| Power consumption (max): | 5 W |
| Power consumption (power over ethernet (poe)): | 2.9 W |
| Power consumption (typical): | 2.3 W |
| Power over ethernet (poe): | Yes |
| Power source type: | DC, PoE |
| Privacy masking: | Yes |
| Producer / brand: | DAHUA |
| Product colour: | White |
| Product diameter: | 110 mm |
| Progressive scan: | Yes |
| Ram capacity: | 128 MB |
| Recognition distance (humans): | 12,7 m |
| Recognize distance: | 12.7 m |
| Recording in colour: | Yes |
| Region of interest (roi) encoding: | Yes |
| Reset button: | No |
| Resolution: | 2688 x 1520 - 4 Mpx, 2560 x 1440 - 3.7 MP, 2304 x 1296 - 3 MP, 1920 x 1080 - 1080p1280 x 960 - 1.3 MP1280 x 720 - 720p |
| Rj-45 ports quantity: | 1 |
| Rom capacity: | 128 MB |
| Rtsp url: | rtsp://admin:password o@192.168.1.108:554/cam/realmonitor?channel=1&subtype=0 - Main streamrtsp://admin:password o@192.168.1.108:554/cam/realmonitor?channel=1&subtype=1 - Auxiliary stream |
| Scales: | 0.35 kg |
| Sealing: | IP67 |
| Selected features: | WDR - 120 dB - Wide dynamic range of 3D-DNR lighting - Digital noise reduction in the image ROI - improving the quality of selected parts of the image BLC - backlight compensation (background) HLC - Strong light compensation (spot) Day/night mode ICR - Mechanical IR filter AGC - Automatic adjustment of image gain Auto white balance Mirror - Mirror image Motion detection - max. 4 privacy zones - max. 4 SMD PLUS - search for object classified as: human, motor vehicle IVS analysis : line crossing, intrusion - classification of people and vehicles |
| Sensor size: | 4 MP |
| Sensor type: | CMOS |
| Signal-to-noise ratio (snr): | 56 dB |
| Smd plus: | Yes |
| Sound detection: | Yes |
| Standard: | TCP/IP |
| Storage temperature (t-t): | -40 - 60 °C |
| Supported graphics resolutions: | 352 x 288, 2560 x 1440, 1920 x 1080 (HD 1080), 704 x 480, 2688 x 1520, 704 x 576, 1280 x 960, 640 x 480 (VGA), 1280 x 720 (HD 720), 352 x 240, 2304 x 1296 |
| Supported languages: | Polish, Czech, English, French, Hungarian, Italian, Portuguese, Romanian, Russian, Spanish, Turkish, Ukrainian, Vietnamese |
| Supported network protocols: | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP |
| Supported video modes: | 1520p, 960p, 720p, 1440p, 1296p, 1080p |
| Tilt angle: | 65° |
| Tilt angle range: | 0 - 65° |
| Total megapixels: | 4 MP |
| Total power over ethernet (poe) budget: | 6 W |
| Transducer: | 1/2.9" Progressive Scan CMOS |
| Two-way talk: | N |
| Type: | IP security camera |
| Vandal-proof: | Y |
| Vandal-resistant: | IK10 |
| Vertical rotation angle: | 0 - 65° |
| Video compression formats: | H.264H, H.264, H.264B, M-JPEG, H.265+, H.265, H.264+ |
| Video motion detection: | Yes |
| Video streaming: | Yes |
| Viewing angle: | 102°(manufacturer data) 96° (our tests) |
| Viewing angle, diagonal: | 121° |
| Voice codecs: | PCM, G.711Mu, G.711a, G.726 |
| Warranty: | 3 years |
| Web access ports: | 80, 37777 |
| Web browser: | Yes |
| Web server: | Built-in |
| Web-based management: | Yes |
| Weight: | 340 g |
| White balance: | Auto, Natural, Manual, Outdoor, Regional custom, Street lamp |
| Wi-fi: | No |
| Wide dynamic range (wdr): | Yes |
| Width: | 109.9 mm |

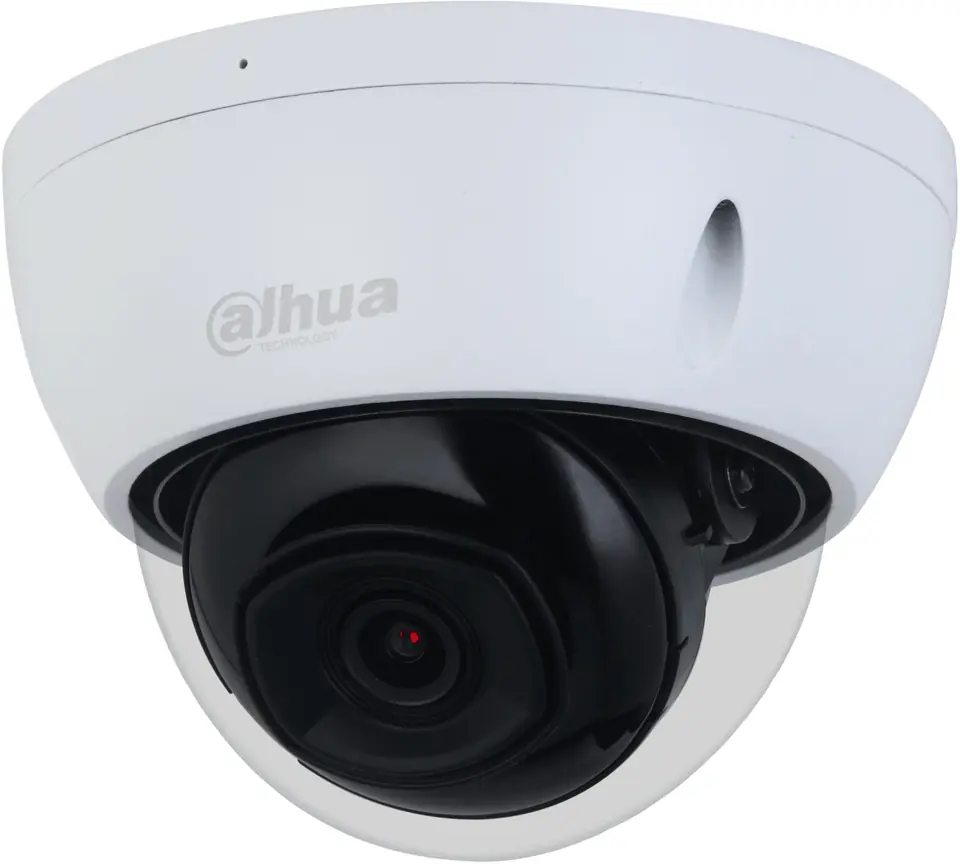

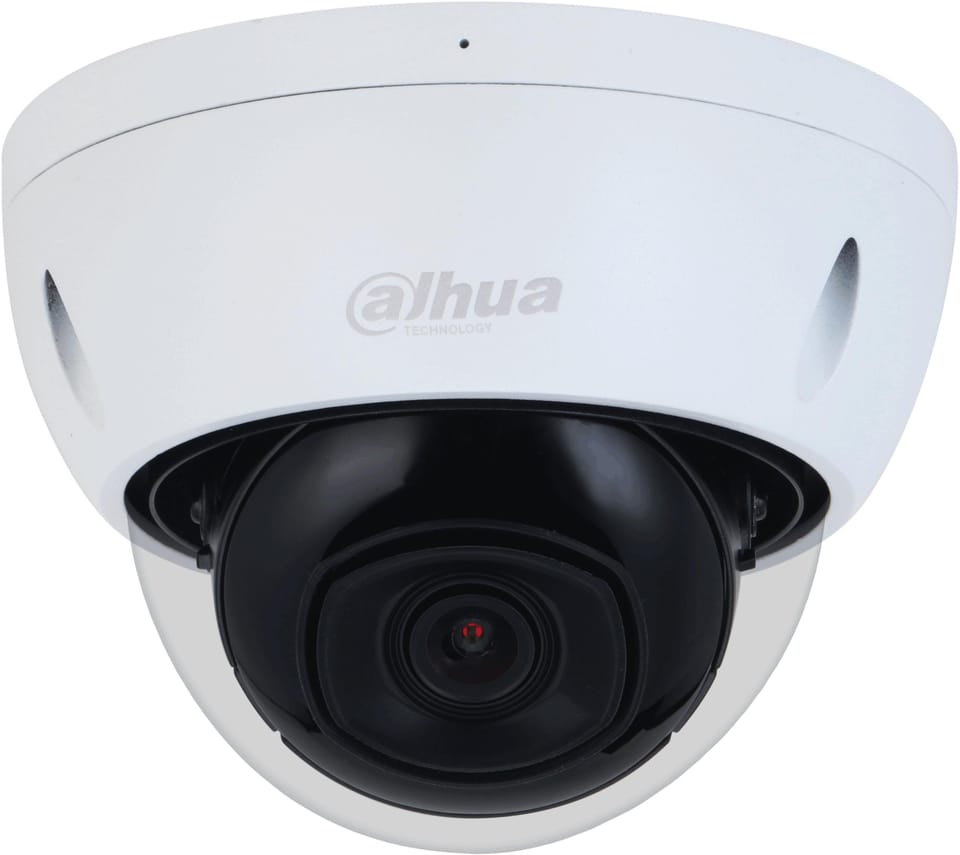

IP camera with efficient H.264 / H.265 image compression algorithm for clear and smoother image transmission at a maximum resolution of 2688 x 1520 (4.0 MPx)
The ability to power PoE in accordance with the 802.3af standard makes the device even more versatile and easier to install
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
