| Alarm inputs / outputs: | 1 / 1 |
|---|---|
| Angle of rotation: | 355° |
| Anti-flicker: | Yes |

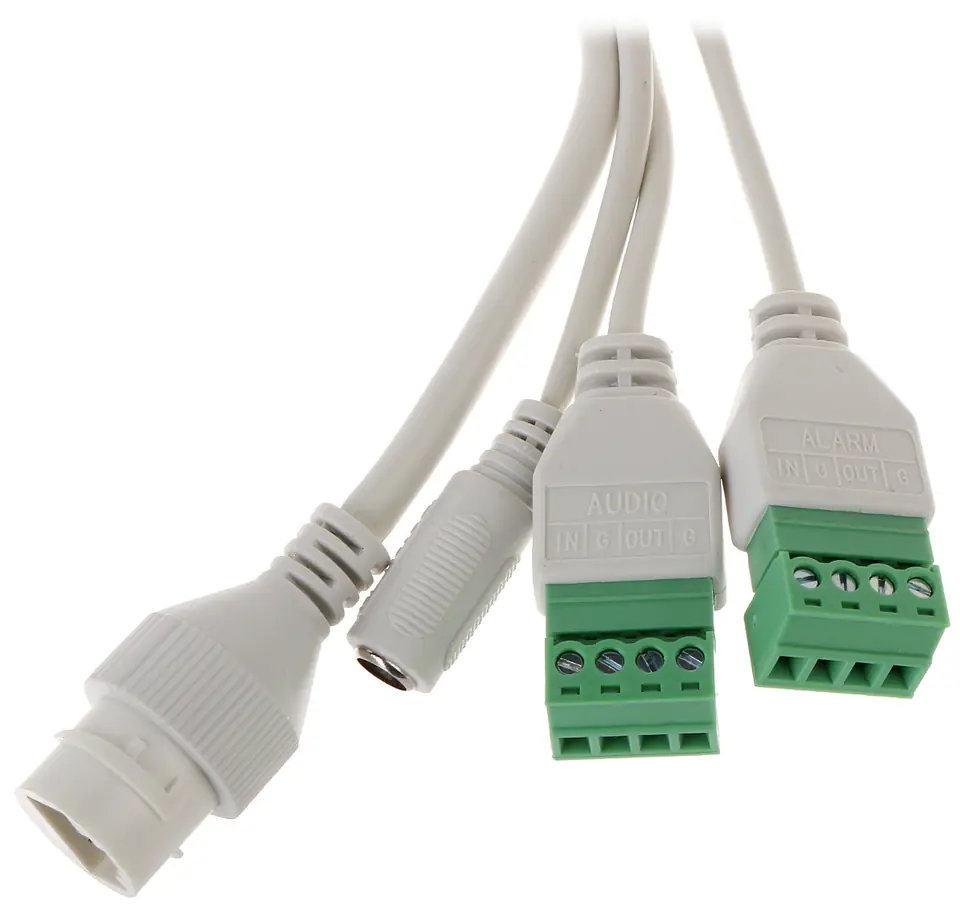

| Audio: | External microphone input, Audio out, Support two-way audio |
| Audio formats supported: | AAC, MP3, PCM |
| Audio input channels: | 1 channels |
| Audio output channels: | 1 channels |
| Back light compensation (blc): | Yes |
| Behavior analysis: | Intrusion detection, Line crossing detection |
| Bit rate: | 32 Kbps - 8 Mbps |
| Bit rate control: | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Bluetooth: | No |
| Built-in hdd: | No |
| Camera pan control: | Yes |
| Camera shutter speed: | 1/3 - 1/100000 s |
| Camera tilt control: | Yes |
| Card reader integrated: | Yes |

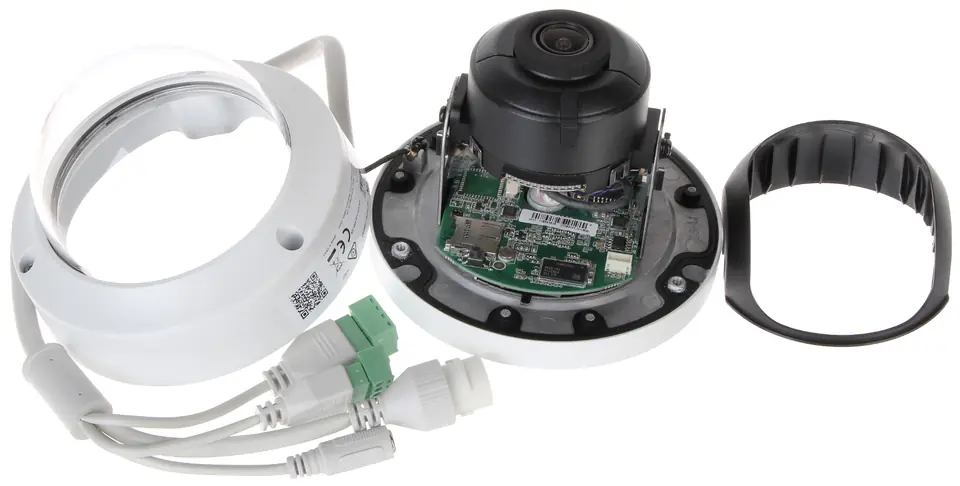

| Case: | Dome, Metal |
| Colour: | white |
| Compatible memory cards: | MicroSDHC, MicroSDXC, MicroSD (TransFlash) |
| Connectivity technology: | Wired |
| Day/night mode: | Yes |
| Dc output current: | 0.4 A |
| Dc output voltage: | 12 |
| Default administrator login / password: | admin / -Administrator password must be set on first run |
| Default ip address: | 192.168.1.64 |

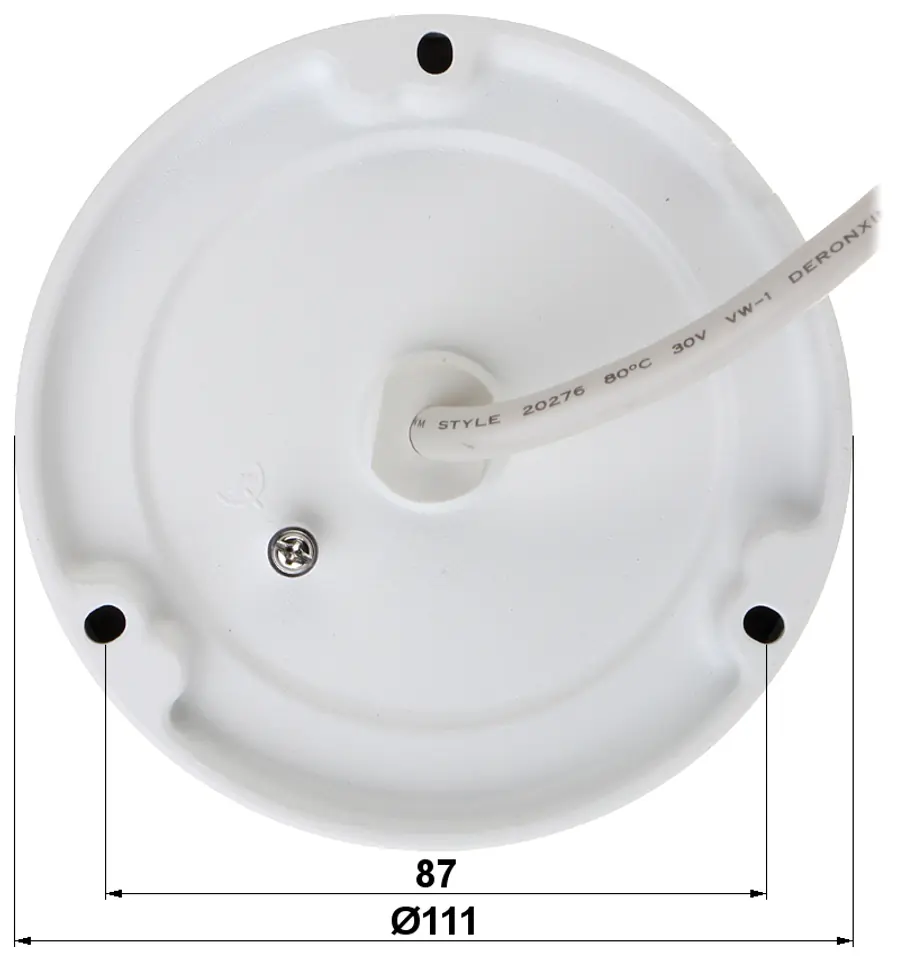

| Dimensions: | Ø 111 x 85 mm |
| Ethernet interface type: | Fast Ethernet |
| Ethernet lan: | Yes |
| Ethernet lan (rj-45) ports: | 1 |
| Fixed focal length: | 2.8 mm |
| Form factor: | Dome |
| Frame rate: | 30 fps |
| Heartbeat: | Yes |
| Highlight compensation (hlc): | Yes |
| Housing material: | Aluminium |
| Https encryption: | Yes |
| Ik code: | IK10 |
| Image compression method: | H.265+ / H.265 / H.264+ / H.264 / MJPEG |
| Image quality adjustment: | Sharpness, Saturation, Contrast, Brightness |
| Infra-red wavelength: | 850 nm |
| Infrared (ir) cut-off filter: | Yes |
| Intelligent video surveillance (ivs) system features: | Face detection |
| International protection (ip) code: | IP65 |
| Ip address filtering: | Yes |
| Ir illuminator range: | 30 m |
| Led type: | IR |
| Lens viewing angle, diagonal: | 122° |
| Lens viewing angle, horizontal: | 103° |
| Lens viewing angle, vertical: | 55° |
| Main stream transmission speed: | 25 fps @ 4 Mpx |
| Max. number of on-line users: | 6 |
| Maximum aperture number: | 1.6 |
| Maximum memory card size: | 256 GB |
| Maximum resolution: | 2688 x 1520 pixels |

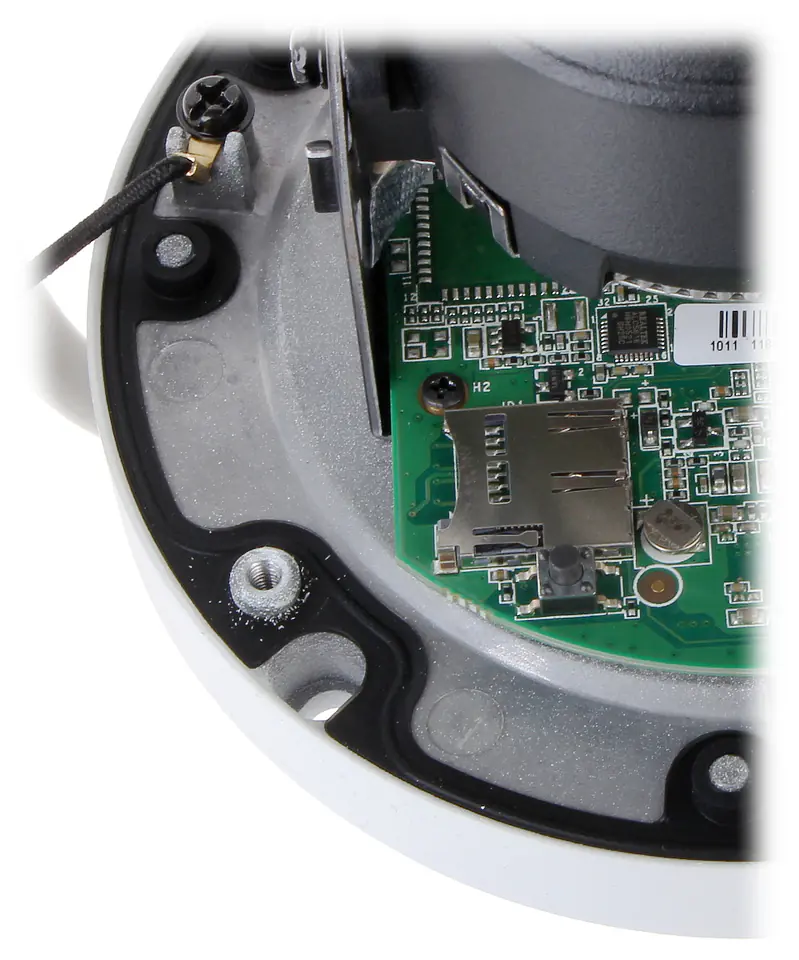

| Memory card slot: | Micro SD card support up to 256GB (local recording possible) |
| Mirror: | Yes |
| Mobile app access port: | 8000 |
| Mobile phone access: | Port: 8000 or cloud access (P2P) Android: Free Hik-Connect app iOS: Free Hik-Connect app |
| Mounting type: | Ceiling/wall |
| Network interface: | 10/100 Base-T (RJ-45) |
| Network protocols: | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, IEEE 802.1x, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, WebSockets, WebSockets |
| Networking standards: | IEEE 802.3af, IEEE 802.1x |
| Night vision: | Yes |
| Night vision distance: | 30 m |
| Noise reduction: | Yes |
| Noise reduction technology: | 3D noise reduction |
| Number of cameras: | 1 |
| Number of languages: | 33 |
| Number of lenses: | 1 |
| Number of sensors: | 1 |
| Number of users: | 32 user(s) |
| Objective: | 2.8 mm |
| Operating relative humidity (h-h): | 0 - 95% |
| Operating temperature: | -30 °C ... 60 °C |
| Operating temperature (t-t): | -30 - 60 °C |
| Optical sensor size: | 25.4 / 3 mm (1 / 3") |
| Package depth: | 134 mm |
| Package height: | 108 mm |
| Package weight: | 720 g |
| Package width: | 134 mm |
| Pan range: | 0 - 355° |
| Password protection: | Yes |
| Pc app access ports: | Port: 8000 or access via cloud (P2P) - iVMS-4200 application |
| Placement supported: | Outdoor |
| Port onvif: | 80 |
| Power: | PoE (802.3af), 12 V DC / 500 mA |
| Power consumption: | ≤ 6.5 W @ PoE (802.3af)≤ 5 W @ 12 V DC |
| Power consumption (max): | 5 W |
| Power consumption (power over ethernet (poe)): | 6.5 W |
| Power source type: | DC, PoE |
| Privacy masking: | Yes |
| Producer / brand: | Hikvision |
| Product colour: | White |
| Progressive scan: | Yes |
| Quality of service (qos) support: | Yes |
| Region of interest (roi) encoding: | Yes |
| Reset button: | Yes |
| Resolution: | 2688 x 1520 - 4 MP, 1920 x 1080 - 1080p1280 x 720 - 720p |
| Rtsp url: | Main stream : rtsp://user:password o@192.168.1.64:554/Streaming/Channels/101/ - with authorization Secondary stream : rtsp://user:password o@192.168.1.64:554/Streaming/Channels/102/ - with authorization |
| Sample rate: | 48 kHz |
| Sap code: | 311313651 |
| Scales: | 0.55 kg |
| Scanning system: | Progressive |
| Sealing: | IP67 |
| Selected features: | WDR - 120 dB - Wide dynamic range of 3D-DNR lighting - Digital noise reduction in the image ROI - improving the quality of selected parts of the image Anti-Flicker - Technology that eliminates the tiring effect of image flicker NAS - Network Attached Storage - allows you to connect memory resources directly to the computer network ANR - recording the image on the card in the absence of communication with the recorder (network failure) and subsequent BLC synchronization - backlight compensation (background) HLC - Strong (spot) light compensation Mirror - Mirror image Motion detection - classification of people and vehicles Configurable privacy zones Ability to change resolution, quality and bandwidth RESET button Sharpness - Sharpen image contours Intelligent image analysis : line crossing, intrusion - classification of people and vehicles, face detection |
| Sensor size: | 4 MP |
| Sensor type: | CMOS |
| Standard: | TCP/IP |
| Storage relative humidity (h-h): | 0 - 95% |
| Storage temperature (t-t): | -30 - 60 °C |
| Supported graphics resolutions: | 640 x 360, 1920 x 1080 (HD 1080), 1280 x 720 (HD 720), 2688 x 1520, 640 x 480 (VGA) |
| Supported languages: | Polish, Bulgarian, Croatian, Czech, Danish, Dutch, English, Estonian, Finnish, French, German, Greek, Hungarian, Italian, Latvian, Lithuanian, Norwegian, Portuguese, Romanian, Russian, Serbian, Slovak, Slovenian, Spanish, Swedish, Turkish |
| Sustainability certificates: | RoHS, REACH |
| Tilt angle range: | 0 - 75° |
| Total megapixels: | 4 MP |
| Transducer: | 1/3" Progressive Scan CMOS |
| Type: | IP security camera |
| Vandal-resistant: | IK10 |
| Video compression formats: | H.265, H.264, H.265+, M-JPEG, H.264+ |
| Video motion detection: | Yes |
| Video streaming: | Yes |
| Viewing angle: | 103°(manufacturer data) 96° (our tests) |
| Voice codecs: | G.711alaw, G.711ulaw, G.726, G.722.1, MP2L2 |
| Warranty: | 3 years |
| Web access ports: | 80 |
| Web browser: | Yes |
| Web server: | Built-in |
| Web-based management: | Yes |
| Weight: | 530 g |
| Wi-fi: | No |
| Wide dynamic range (wdr): | Yes |
IP camera with efficient H.265 / H.264 image compression algorithm for clear and smoother image transmission at up to 4 MPx resolution
The ability to power PoE in accordance with the 802.3af standard makes the device even more versatile and easier to install
AcuSense Series Camera
