USB-C HDMI Docking Station with PD 112W

USB-C HDMI Docking Station with PD 112W

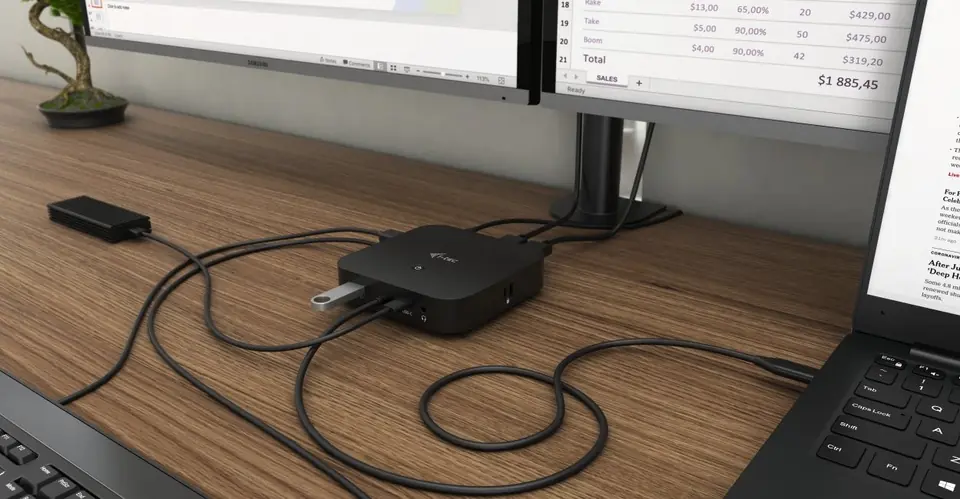

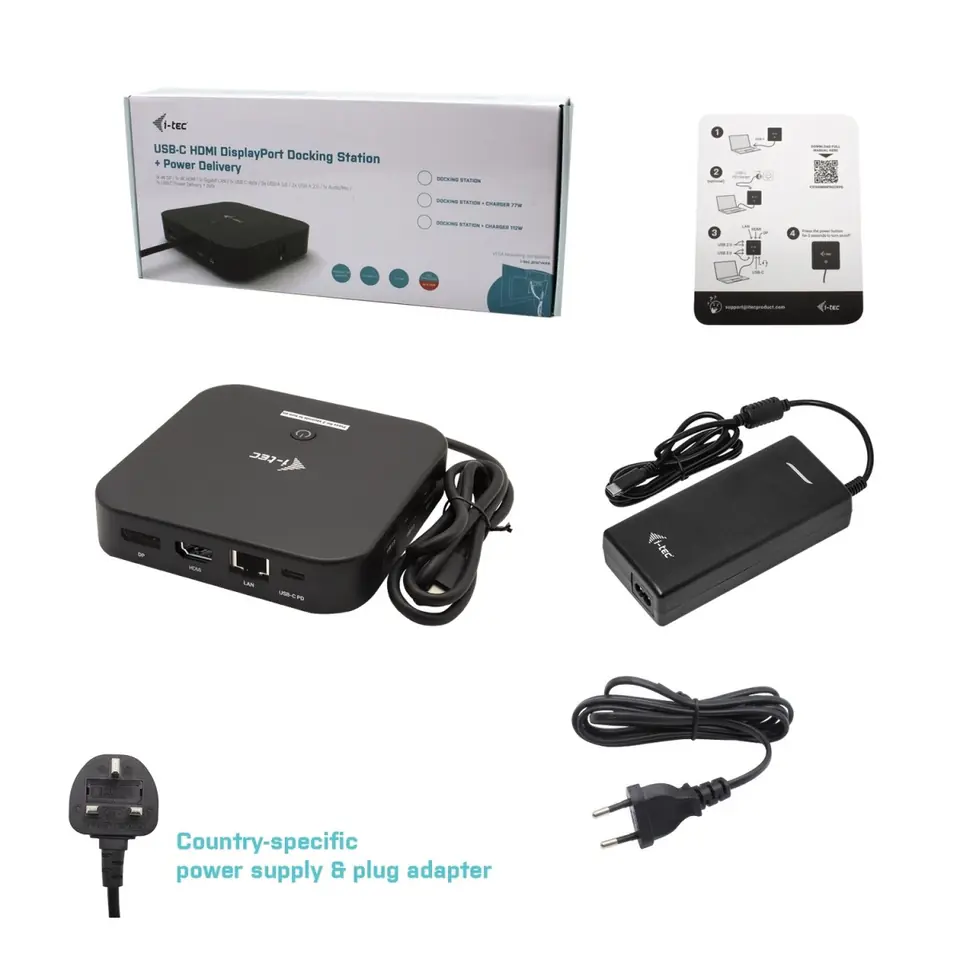

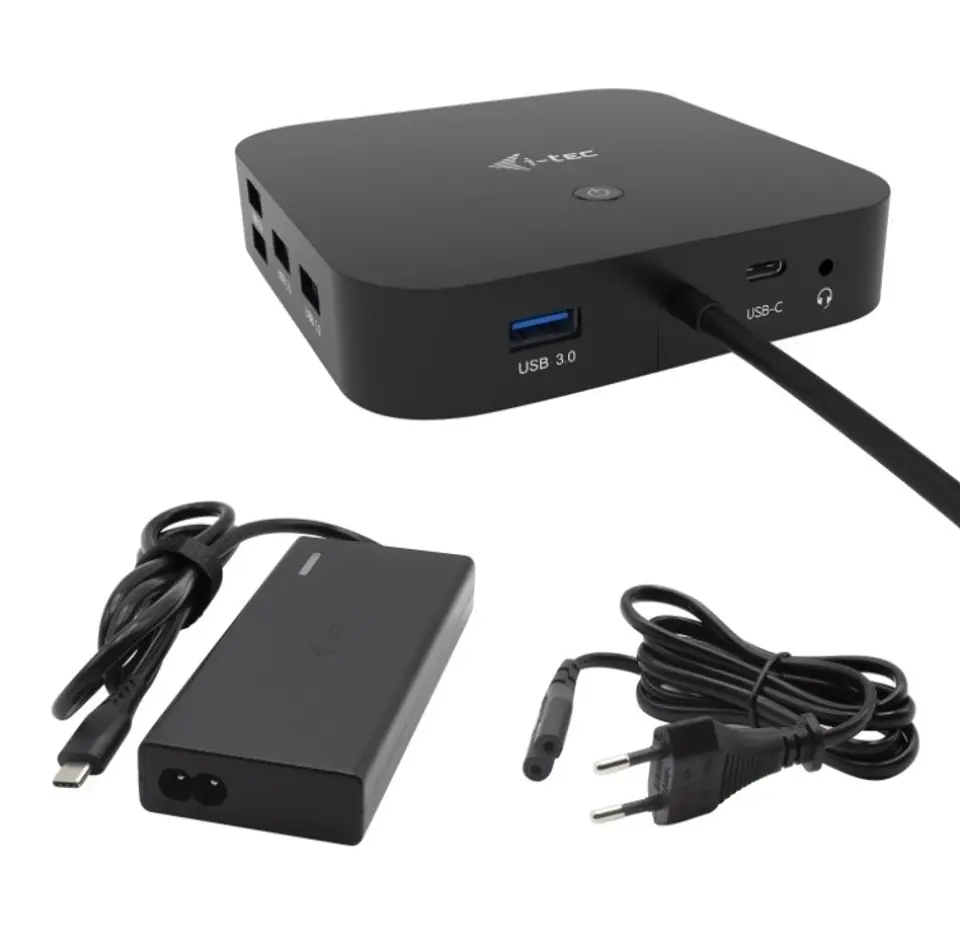

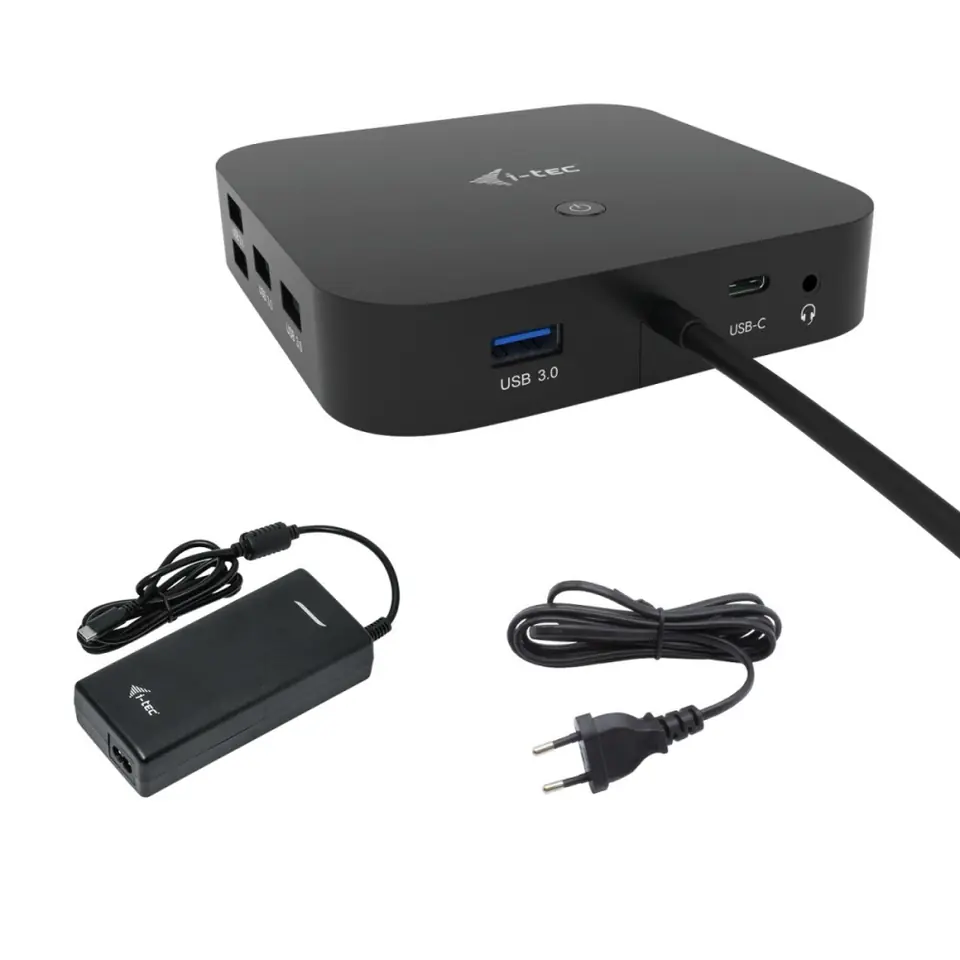

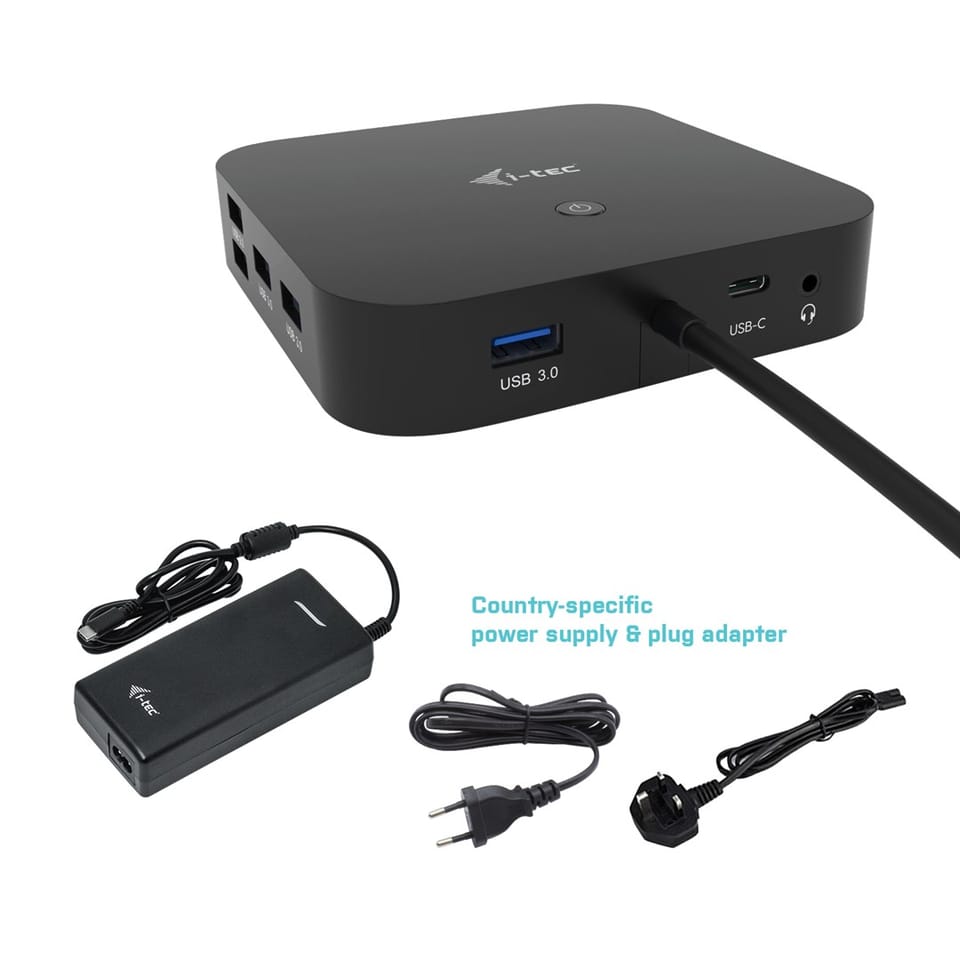

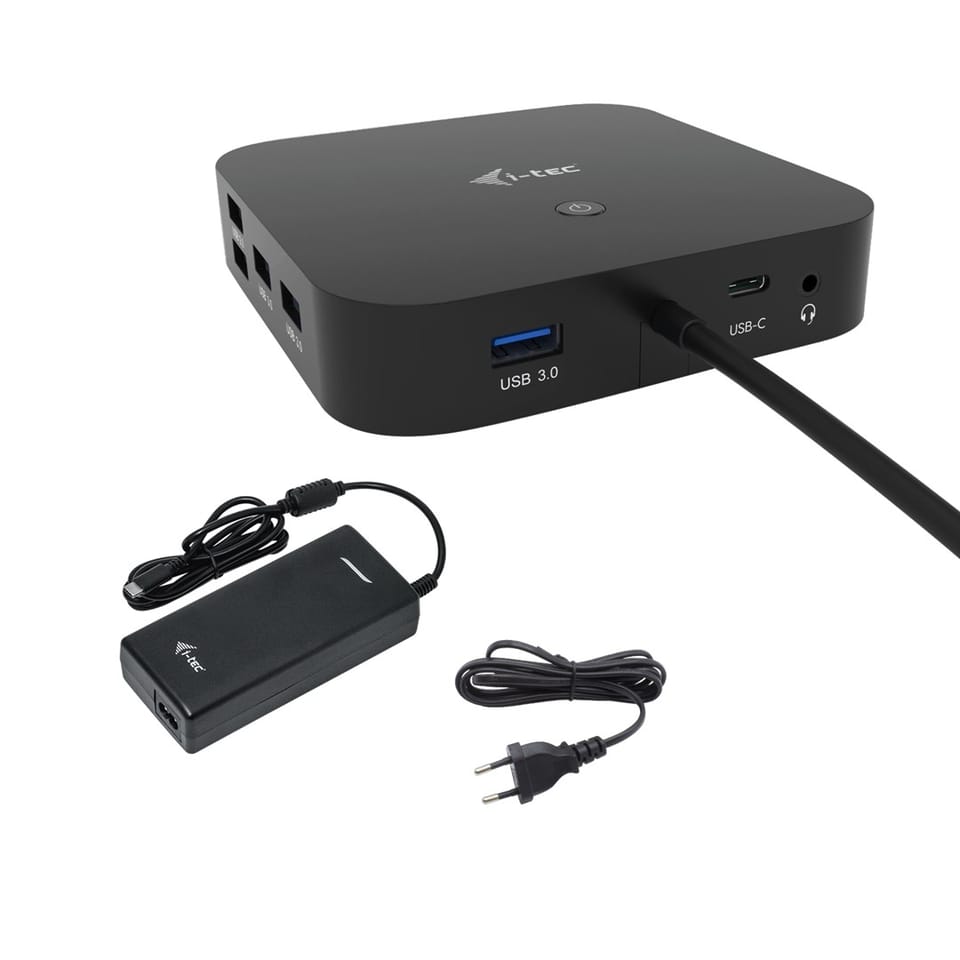

USB-C office docking station with support for up to 2 external 4K displays. The station is compatible with any laptop equipped with a USB-C or Thunderbolt 3 port. Six USB ports, a reliable and fast connection to the corporate network thanks to the integrated LAN port, and the ability to mount behind a VESA monitor make the docking station the ideal partner for professionals. Of course, the station can charge a laptop or tablet with a power of up to 100 W. Integrated latest DP 1.4 protocol supports 5K / 60 Hz resolution, making the device suitable even for professional graphic designers, data analysts, video editors and, of course, fans of HD movies. The docking station comes with a 112W USB-C power adapter (USB-C port: 100W and 1x 12W USB-A port)

Note: macOS does not support Multi Stream Transport (MST). If you connect two displays to a station in macOS, both displays the same image.

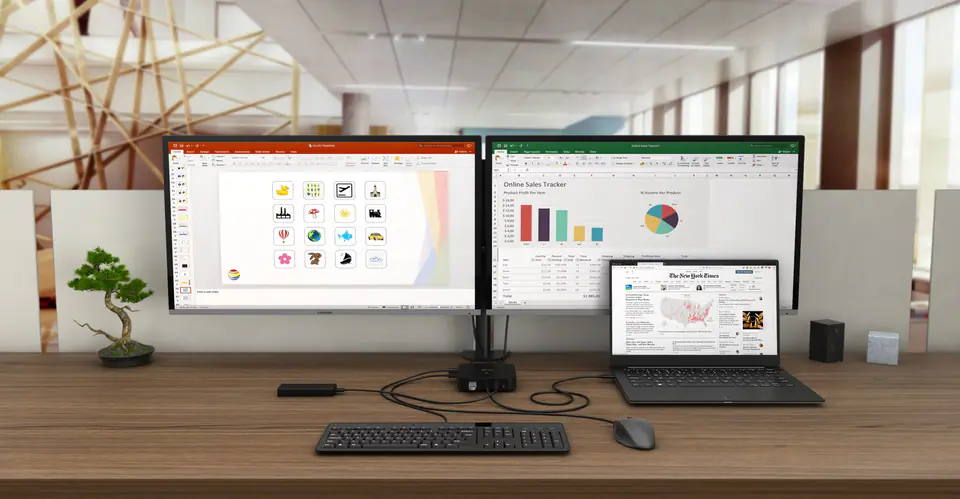

• Connect up to two external 4K /30Hz monitors
• Power Delivery: Up to 100W (112W USB-C power adapter included)
• 1x HDMI, 1x DisplayPort
• 3x USB 3.1, 1x USB-C 3.1 and 2x USB 2.0 for easy connection with USB devices and accessories.
• RJ-45 Gigabit Ethernet provides a reliable and fast Internet connection supporting 10/100/1000 Mbps speeds

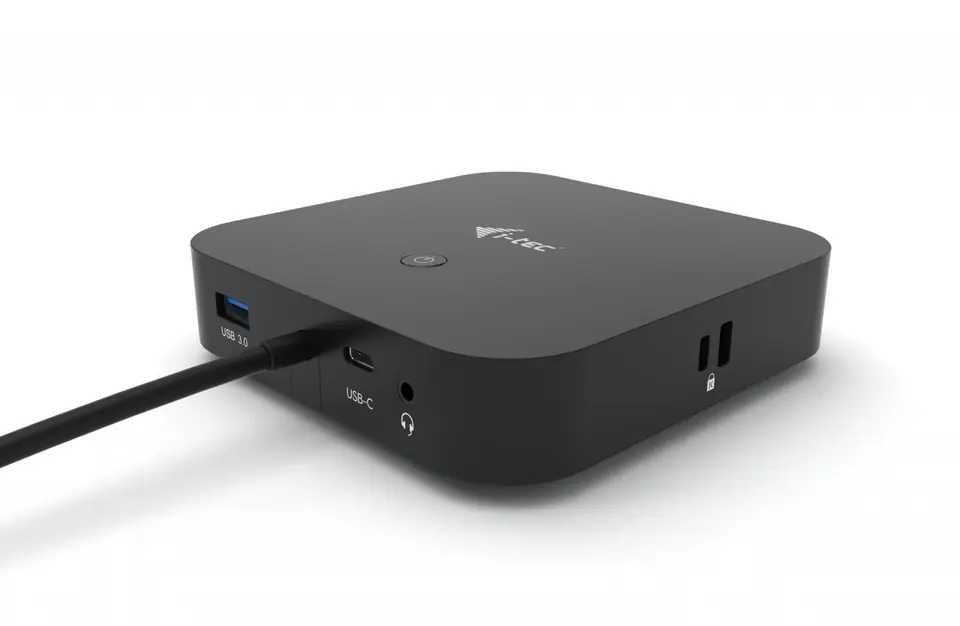

• Connected audio and microphone jack on the front panel
• Blokda Kensington protects against theft, especially in shared offices or public places
• ON/OFF switch for energy saving

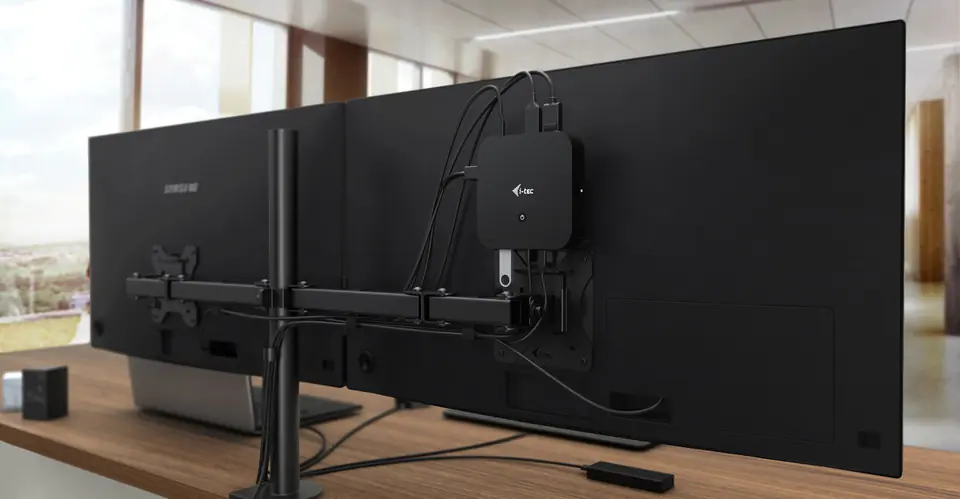

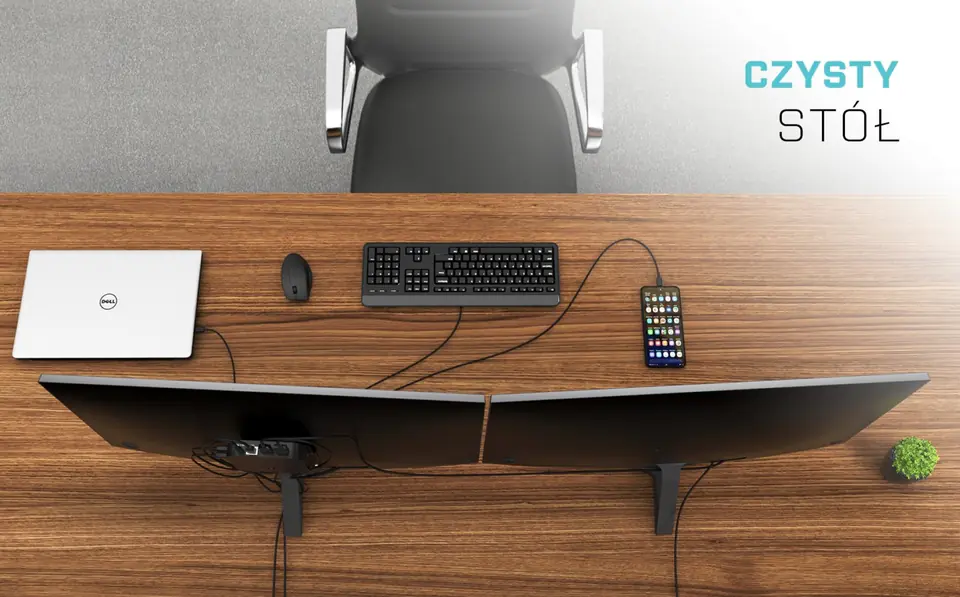

• The station can be mounted behind a VESA-compatible monitor (using i-tec VESA VESADOCK Dock holder1)
• 1x integrated USB-C cable for connection to the device (100 cm)

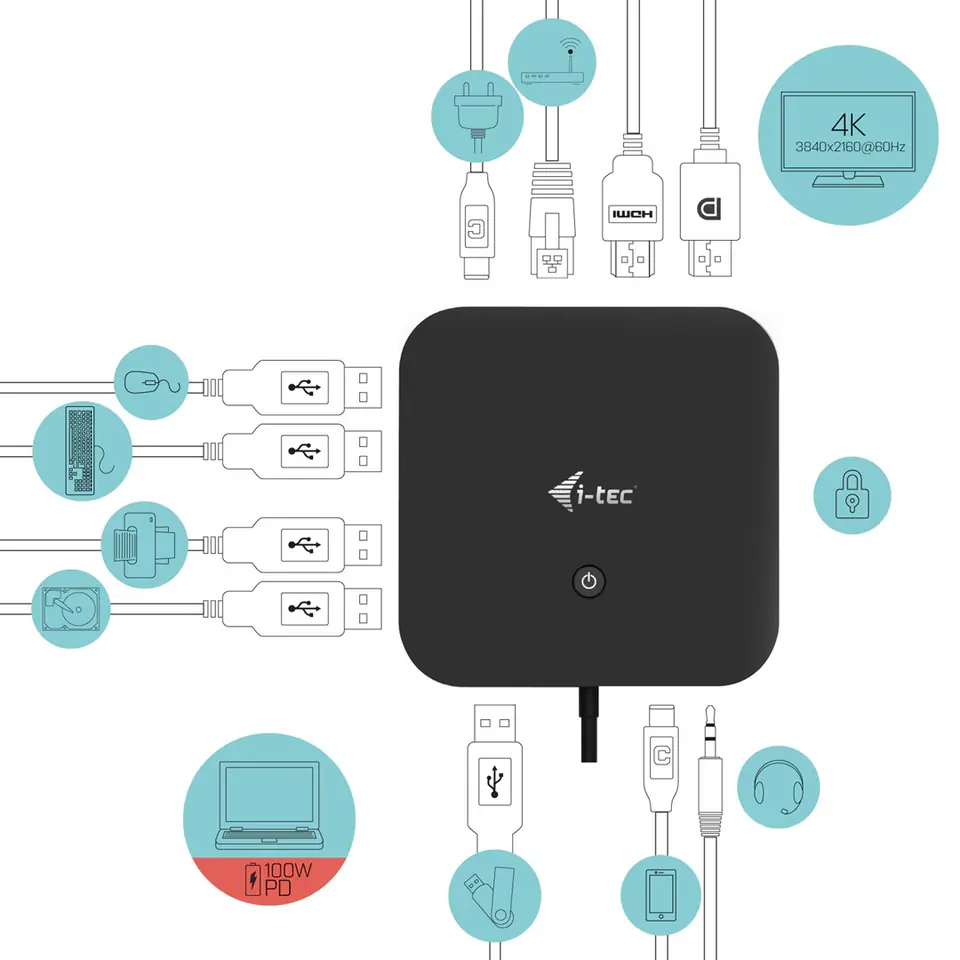

• Docking station technology: USB-C (MST)
• Power Delivery: 100W
• Video Ports: 2x DisplayPort

Resolution:

DP 1.2 HBR2:

1 monitor up to 4K / 30Hz

2 monitors up to 2x 1080p / 60Hz*

DP 1.4 HBR3:

1 monitor up to 4K / 60Hz

2 monitors up to 2x 1440p / 60Hz*

2 monitors up to 2x 4K/30Hz*

• 1x USB-C Gen. 2 port(s) (data only)
• 1x USB-C Gen. 2 port + PD (data + power)
• 3x USB 3.0 port(s)
• 2x USB 2.0 ports
• 1x Ethernet GLAN RJ-45 port (Realtek RTL8153)
• 1x 3.5mm Combo audio port
• Led
• Docking Station ON/OFF Switch
• Kensington lock support
• OS: Windows 10, macOS*, Android, Chrome OS and Linux with the latest updates

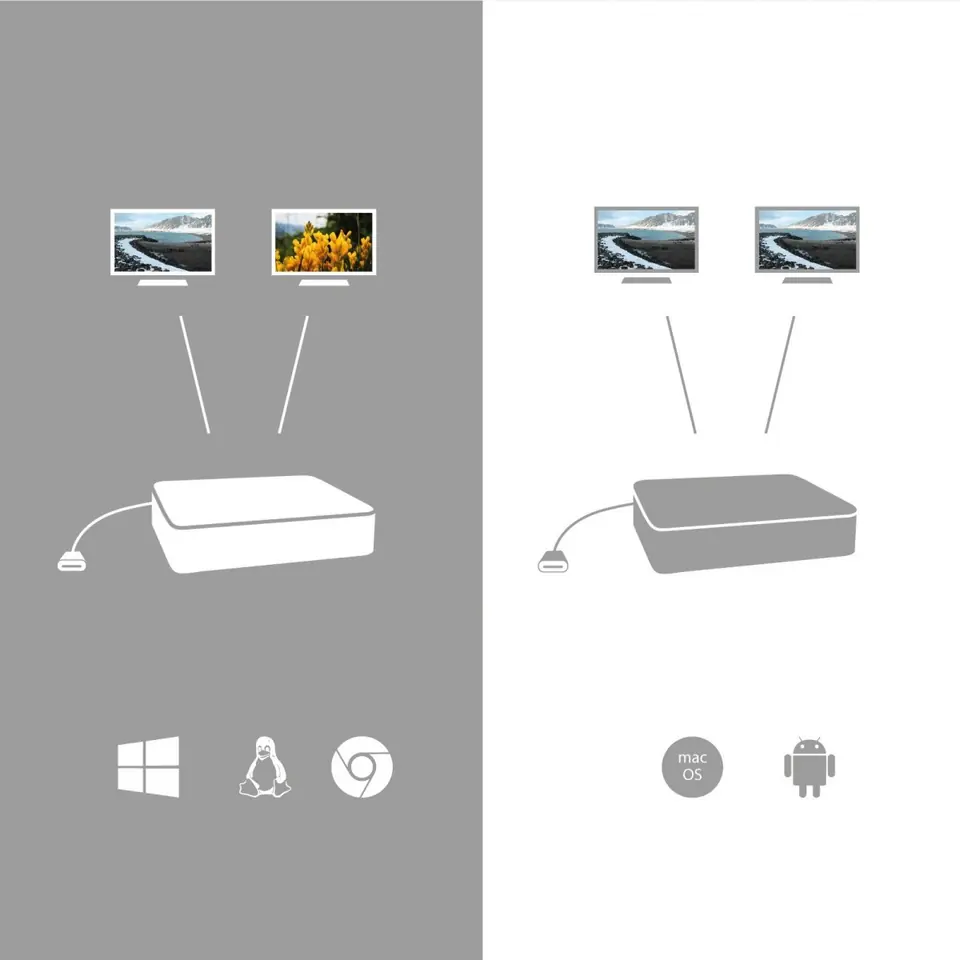

 *macOS does not support Multi Stream Transport (MST). If you connect two displays to a station in macOS, both displays the same image.

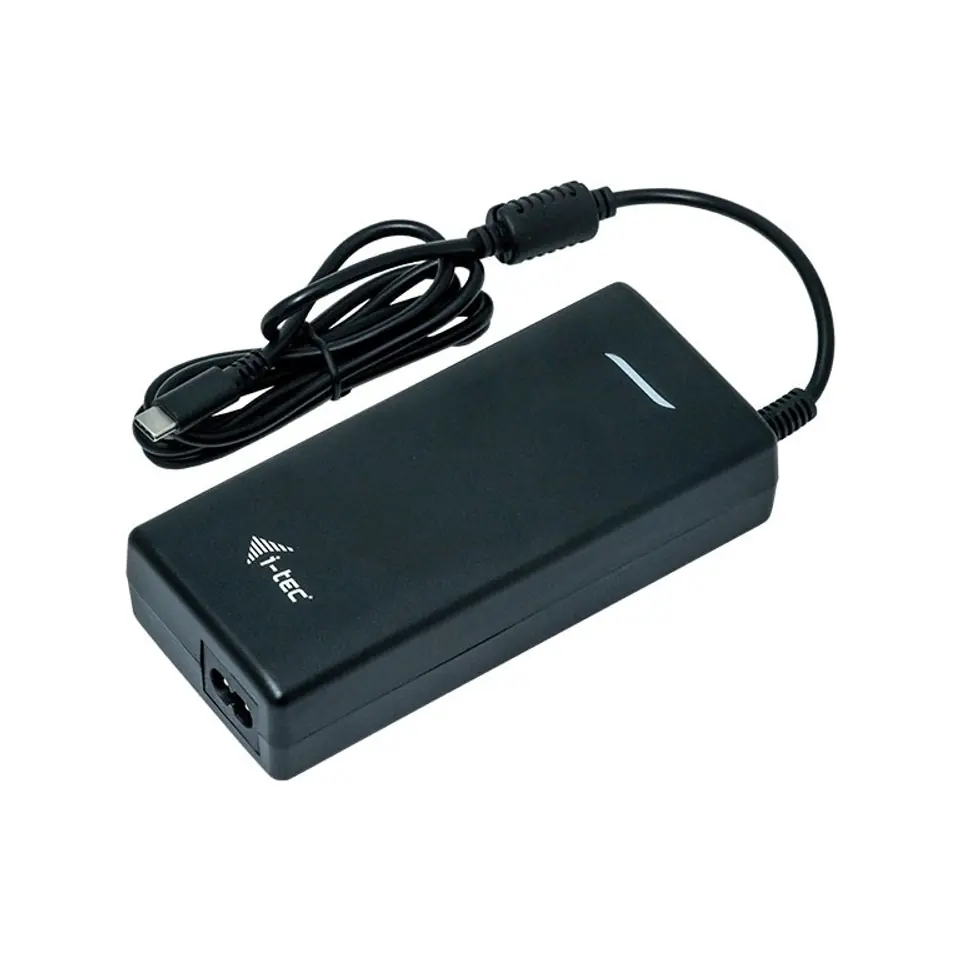

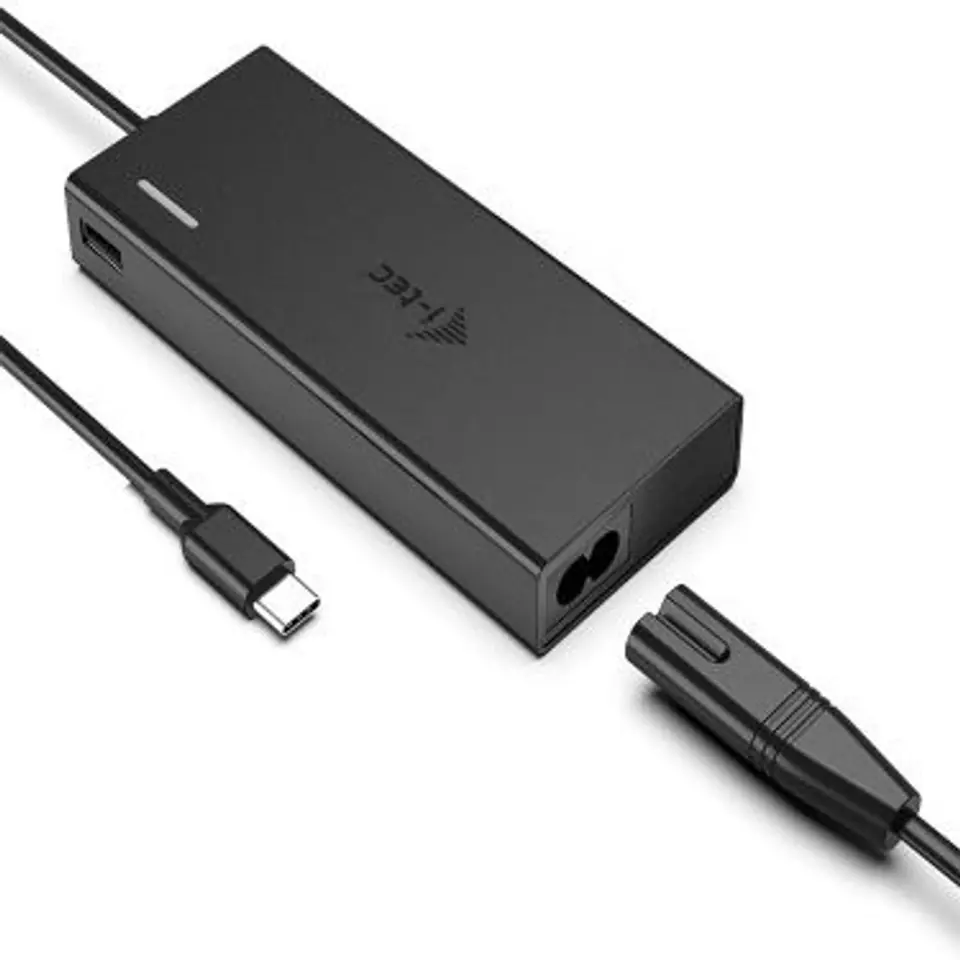

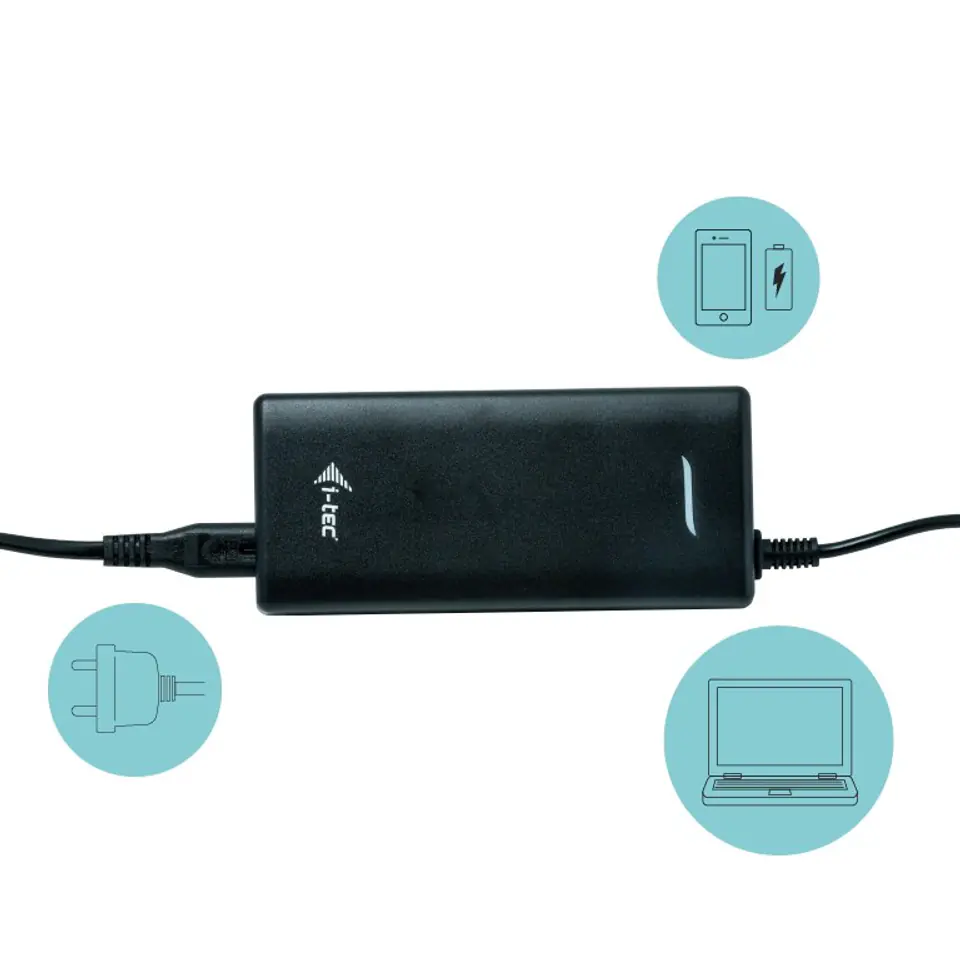

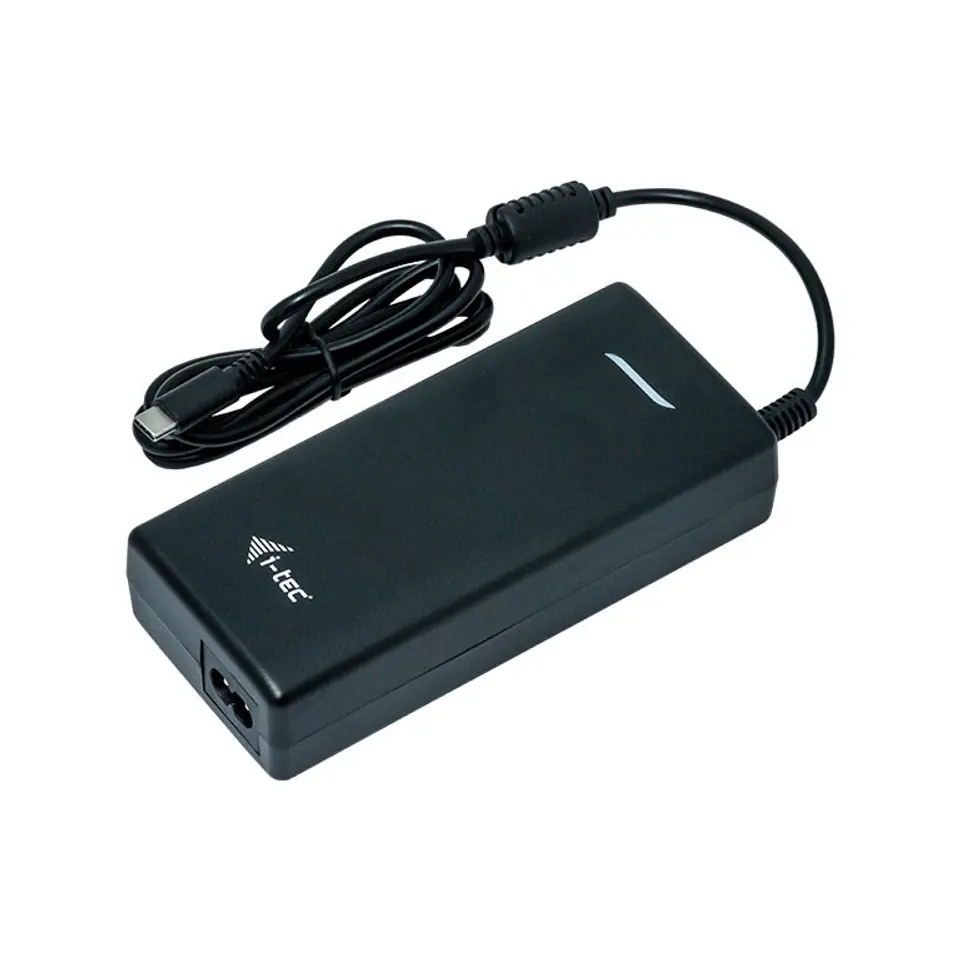

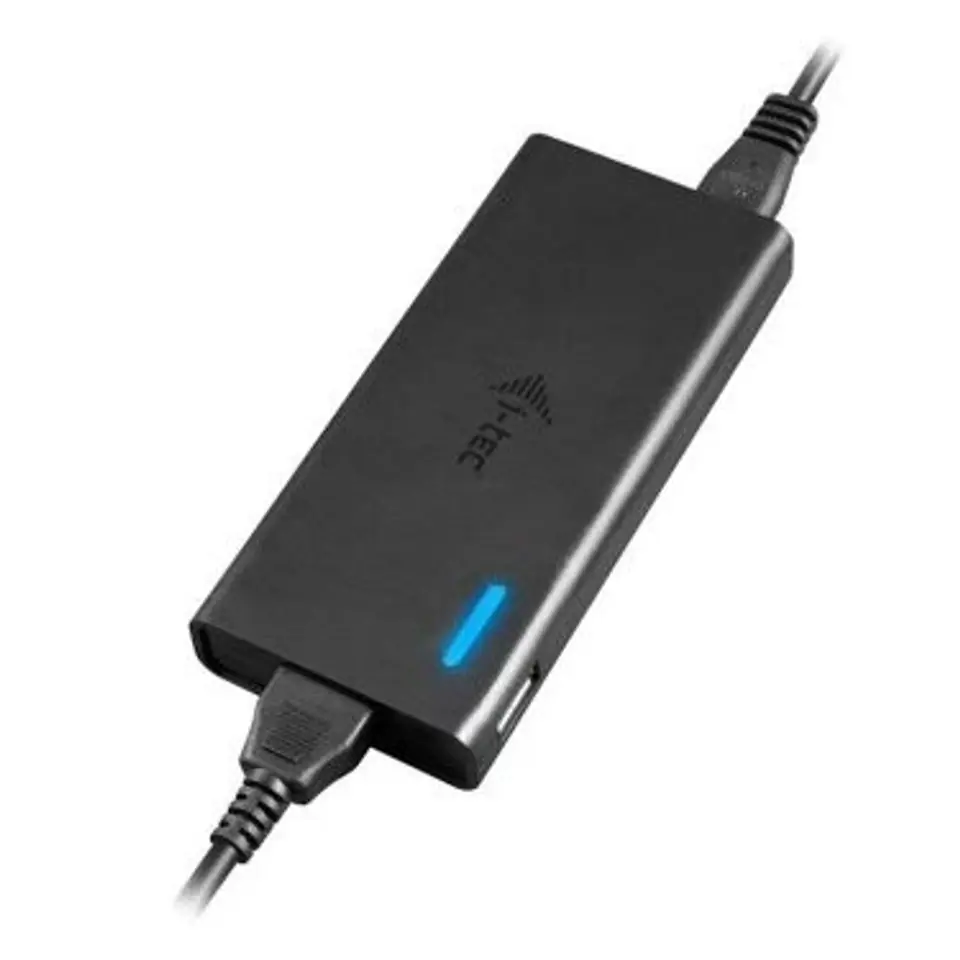

Universal 112W USB-C Power Adapter for laptops, tablets, smartphones and other devices equipped with a USB-C charging port

• Input voltage AC 100-240 V, 50-60 Hz, max. 2.3 A
• Output Power (Max): 112W
• Efficiency: more than 86%
• USB-C Output Voltage: DC 5V/9V/12V/15V/19V/20V
• USB-C output current: max. 5A
• USB-C output power (max): 100W
• USB-A output voltage: DC 5V
• USB-A output current: max. 2.4 A
• USB-A output power (max): 12W
• Protection against current overload, overvoltage, short circuit and overheating.
• Working Temperature: 0°C 40°C
• Relative humidity: 10% 100%

Hardware requirements:

• A device with a free USB-C or Thunderbolt 3 port
• To ensure a refresh rate higher than 60 Hz, a monitor that supports the appropriate refresh rate is required

Requirements for the energy supply function:

Device with a free USB-C or Thunderbolt 3 port with Power Delivery support

Video output requirements:

Slow device with Thunderbolt 3 or USB-C with DisplayPort Alternate Mode
