UPS Line-Interac 1000VA 4X230 IEC R/1000I/PS

This product is not available
Availability:
expected delivery
Brand:
Armac
Product code:
R/1000I/PSW / 5901969421361

Specification

Ac outlet types:IEC 320 C13
Ac outlets quantity:4 AC outlet(s)
Auto-restart:Yes
Automatic battery test:Yes
Automatic voltage regulation (avr):Yes
Battery capacity:9 Ah
Battery recharge time (90%):8 h
Battery technology:Maintenance Free, Lead Acid (AGM)
Battery voltage:12 V
Built-in display:LCD
Cold start:Yes
Depth:440 mm
Form factor:Rackmount
Height:450 mm
Input frequency:45 - 65 Hz
Input operation voltage (max):275 V
Input operation voltage (min):145 V
Noise level:45 dB
Number of batteries supported:2
Operating relative humidity (h-h):10 - 90%
Output frequency:50 Hz
Output operation voltage (max):220 V
Output operation voltage (min):240 V
Output power:700 W
Output power capacity:1000 kVA
Output voltage:230 V
Power protection features:Overvoltage protection, Over power
Product colour:Black
Response time:2 - 6 ms
Rj-11 ports quantity:1
Rj-45 ports quantity:1
Size (imperial):48.3 cm (19")
Ups topology:Line-Interactive
Usb cable included:N
Usb port:Yes
Waveform:Sine
Weight:16.5 kg
Width:88 mm

Armac Rack PSW series UPS R/1000I/PSW was designed for demanding users who want to safely maintain the work of electronic equipment within 19 Rack cabinet (and not only) that consumes a lot of energy in the event of a power outage.
Paused operation, failure of electronic devices can cause not only severe financial losses but also the loss of essential data. That is why it is worth investing in the UPS model R/1000I/PSW, which will prevent many unpleasant effects of potential overvoltage.

DEDICATED FOR 19 RACK SERVER CABINETS
The purpose of uninterruptible power supplies from the Rack PSW series is to ensure security of equipment in server, IT rooms, etc. Dedicated to 19 Rack server cabinets, the R/1000I/PSW model provides comprehensive protection against overvoltages, while regulating the voltage of the powered device and maintaining its operation in the event of a power outage.

WIDER FIELD OF APPLICATION
UPS R/1000I/PSW is a high-quality uninterruptible power supply with Line-interactive topology. The aspect that distinguishes this series of uninterruptible power supplies from the standard models in this group is the pure sine wave on the UPS output sockets. For the user, this means the broader possibility of using an emergency power supply to support the operation of equipment with an electric motor or heater, e.g., laser printers, scanners, garage and entry gates, electric blinds, central furnaces, etc.

EFFICIENT, FUNCTIONAL SOLUTION

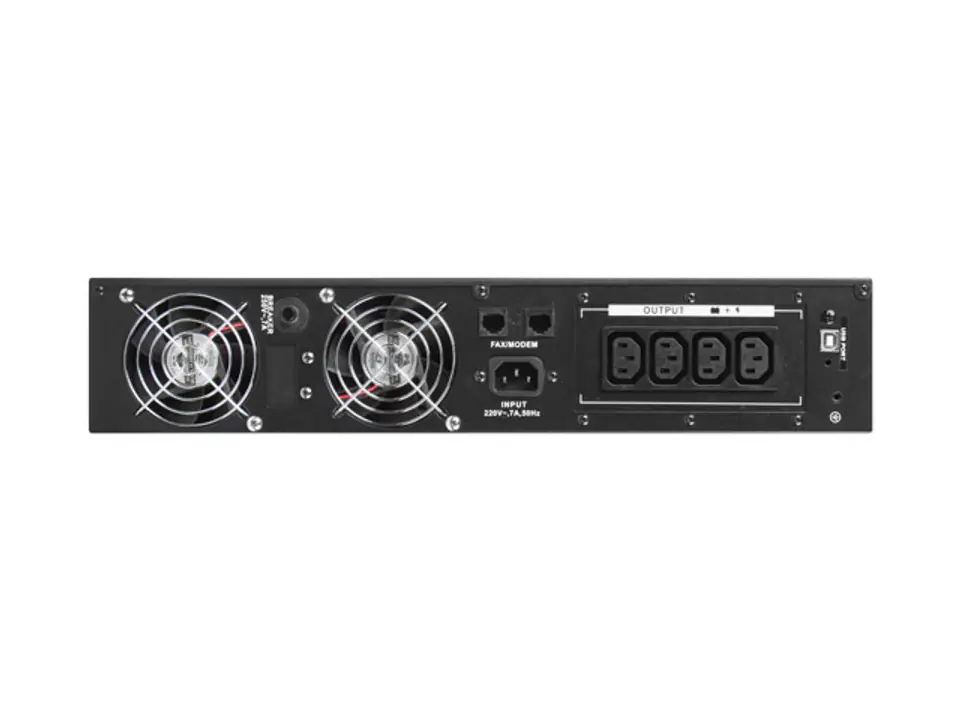

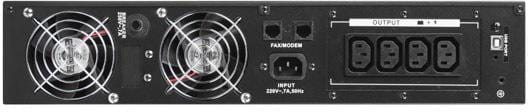

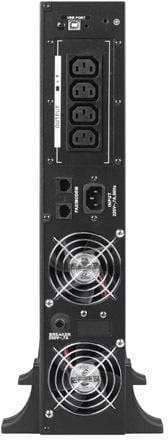

Uninterruptible power supply model R/1000I/PSW was created for the most demanding tasks within 19 Rack cabinets, such as supporting the work of workstations, servers or high energy consumption network/surveillance systems. The UPS can perform such hard work due to the use of more efficient 9Ah batteries, with a Power Factor of 0.7. What is more, this model has 4 IEC 320 C13 output sockets, with which it can protect several devices at once.

Due to the nature of its operation (Pure sine wave during battery operation), the UPS can be used with devices with an electric motor or heater, e.g., laser printers, scanners, garage and entry gates, electric roller blinds, central heating furnaces.

CONVENIENT OPERATION MONITORING SYSTEM
The Armac uninterruptible power supply communicates via the USB port. It allows you to connect the UPS to the PC and issue commands or monitor the operation of the device using PowerManager II software. It is a convenient and straightforward way to ensure proper protection for valuable equipment.

VARIOUS INSTALLATION POSSIBILITIES AND HELPFUL ASSEMBLY ACCESSORIES INCLUDED

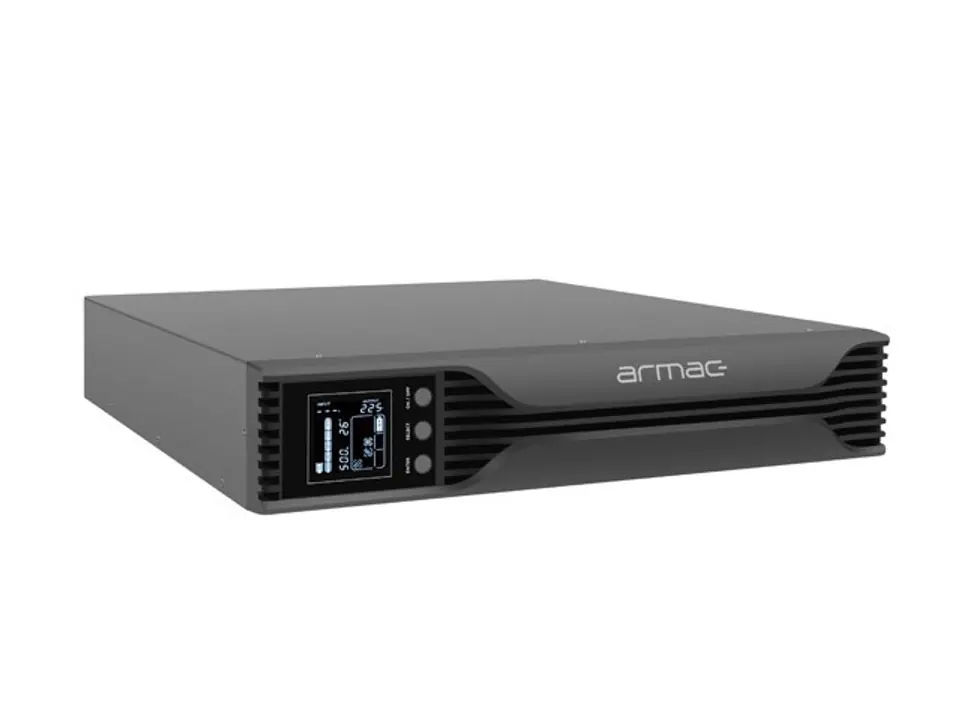

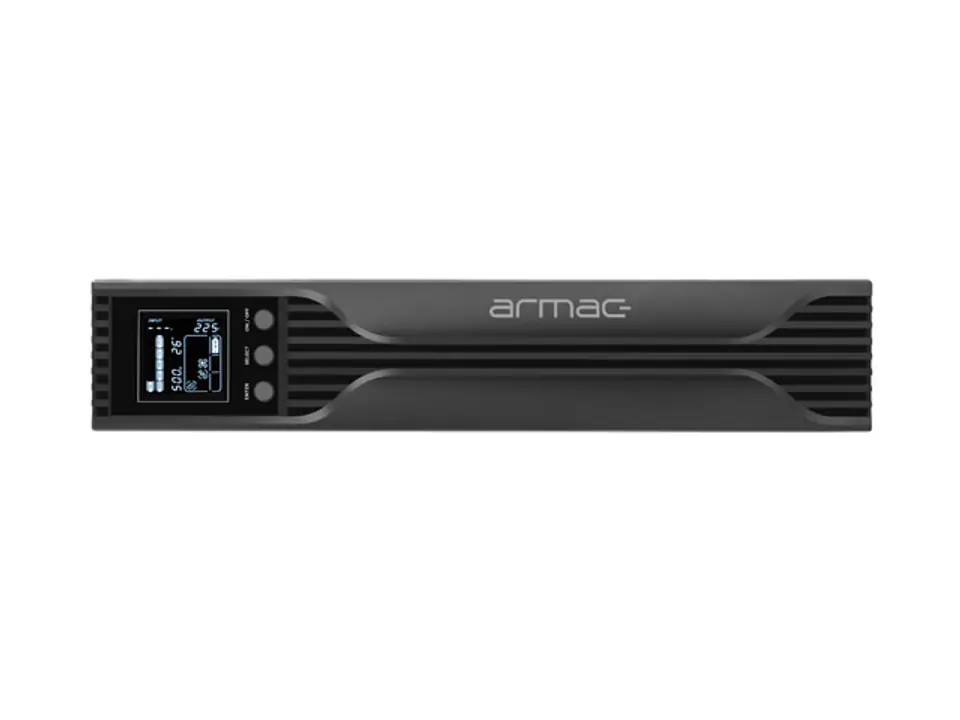

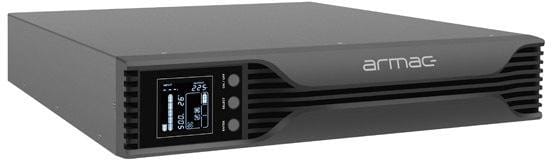

The device can be mounted inside a 19 rack cabinet in two ways: using just the mounting ears (included with the product) or with the help of additional Armac mounting rail set R/0019, recommended installation option due to the better stability and security of Battery Pack.

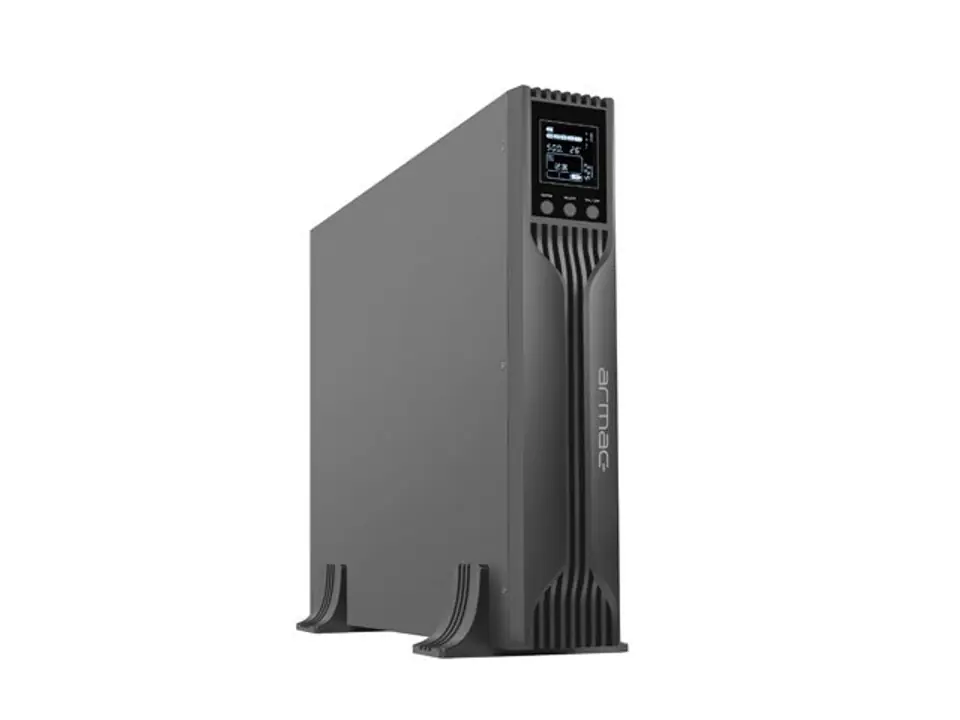

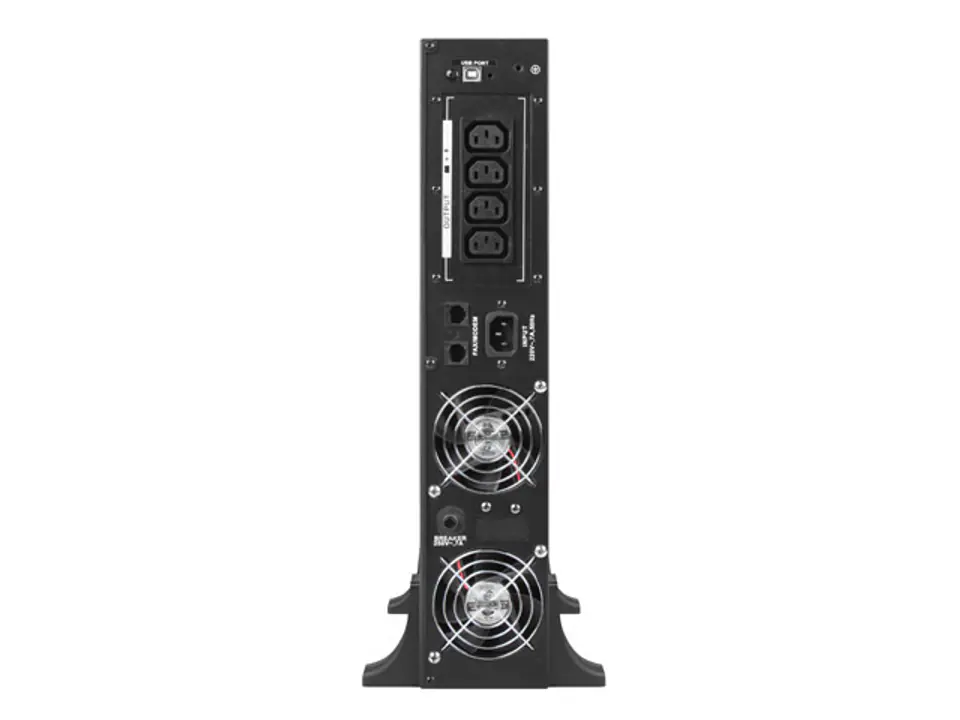

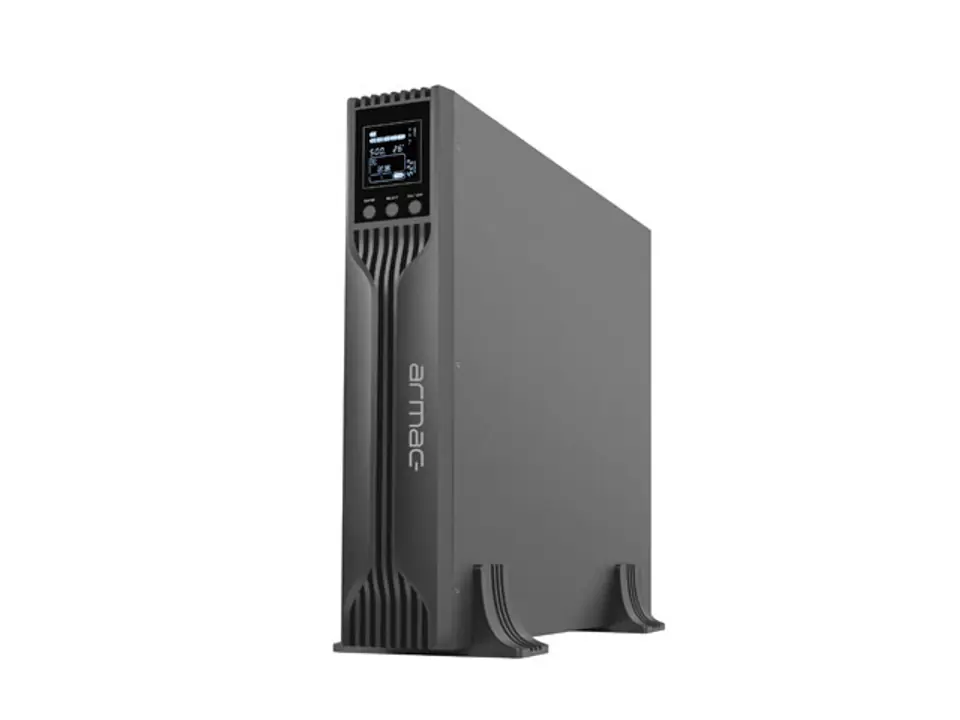

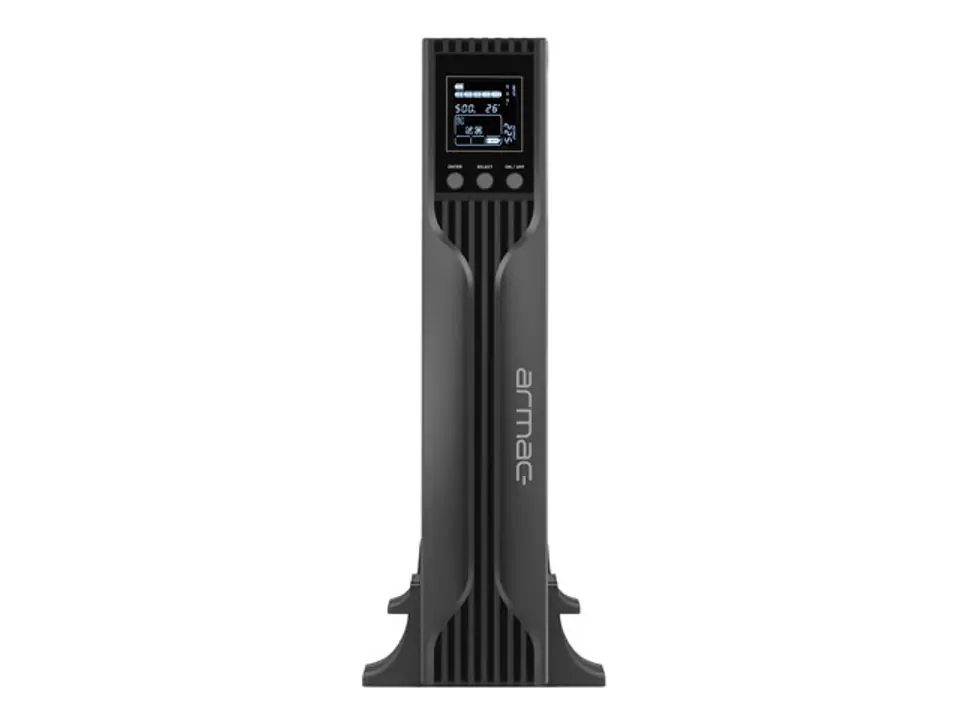

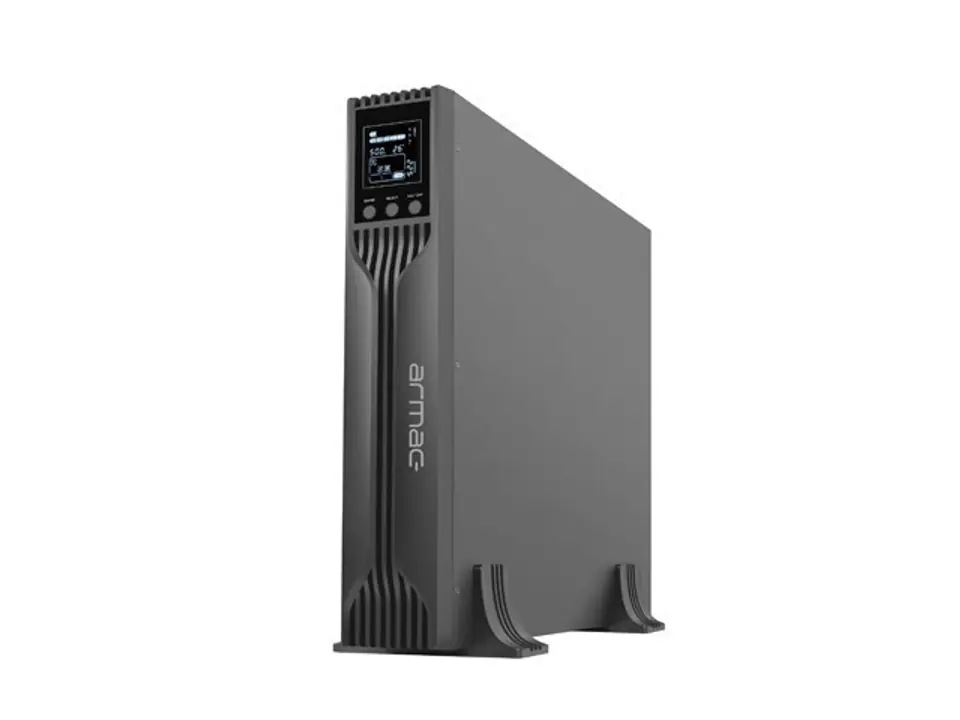

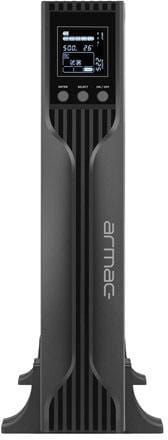

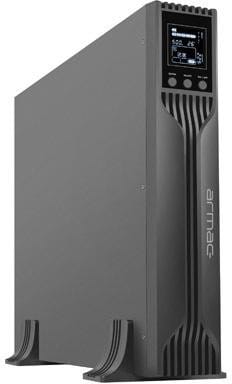

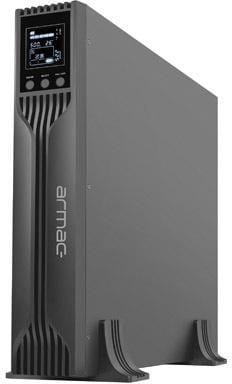

Also included with the UPS are unique stands, allowing the device to be installed vertically, outside the Rack cabinet.

In the box, apart from mounting ears for 19 Rack cabinets, you can also find a supply of M6 screws and cage nuts. Both products are made of a metal alloy that guarantees their reliability. There is no question of bent accessories that instead of helping, e.g., hinder the installation within the server cabinet.

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
