Specifications:
Article no.: 01 06 160
EAN: 4003773040729
Pliers: chrome plated
Head: chrome plated
handles: with multi-component caps, insulated according to VDE
Weight: 220 g
Dimensions: 160 x 55 x 20 mm
Standard: DIN ISO 5746 DIN EN 60900 IEC 60900
Cutting range of hard wire (diameter): 2.0 mm
Piano wire cutting range (diameter): 1.5mm
Cutting range of copper, multicore cable: 10.0 mm
Cutting range of copper, multicore cable: 16.0 mm2
isolated according to VDE: yes
For heavy loads
Gripping surfaces for flat and round materials, versatile in use
With blades for cutting soft, hard and very hard (piano) wire
Long blades allow you to cut thick wires
Blades separately induction hardened, blade hardness approx. 64 HRC
Extremely wear-resistant jaws, jaw hardness approx. 53 HRC
High strength chrome-vanadium steel, forged, repeatedly oil-hardened
**
Illustrative photos.

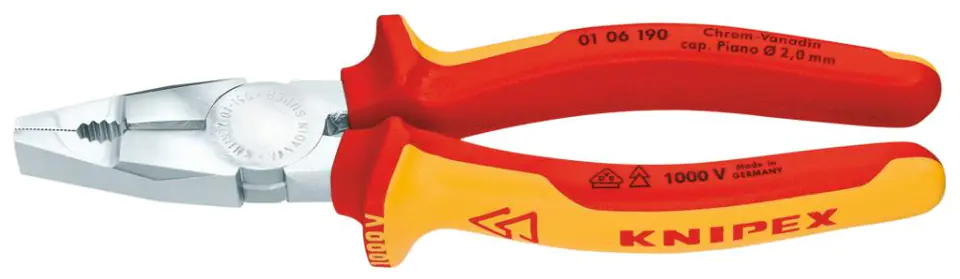

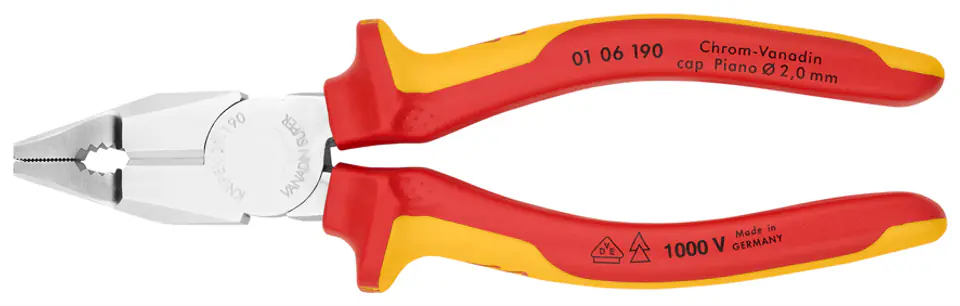

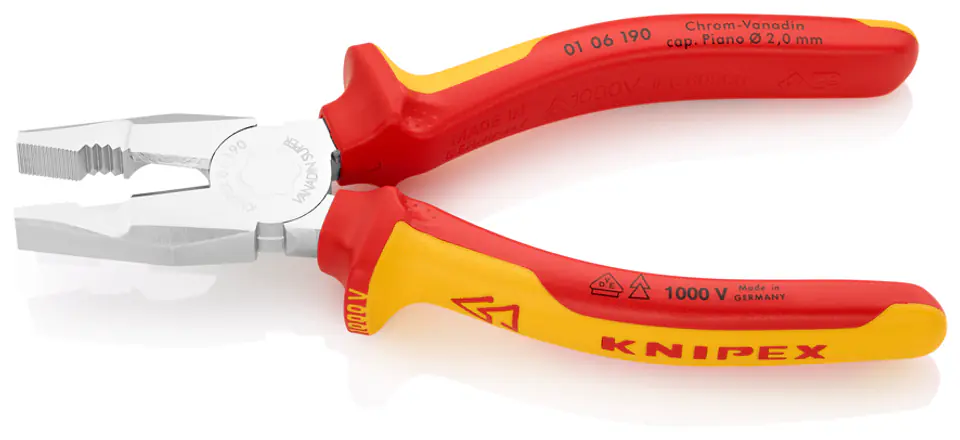

UNIVERSAL PLIERS VDE 1000V 190MM
PLN 171.16
Shipping from warehouse: U1
Estimated shipping: Mon, May 20 - Thu, May 23
14 days returnUnconditional return policy
- Availability:
- large quantity
- Brand:
- KNIPEX
- Product code:
- 8251550190 / 4003773040415
Share this product:
Specification
| Cutting parameters, ø of hard wire: | 2.5 mm |
|---|---|
| Cutting parameters, ø of piano wire: | 2.0 mm |
