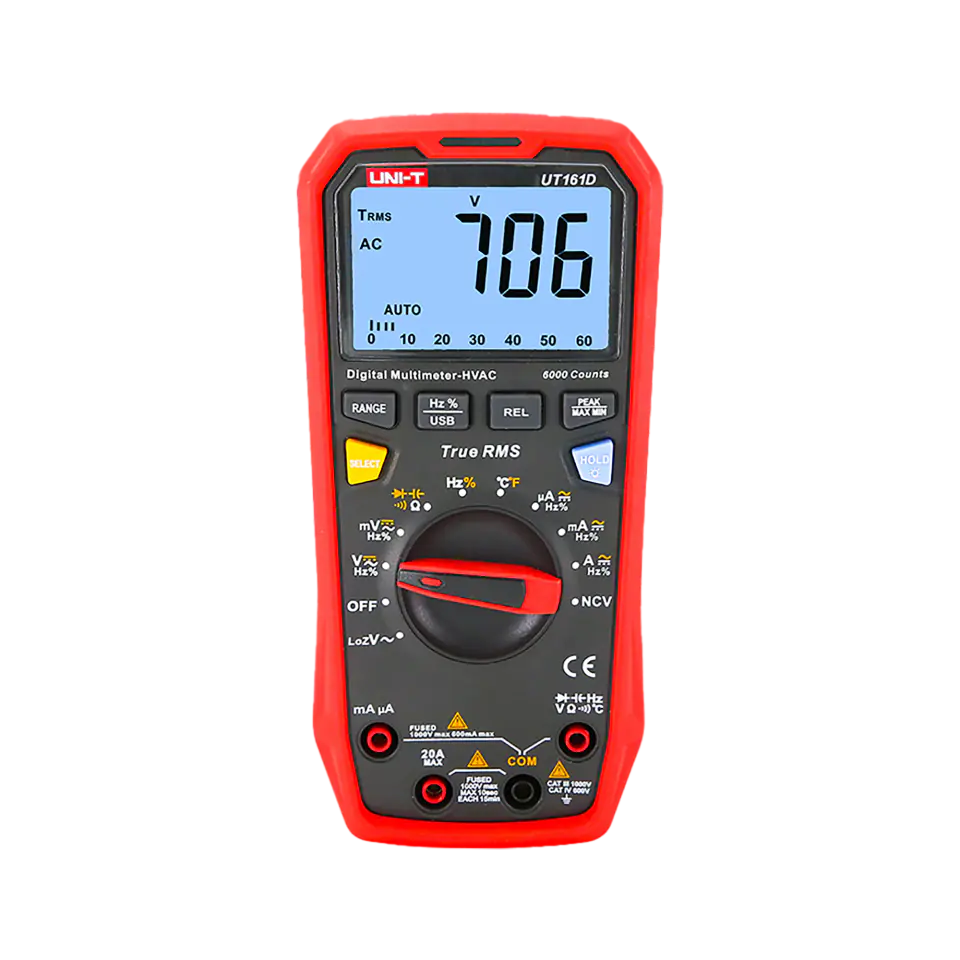

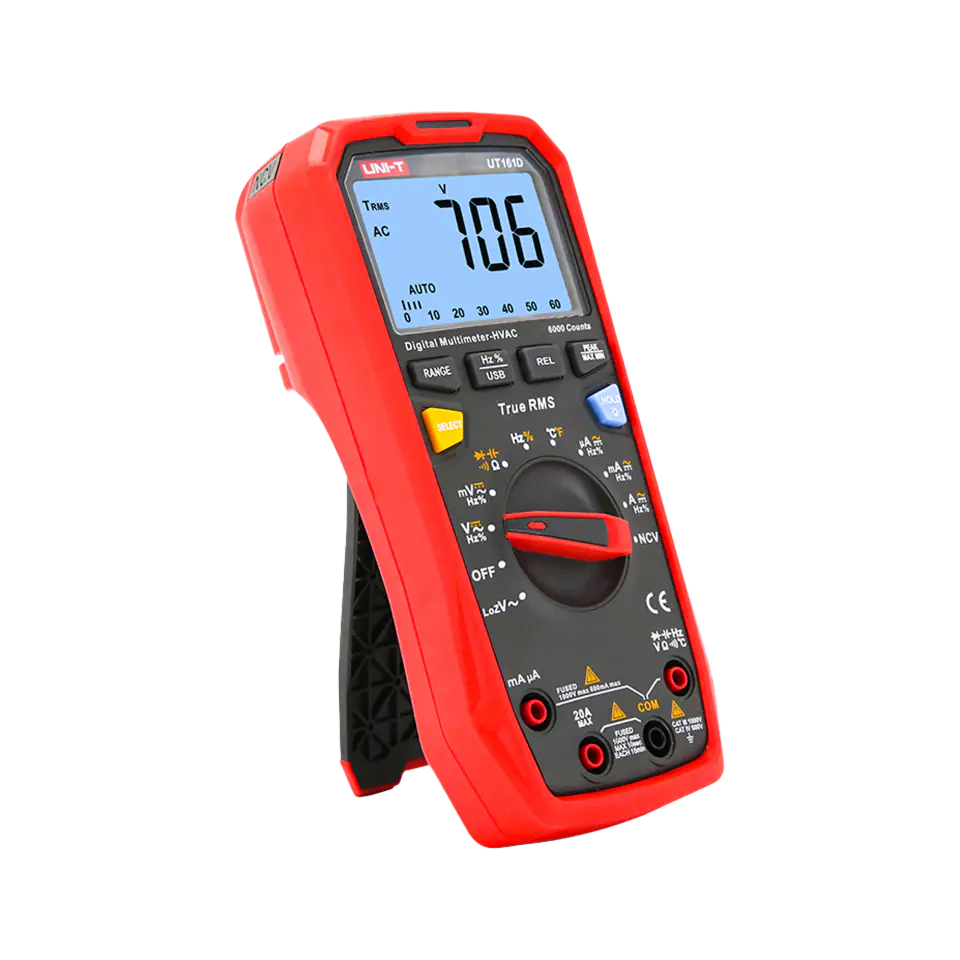

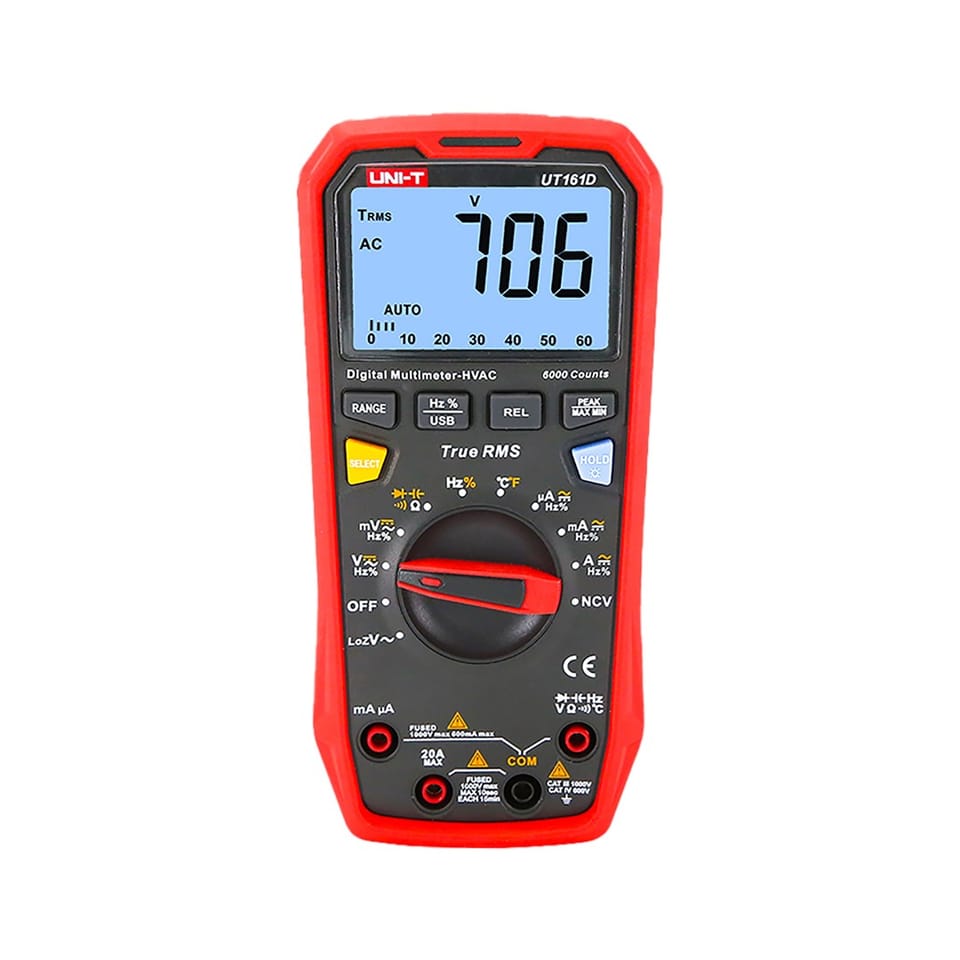

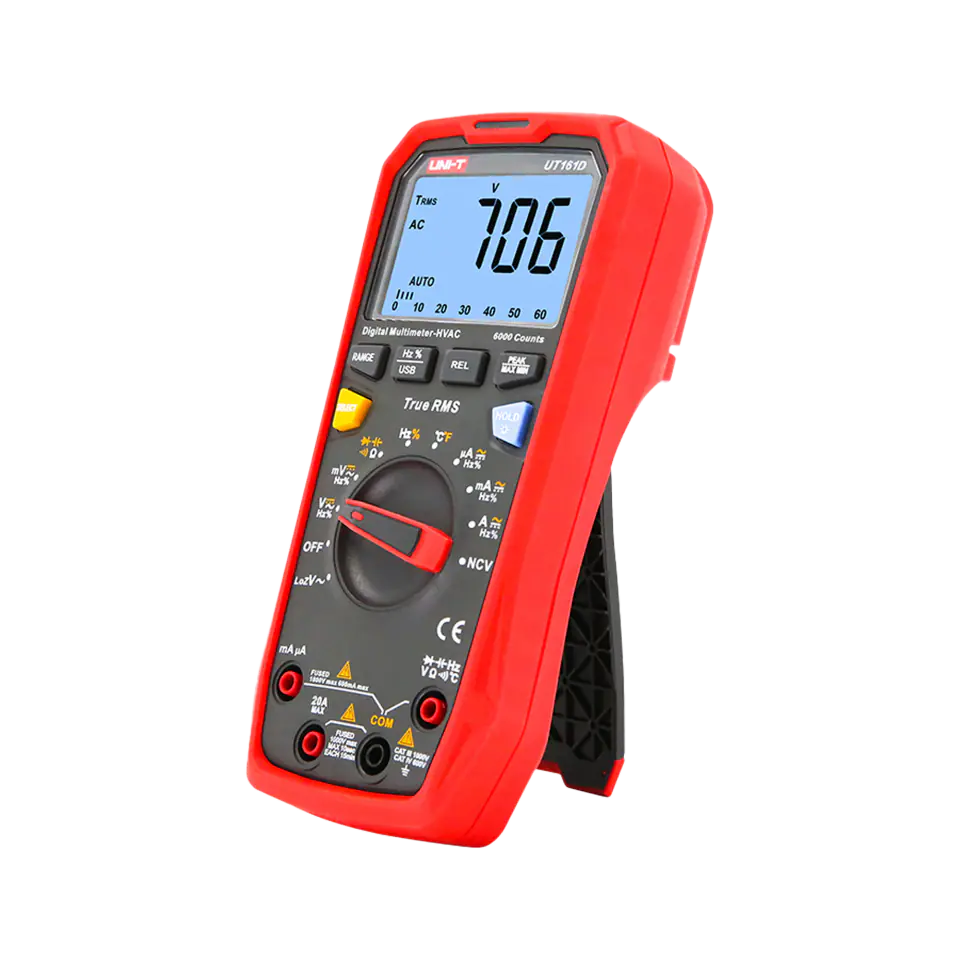

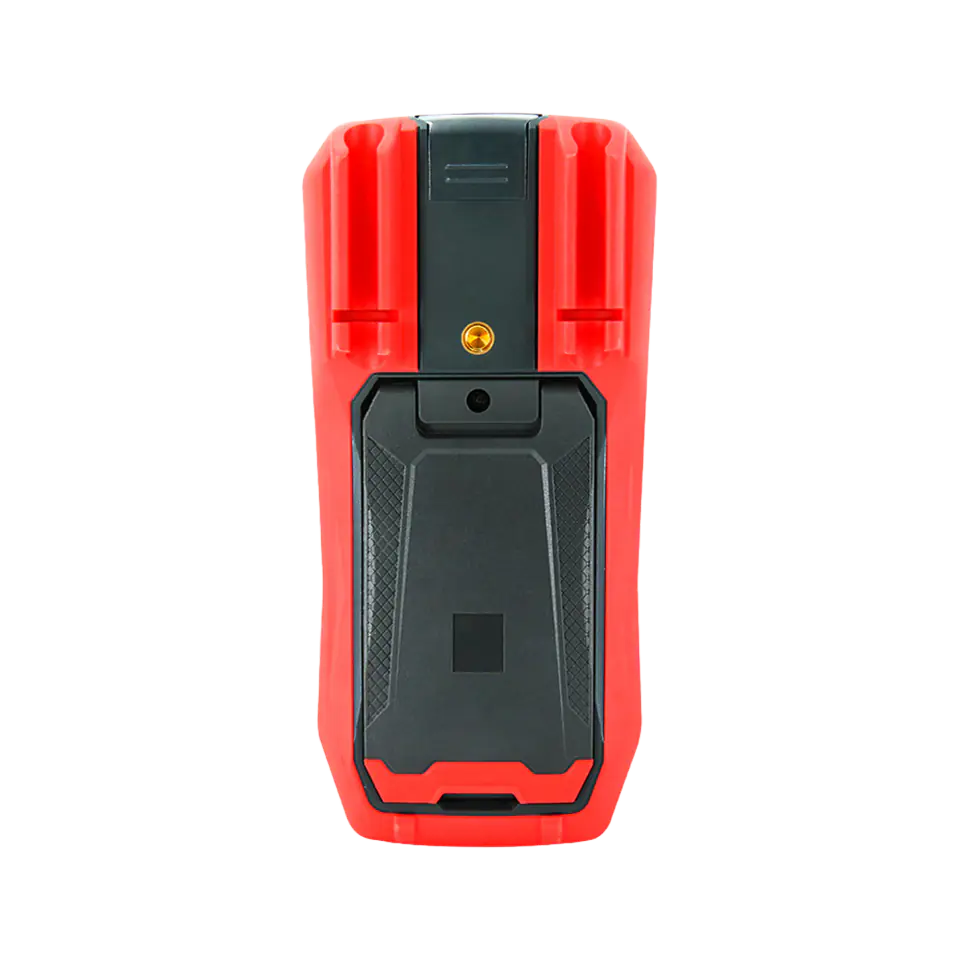

Universal meter UT161D

This product is not available
Availability:
expected delivery
Brand:
Uni-T
Product code:
MIE0433 / 5901890065054

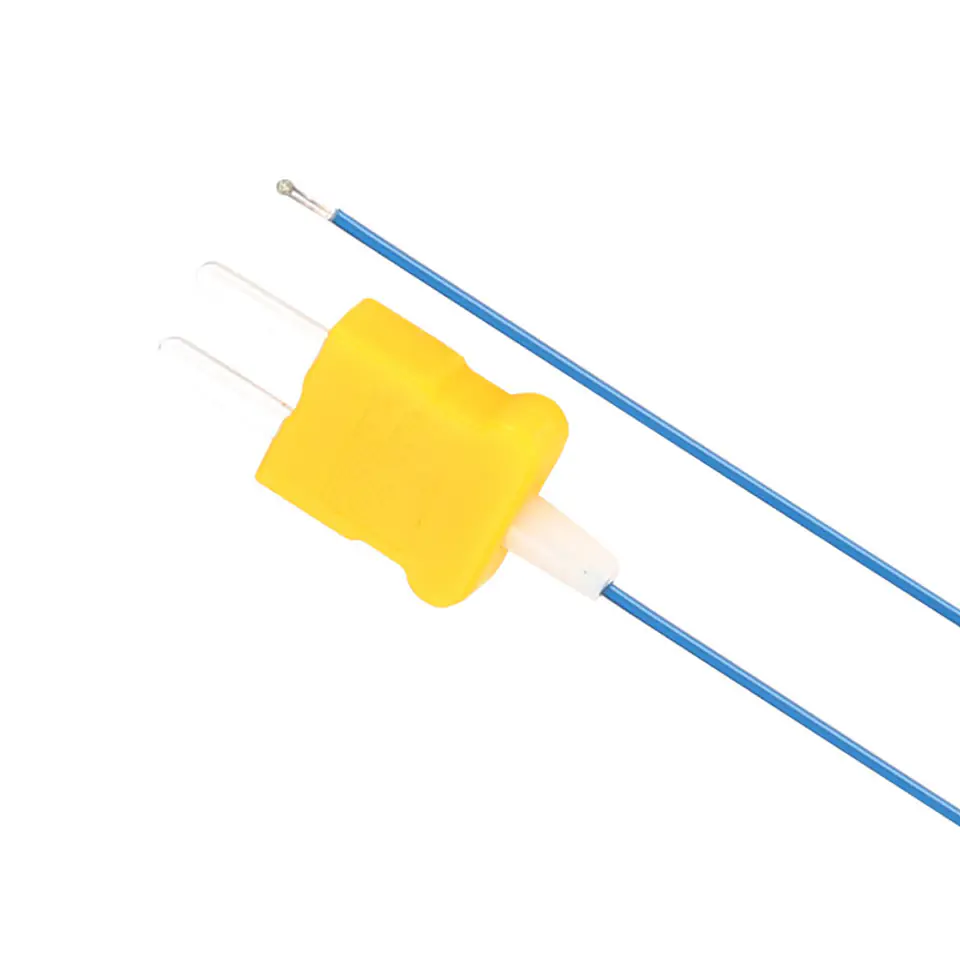

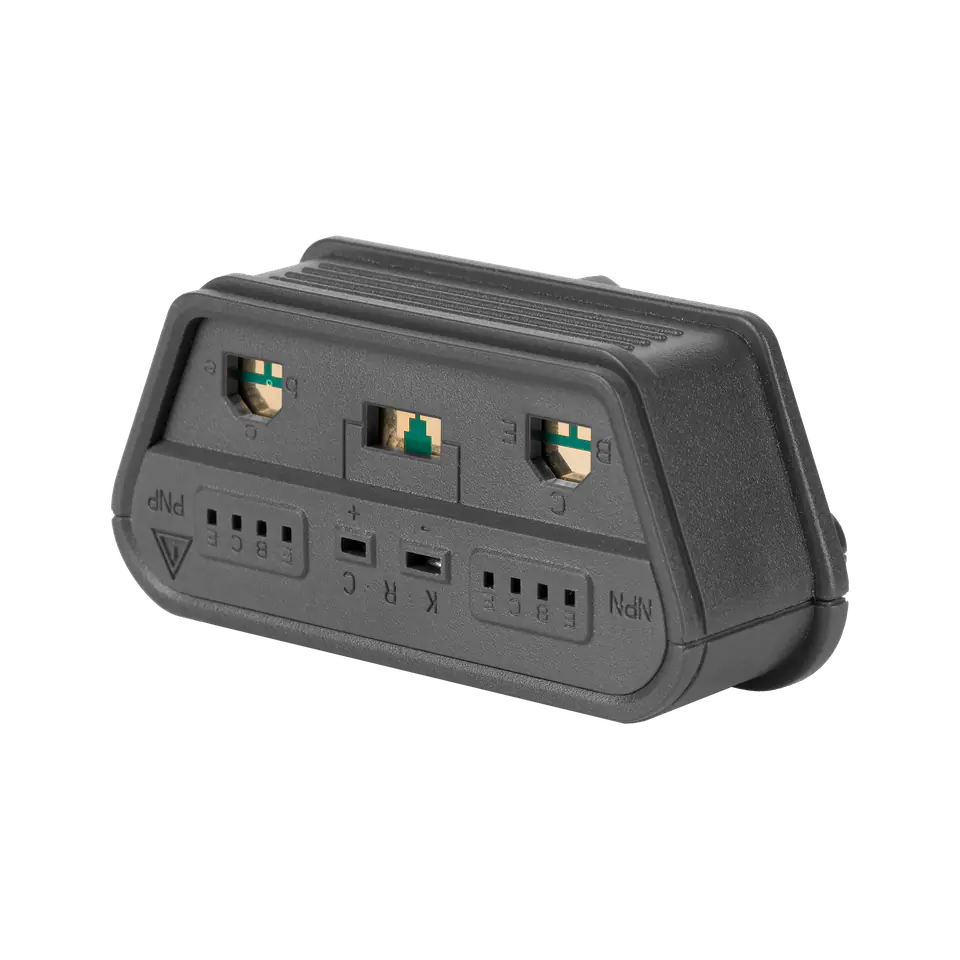

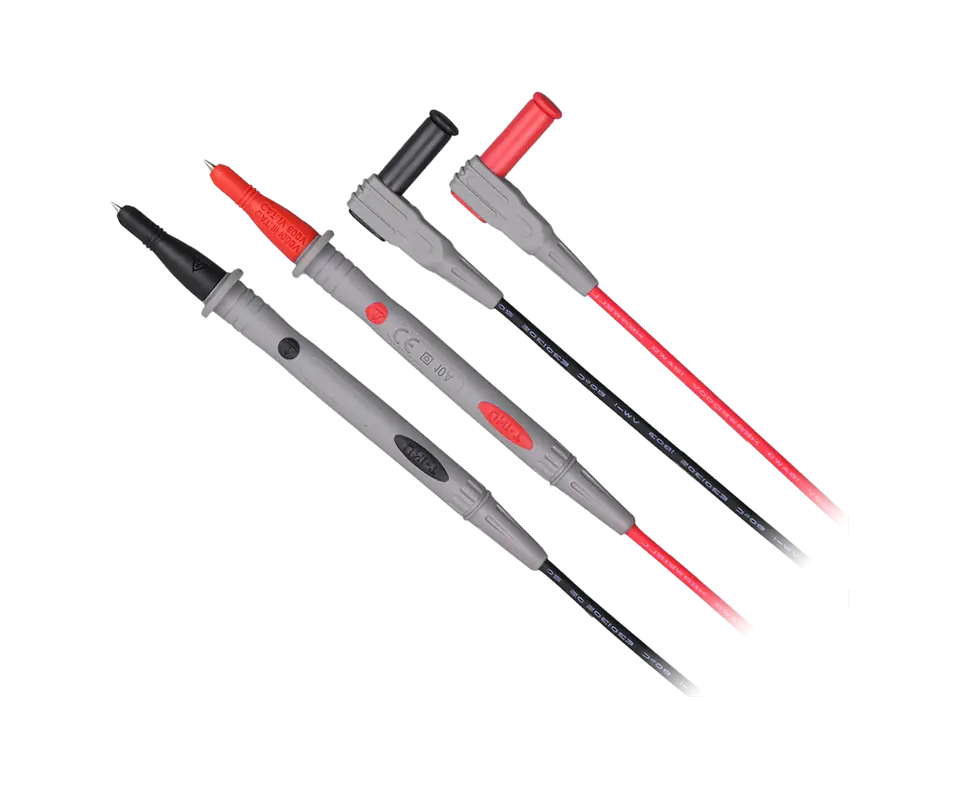

MEASURING RANGEDC CONSTANT VOLTAGE: 1000 V ? (0,5%+3) AC voltage: 1000 V ? (1%+3) DC current: 20 A ? (1%+2) AC: 20 A ? (1,2%+5) Resistance: 60 MOhm ? (1%+2) Capacity: 60 mF ? (3%+5) Frequency: 10MHz ? (0,1%+4) Temperature: -40°C ~ 1000°C ? (1%+3), -40°F ~ 1832°F ? (1%+6) Fill Factor: 0.1%~99.9% ? (2%+5) Diode TestVerage ContinuityADDITIONAL FUNCTIONSAutomatic Change of Measurement RangesMeasurement True RMSEmeasurement of Electrical Field StrengthLow-Pass FilterFreeze of Last IndicationSave Peak ValuesDateration ModeNotification of MAX/MIN/peak ValuesCanlog Bargraph: 31 SegmentsAutomatic ShutdownMaximum Reading: 6000CECHES GENERALPower: 4x 1.5V (R03) Battery Dimensions: 190 x 90 x 50 mmProduct Weight: 350 gAccessories: batteries, test leads, USB cable, probe temperature measurement, attachment
