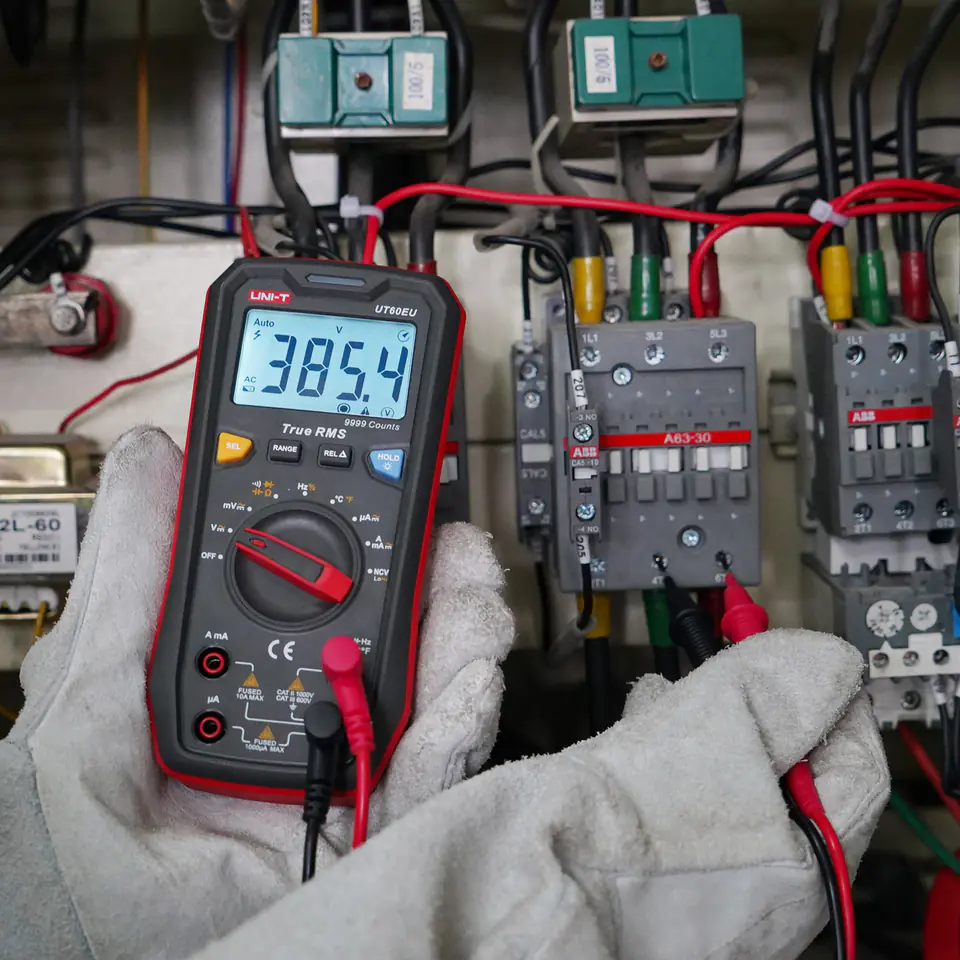

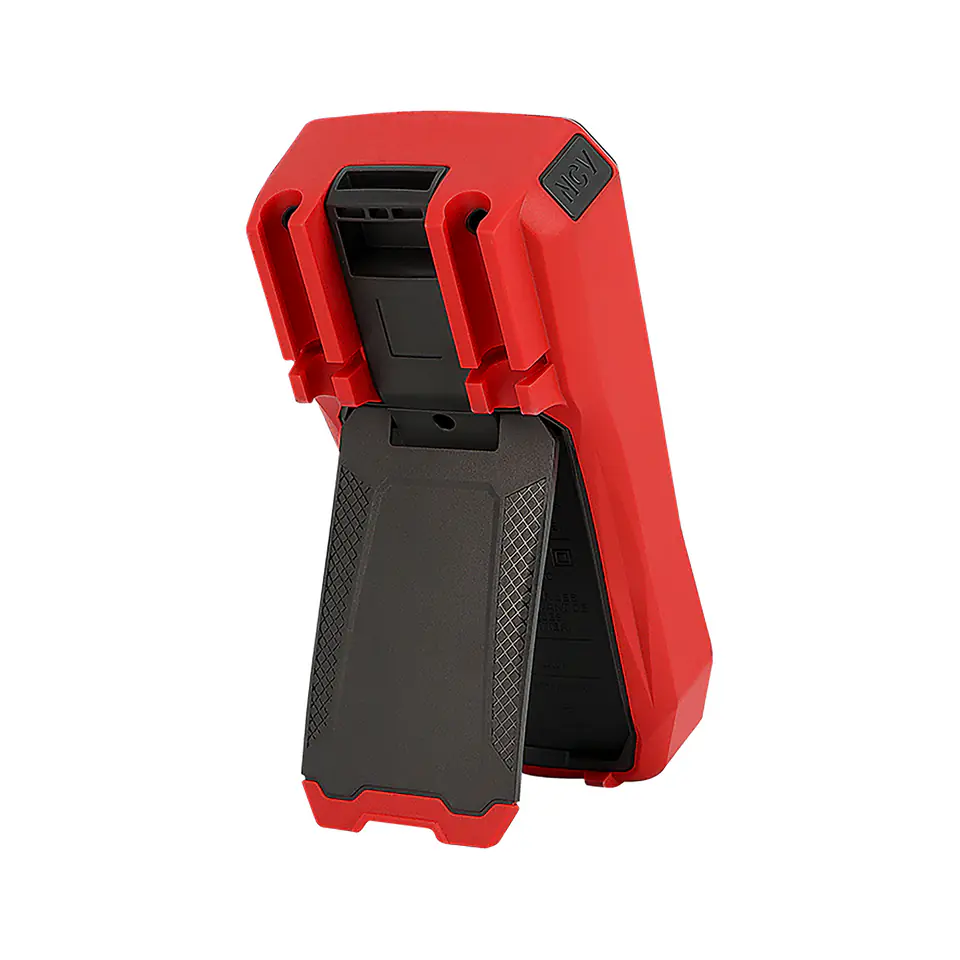

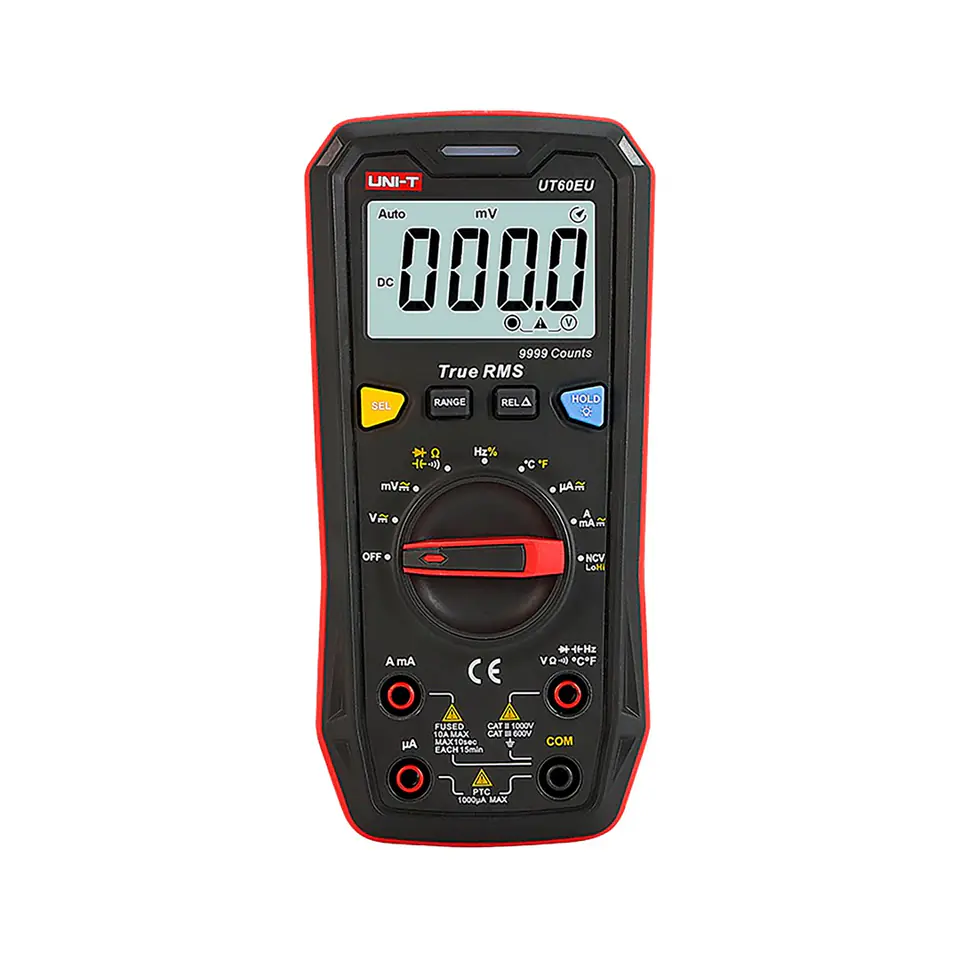

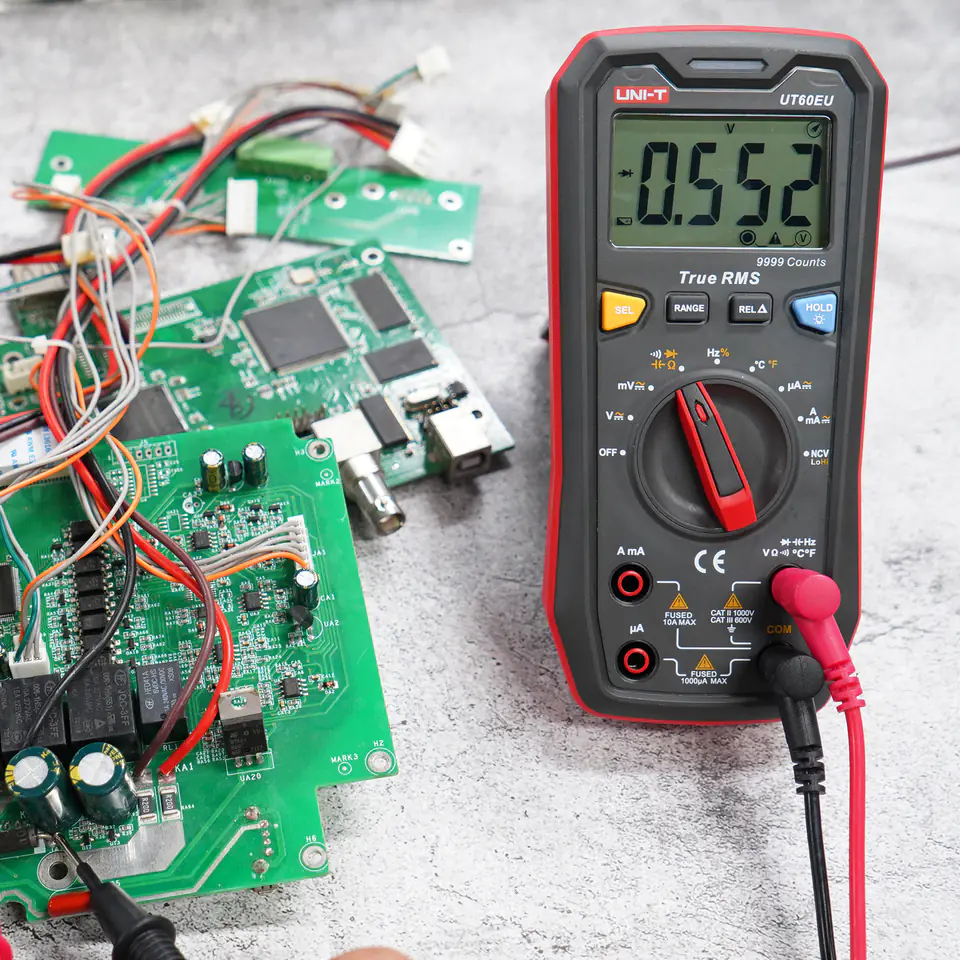

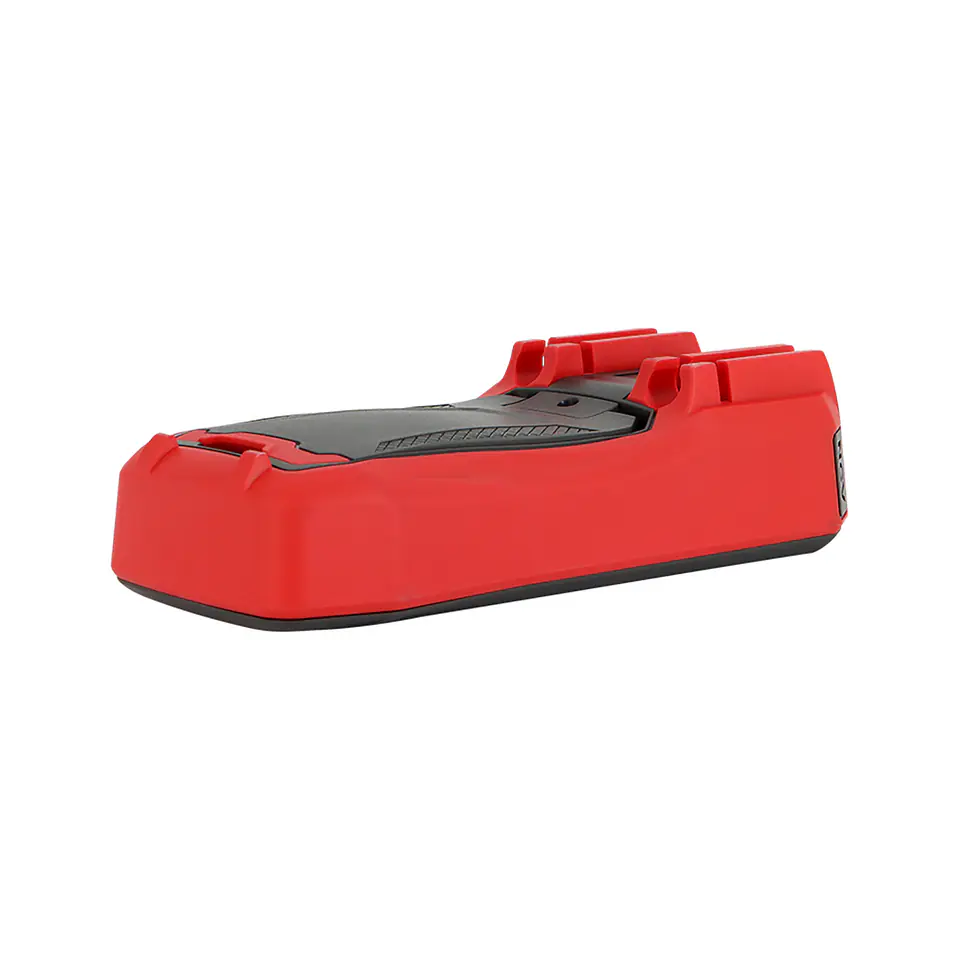

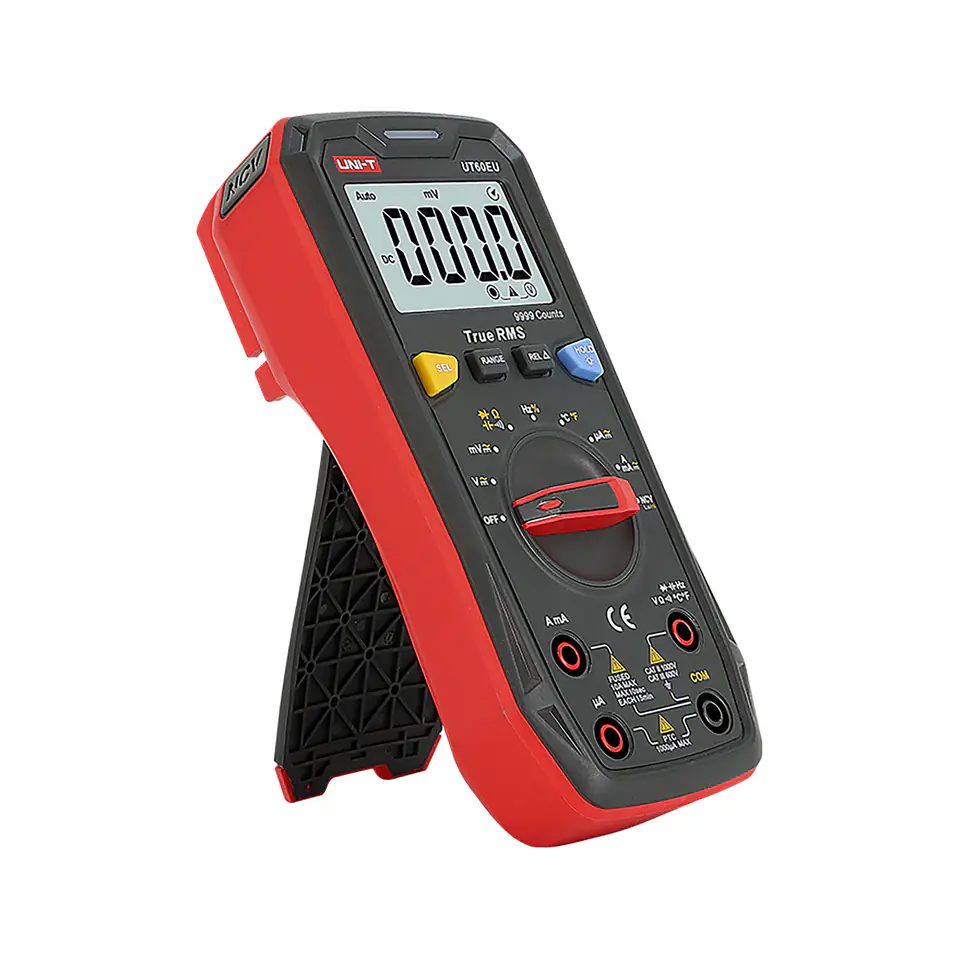

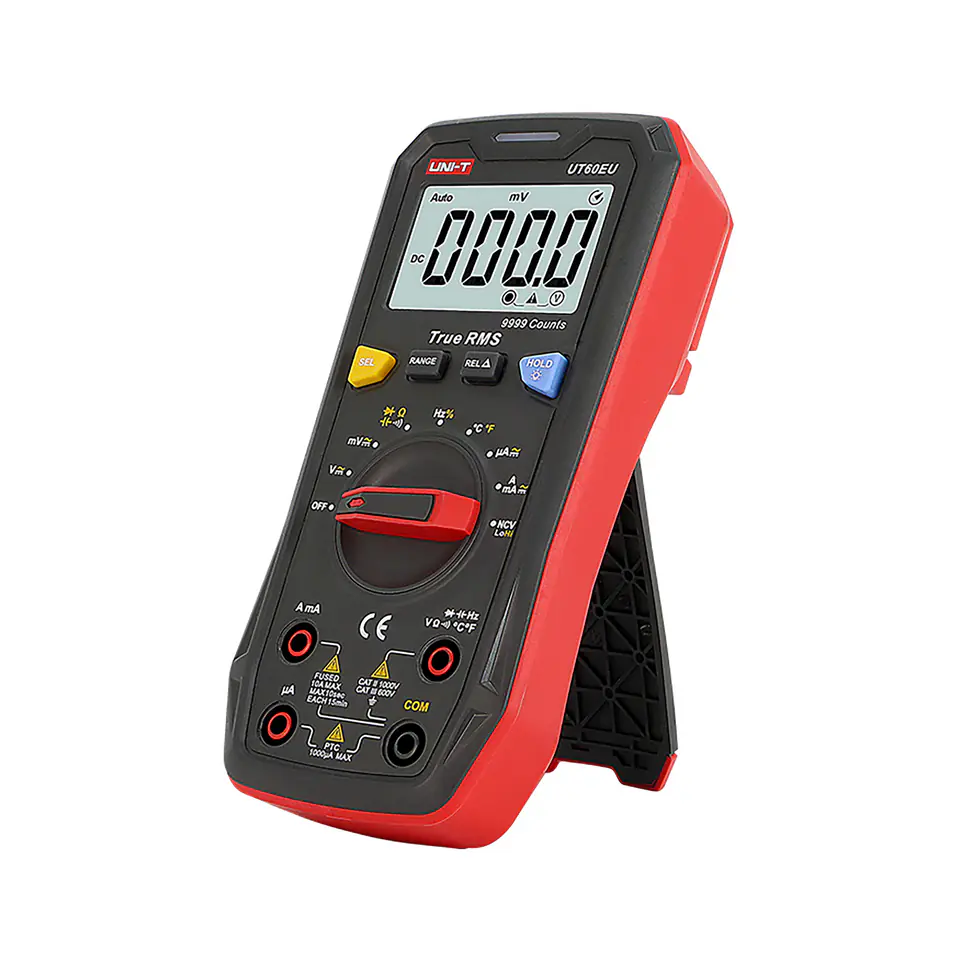

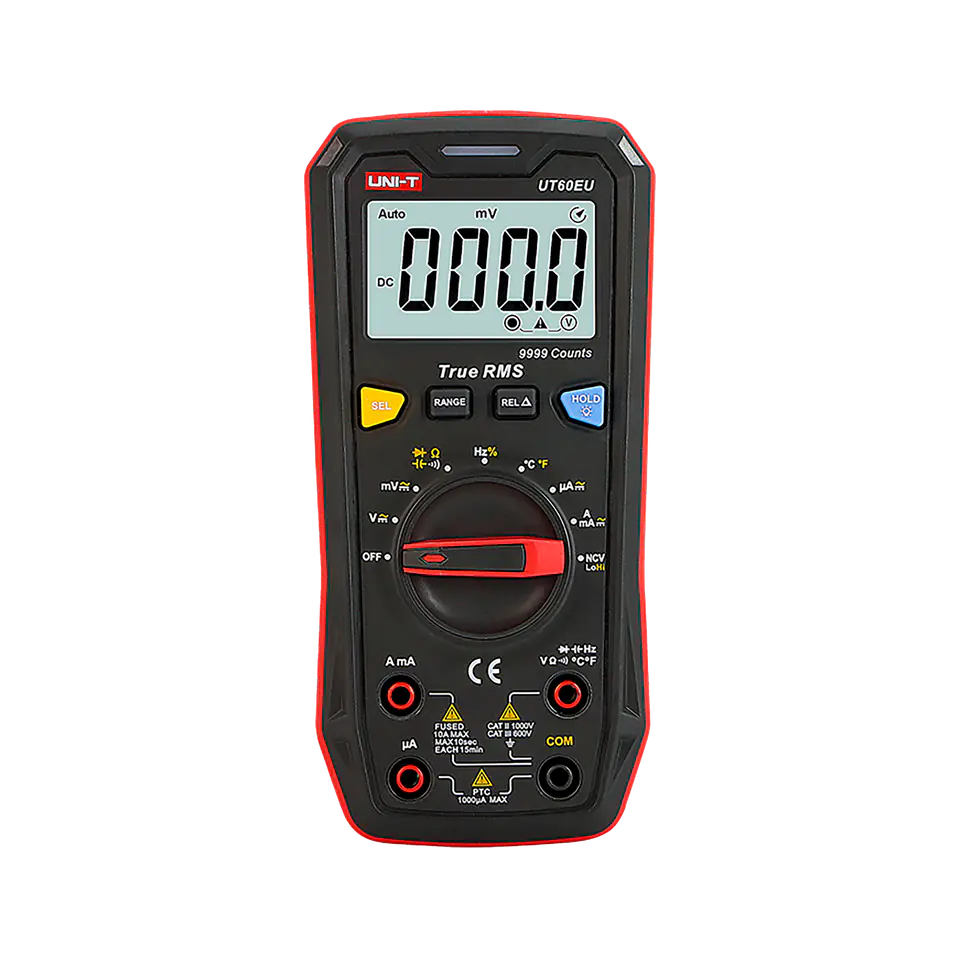

Universal meter Uni-T UT60EU

€38.51
Shipping from warehouse: ⁨L1⁩
Estimated shipping: Mon, May 13
14 days returnUnconditional return policy
Availability:
large quantity
Brand:
UNI-T
Product code:
MIE0440 / 5901890074643

-----------
MEASURING RANGES:
----------

DC voltage: 9.999 mV/99.99 mV/999.9 mV/9.999 V/99.99 V/999.9 V ±(0.5%+3)
AC voltage: 9.999 mV/99.99 mV/999.9 mV/9.999 V/99.99 V/999.9 V ±(0.8%+3)
DC current: 999.9 uA/999.9 mA/9.999 A/10 A ±(1%+2)
AC: 999.9 uA/999.9 mA/9.999 A/10 A ±(1%+3)
Resistance: 999.9 Ohm/9.999 kOhm/99.99 kOhm/999.9 kOhm/9.999 MOhm/99.99 MOhm ±(0,8+2)
Capacity: 9.999 nF/99.99 nF/999.9 nF/9.999 uF/99.99 uF/999.9 uF/9.999 mF ±(4%+5)
Frequency: 99.99 Hz~9.999 MHz ±(0.1%+5)
Fill Factor: 0.1%~99.9% ±(3%+5)

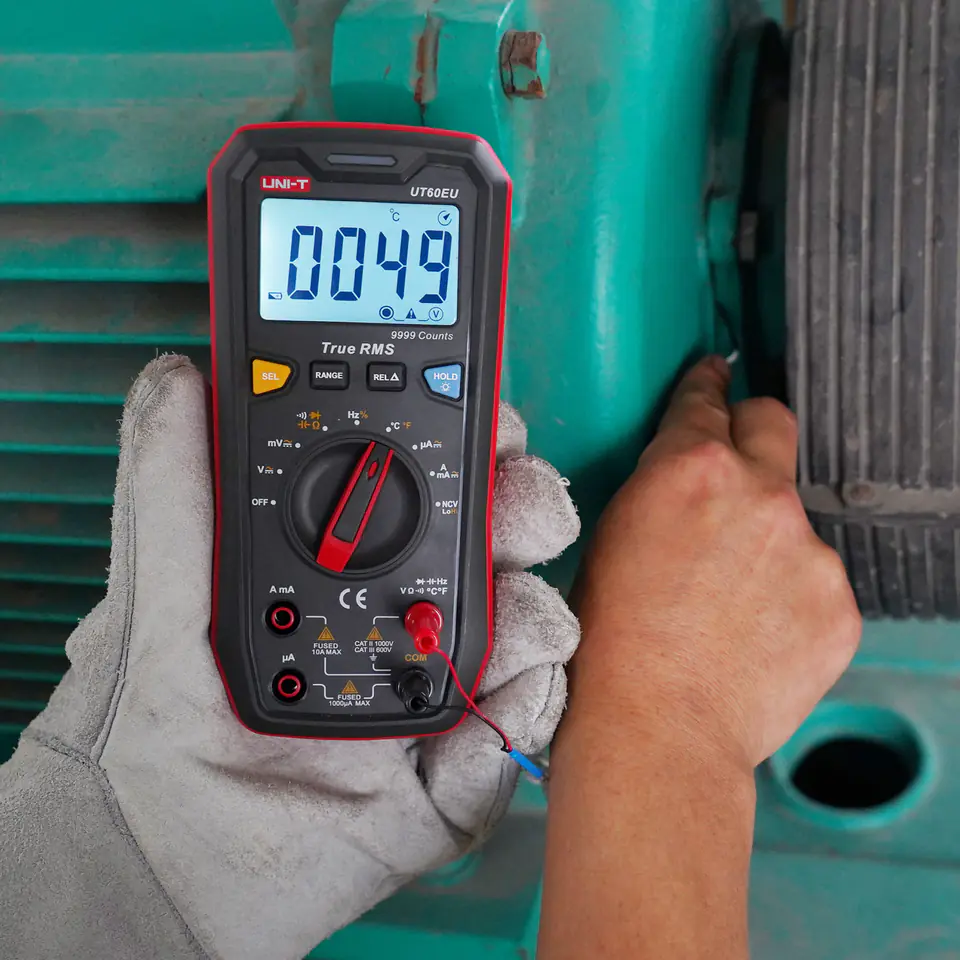

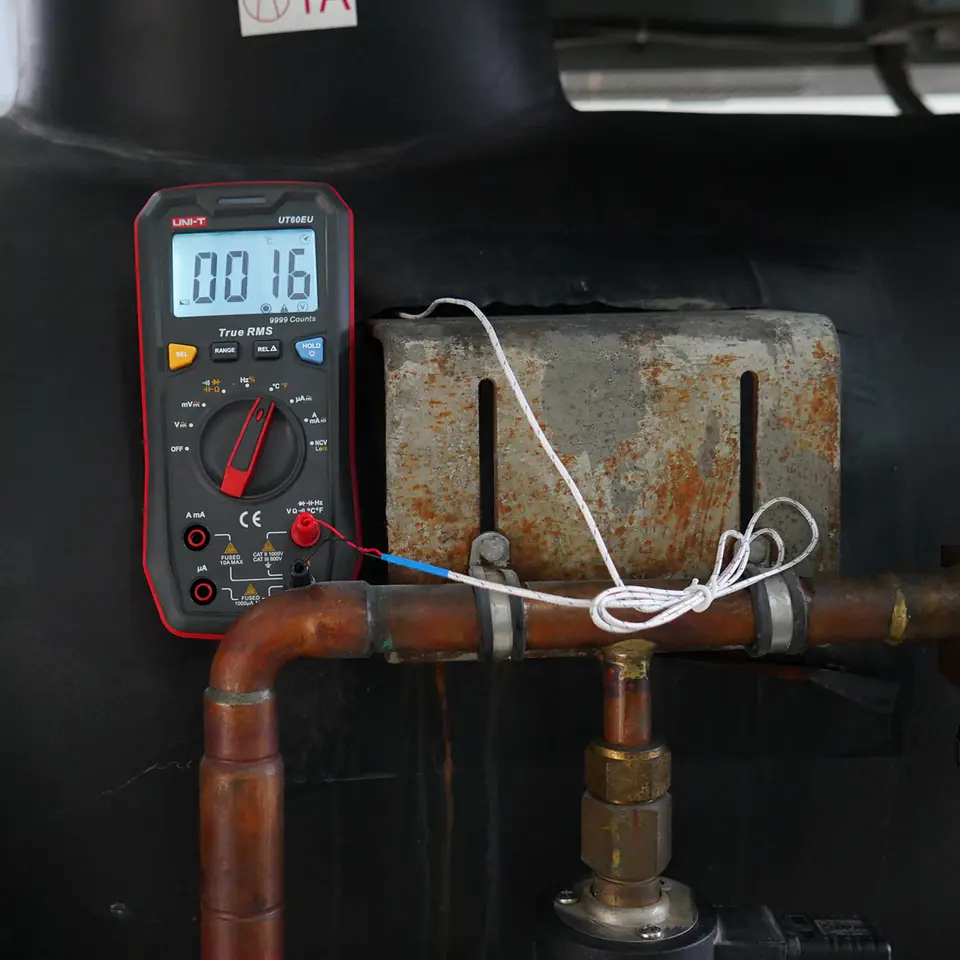

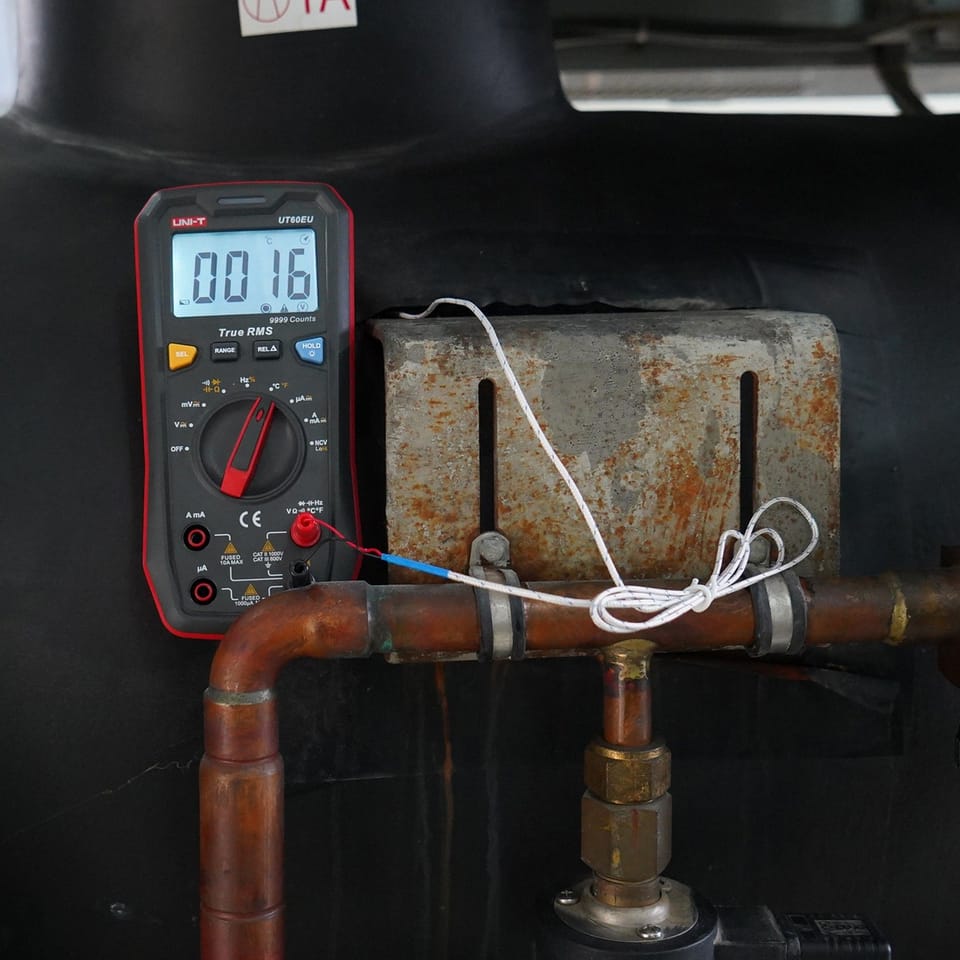

Temperature: -40°C~1000°C ±4°C
Measurement of the hFE of transistors
Diode test
Checking the continuity of the circuit
-----------
ADDITIONAL FEATURES:
-----------

NCV (Electric Field Detection Function)
Automatic change of measuring ranges
True RMS
REL mode: reset reading
Freezing of the last indication
Backlighting the display
Record of maximum/minimum value
Auto Power Off
Low battery indicator
-----------
GENERAL FEATURES:
-----------

Power supply: 3x 1.5V AAA battery
Product dimensions: 186 x 89 x 49 mm
Weight: 400 g
-----------
WORKING ENVIRONMENT:
-----------

Operating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -10°C~ 50°C (14°F~122°F)
Relative Humidity: 0°C ~ 30°C =<75%, 30°C ~ 40°C = <50%
Working height: 0~2000 m

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
