Universal gripper insert AMF

This product is not available
Availability:
expected delivery
Brand:
AMF
Product code:
538181 / 4020772538187

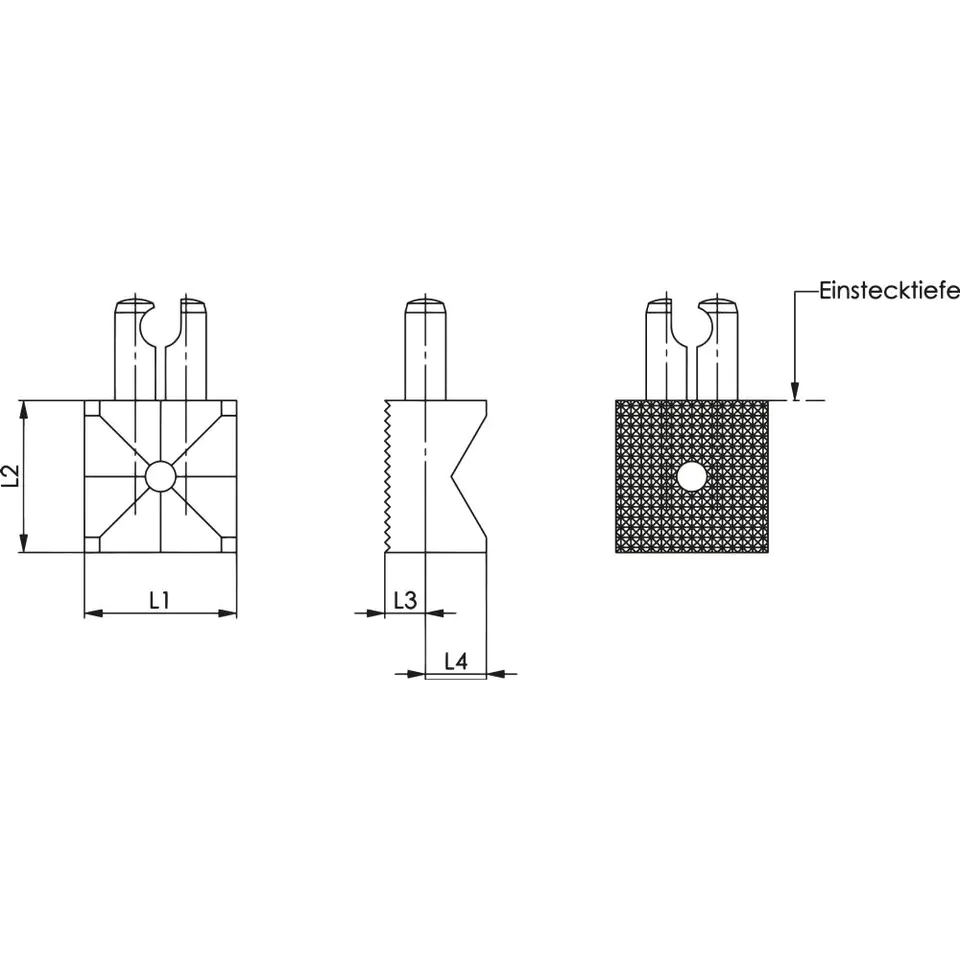

Specification

A*:0-54 mm
L1:50 mm
L2:30 mm
L3:10 mm
L4:9 mm
No:538181
Ød*:-Mm
Scales:220 g

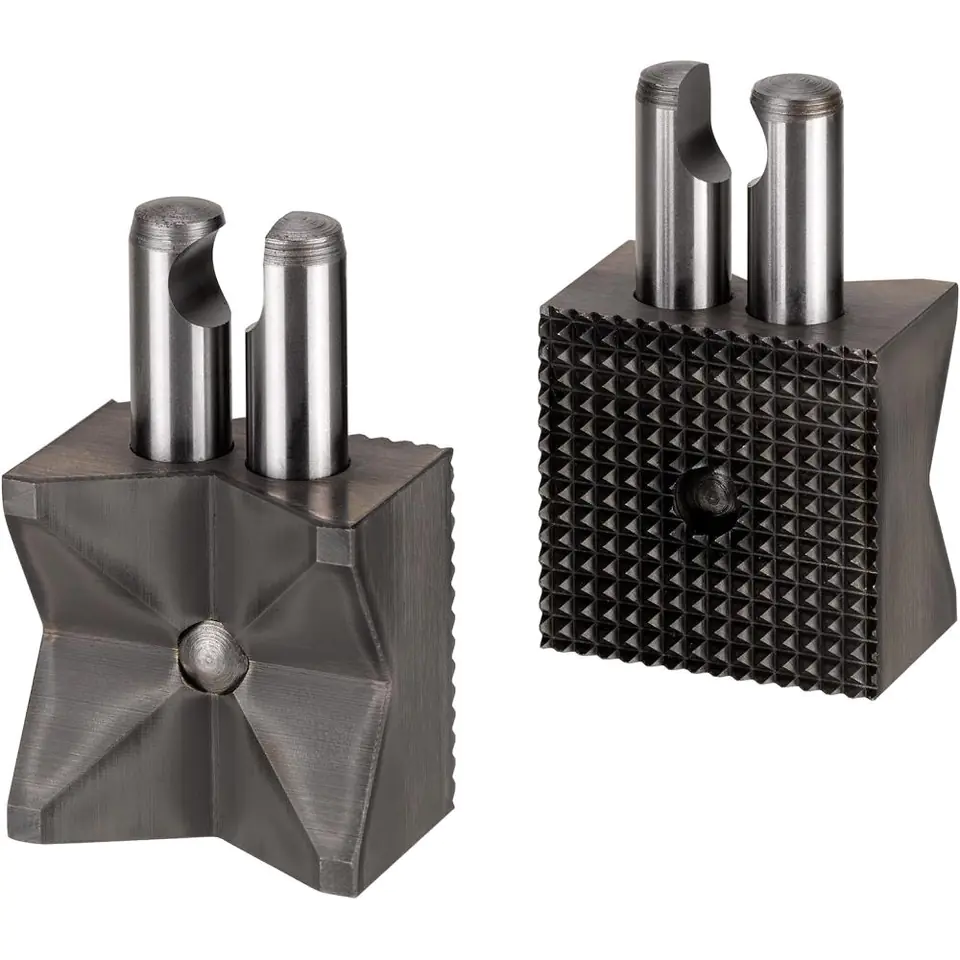

Gripper insert

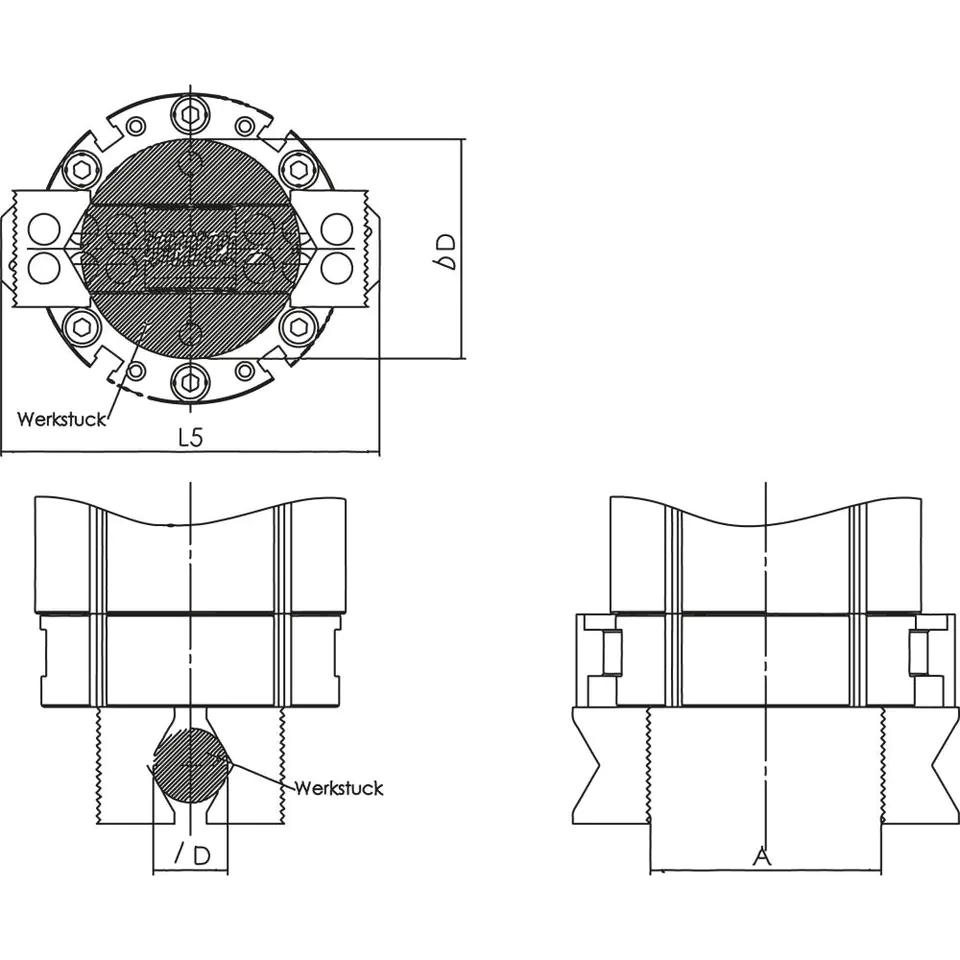

Design: the gripper inserts fit all AMF grippers of the No. 1650 series. They can be adjusted to a given detail size by moving them on the gripper body.

Application: for fast and reliable transfer of workpieces on the machine tool with the appropriate gripper. Mounted on the gripper body and mechanically secured.

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
