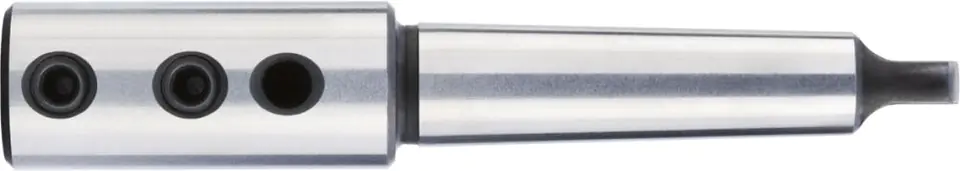

Dredge clamping chuck with guide pivot, with Morse cone shank
Material: hardened and grinded. The countersink and journal are fastened with screws, with the countersink being additionally protected against displacement by means of a mandrel
Universal grip MK2, wlk. 2 GFS to deepening.pivot lead.
This product is not available
- Availability:
- expected delivery
- Brand:
- GfS
- Product code:
- 15823200 / 4033591011502
Share this product:

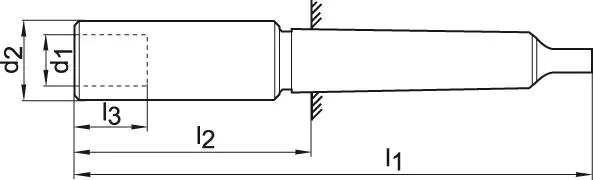

Specification
| Grip ø d3: | MK 2 |
|---|---|
| Head length l2: | 75 mm |
| Hole d1: | 22 mm |
| Length l3: | 28 mm |
| Ø drill degrees mm: | 2 |
| Ø head d2: | 34 mm |
| Total length l1: | 155 mm |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
